2SB1558A
View detailed images (4)

2SB1558A

SKU: 2SB1558A

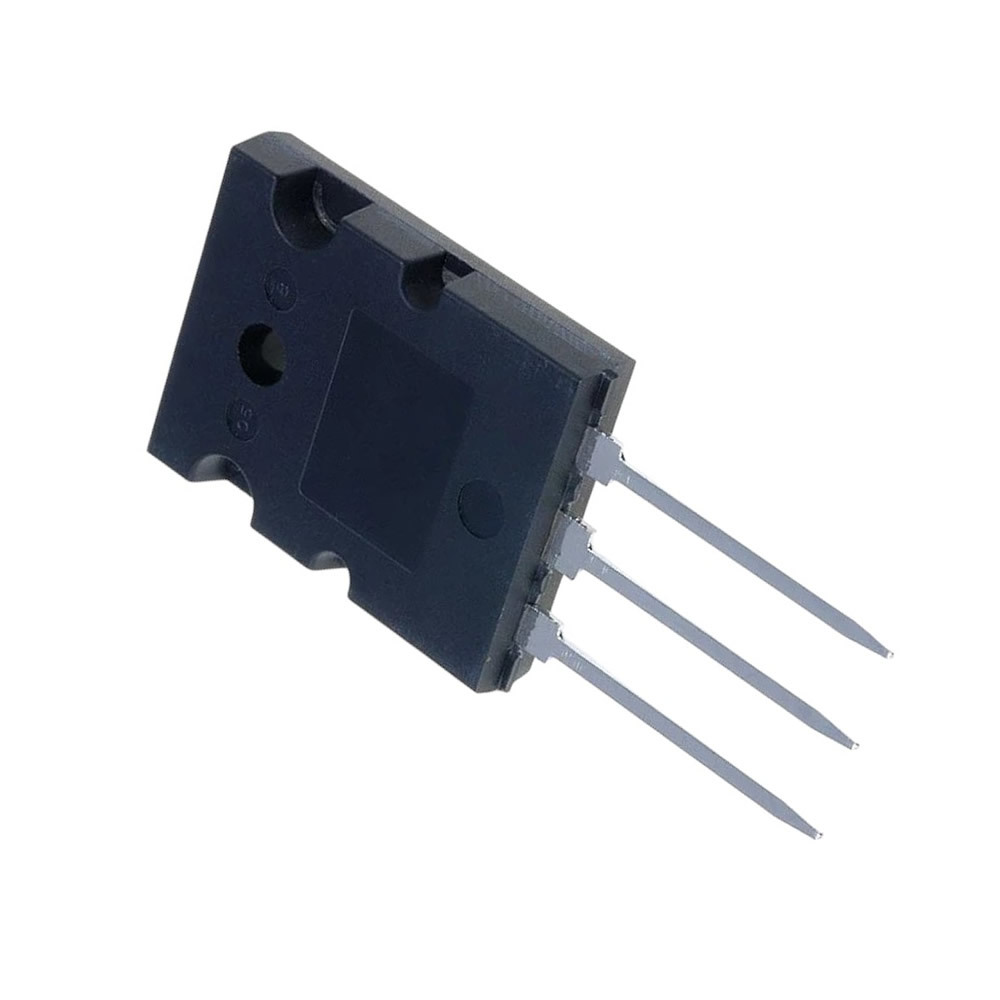

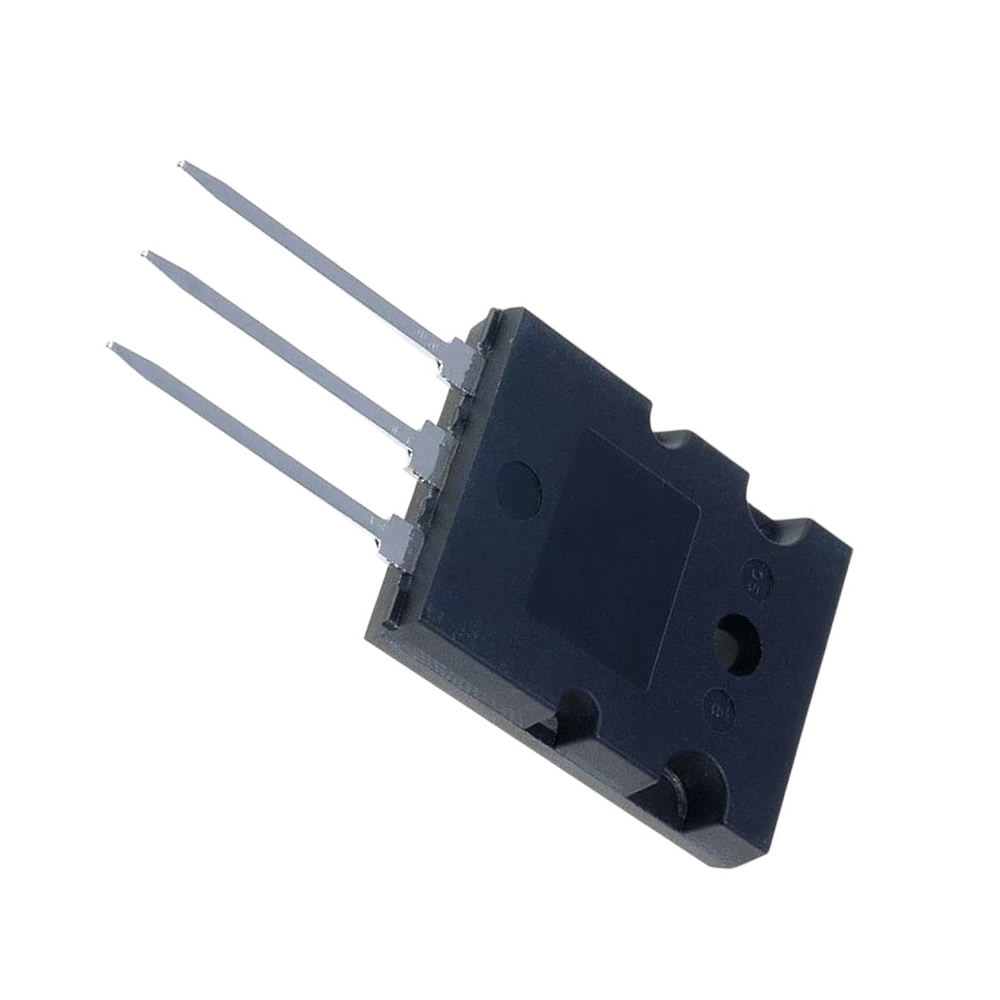

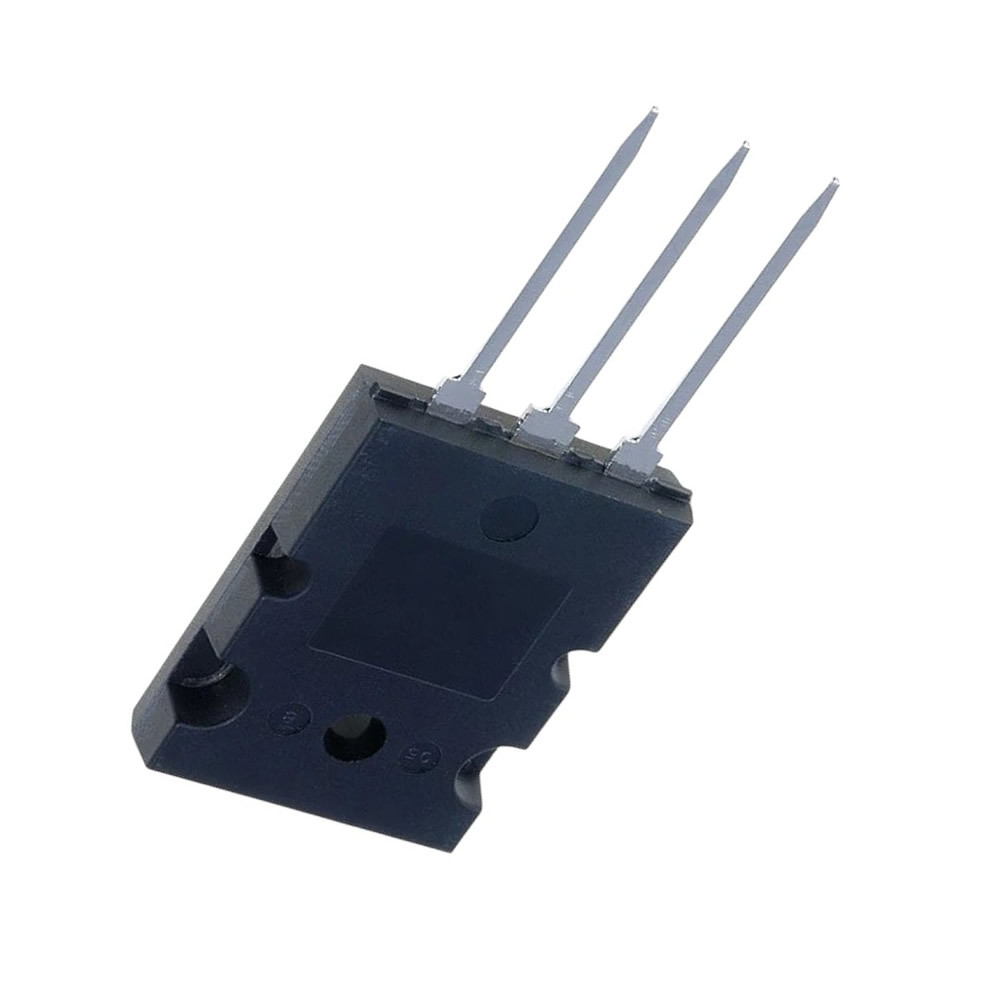

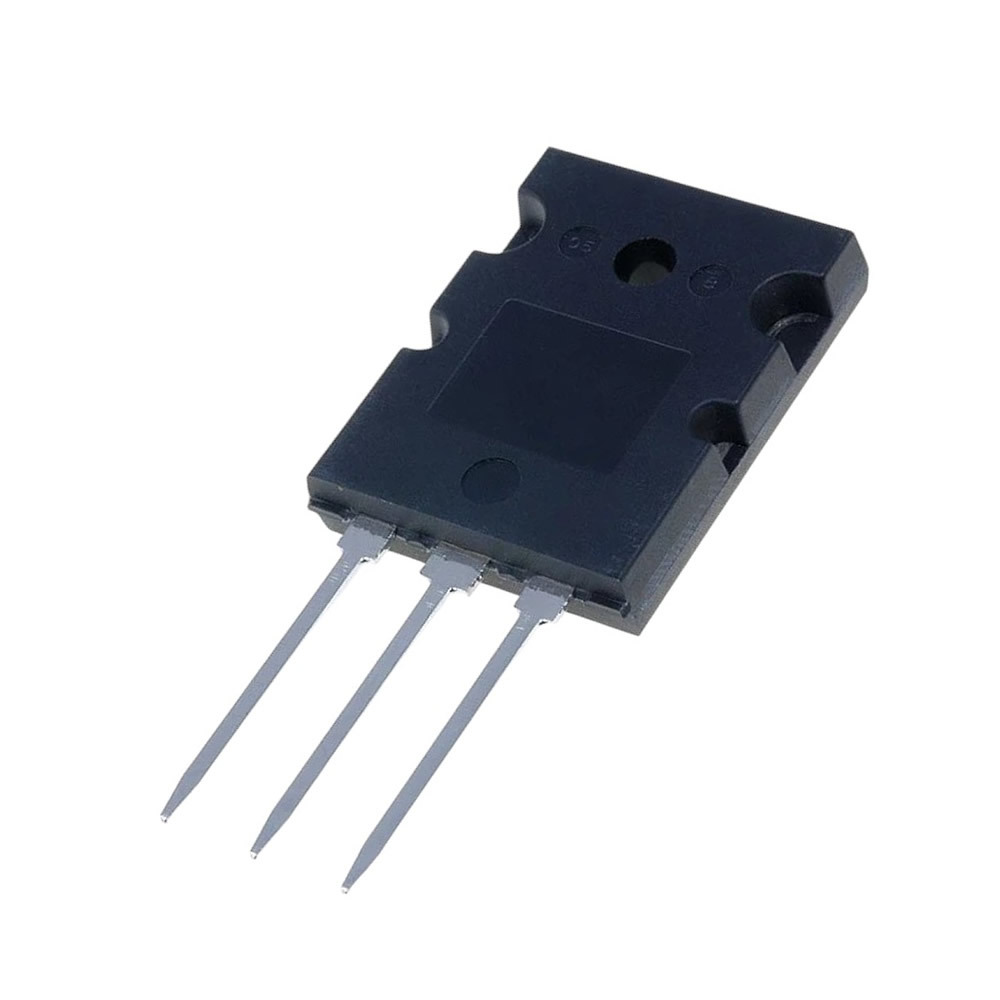

2SB1558A Transistor Silicon PNP CASE: TO264 MAKE: Toshiba
Product specifications
Type Transistor Silicon PNP
Case TO264
Manufacturer Toshiba
Polarity PNP
Maximum Collector Power Dissipation (Pc) 80 W
Maximum Collector-Base Voltage |Vcb| 140 V
Maximum Collector-Emitter Voltage |Vce| 140 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 8 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 170 pF
Transition Frequency (ft): 30 MHz
Forward Current Transfer Ratio (hFE), MIN 5
SKU 767453
