2SB1594
View detailed images (13)

2SB1594

SKU: 2SB1594

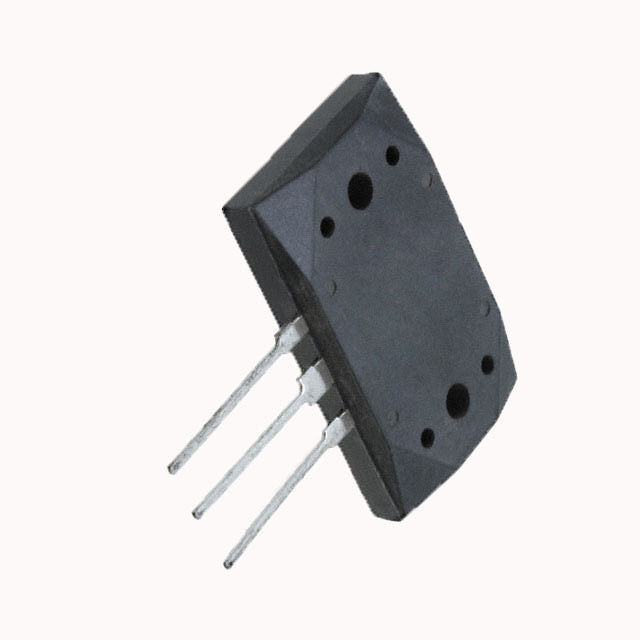

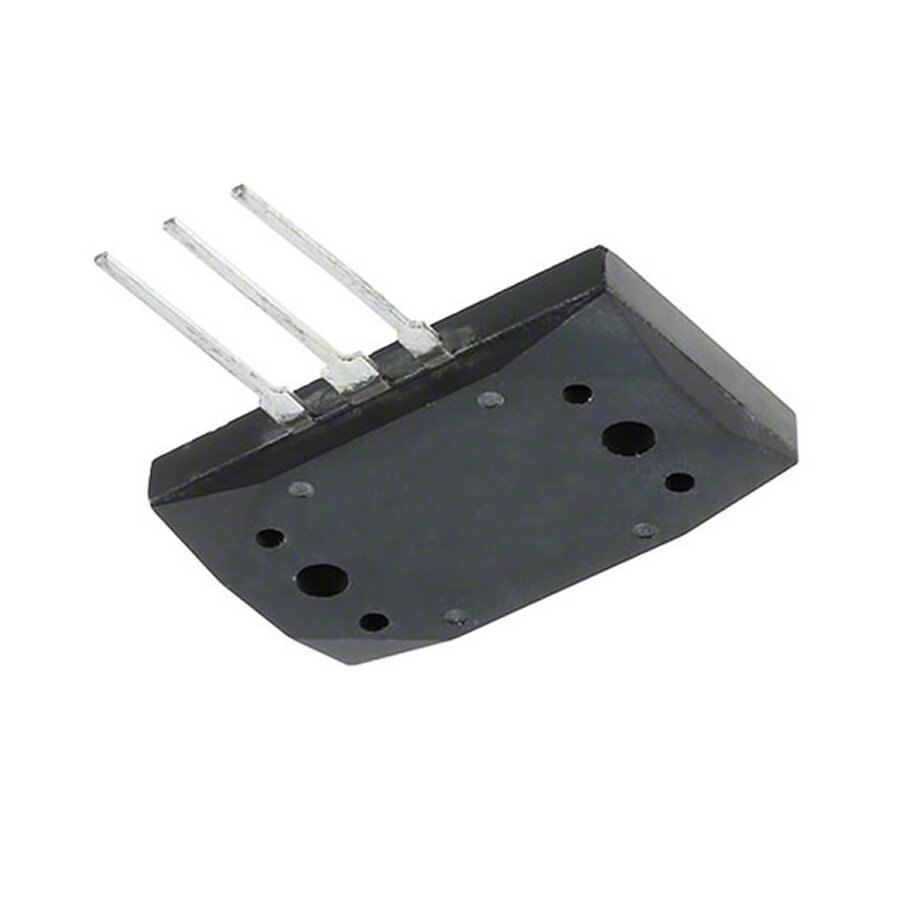

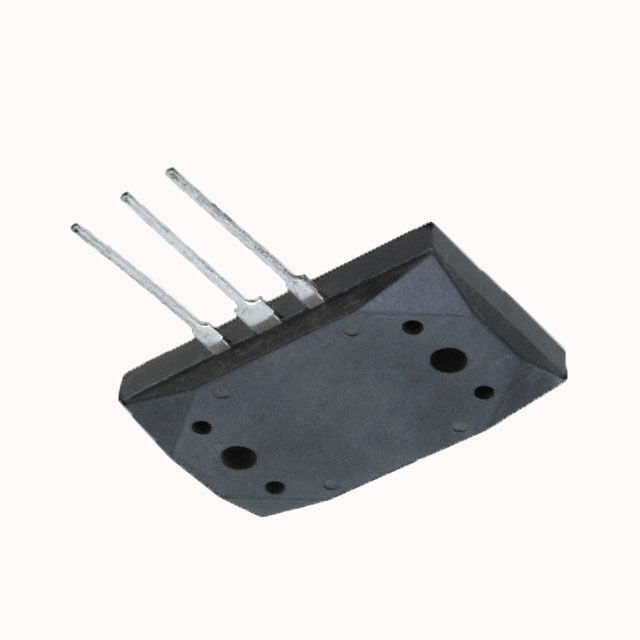

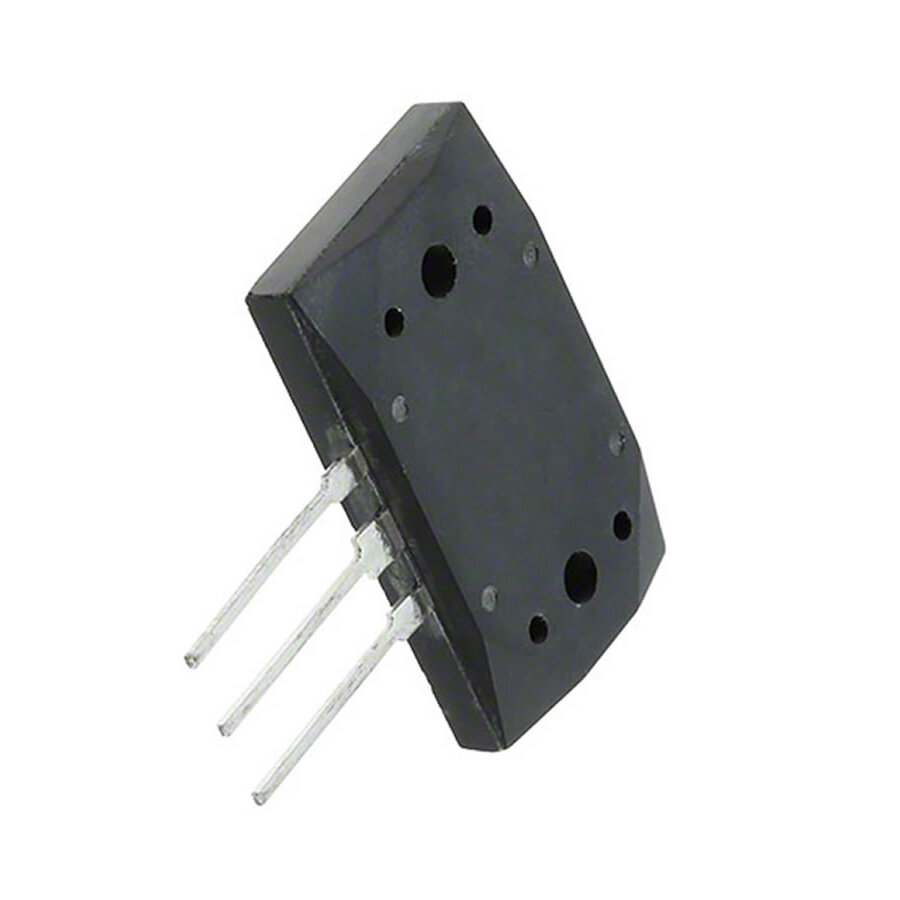

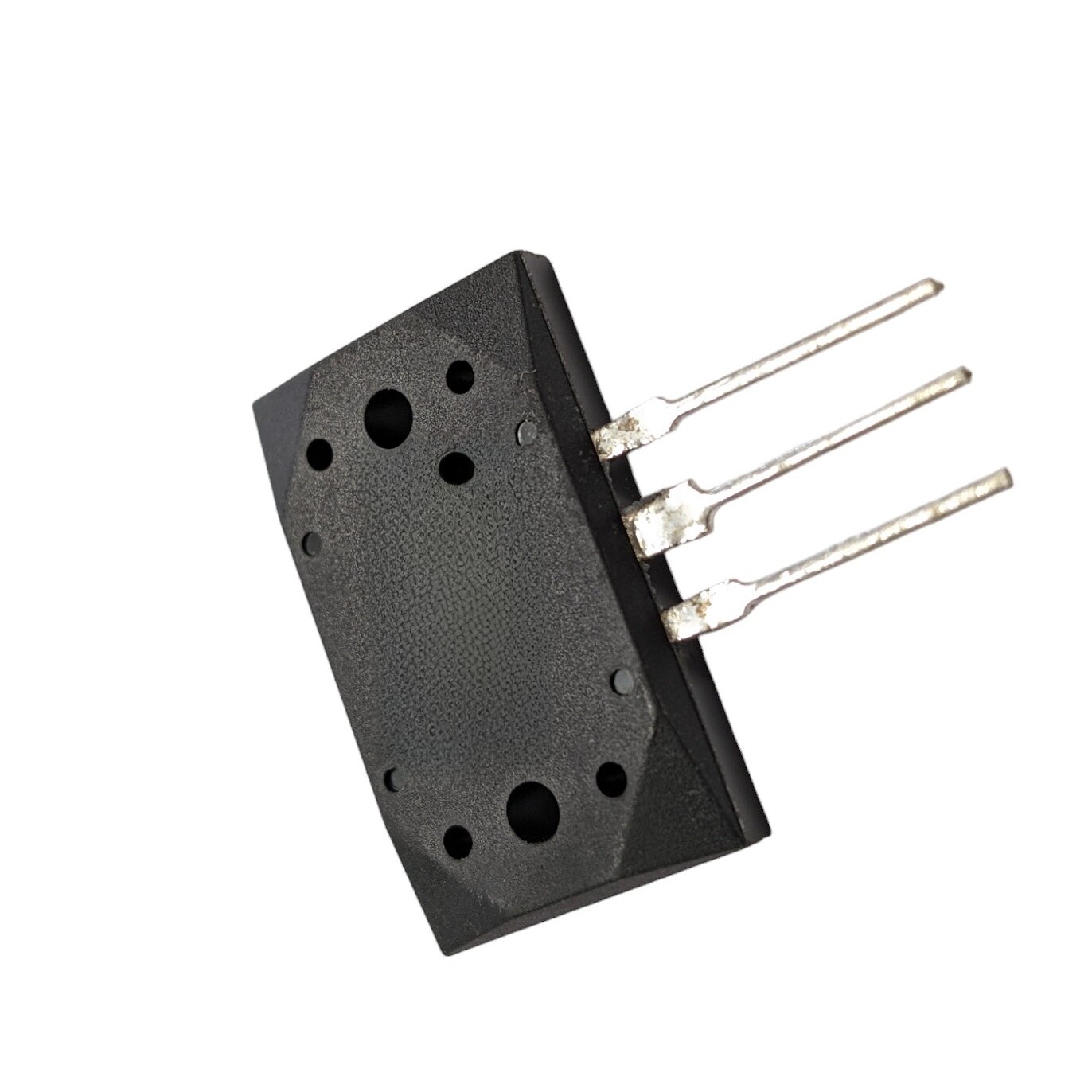

2SB1594 Transistor Silicon PNP CASE: MT200 MAKE: Toshiba
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
2SB1594 Datasheet
Product specifications
Type Transistor Silicon PNP
Case MT200
Manufacturer Toshiba
Polarity PNP
Maximum Collector Power Dissipation (Pc) 150 W
Maximum Collector-Base Voltage |Vcb| 160 V
Maximum Collector-Emitter Voltage |Vce| 160 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 10 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 150 pF
Transition Frequency (ft): 30 MHz
Forward Current Transfer Ratio (hFE), MIN 3000
SKU 343588
