2SB448
View detailed images (12)

2SB448

SKU: 2SB448

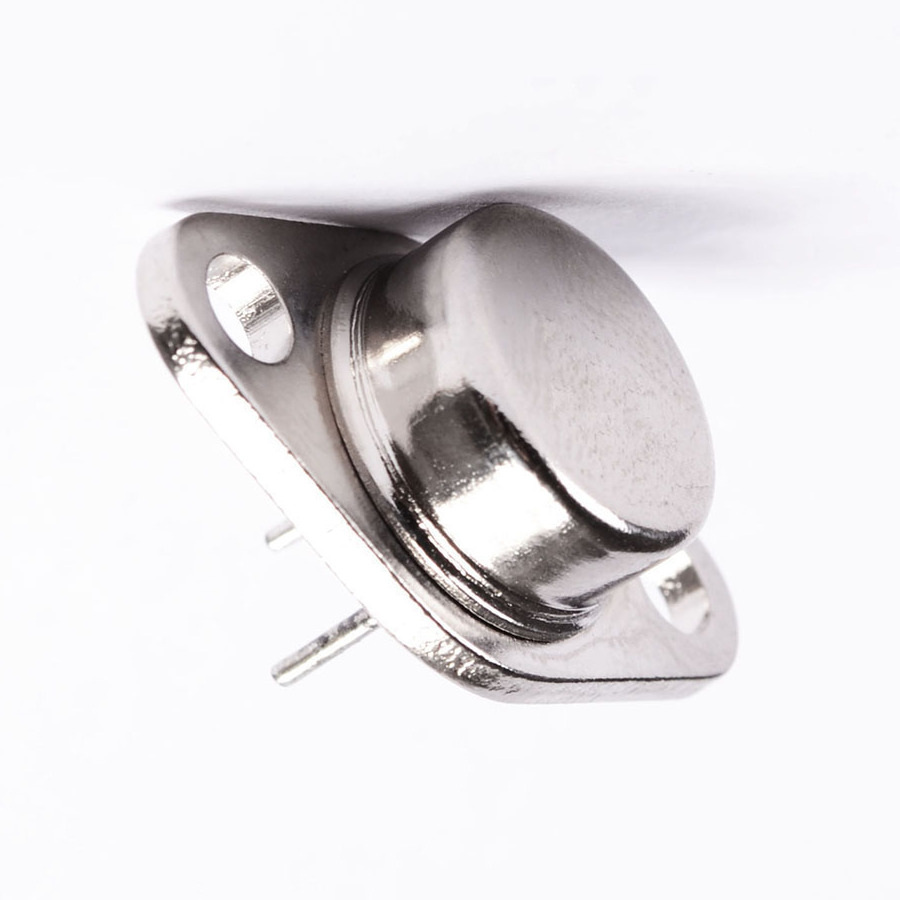

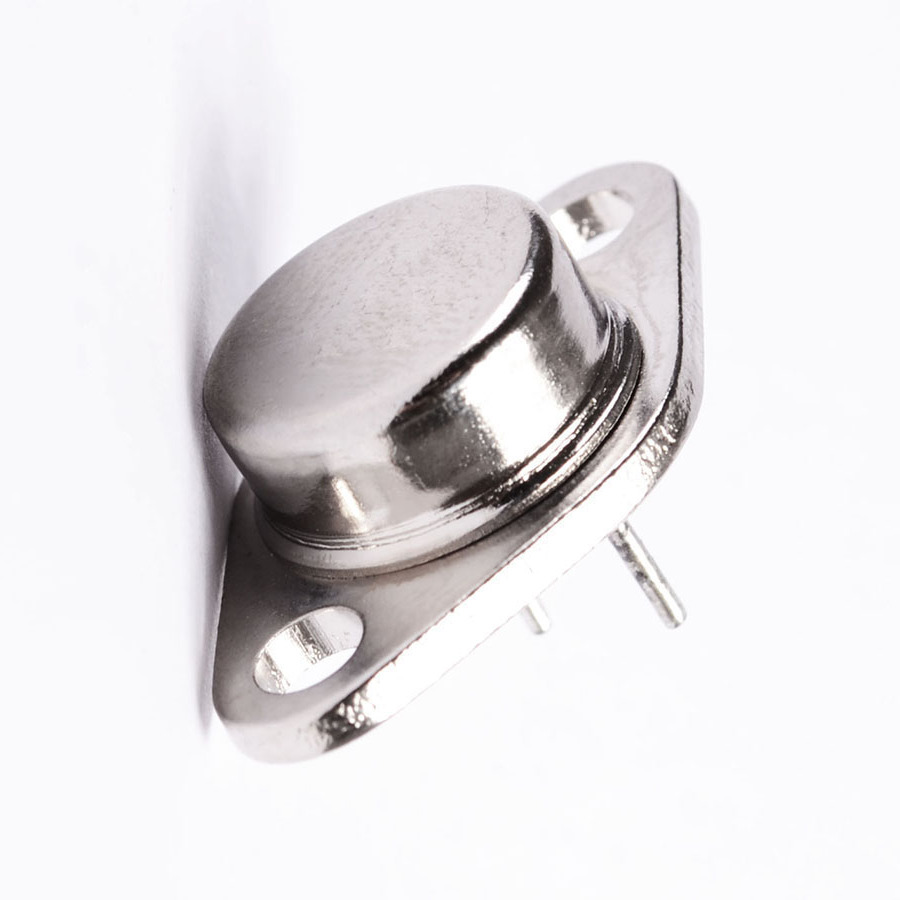

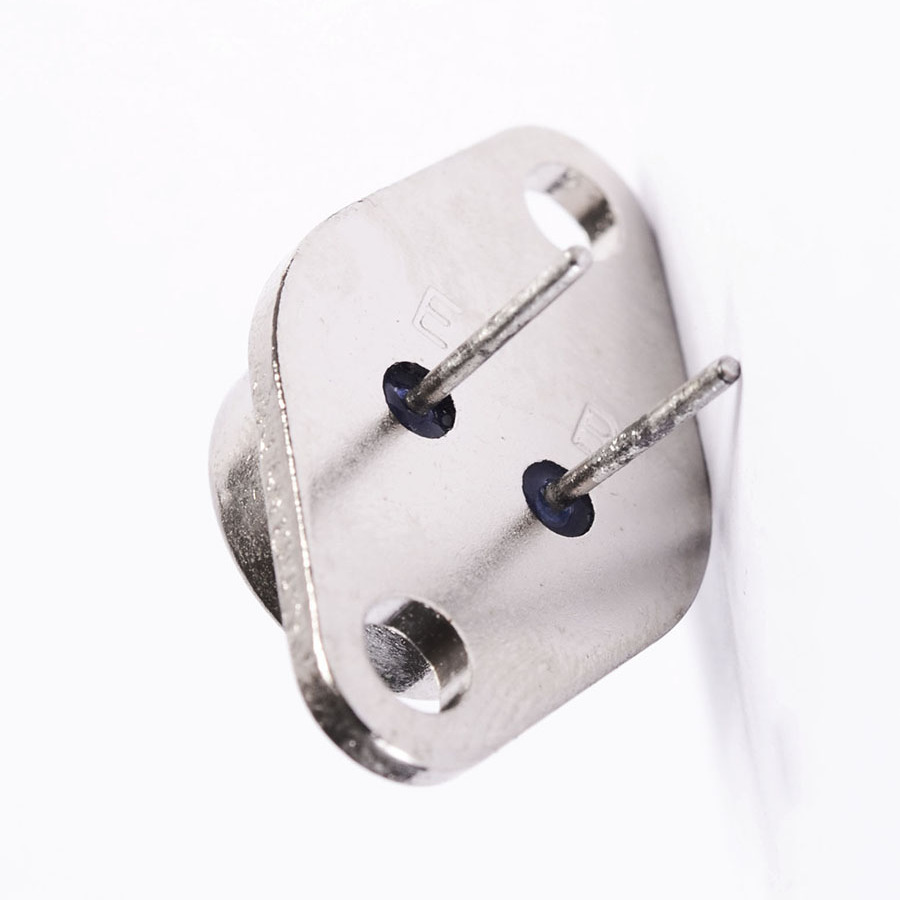

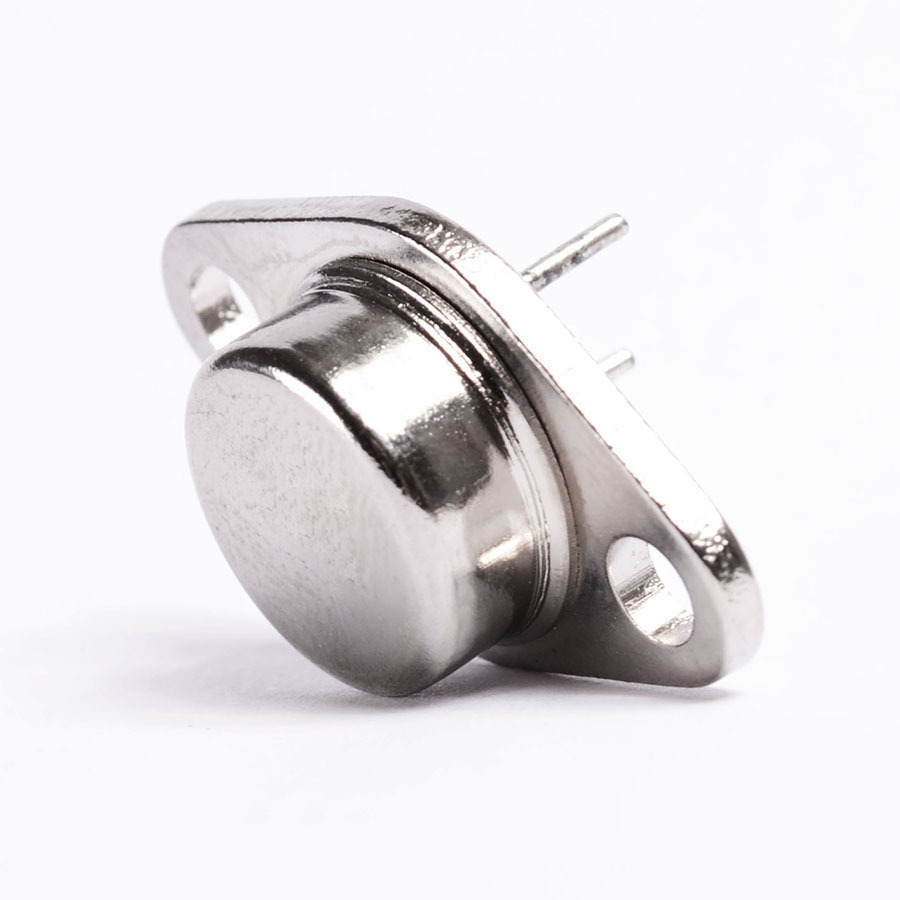

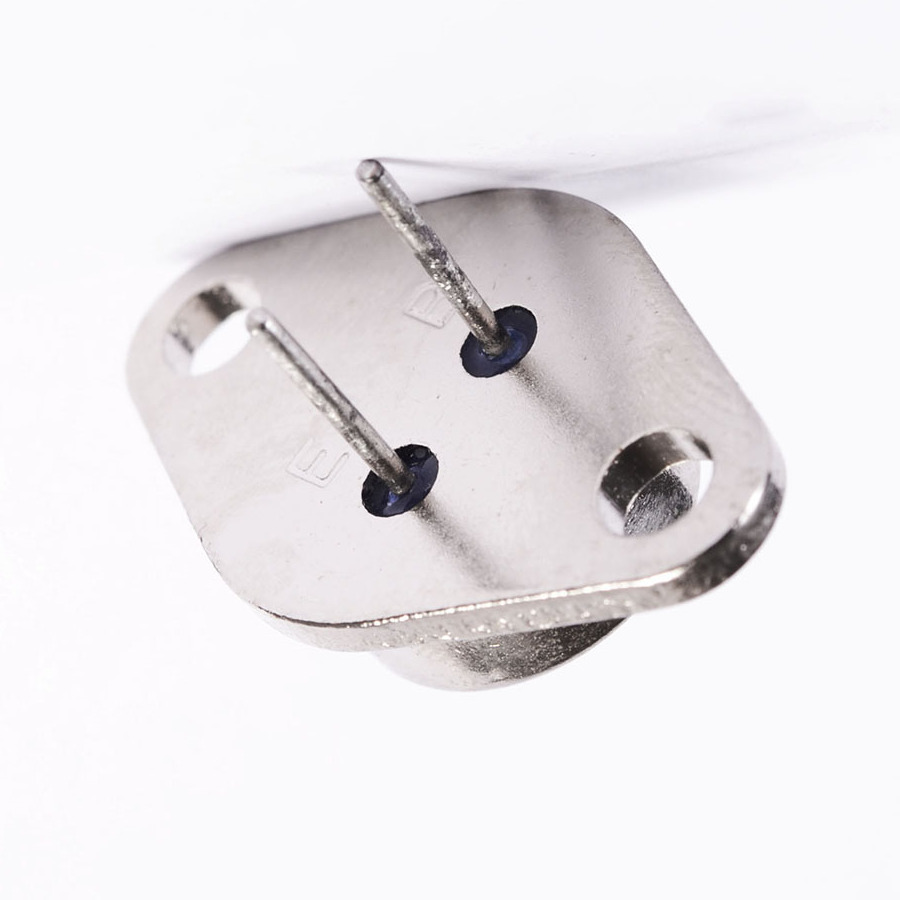

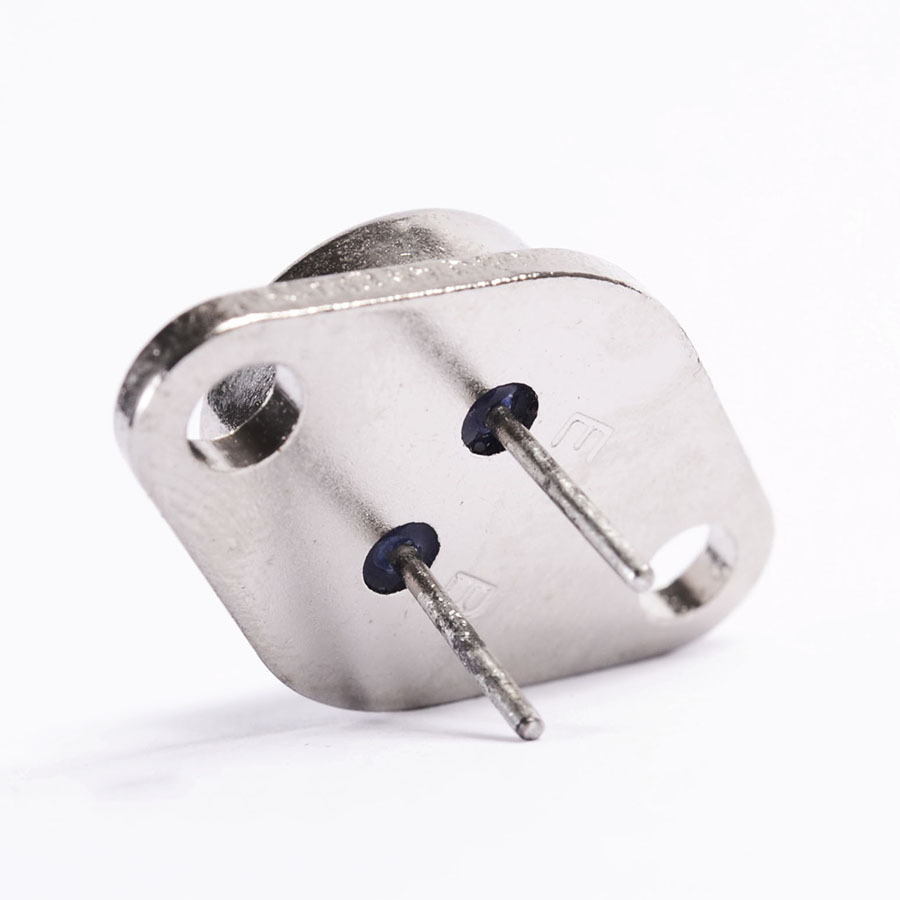

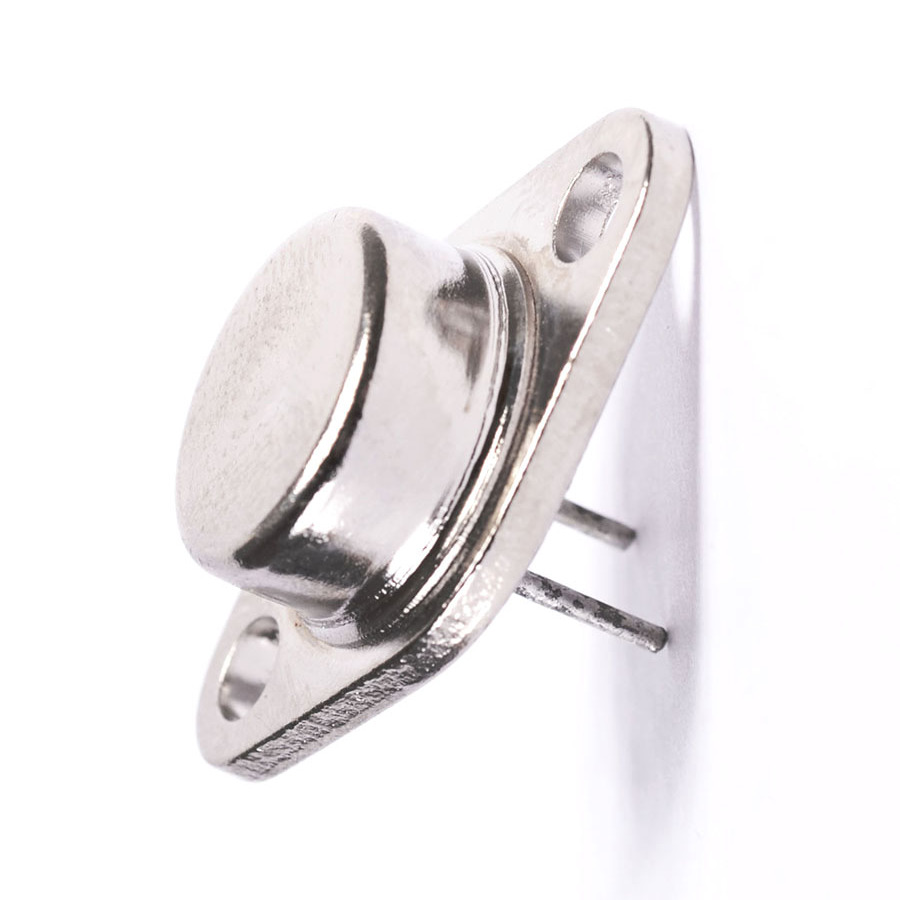

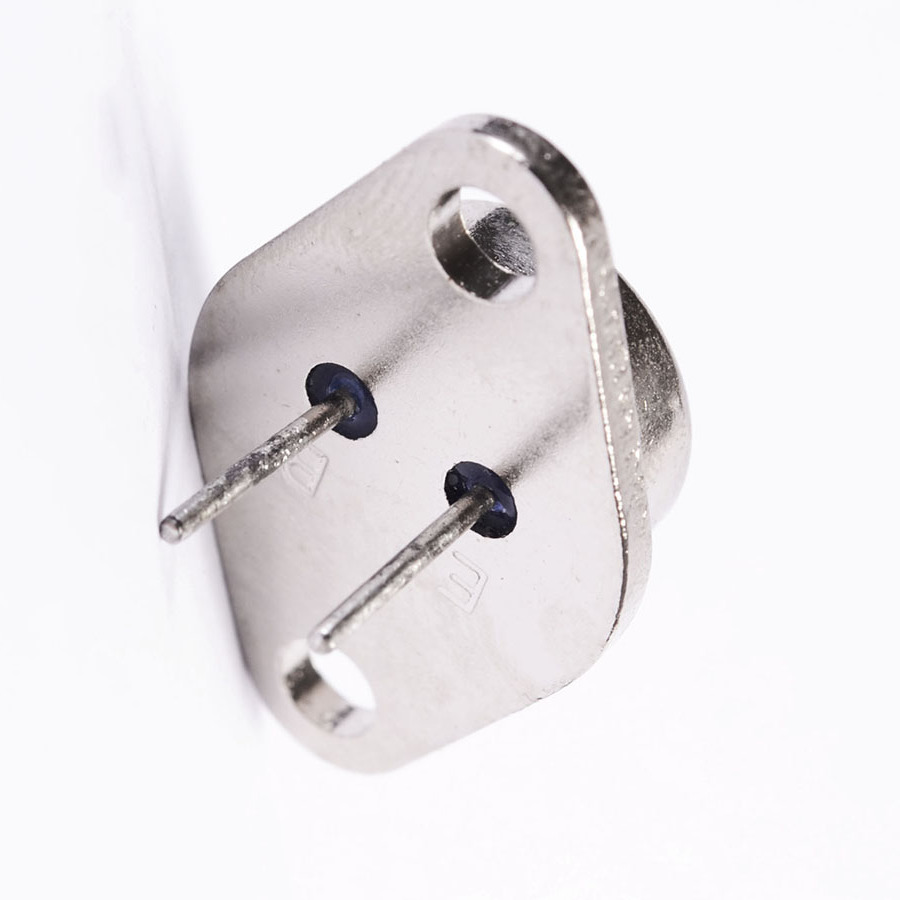

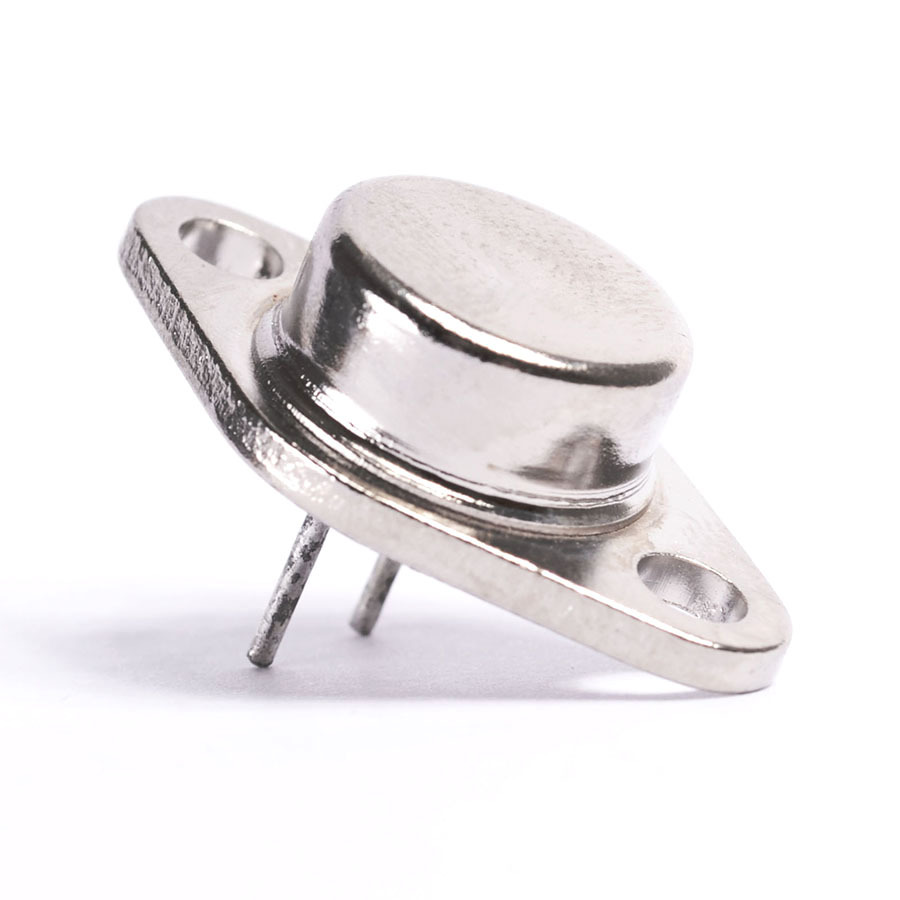

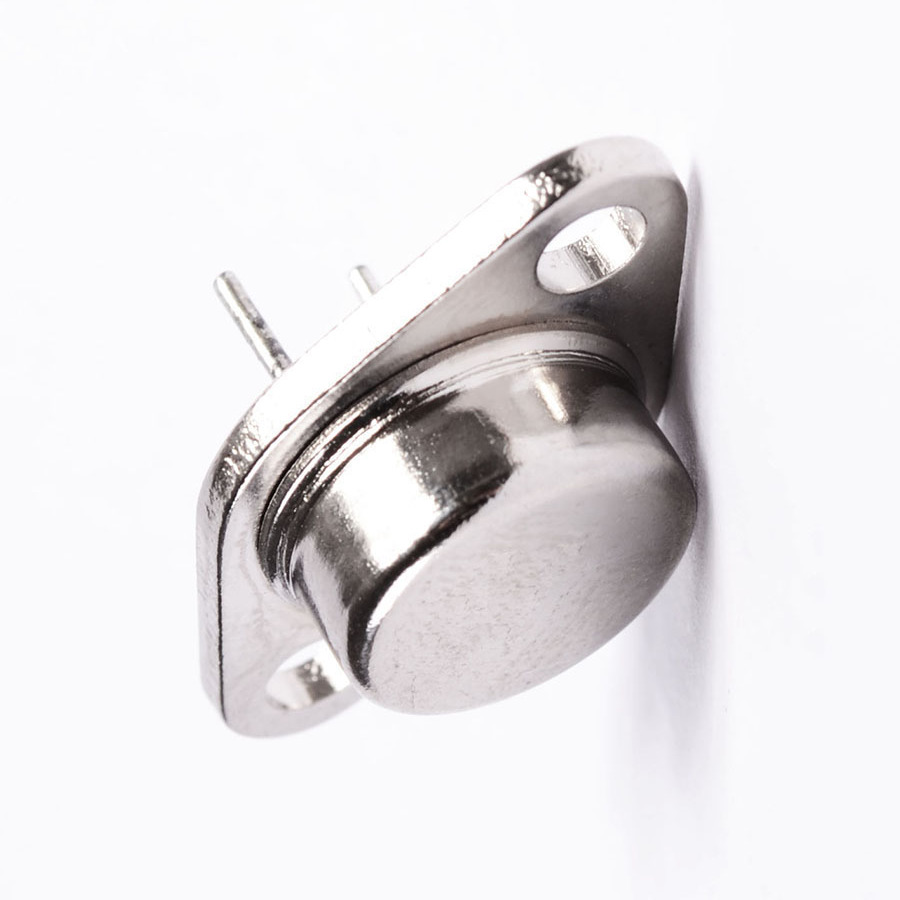

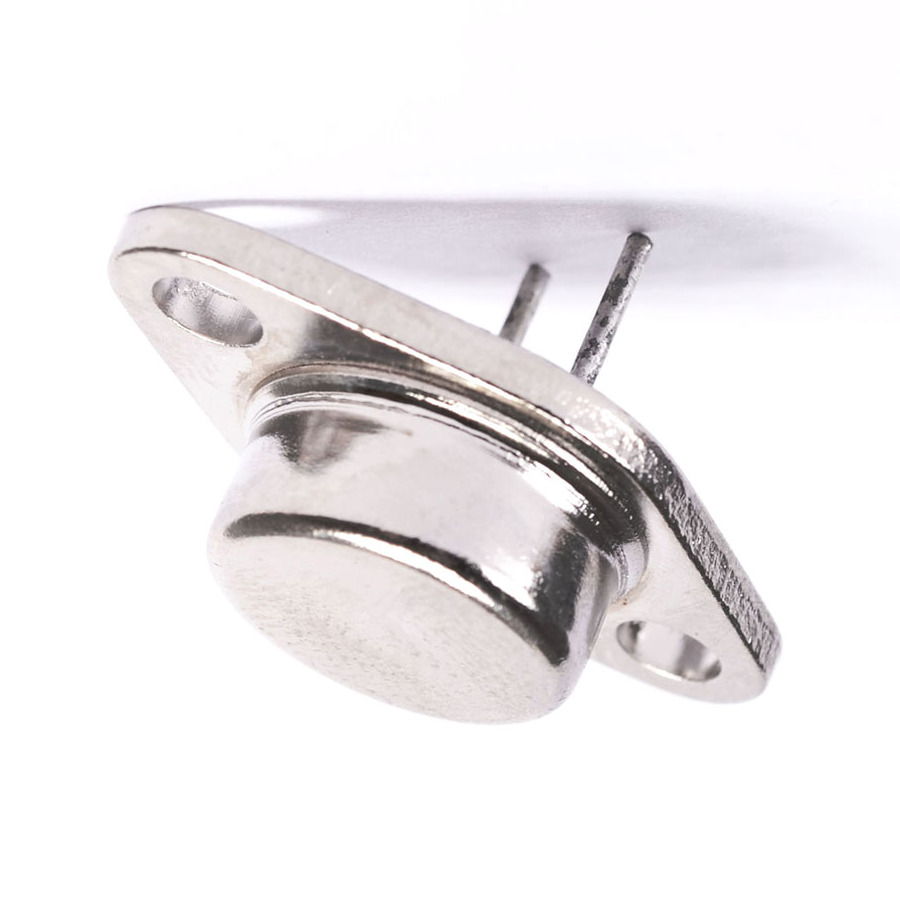

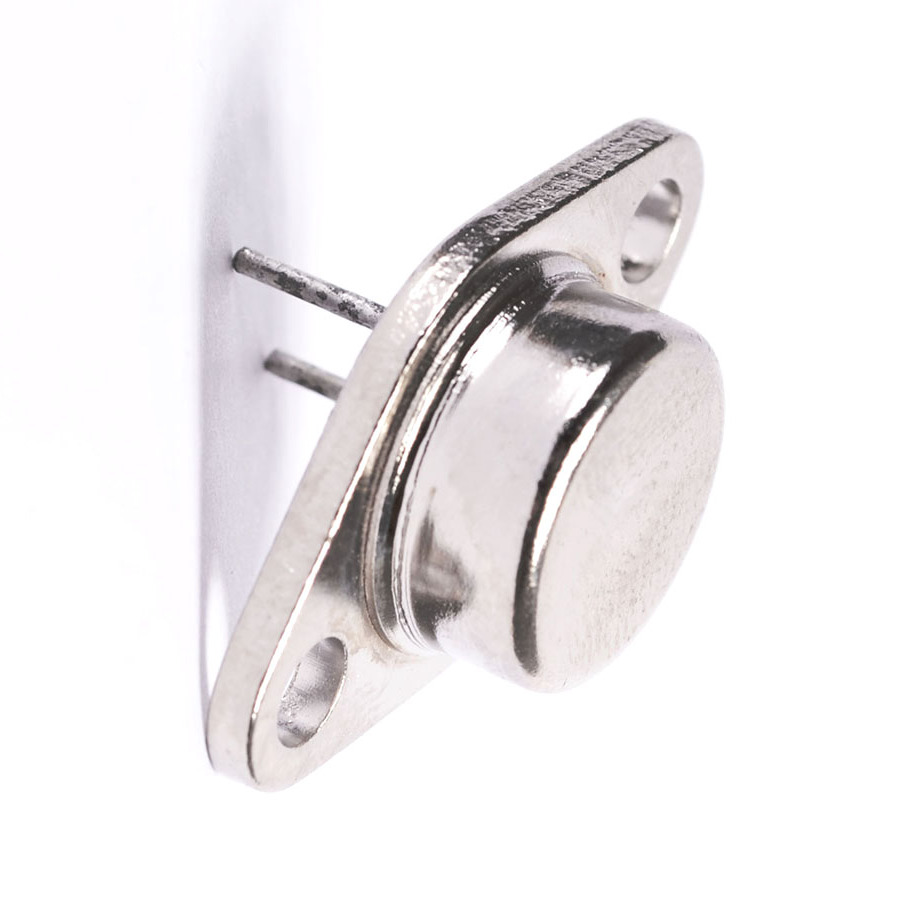

2SB448 Transistor Germanium PNP CASE: SOT9 MAKE: Matsushita Electronics
Product specifications
Type Transistor Germanium PNP
Case SOT9
Manufacturer Matsushita Electronics
Vbr CBO 32
Max. PD (W) 13
Max. hFE 110
Min hFE 30
Ic Max. (A) 1.0
@Ic (test) (A) 1.0
Icbo Max. @Vcb Max. (A) 1.0m
Polarity PNP
Derate Above 25°C 200m
Trans. Freq (Hz) Min. 10k
Oper. Temp (°C) Max. 100
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 13 W
Maximum Collector-Base Voltage |Vcb| 32 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 85 °C
Transition Frequency (ft): 0.3 MHz
Forward Current Transfer Ratio (hFE), MIN 30
SKU 549784
