2SB560F
View detailed images (12)

2SB560F

SKU: 2SB560F

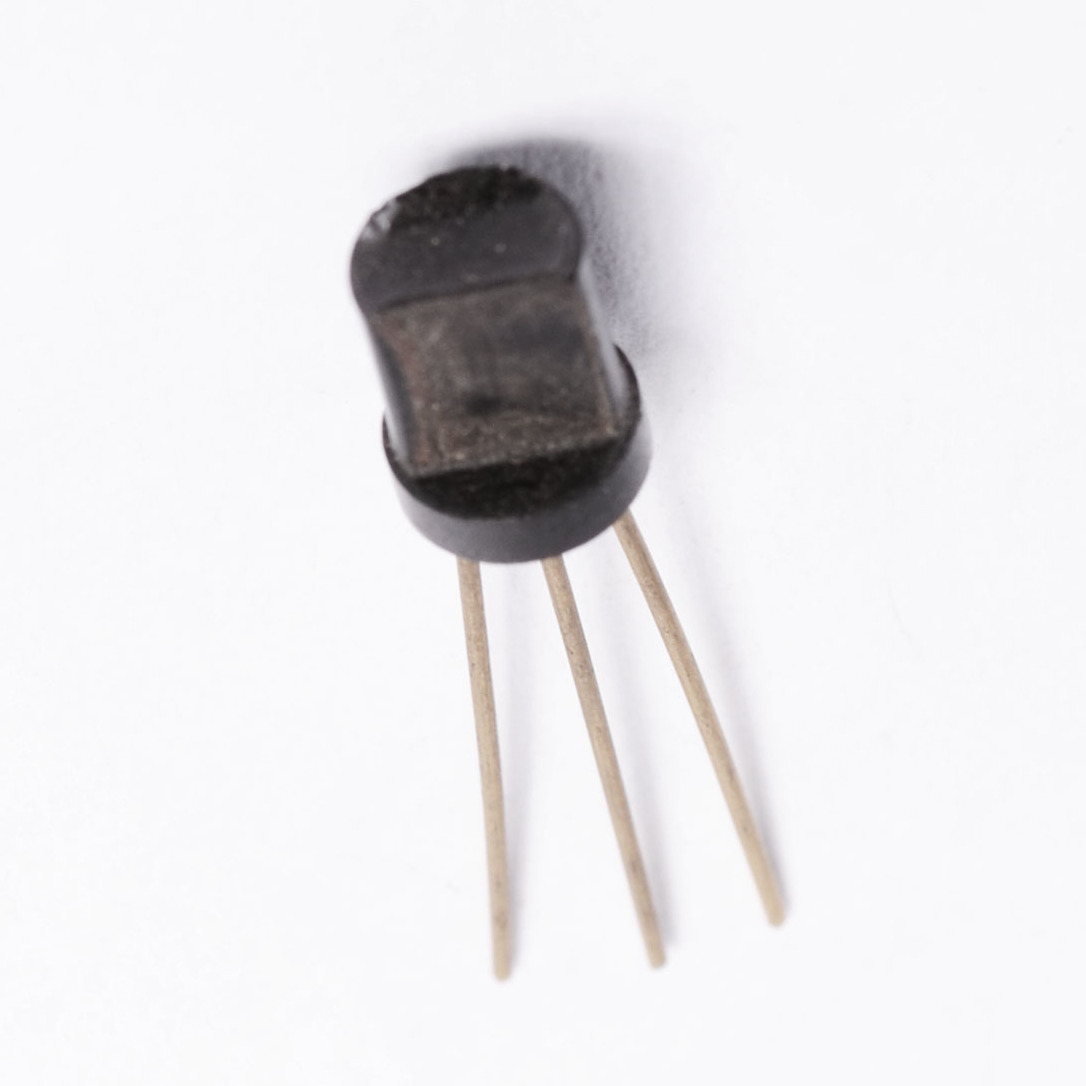

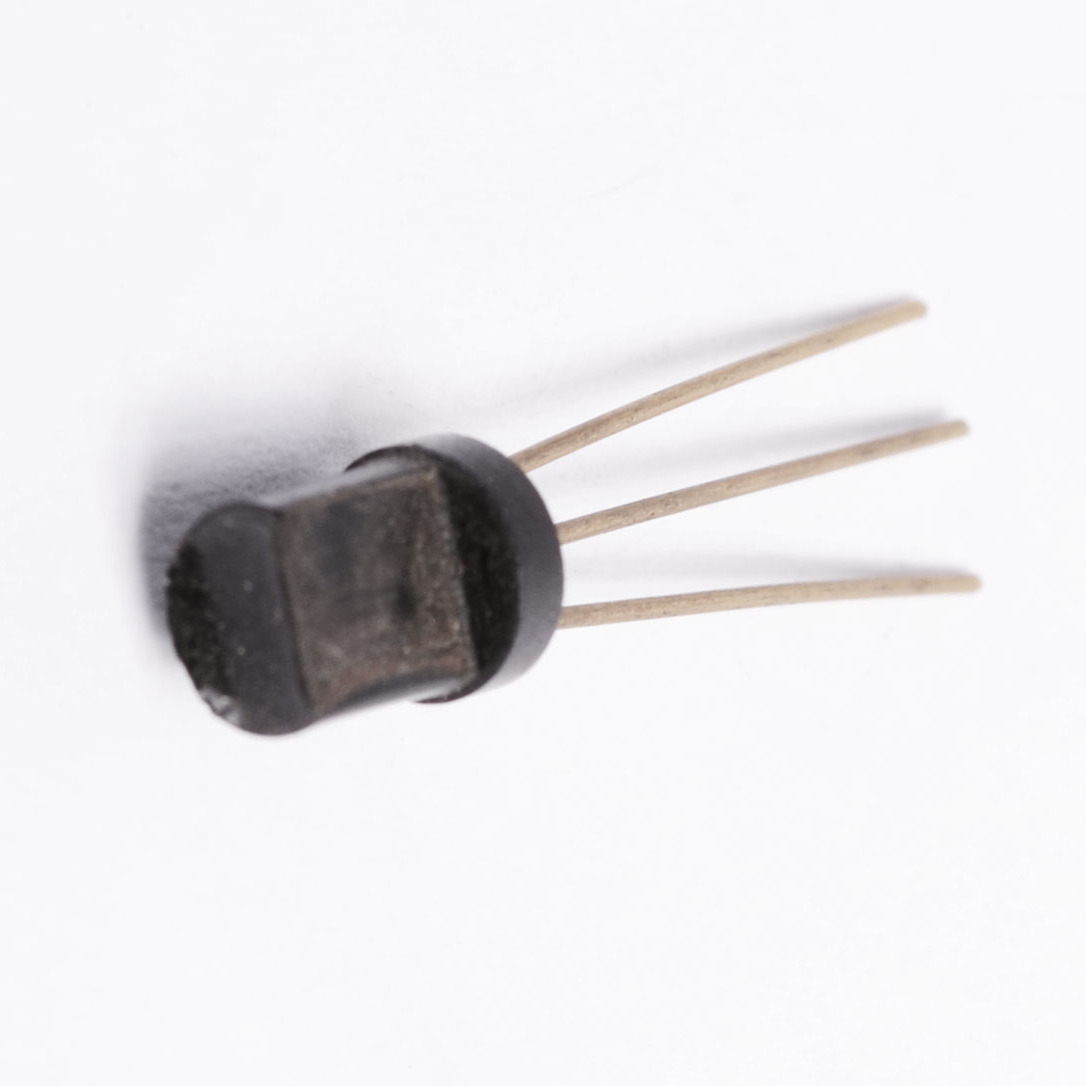

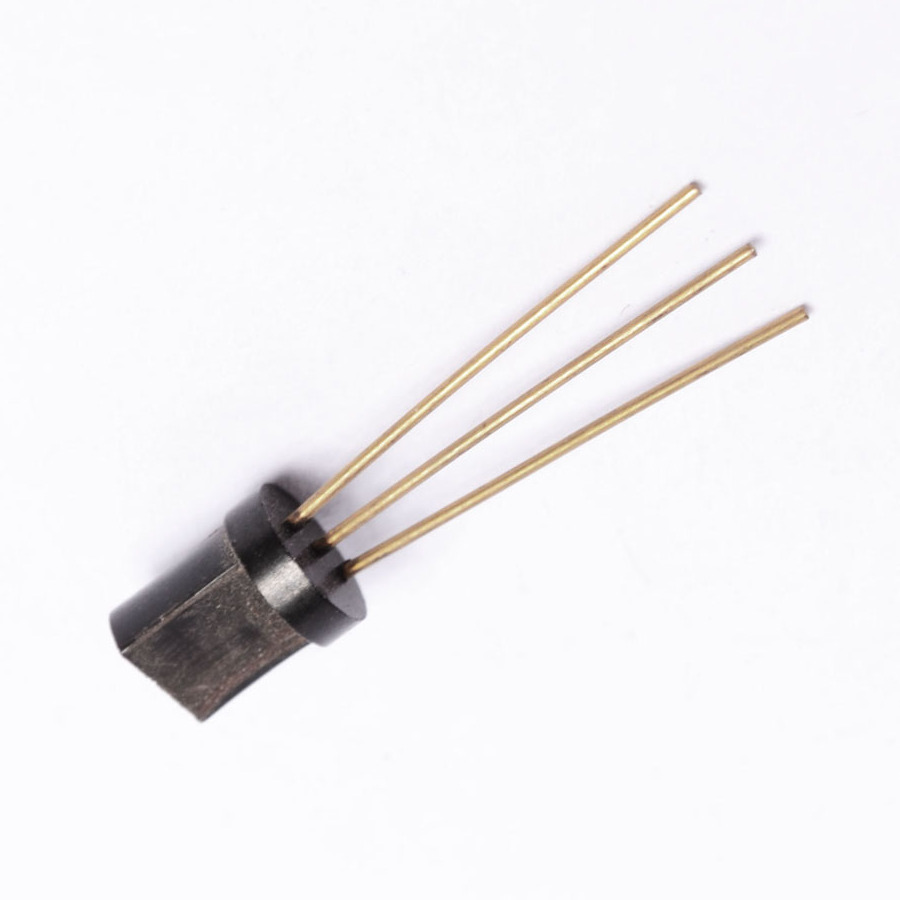

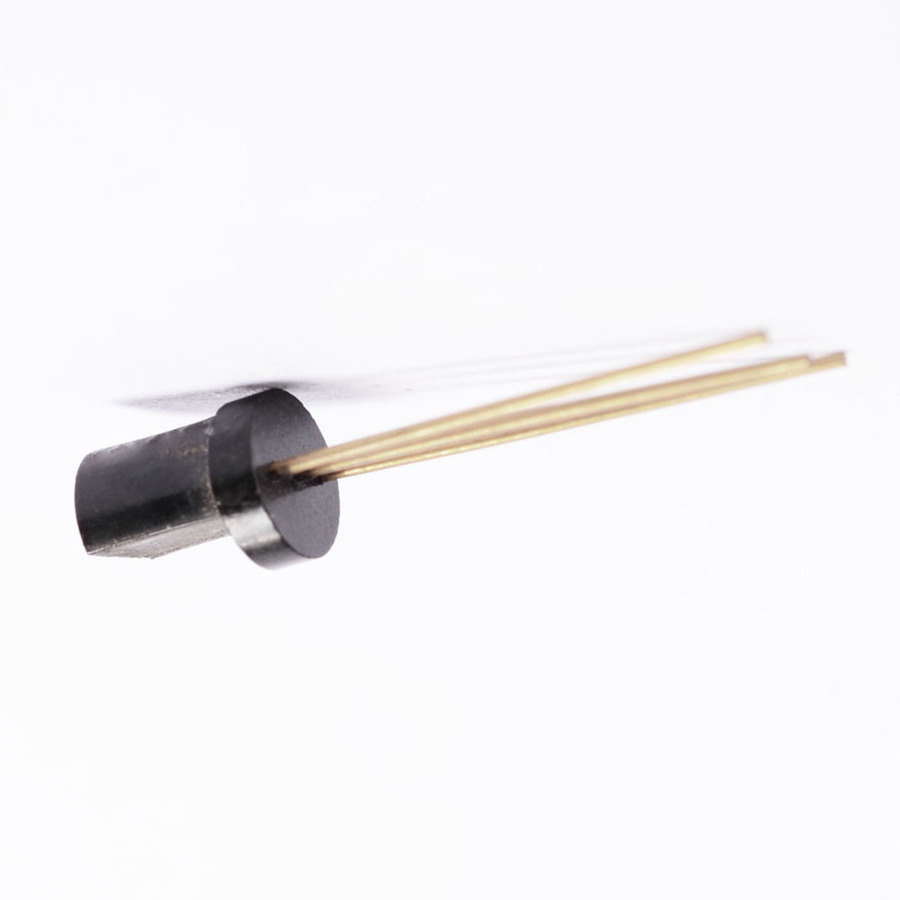

2SB560F Transistor Silicon PNP CASE: TO98 MAKE: Sanyo Semiconductor
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 4 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon PNP
Case TO98
Manufacturer Sanyo Semiconductor
Vbr CBO 100
Vbr CEO 80
Max. PD (W) 900m
Max. hFE 320
Min hFE 160
Ic Max. (A) 1.0
@Ic (test) (A) 50m
Icbo Max. @Vcb Max. (A) 1.0u
Polarity PNP
Trans. Freq (Hz) Min. 100M-
Oper. Temp (°C) Max. 150
@VCE (V) 2.0
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.75 W
Maximum Collector-Base Voltage |Vcb| 100 V
Maximum Collector-Emitter Voltage |Vce| 80 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.7 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 30 pF
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN 160
SKU 394887
