2SB564
View detailed images (12)

2SB564

SKU: 2SB564

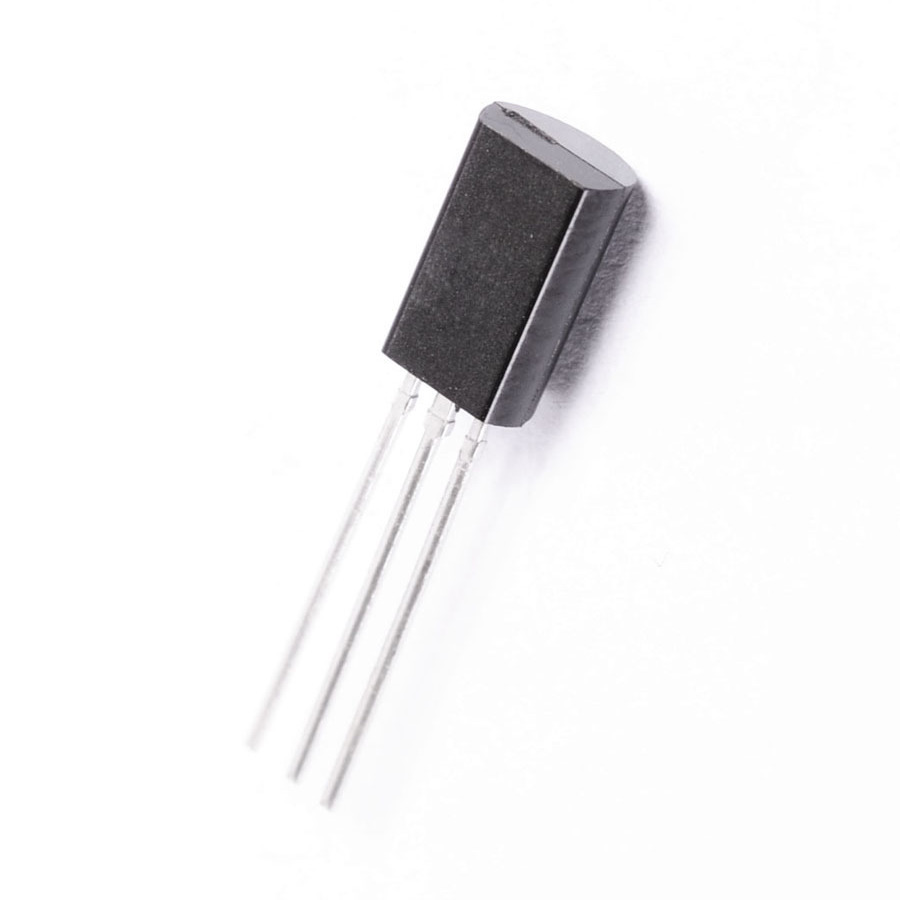

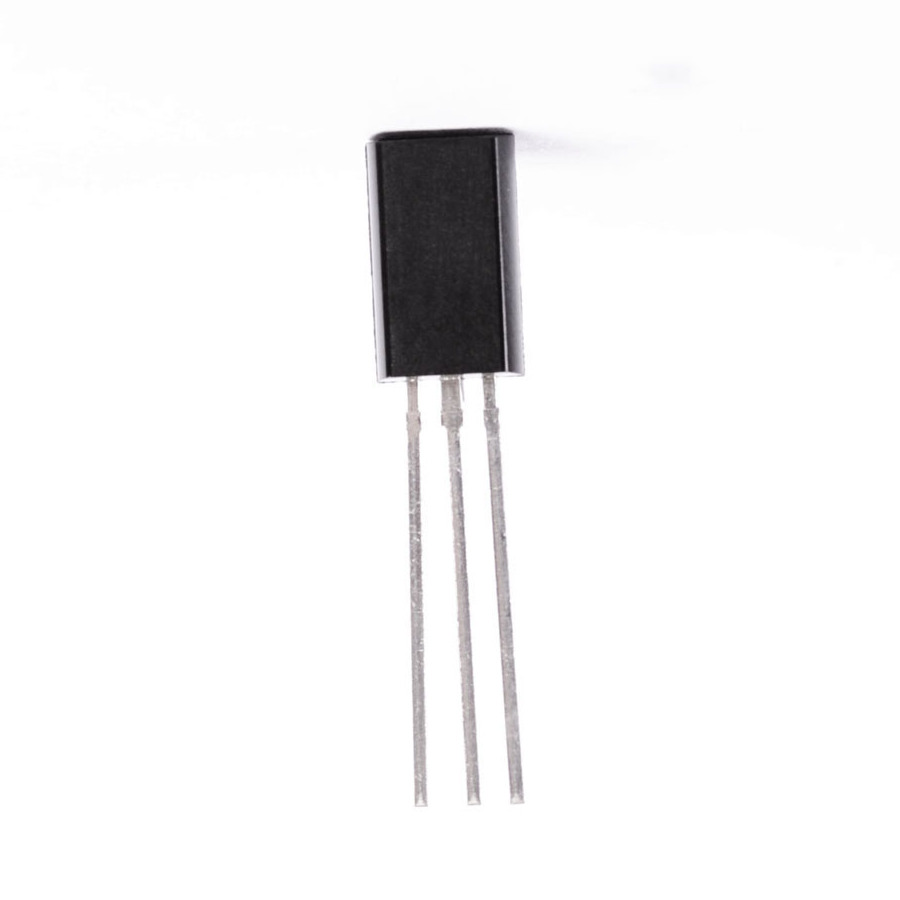

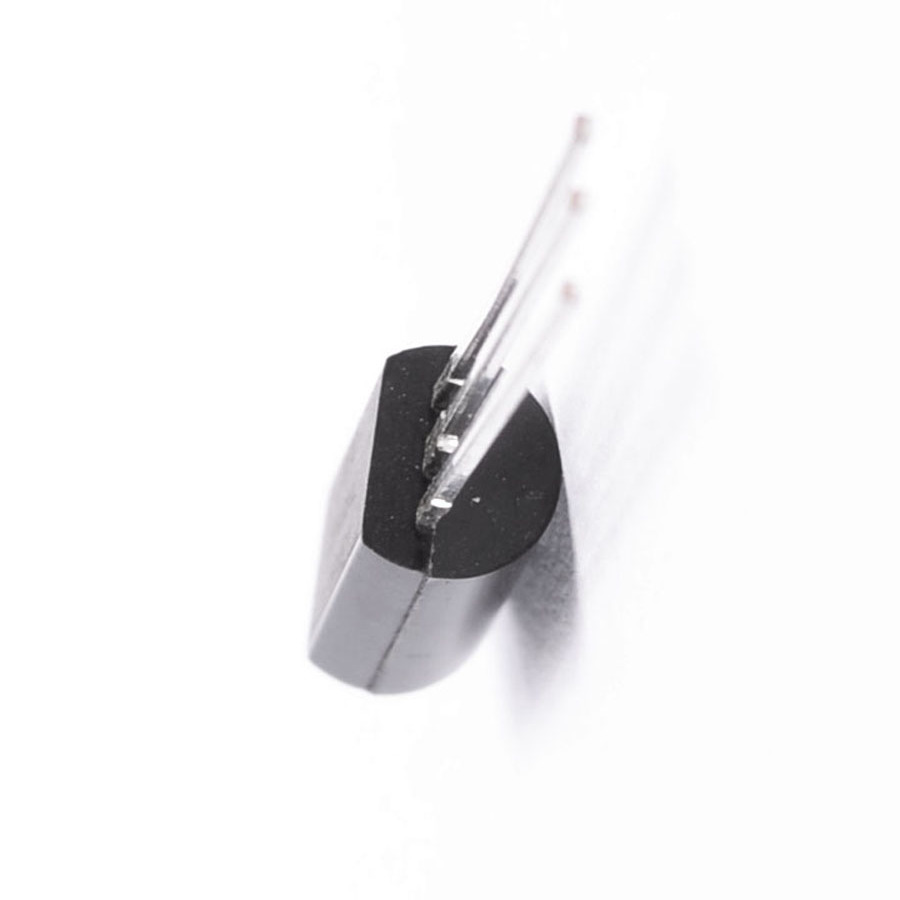

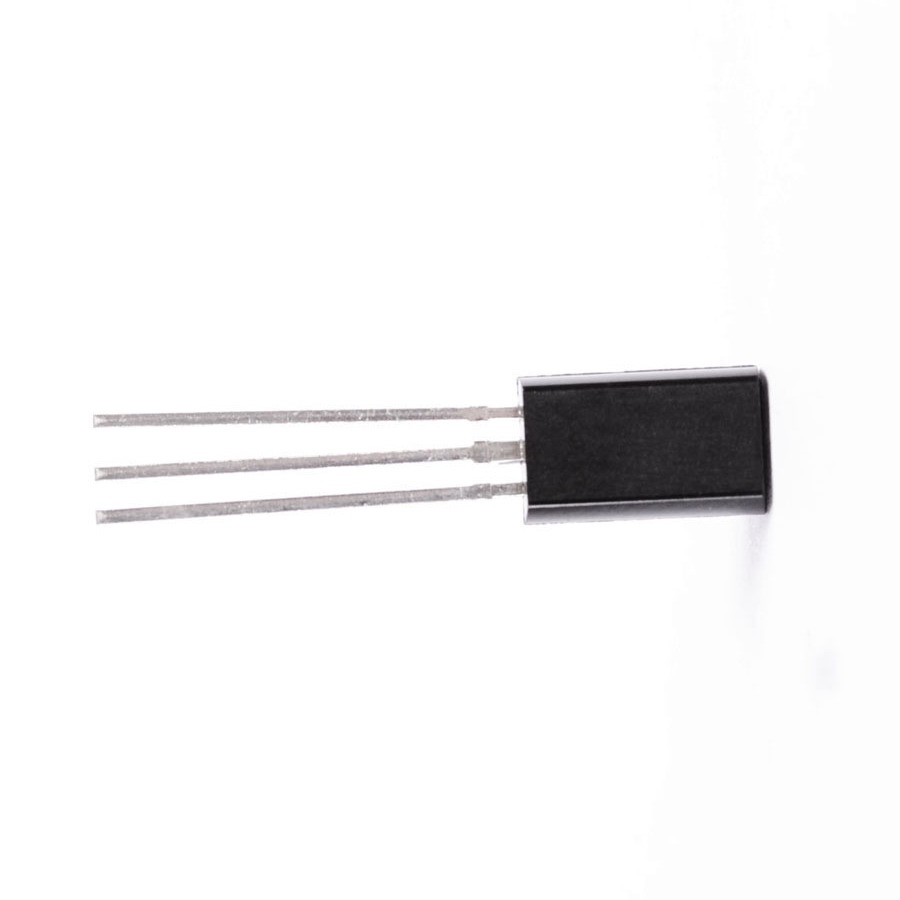

2SB564 Transistor Silicon PNP CASE: TO92L MAKE: Generic
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 61 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SB564 Datasheet
Product specifications
Type Transistor Silicon PNP
Case TO92L
Manufacturer Micro Electronics
Vbr CBO 30
Vbr CEO 25
Max. PD (W) 800m
C(ob) (F) 36p
Derate (Amb) (W/°C) 6.4m
hfe 200
Ic Max. (A) 1.0
Icbo Max. @Vcb Max. (A) 100n
Polarity PNP
Trans. Freq (Hz) Min. 110M
@VCE (test) (V) 1.0
Oper. Temp (°C) Max. 150
@Ic (A) 100m
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.8 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 25 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 175 °C
Collector Capacitance (Cc) 10 pF
Transition Frequency (ft): 55 MHz
Forward Current Transfer Ratio (hFE), MIN 90
SKU 80718
