2SB582
View detailed images (12)

2SB582

SKU: 2SB582

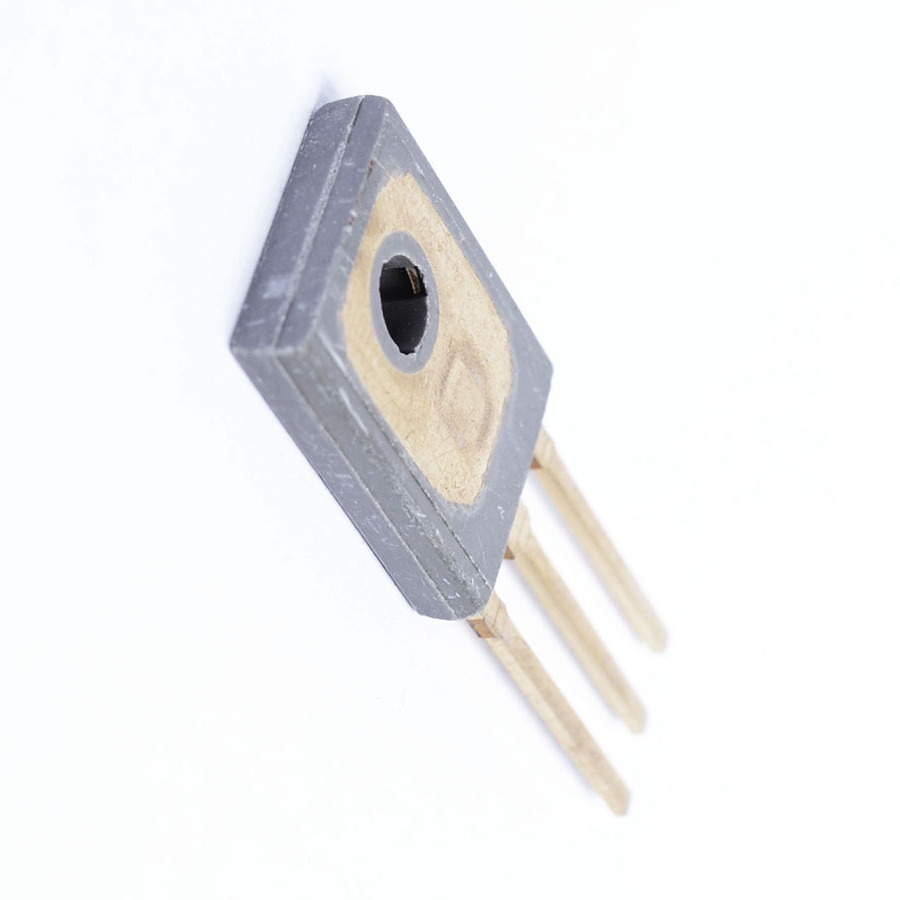

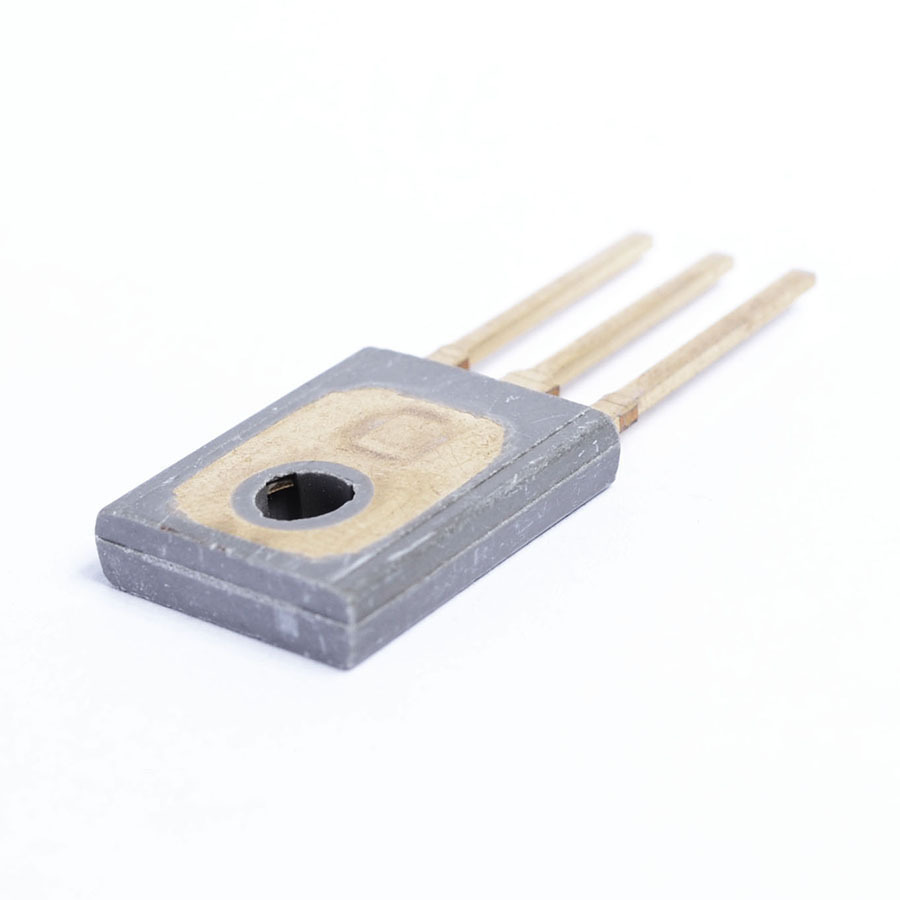

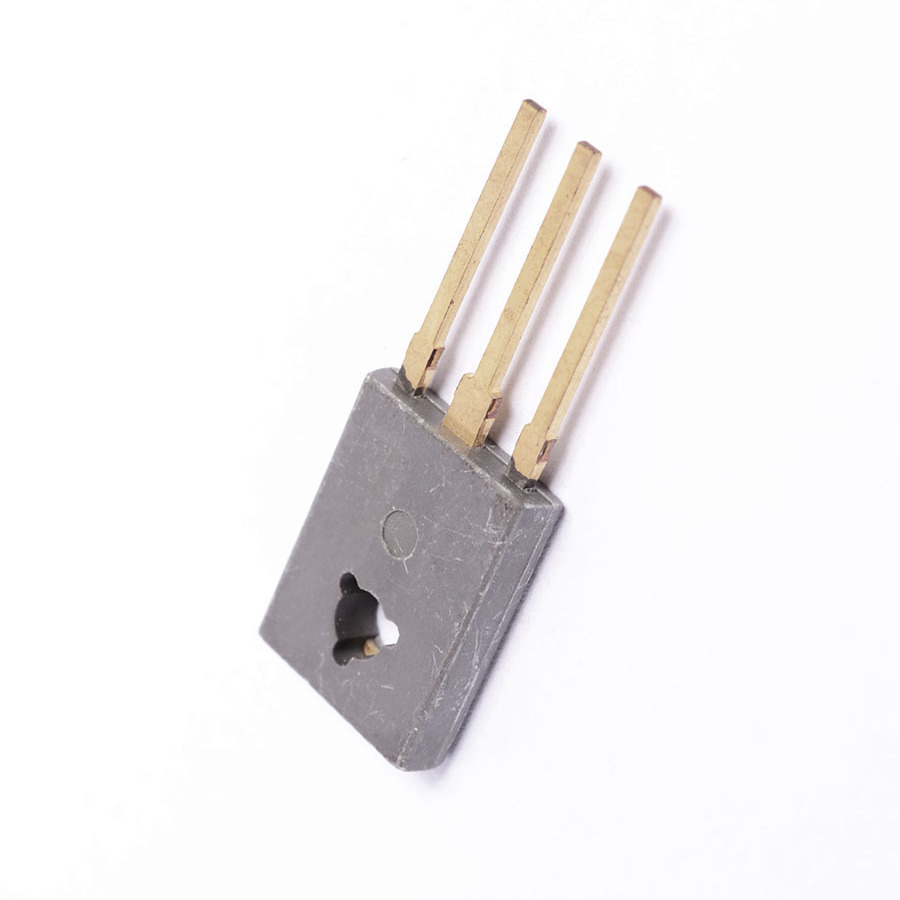

2SB582 Transistor Silicon PNP CASE: TO127 MAKE: Motorola Semiconductor
Product specifications
Type Transistor Silicon PNP
Case TO127
Manufacturer Motorola Semiconductor
Polarity PNP
Maximum Collector Power Dissipation (Pc) 75 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 8 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 3000
SKU 553190
