2SB616A
View detailed images (5)

2SB616A

SKU: 2SB616A

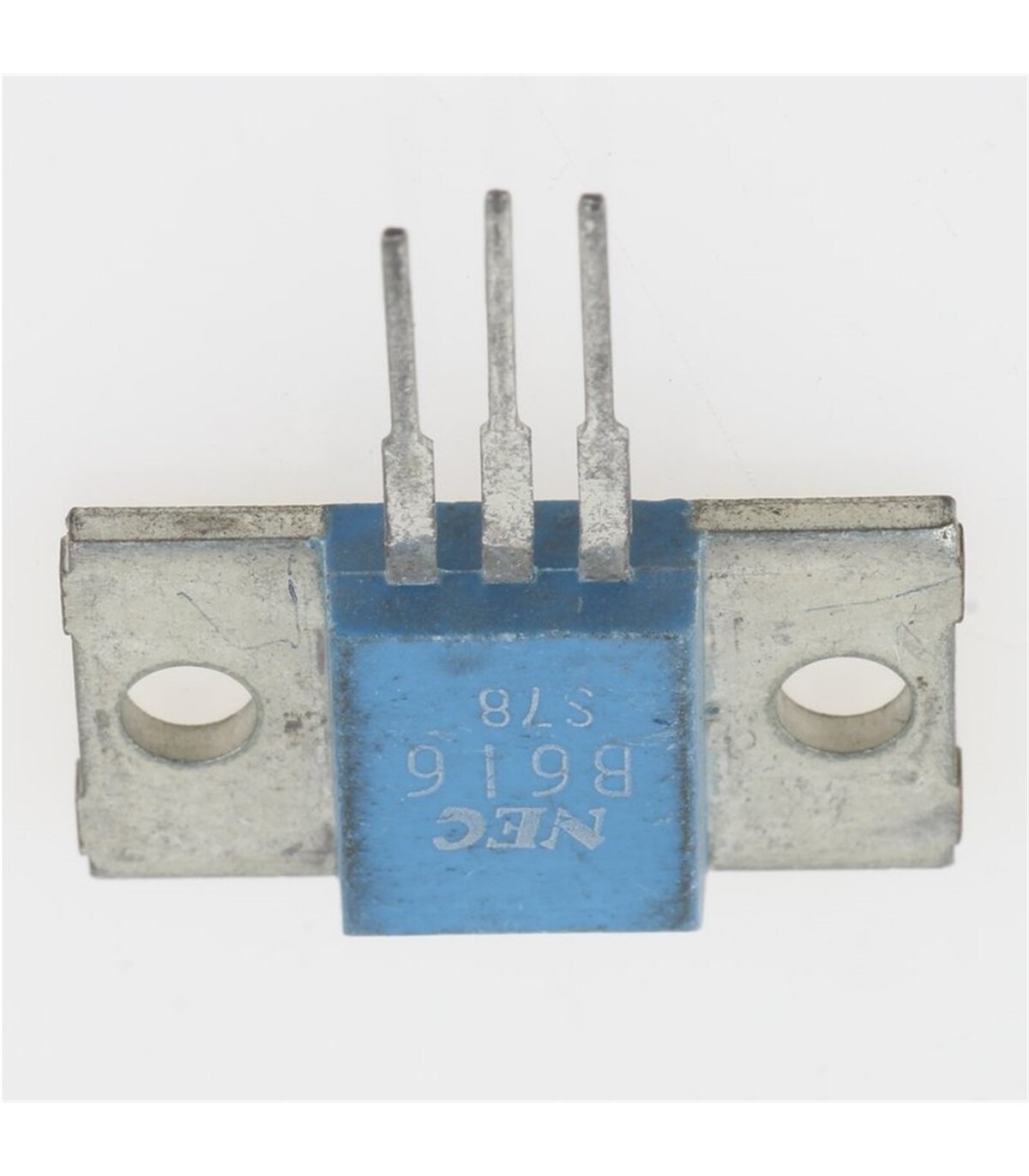

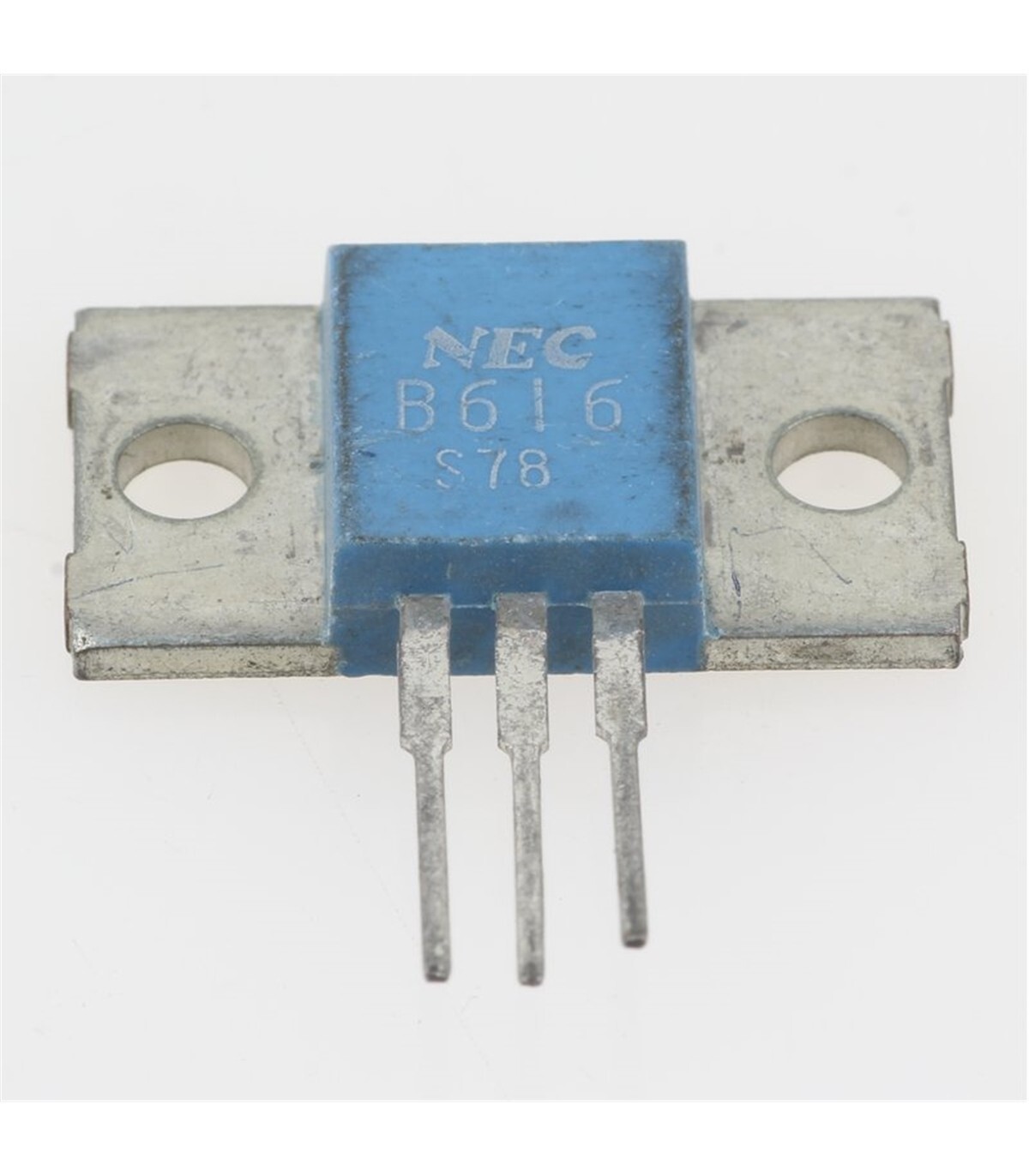

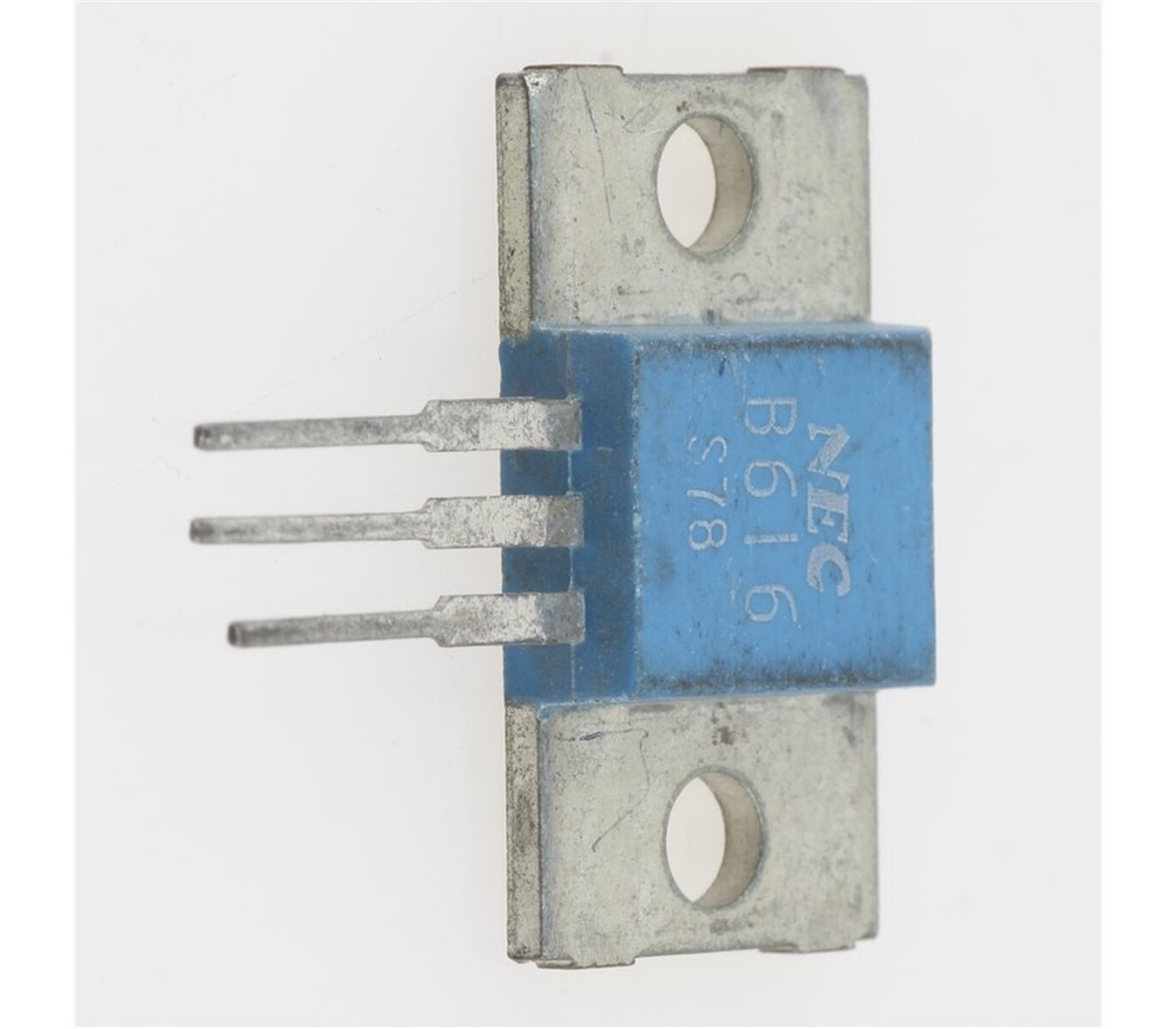

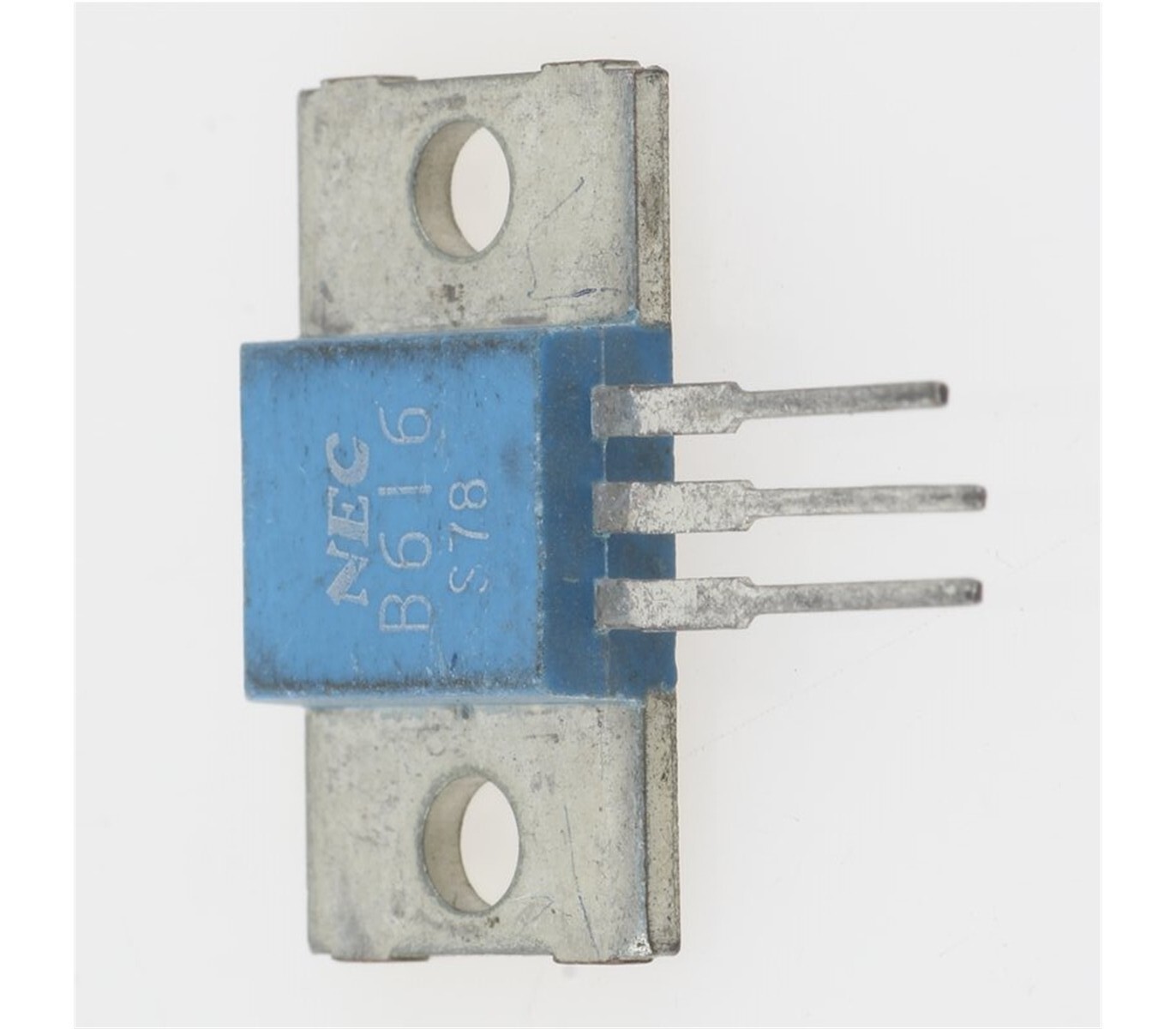

2SB616A Transistor Silicon PNP CASE: MT200 MAKE: NEC
Price:
£16.79 Inc. VAT (£13.99 Ex. VAT)
£16.79 Inc. VAT (£13.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon PNP
Case MT200
Manufacturer NEC
Vbr CBO 100
Vbr CEO 100
Max. PD (W) 60
Derate (Amb) (W/°C) .48
Max. hFE 200
Min hFE 40
Ic Max. (A) 5.0
@Ic (test) (A) -1
Icbo Max. @Vcb Max. (A) -10u
Polarity PNP
Trans. Freq (Hz) Min. 22M
Oper. Temp (°C) Max. 140
@VCE (V) -5
Pinout Equivalence Number 4-33
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 60 W
Maximum Collector-Base Voltage |Vcb| 100 V
Maximum Collector-Emitter Voltage |Vce| 80 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 5 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 5 MHz
Forward Current Transfer Ratio (hFE), MIN 60
SKU 394894
