2SB617

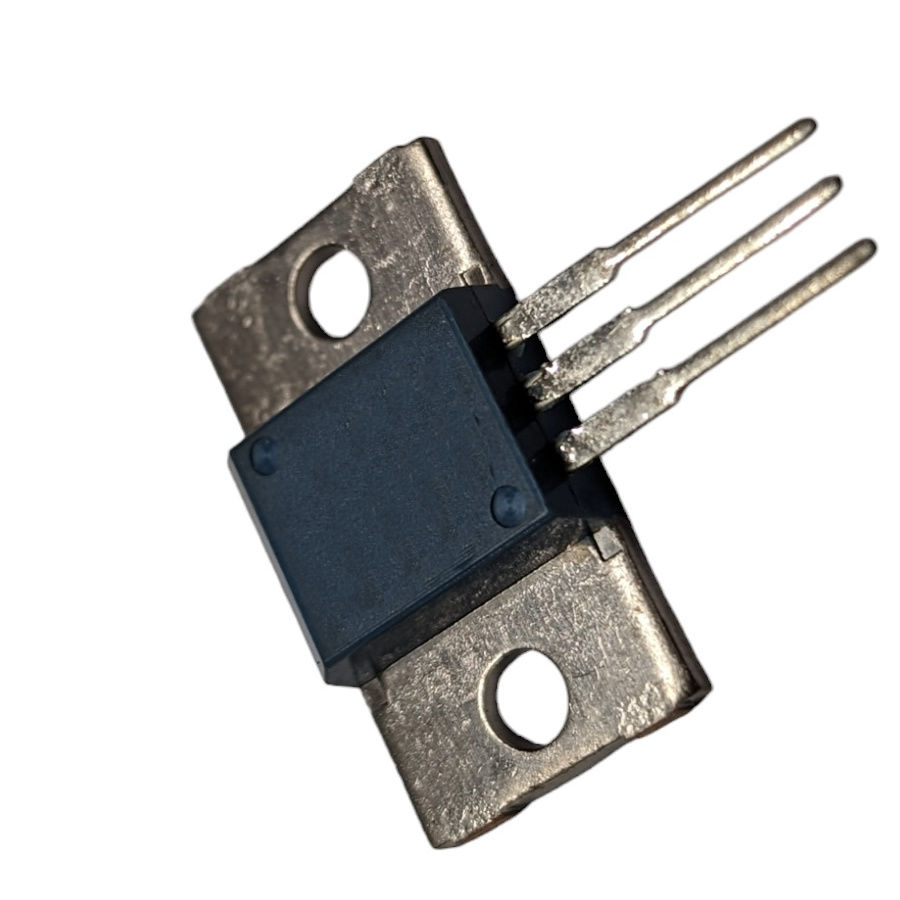

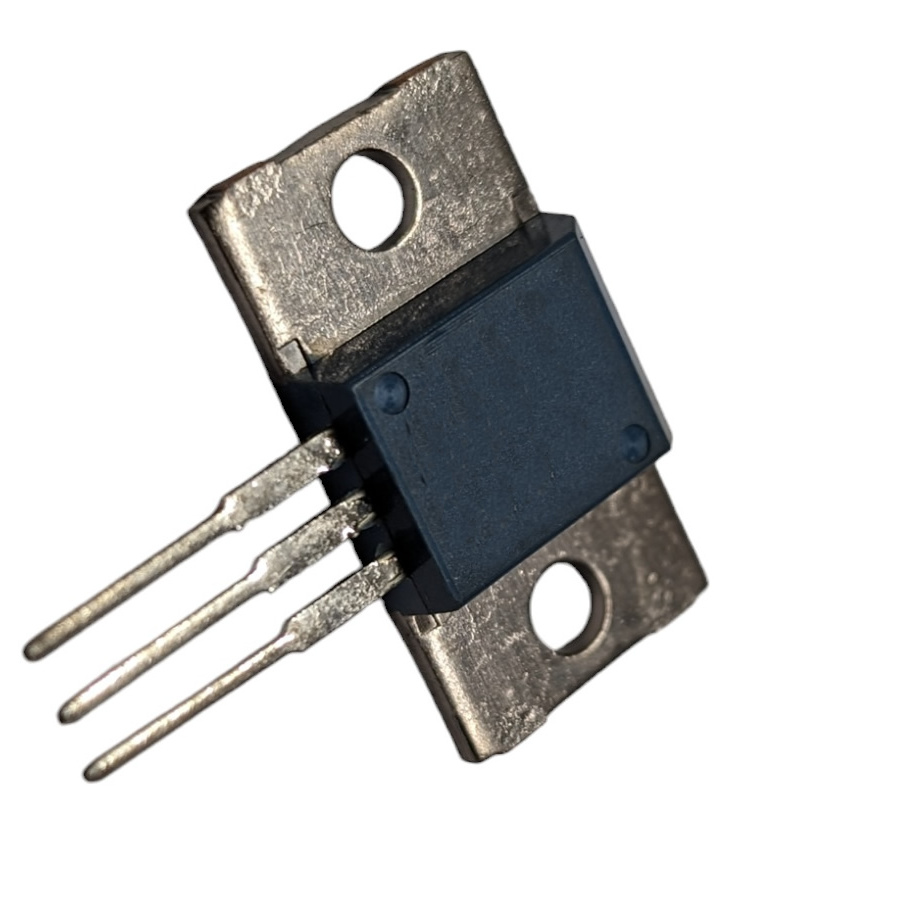

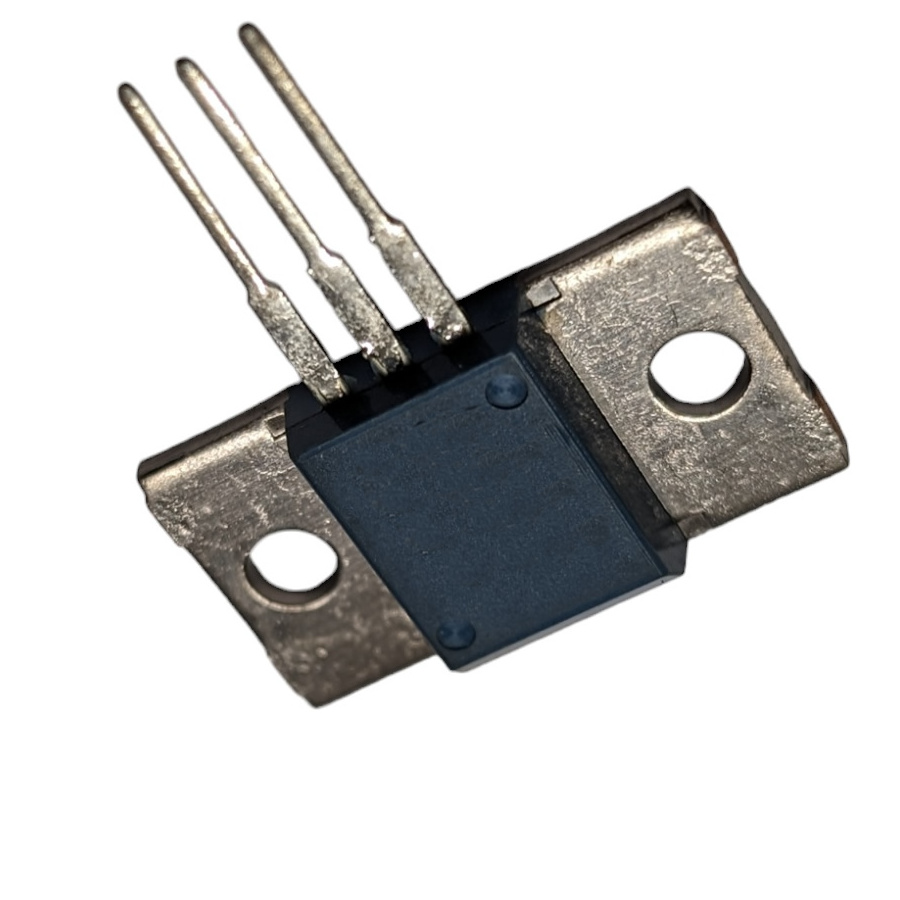

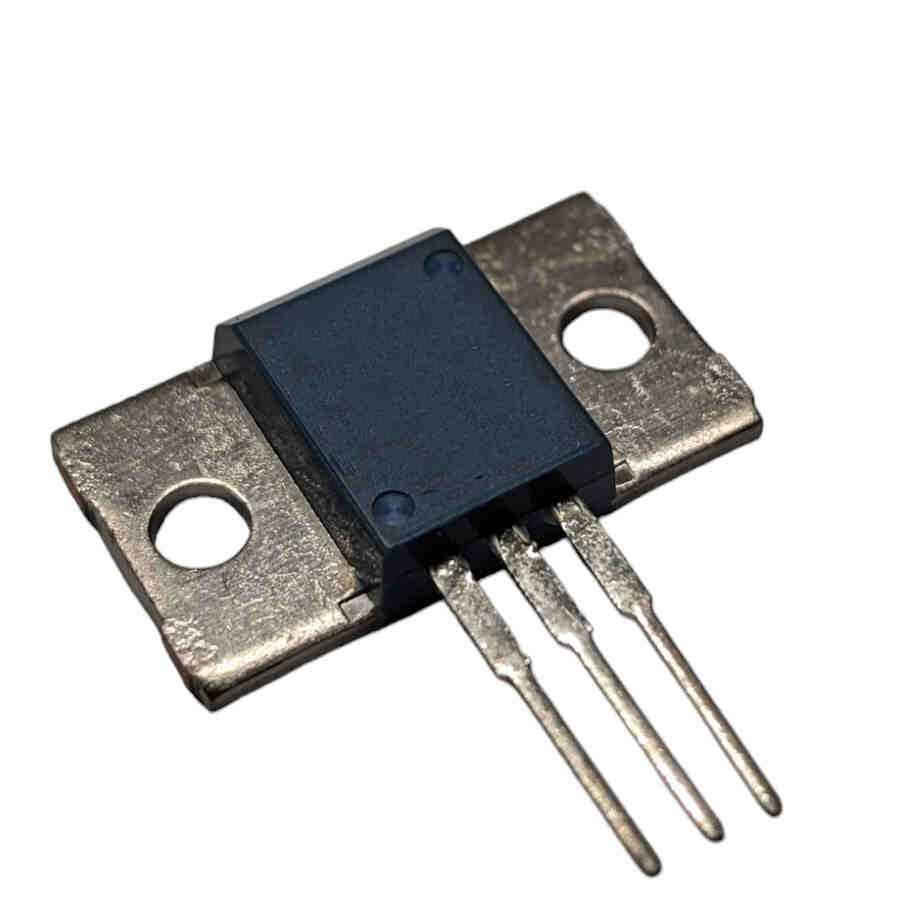

View detailed images (4)

2SB617

SKU: 2SB617
2SB617 Transistor - CASE: MT100 MAKE: NEC
Price: £19.99
+ VAT 20% for UK purchases
£19.99
Qty
+ VAT 20% for UK purchases
  • More pieces shipped in 14 days
Datasheet
2SB617 Datasheet
Product specifications
Case MT100
Type Transistor Silicon PNP
Manufacturer NEC
Vbr CBO 120
Vbr CEO 100
Max. PD (W) 70
Derate (Amb) (W/°C) 560m
Max. hFE 200
Min hFE 40
Ic Max. (A) 6.0
@Ic (test) (A) 1.0
Icbo Max. @Vcb Max. (A) 50u
Polarity PNP
R(sat) (Û) 500m
Trans. Freq (Hz) Min. 7.0M
Oper. Temp (°C) Max. 140
@VCE (V) 5.0
Pinout Equivalence Number 4-33
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 70 W
Maximum Collector-Base Voltage |Vcb| 120 V
Maximum Collector-Emitter Voltage |Vce| 100 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 6 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 7 MHz
Forward Current Transfer Ratio (hFE), MIN 30
SKU 343646
