2SB699
View detailed images (8)

2SB699

SKU: 2SB699

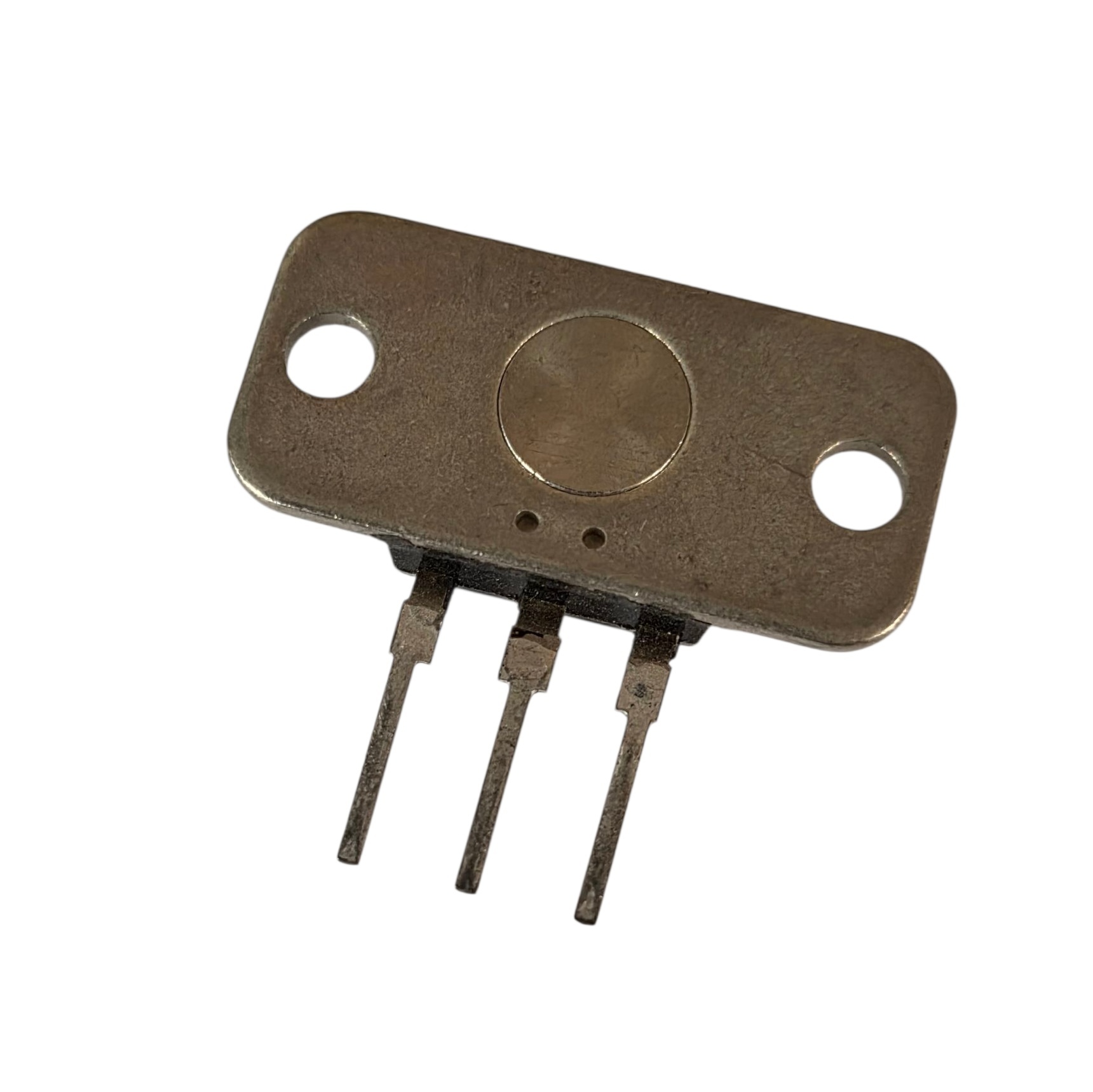

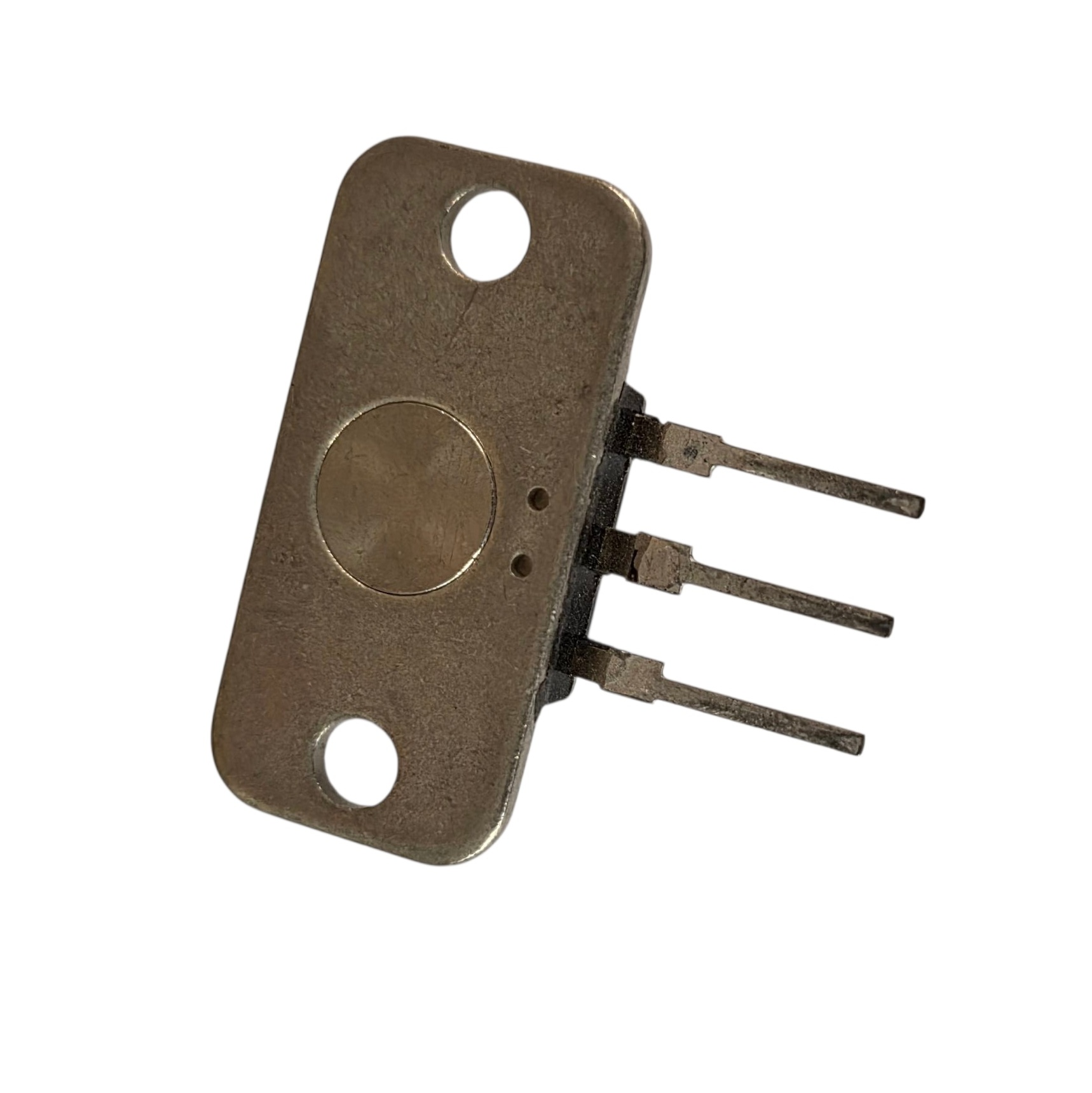

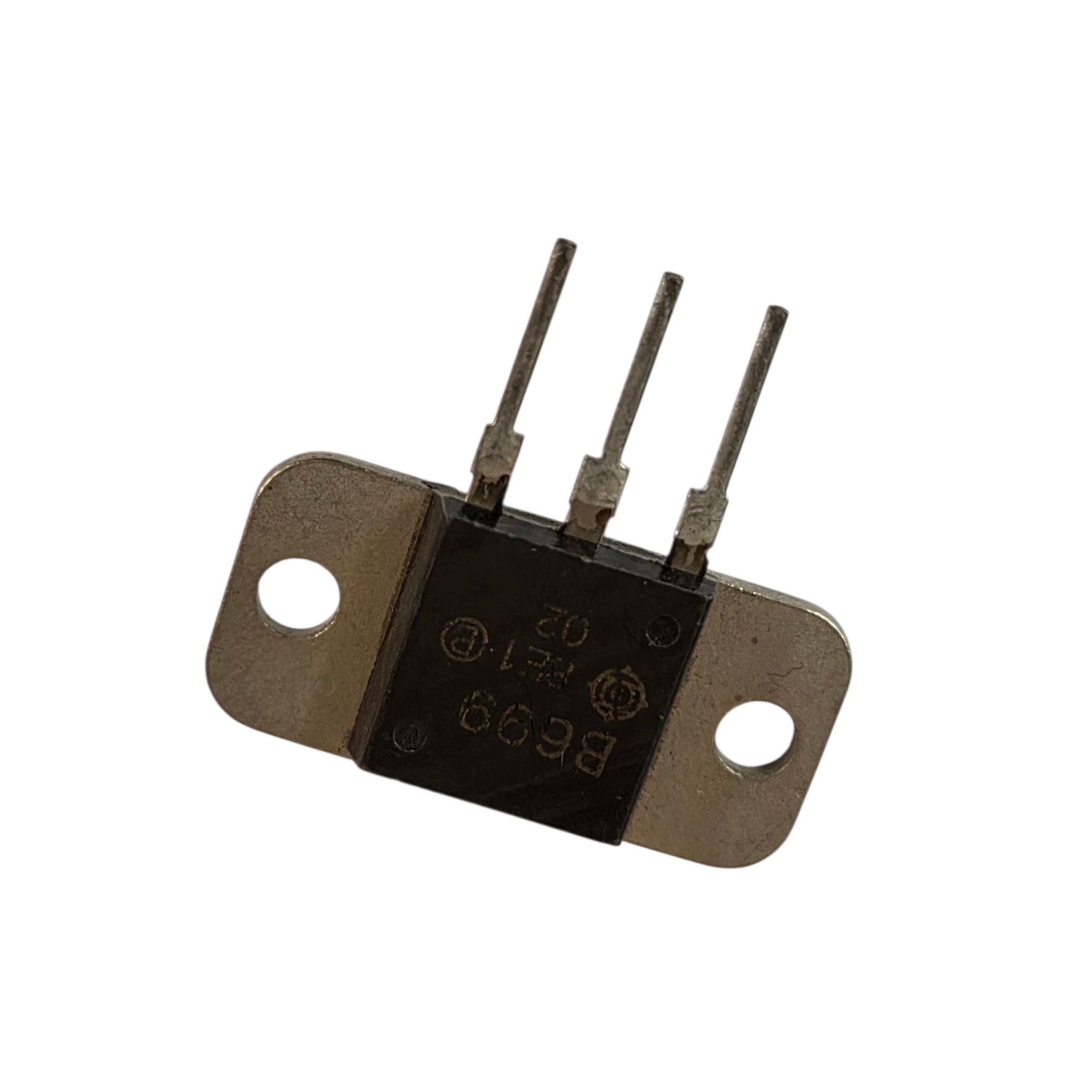

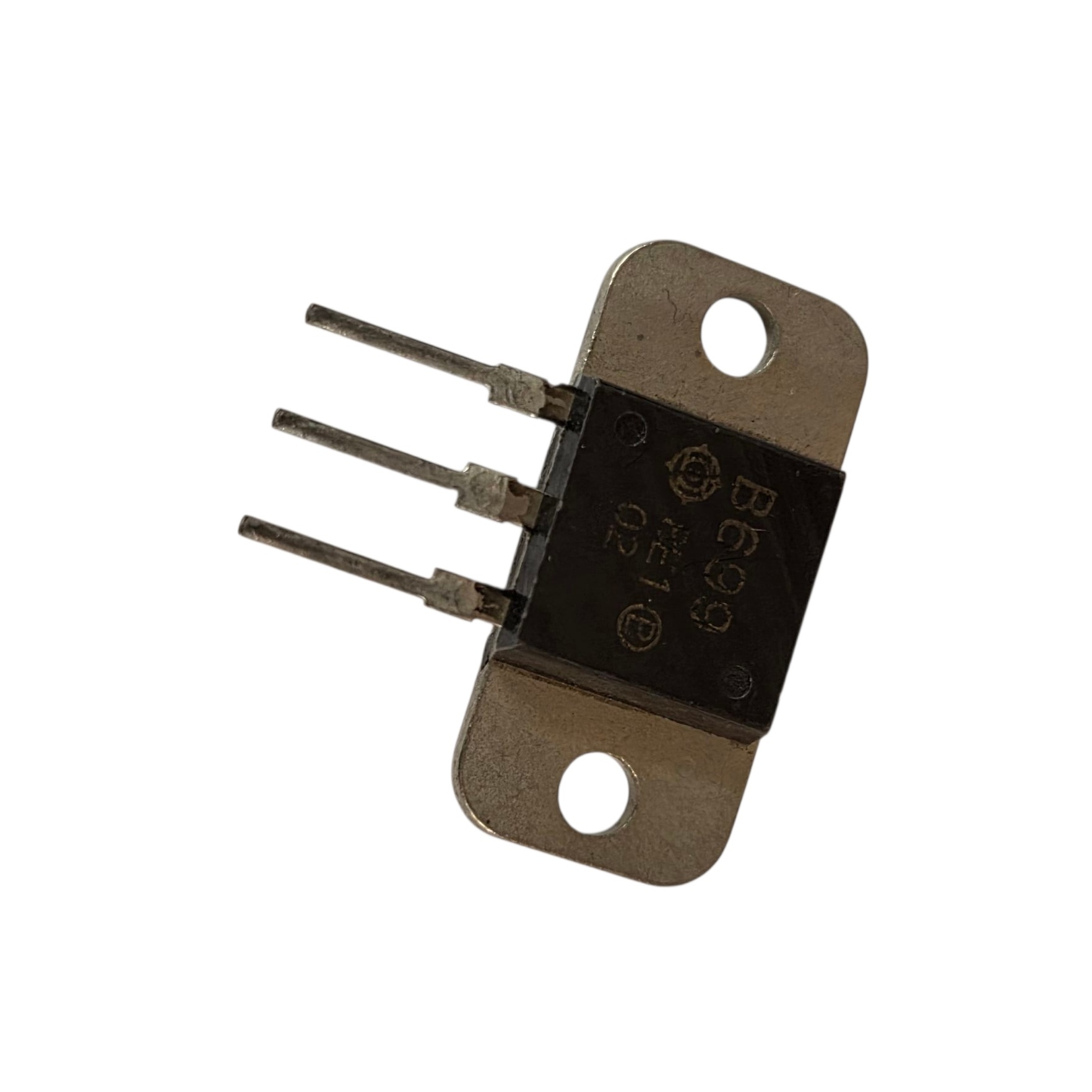

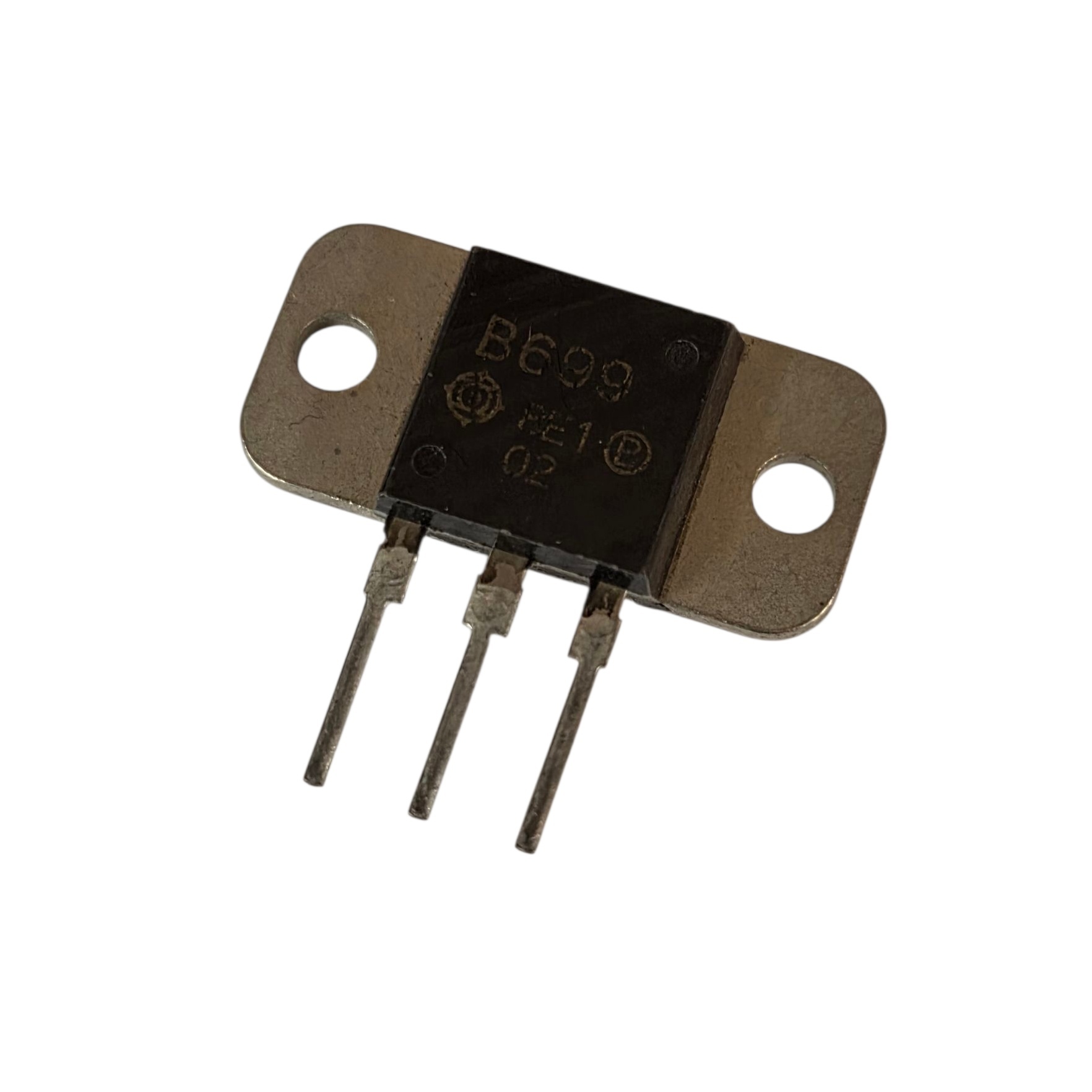

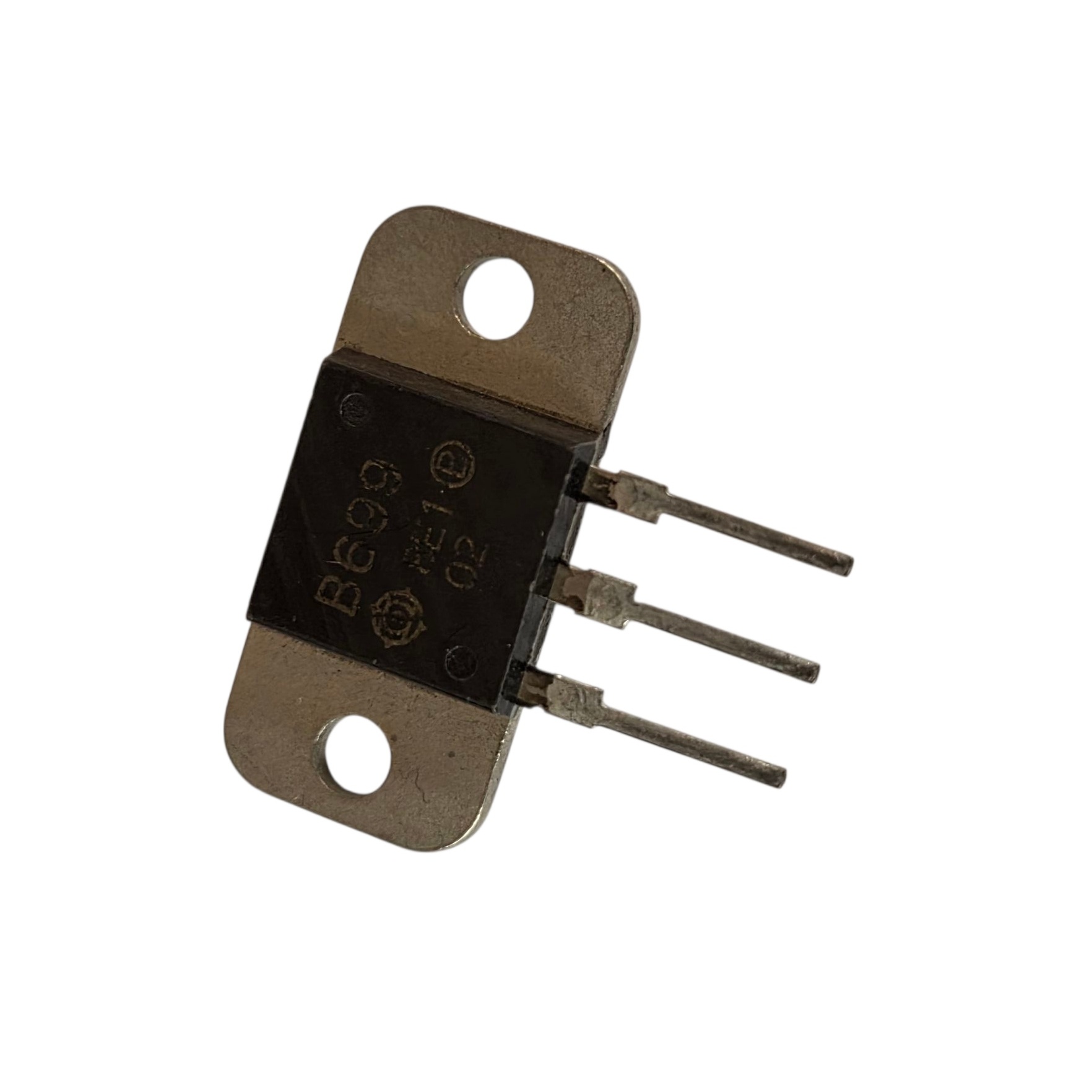

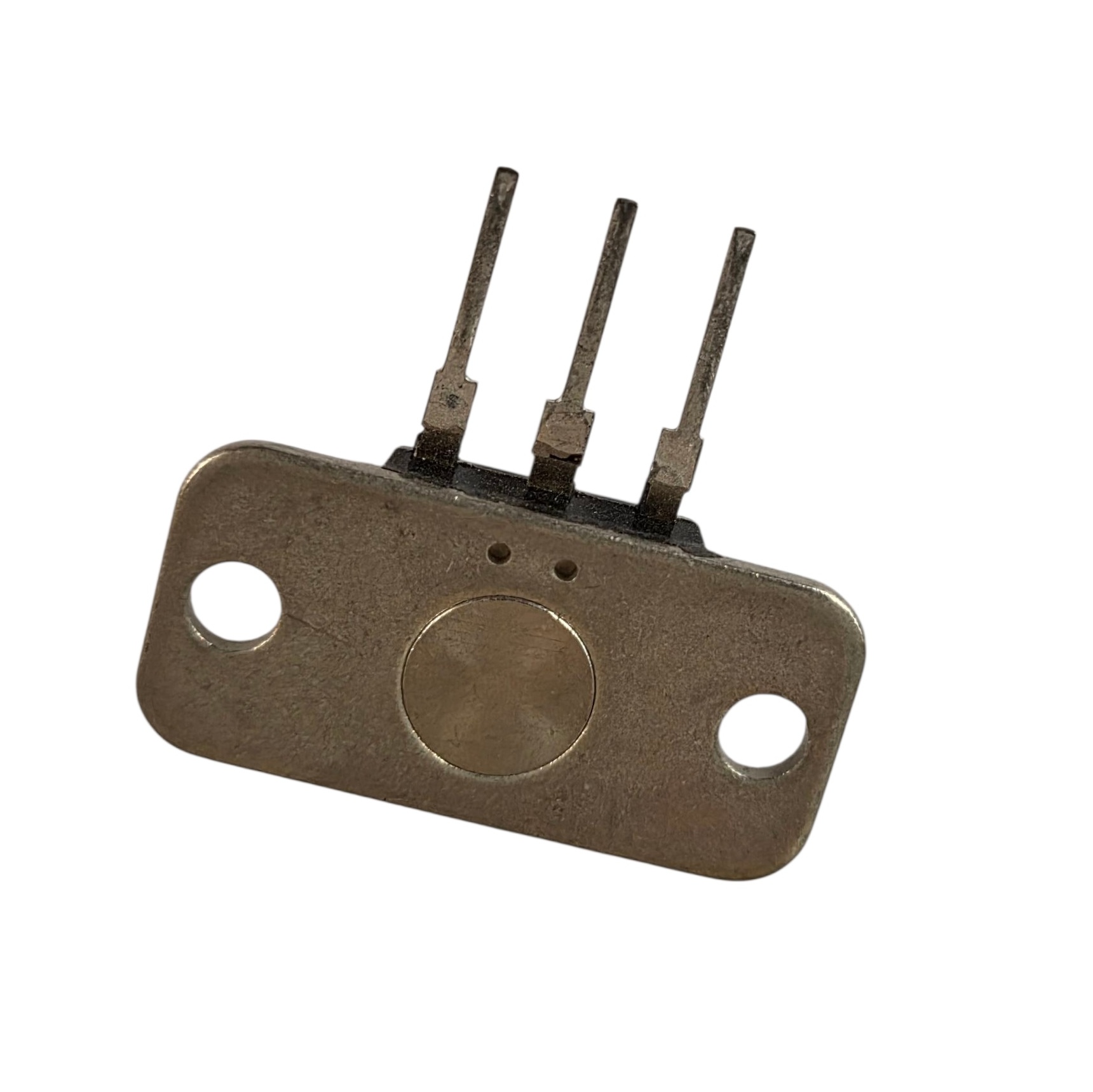

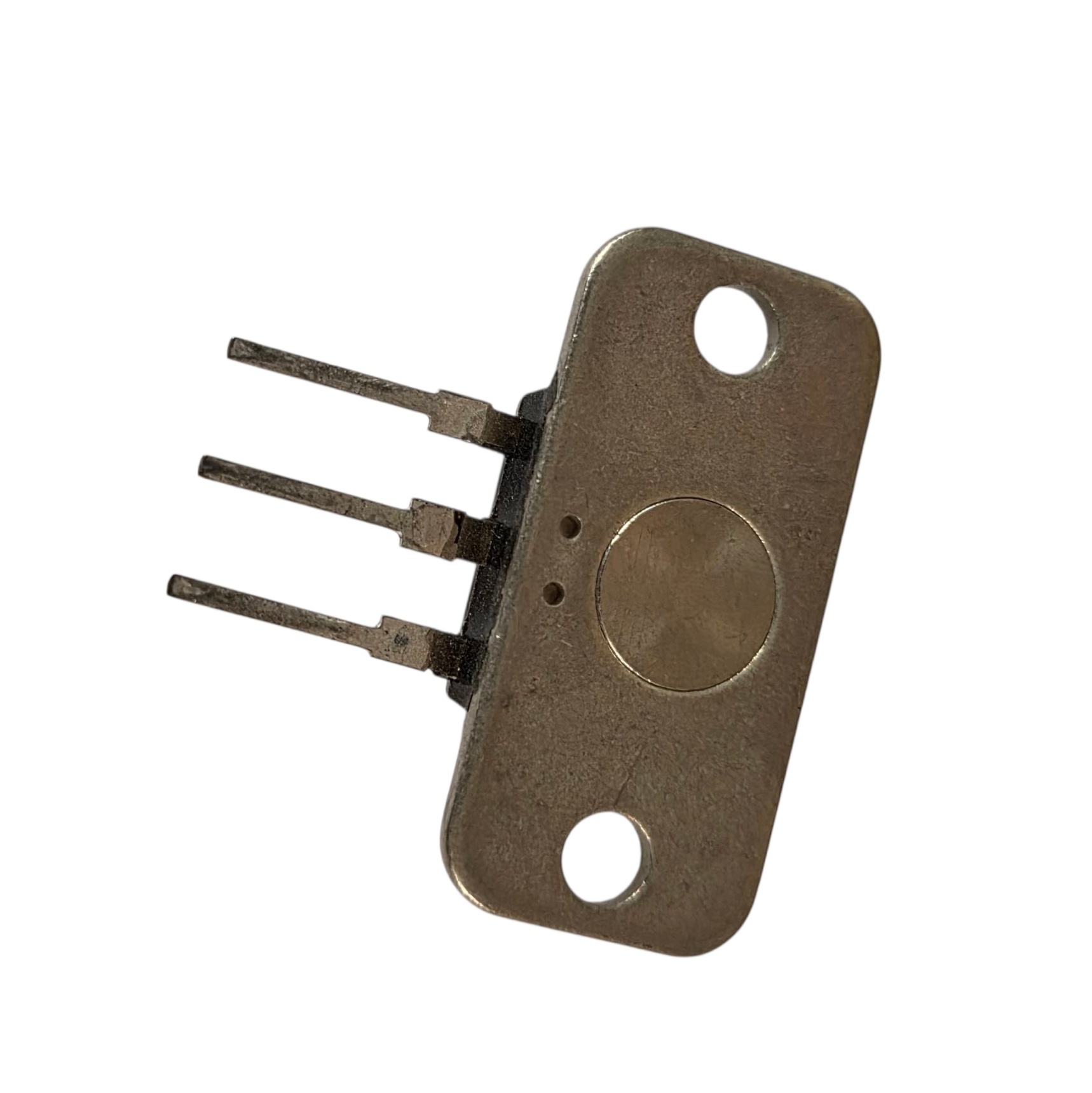

2SB699 Transistor Silicon PNP CASE: HPAK MAKE: Hitachi
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 9 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon PNP
Case HPAK
Manufacturer Hitachi
Vbr CBO 160
Vbr CEO 120
Max. PD (W) 100
Derate (Amb) (W/°C) 800m
Max. hFE 200
Min hFE 35
Ic Max. (A) 12
@Ic (test) (A) 1.0
Icbo Max. @Vcb Max. (A) 1.0m
Polarity PNP
R(sat) (Û) 600m
Oper. Temp (°C) Max. 140
@VCE (V) 5.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 100 W
Maximum Collector-Base Voltage |Vcb| 160 V
Maximum Collector-Emitter Voltage |Vce| 120 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 12 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 10 MHz
Forward Current Transfer Ratio (hFE), MIN 35
SKU 116602
