2SB705A
View detailed images (13)

2SB705A

SKU: 2SB705A

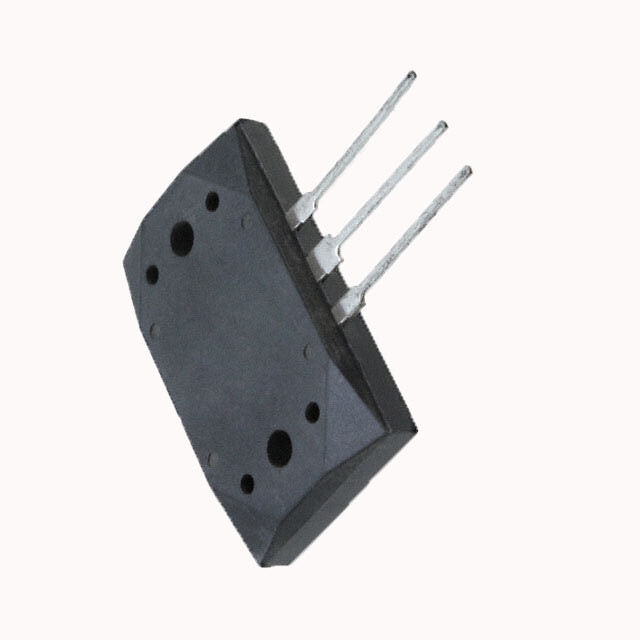

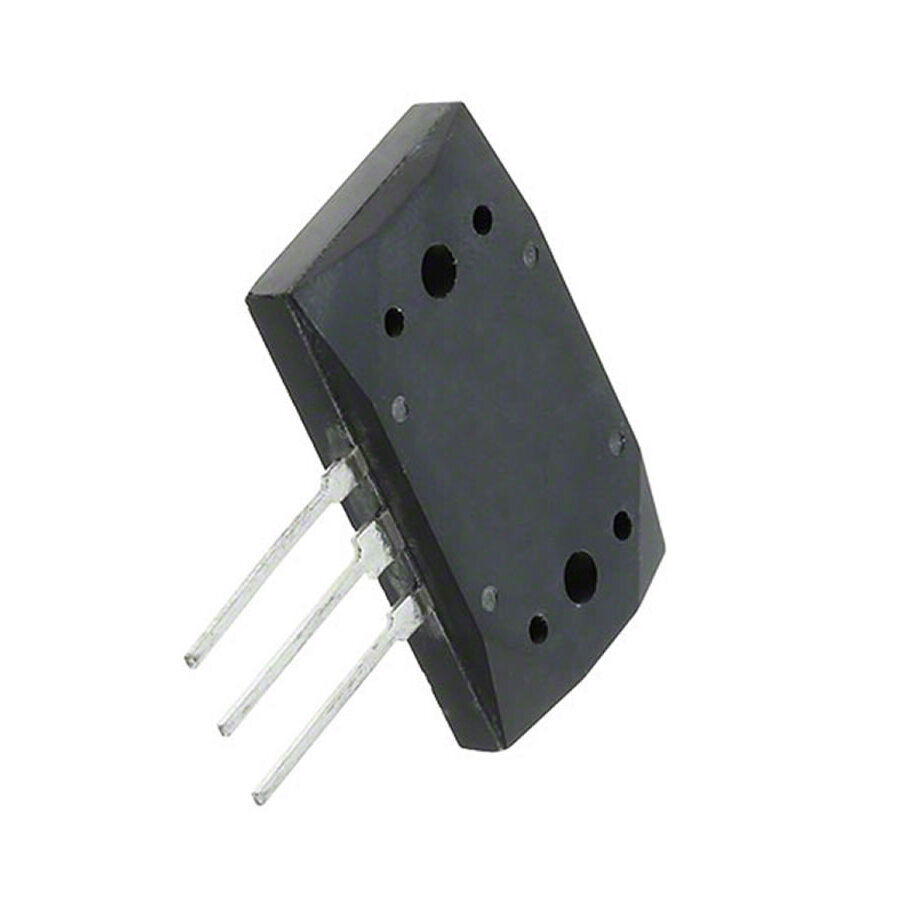

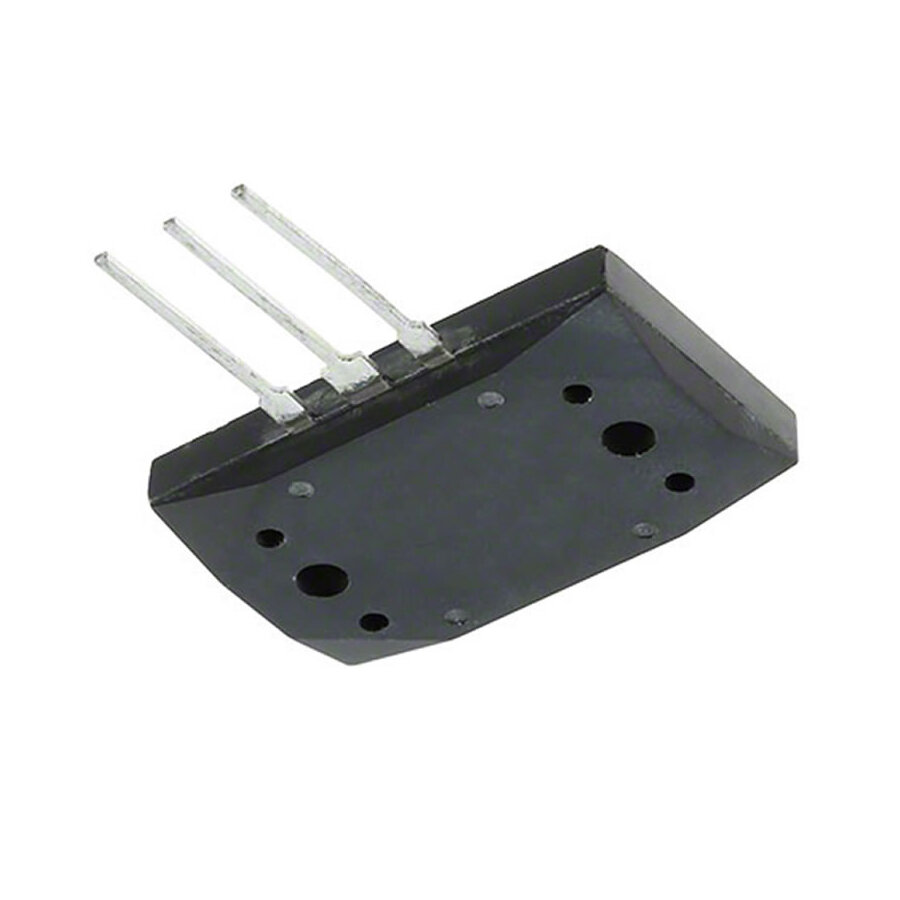

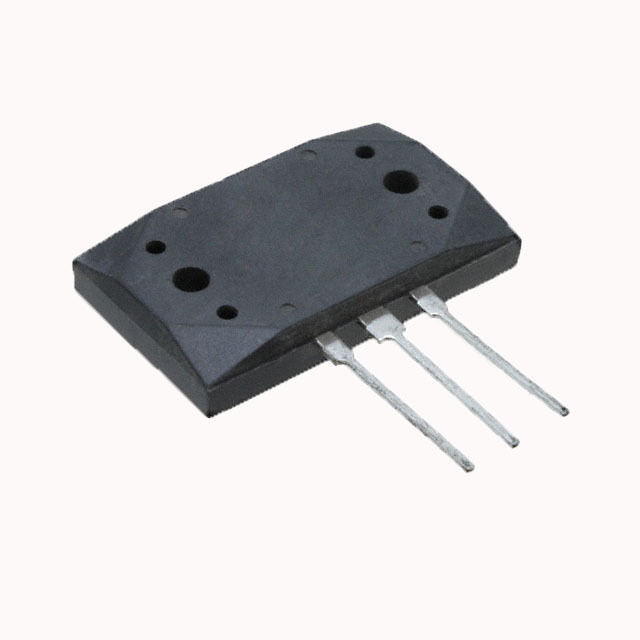

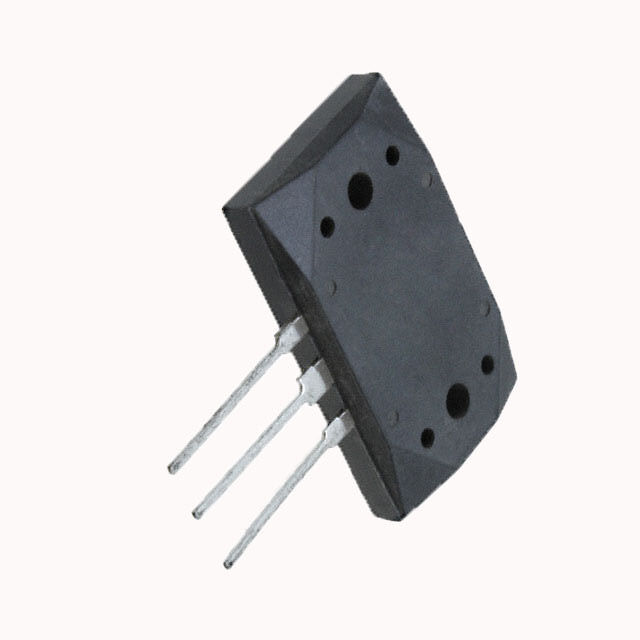

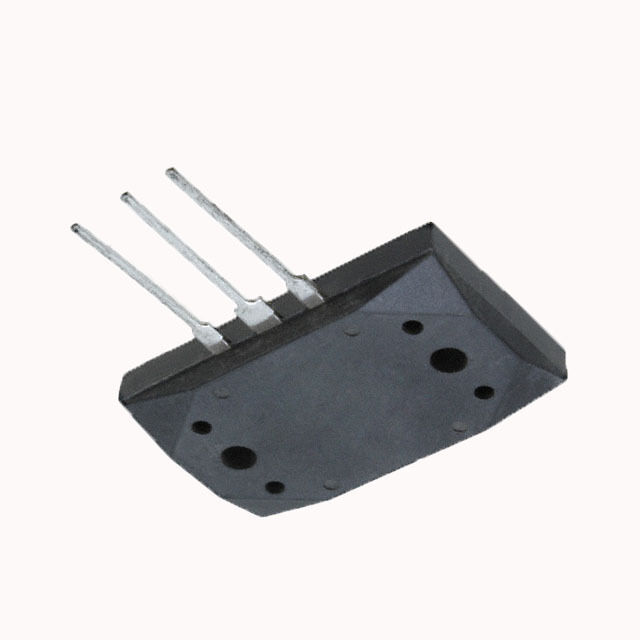

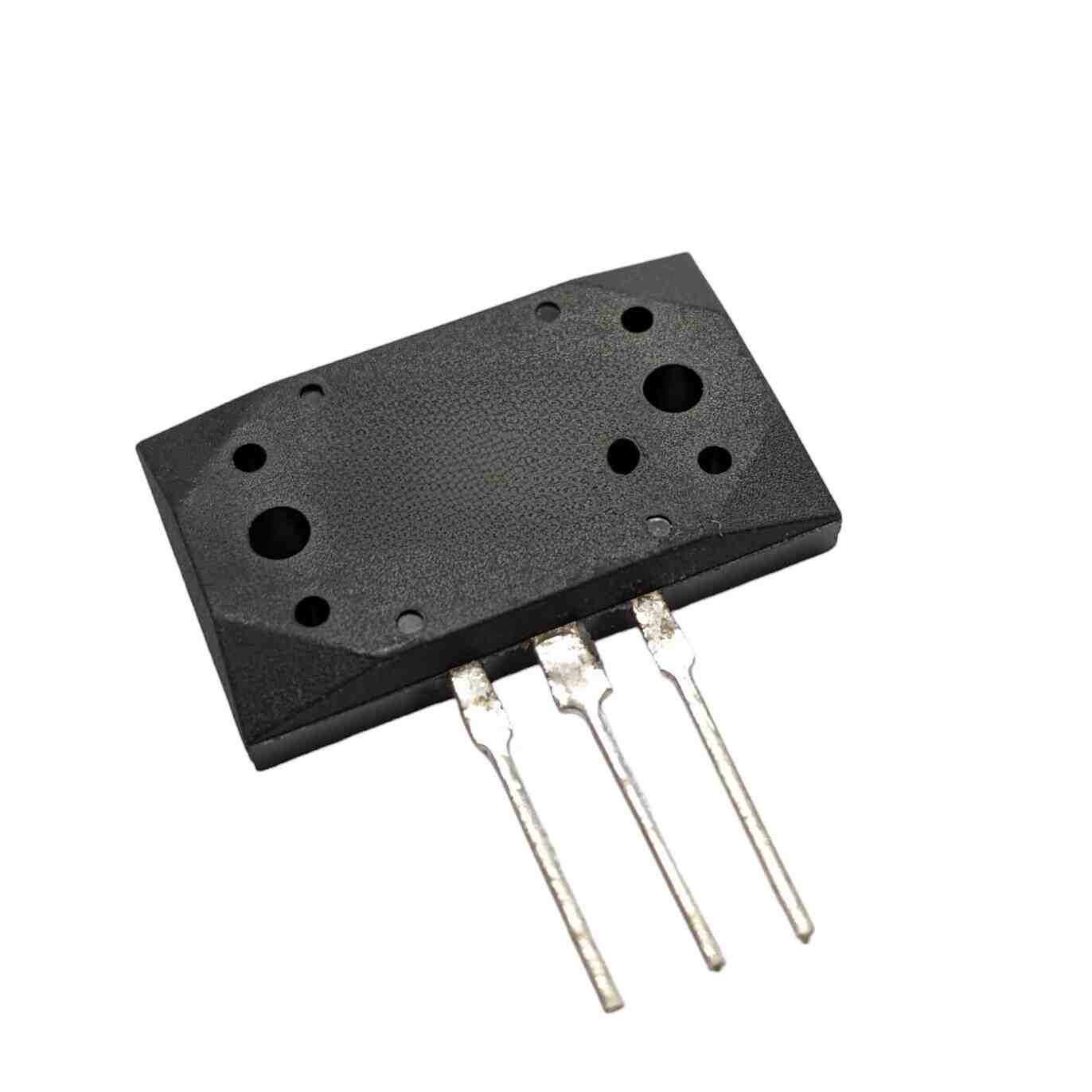

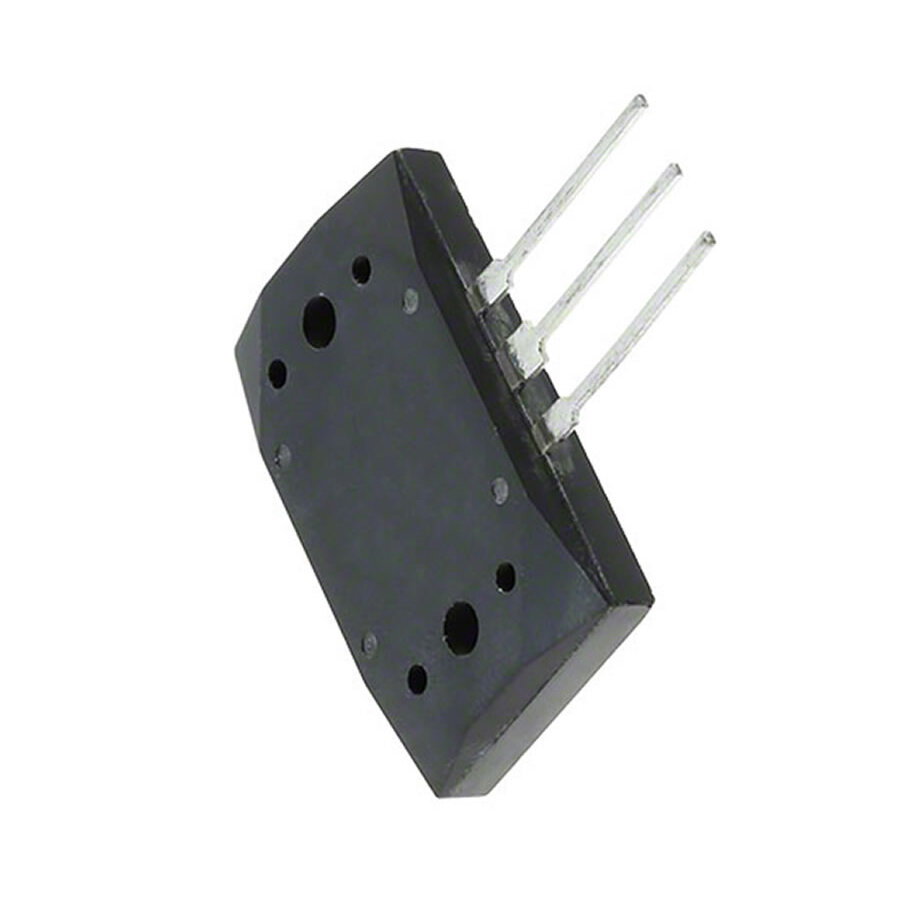

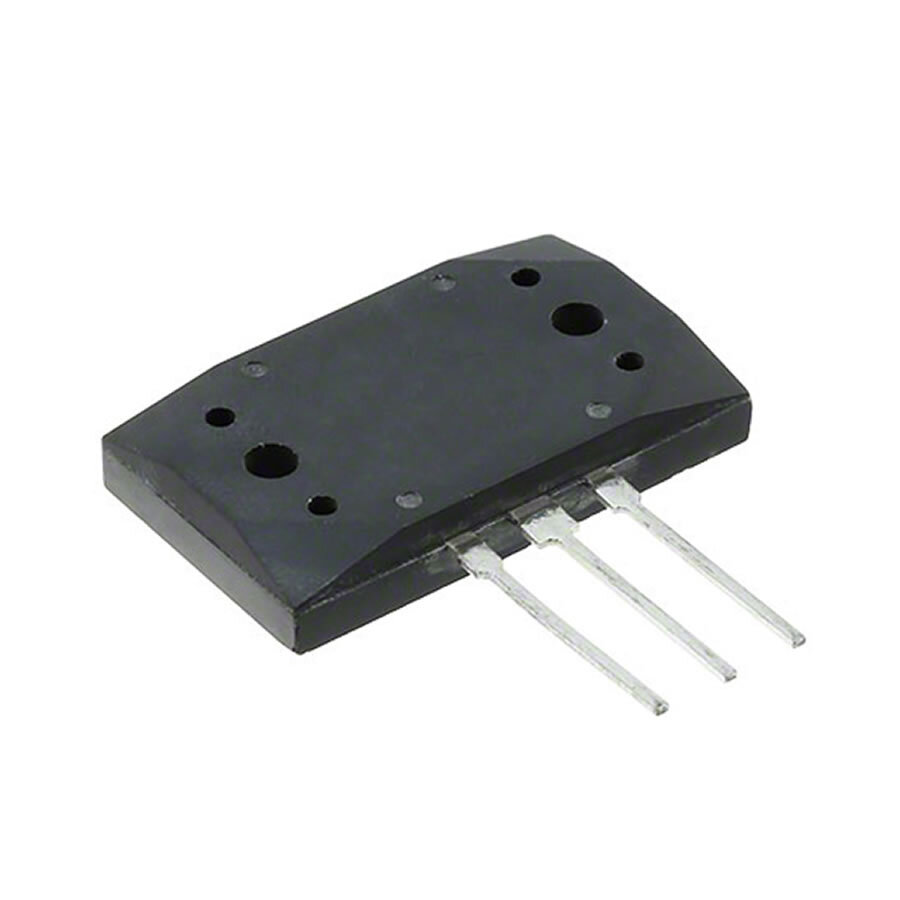

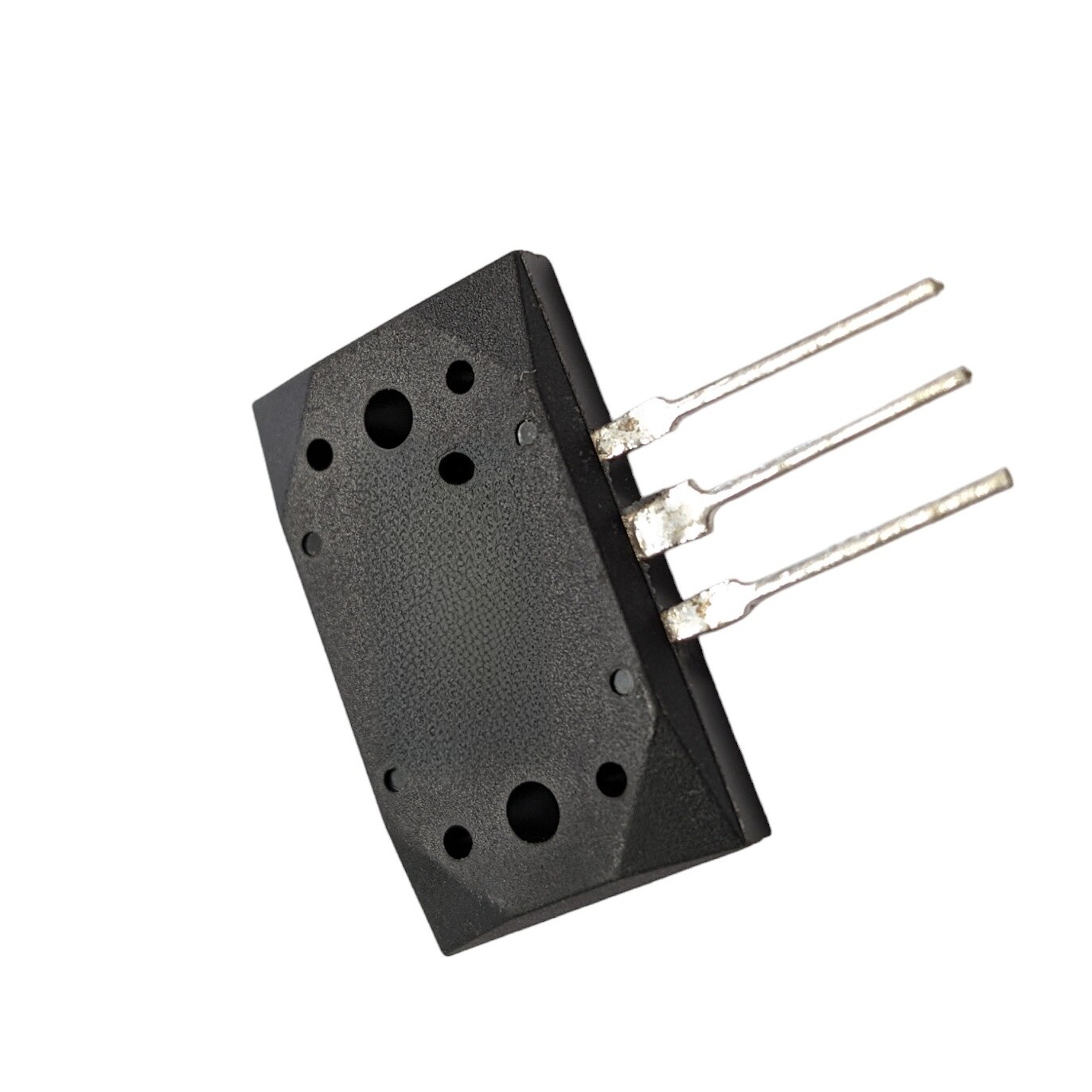

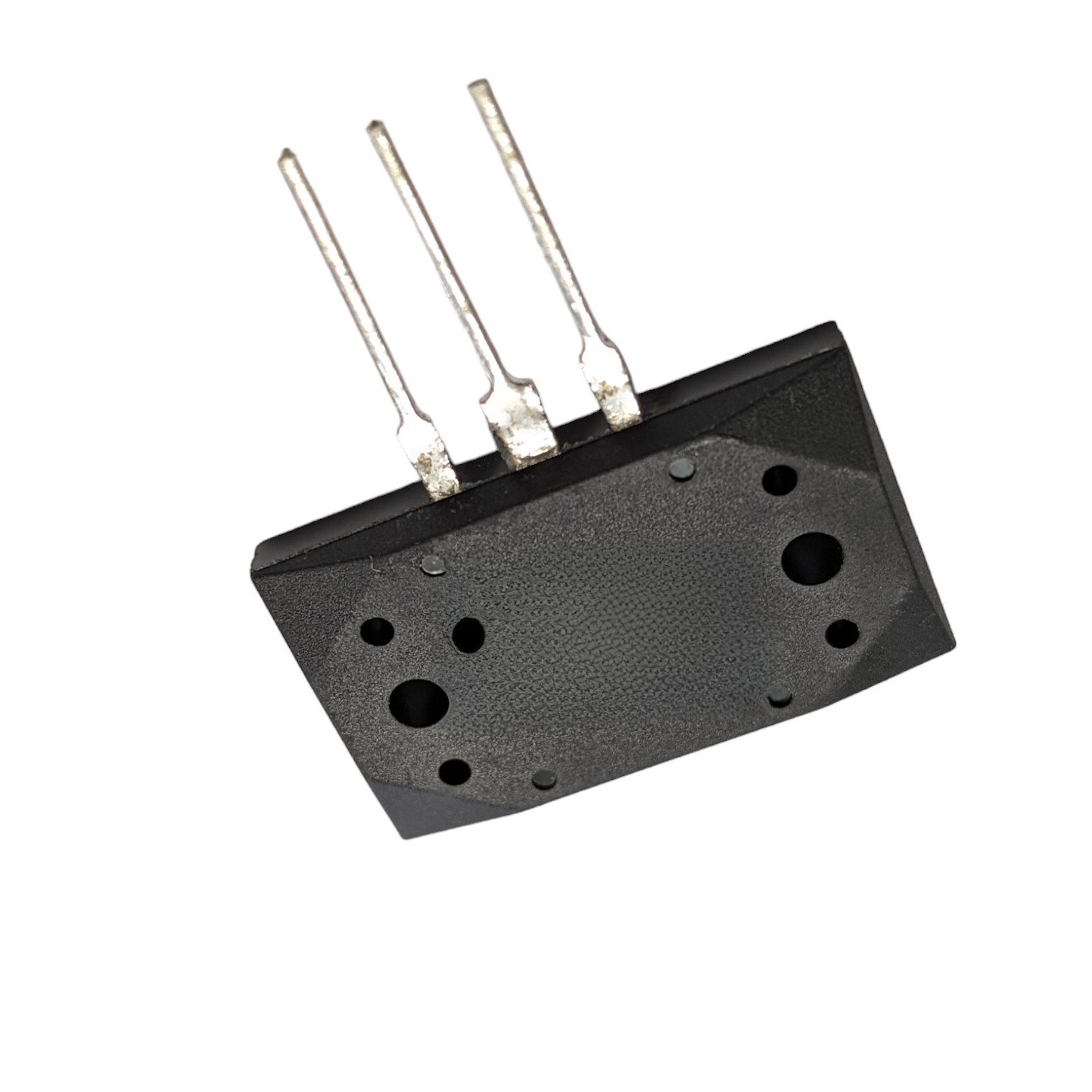

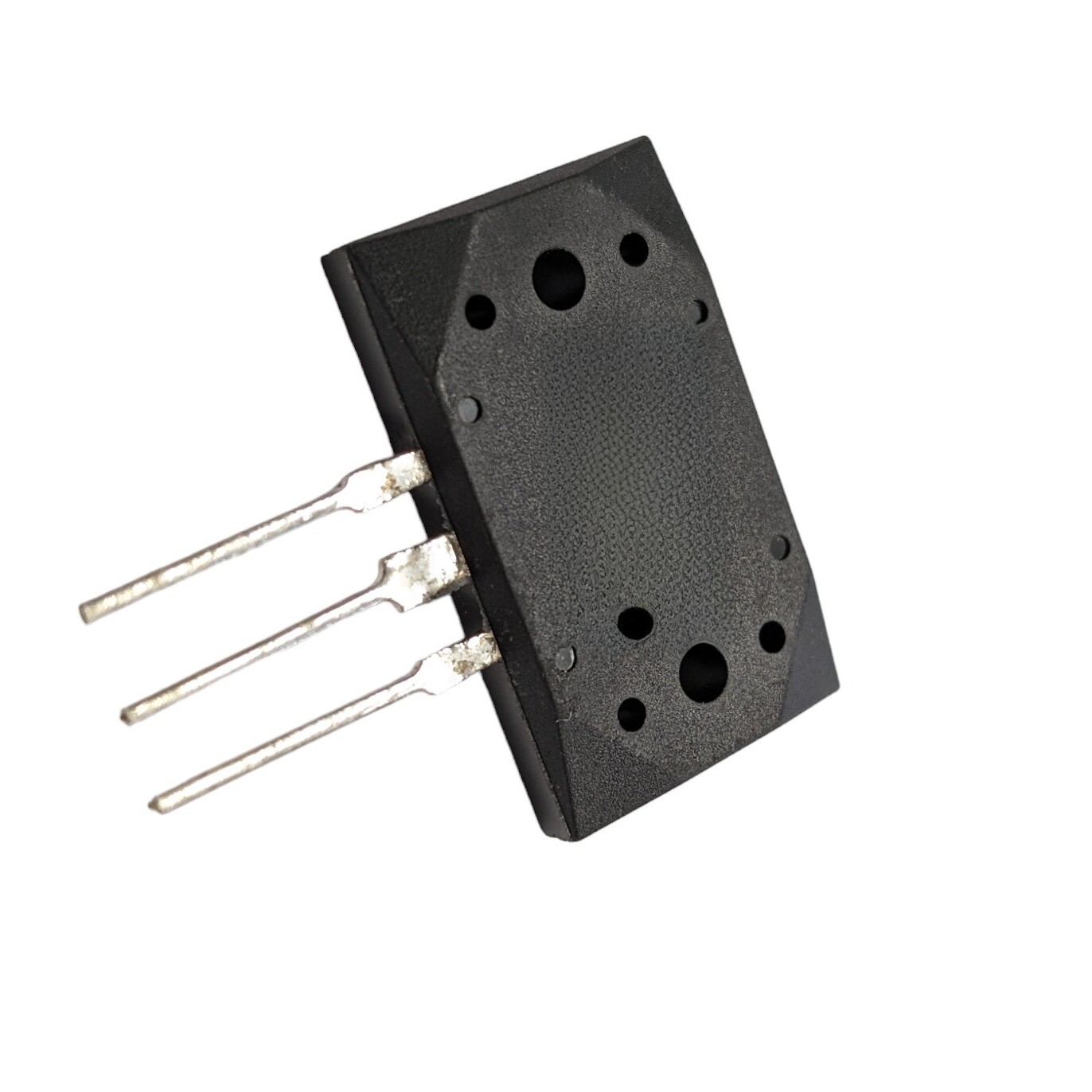

2SB705A Transistor Silicon PNP CASE: MT200 MAKE: Generic
Datasheet
2SB705A Datasheet
Product specifications
Type Transistor Silicon PNP
Case MT200
Manufacturer Unknow
Vbr CBO 150
Vbr CEO 150
Max. PD (W) 120
Derate (Amb) (W/°C) 960m
Max. hFE 200
Min hFE 40
Ic Max. (A) 10
@Ic (test) (A) 2.0
Icbo Max. @Vcb Max. (A) 50u
Polarity PNP
Trans. Freq (Hz) Min. 17M
Oper. Temp (°C) Max. 140
@VCE (V) 5.0
Pinout Equivalence Number 4-33
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 120 W
Maximum Collector-Base Voltage |Vcb| 150 V
Maximum Collector-Emitter Voltage |Vce| 150 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 10 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 430 pF
Transition Frequency (ft): 9 MHz
Forward Current Transfer Ratio (hFE), MIN 80
SKU 343657
