2SB748A
View detailed images (13)

2SB748A

SKU: 2SB748A

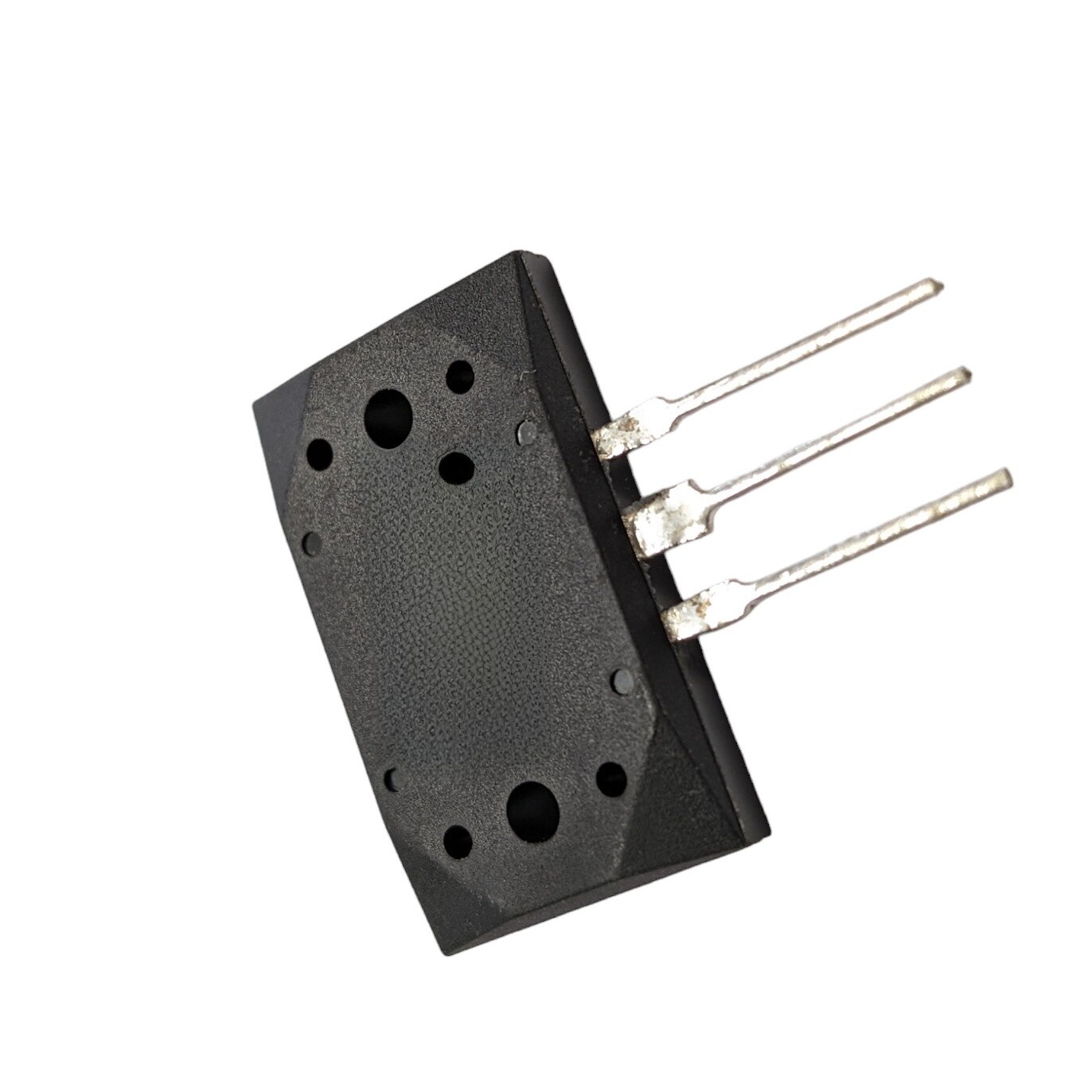

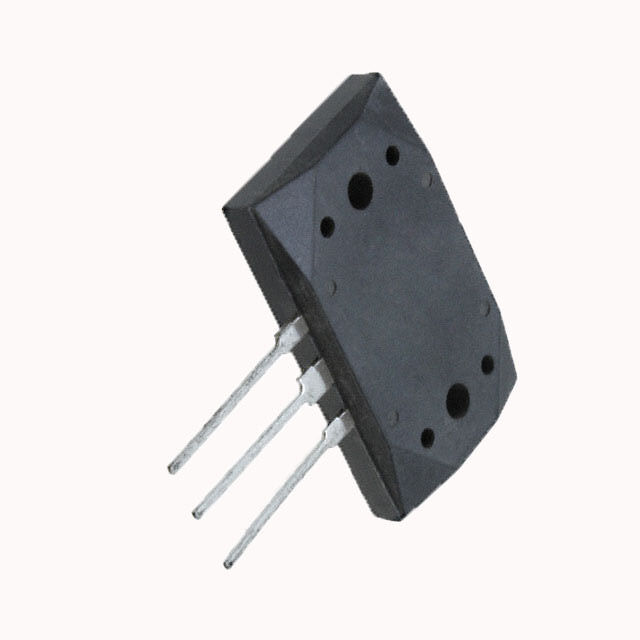

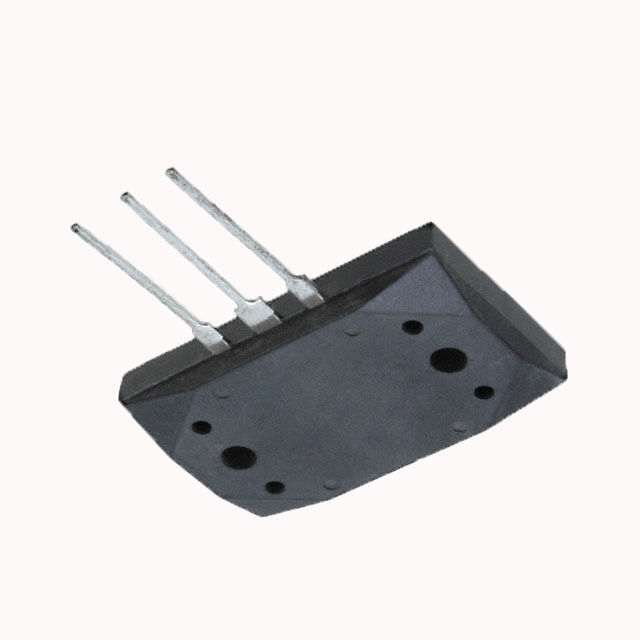

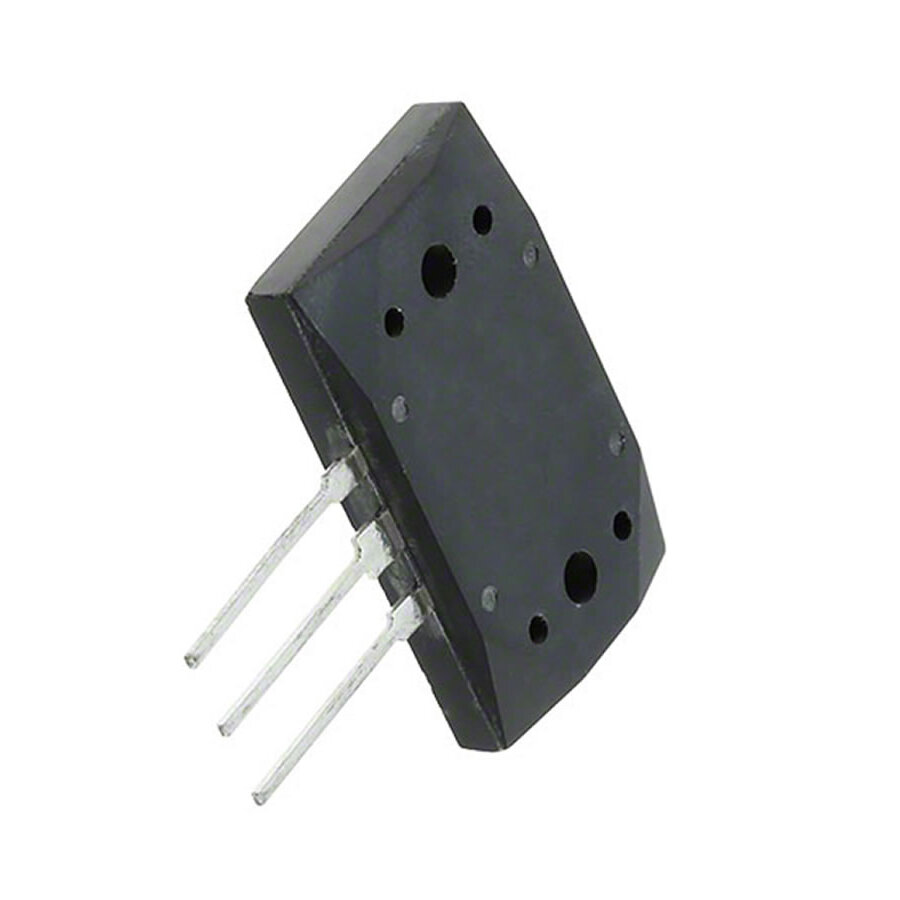

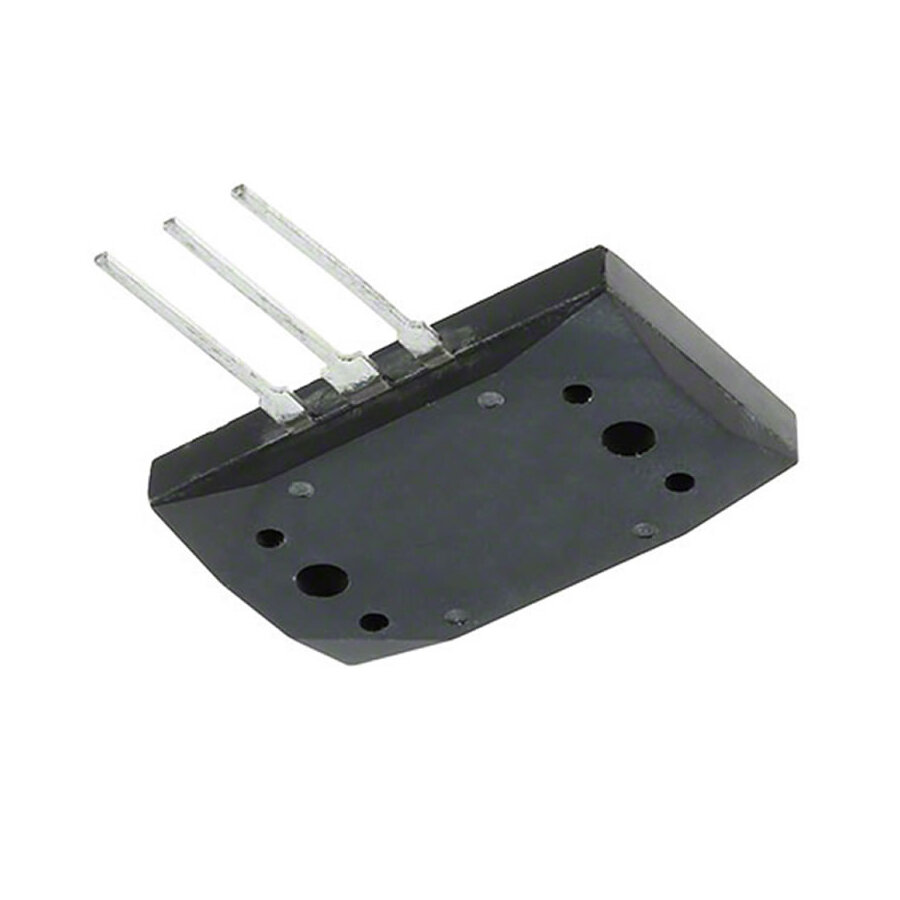

2SB748A Transistor Silicon PNP CASE: MT200 MAKE: Hitachi
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Equivalent 2SB748
Type Transistor Silicon PNP
Case MT200
Manufacturer Hitachi
Polarity PNP
Maximum Collector Power Dissipation (Pc) 60 W
Maximum Collector-Base Voltage |Vcb| 120 V
Maximum Collector-Emitter Voltage |Vce| 100 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 6 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 10 MHz
Forward Current Transfer Ratio (hFE), MIN 65
SKU 83524
