2SB749A
View detailed images (13)

2SB749A

SKU: 2SB749A

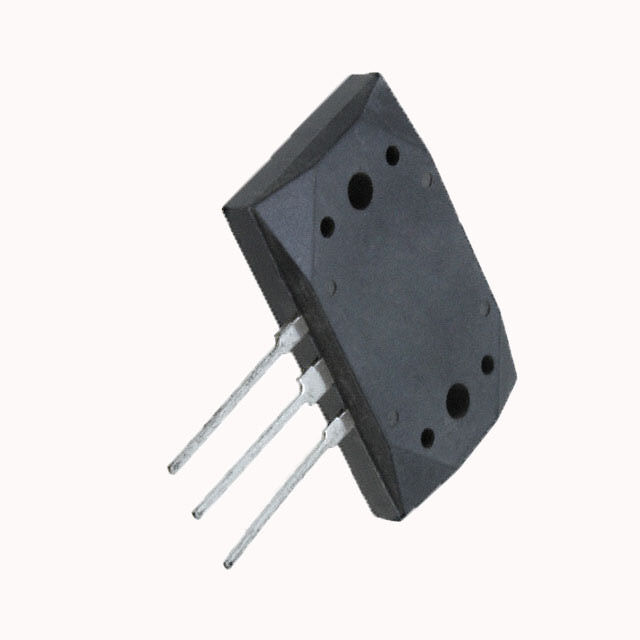

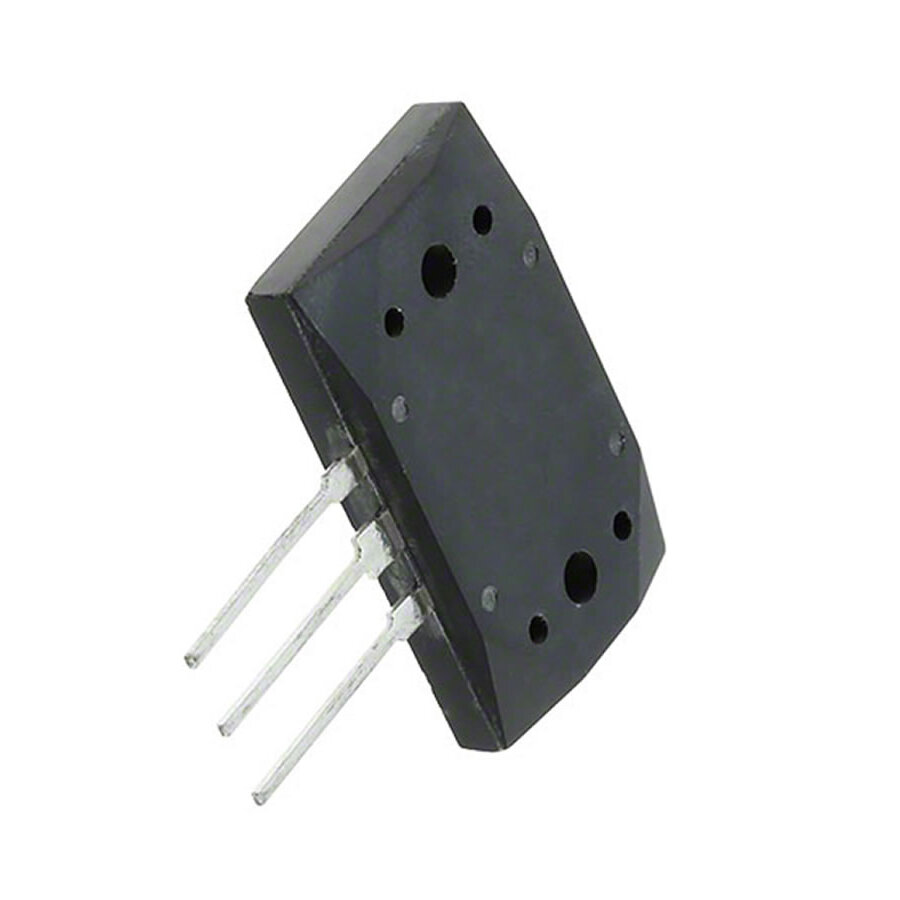

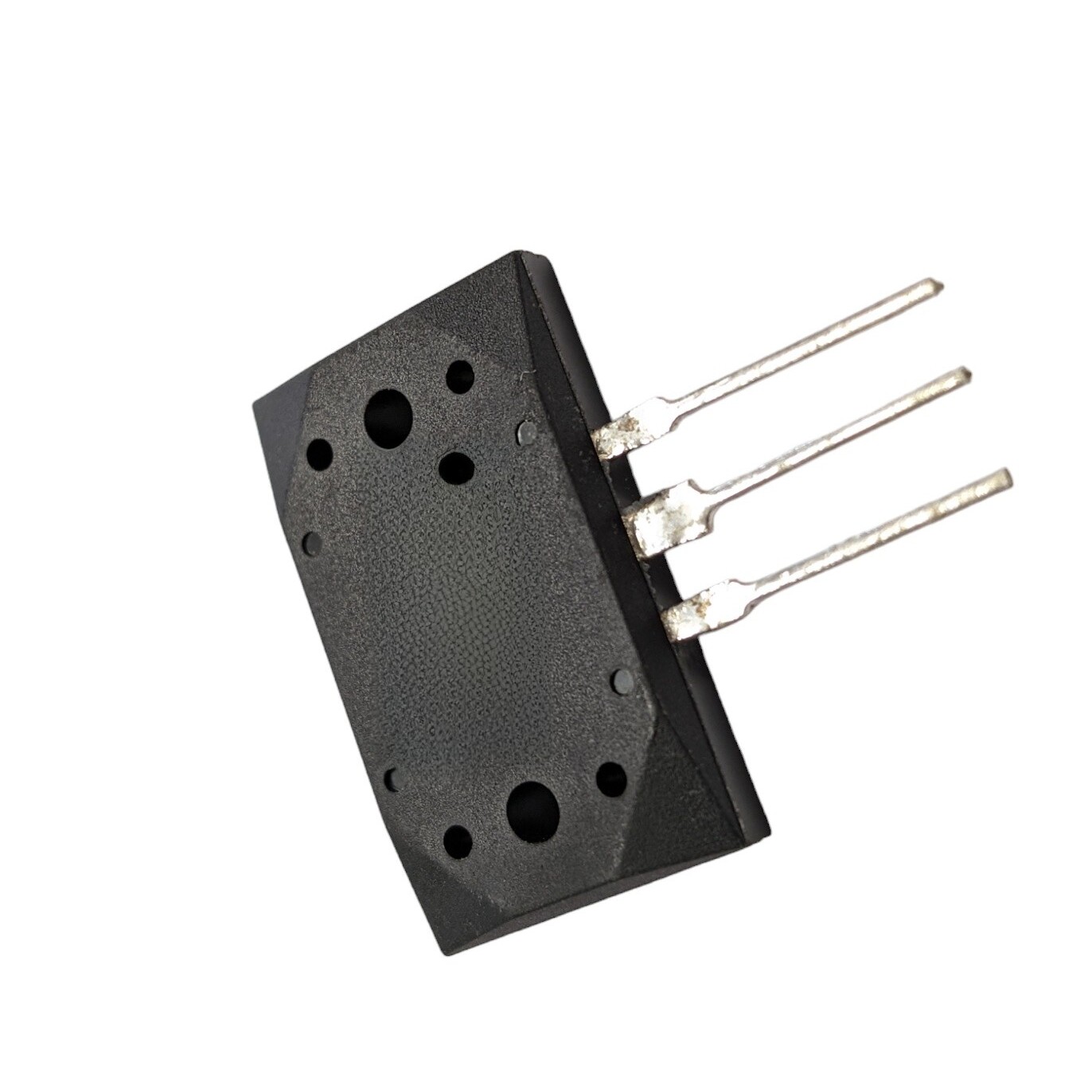

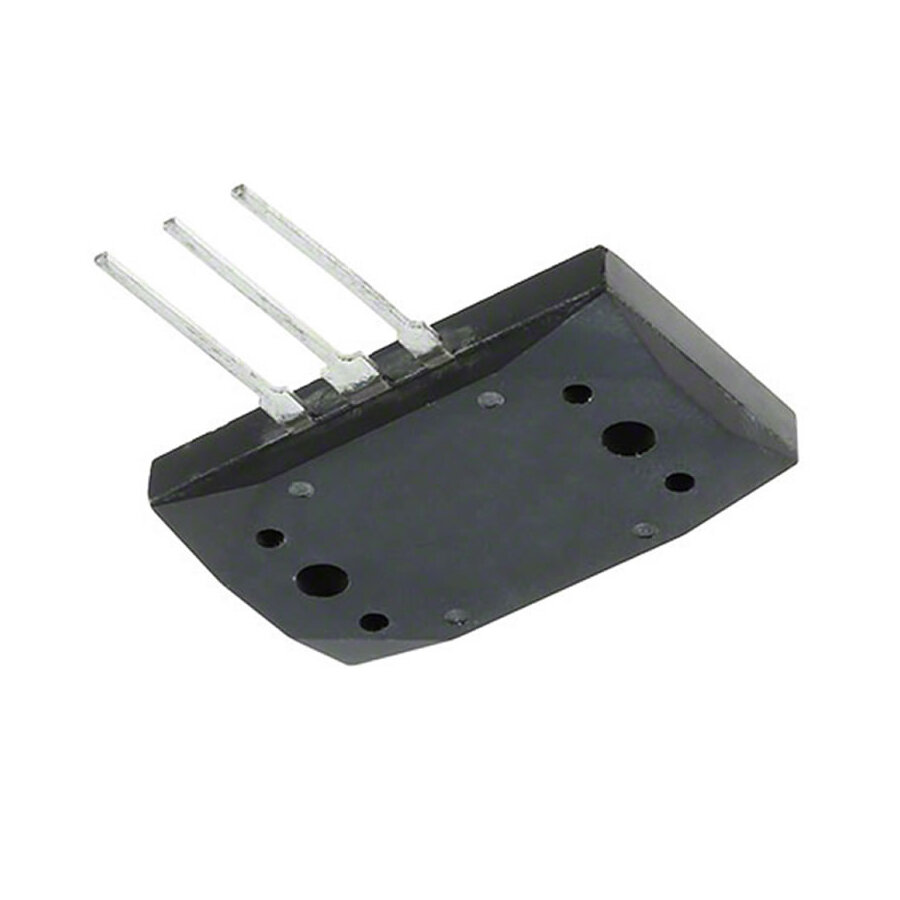

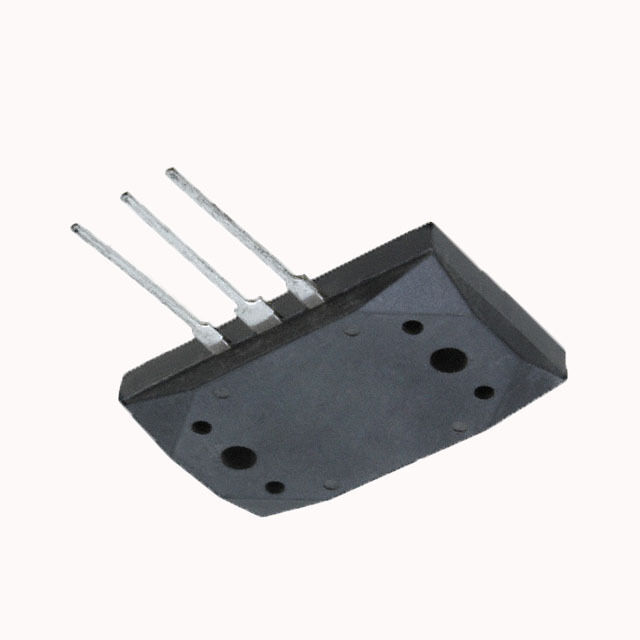

2SB749A Transistor Silicon PNP CASE: MT200 MAKE: Hitachi
Product specifications
Type Transistor Silicon PNP
Case MT200
Manufacturer Hitachi
Polarity PNP
Maximum Collector Power Dissipation (Pc) 80 W
Maximum Collector-Base Voltage |Vcb| 120 V
Maximum Collector-Emitter Voltage |Vce| 120 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 7 A
Max. Operating Junction Temperature (Tj) 175 °C
Transition Frequency (ft): 10 MHz
Forward Current Transfer Ratio (hFE), MIN 65
SKU 766977
