2SB773
View detailed images (13)

2SB773

SKU: 2SB773

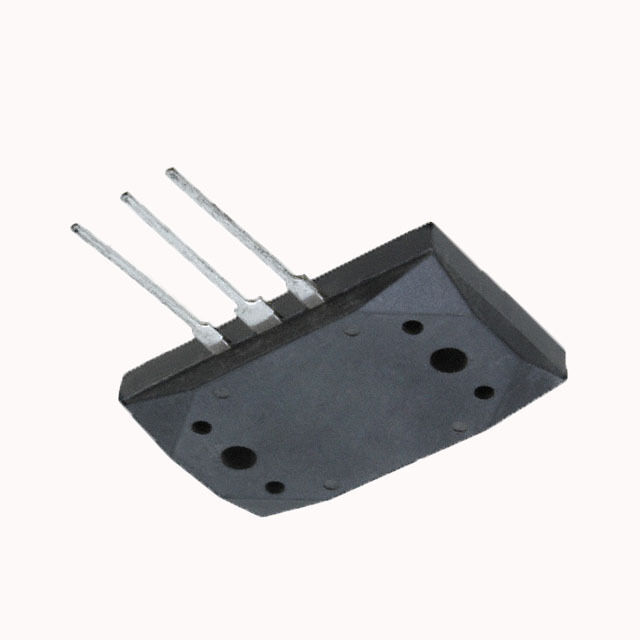

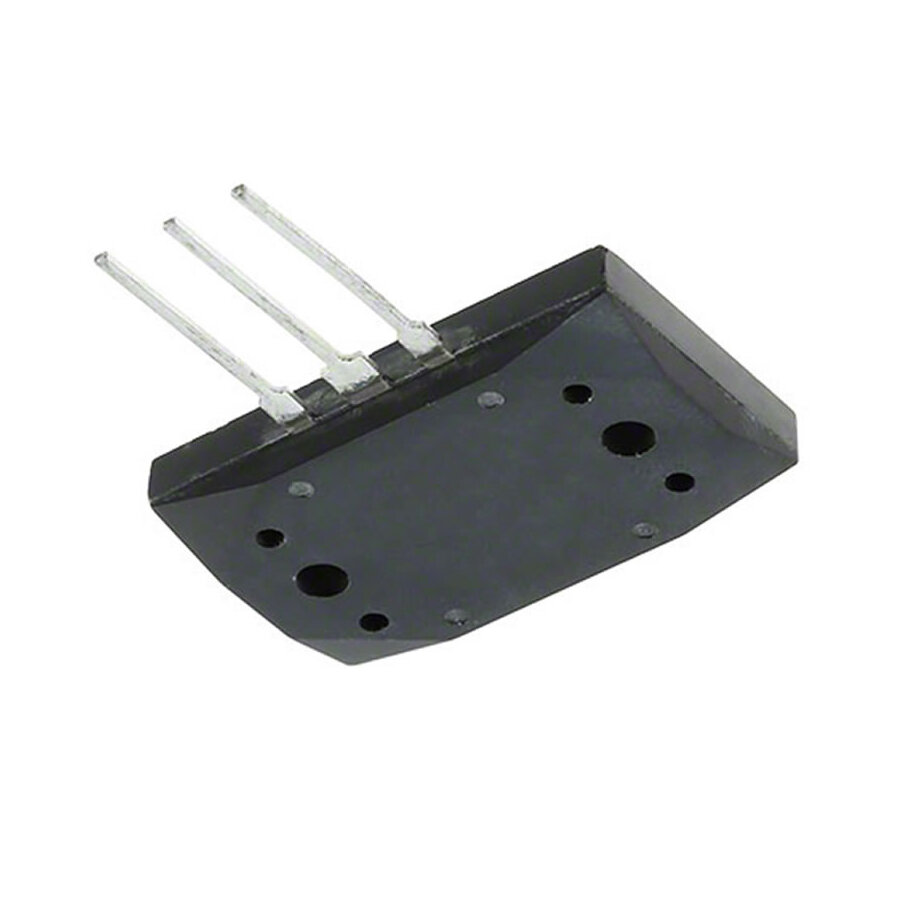

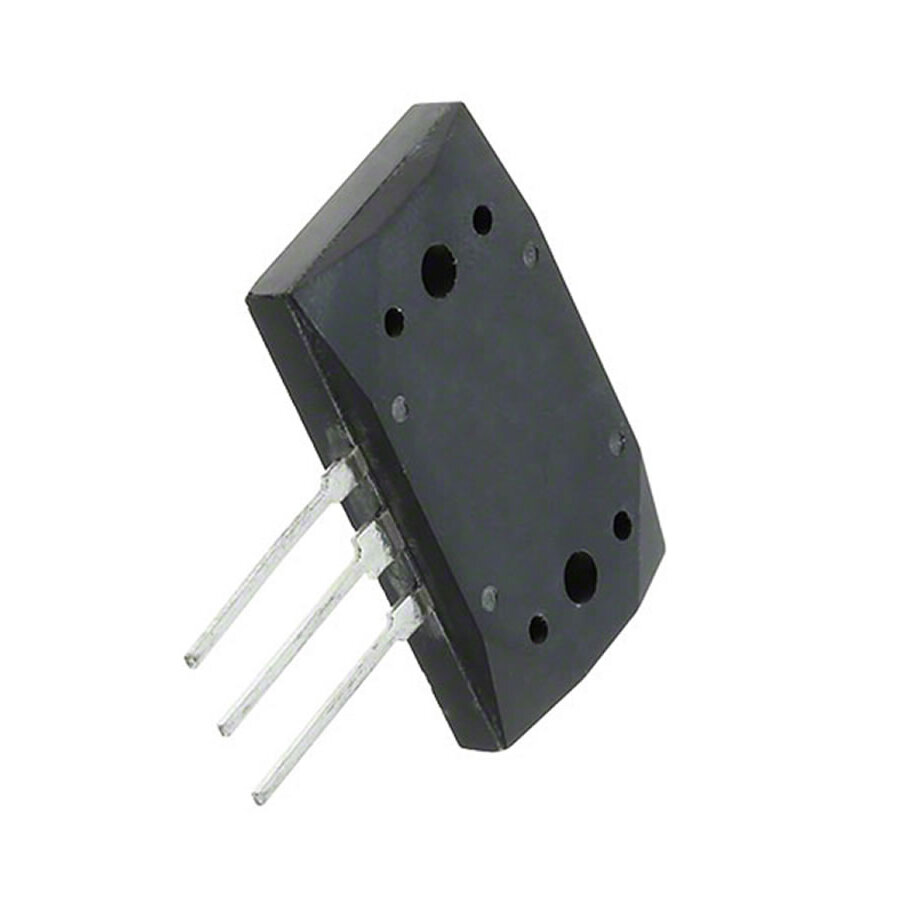

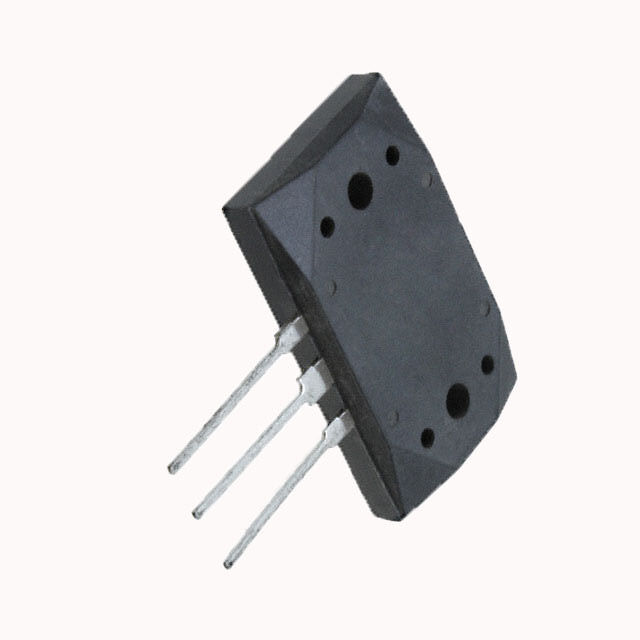

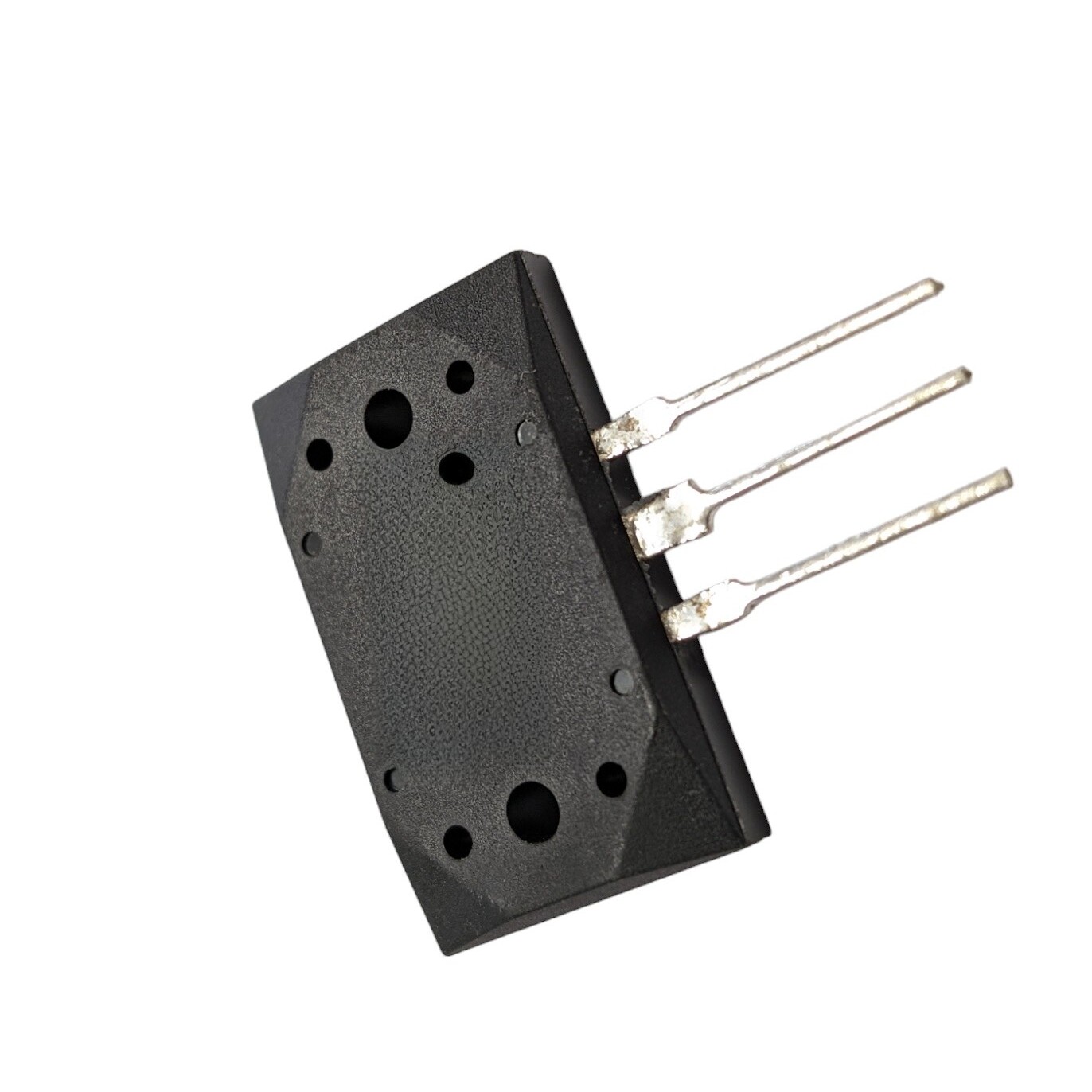

2SB773 Transistor Silicon PNP CASE: MT200 MAKE: NEC
Product specifications
Type Transistor Silicon PNP
Case MT200
Manufacturer NEC
Polarity PNP
Maximum Collector Power Dissipation (Pc) 70 W
Maximum Collector-Base Voltage |Vcb| 100 V
Maximum Collector-Emitter Voltage |Vce| 100 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 6 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 40 MHz
Forward Current Transfer Ratio (hFE), MIN 80
SKU 83256
