2SB822

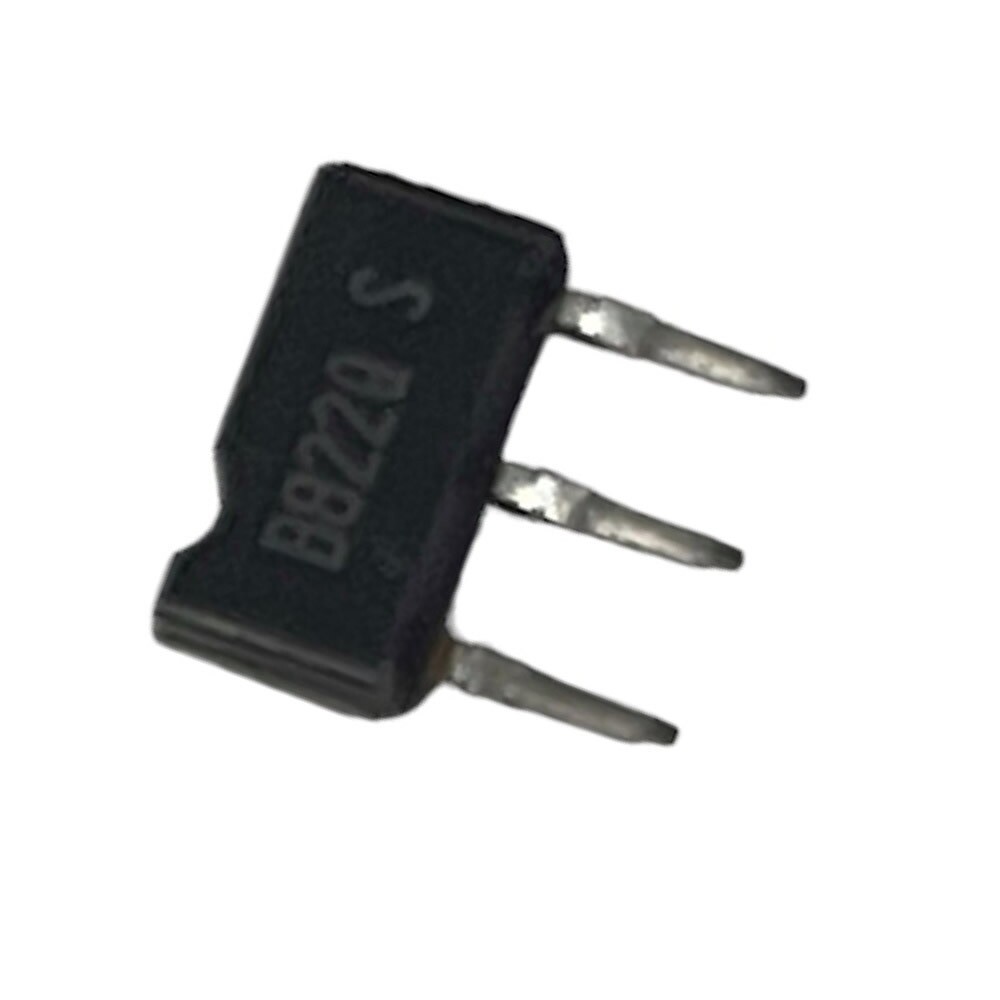

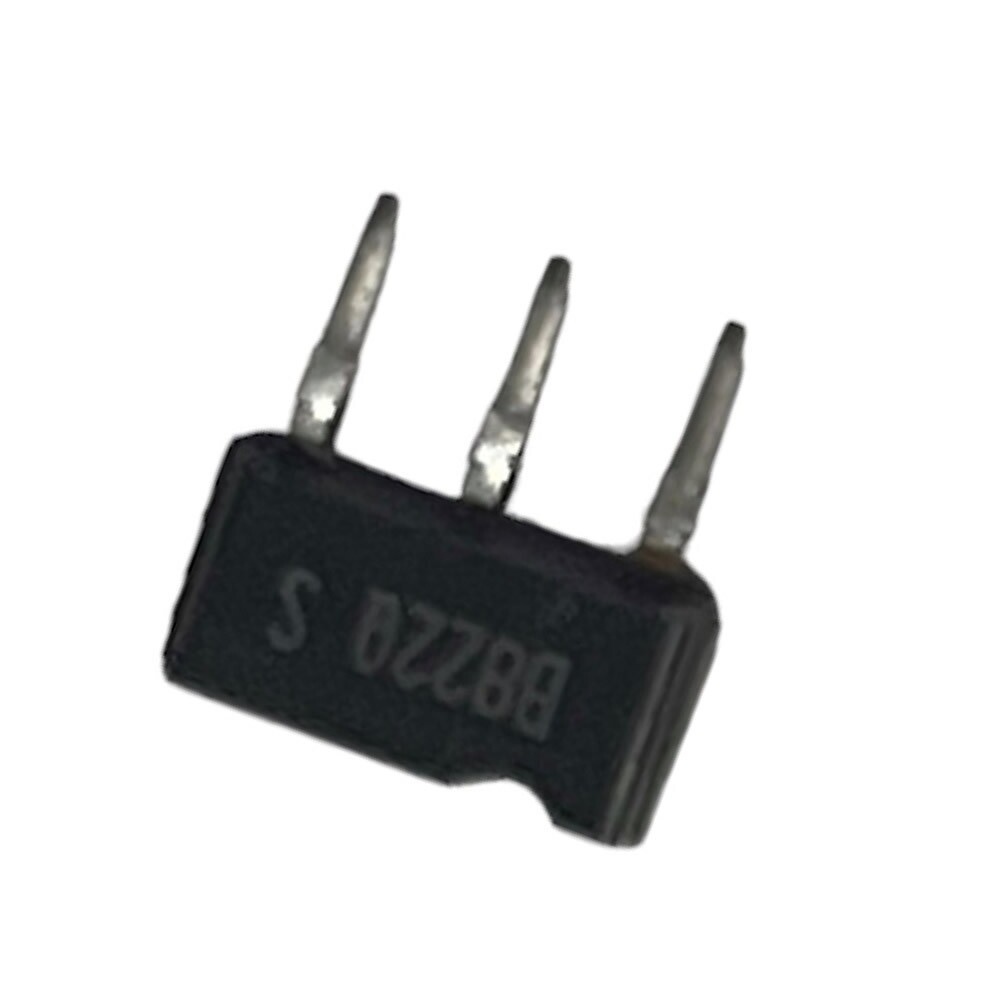

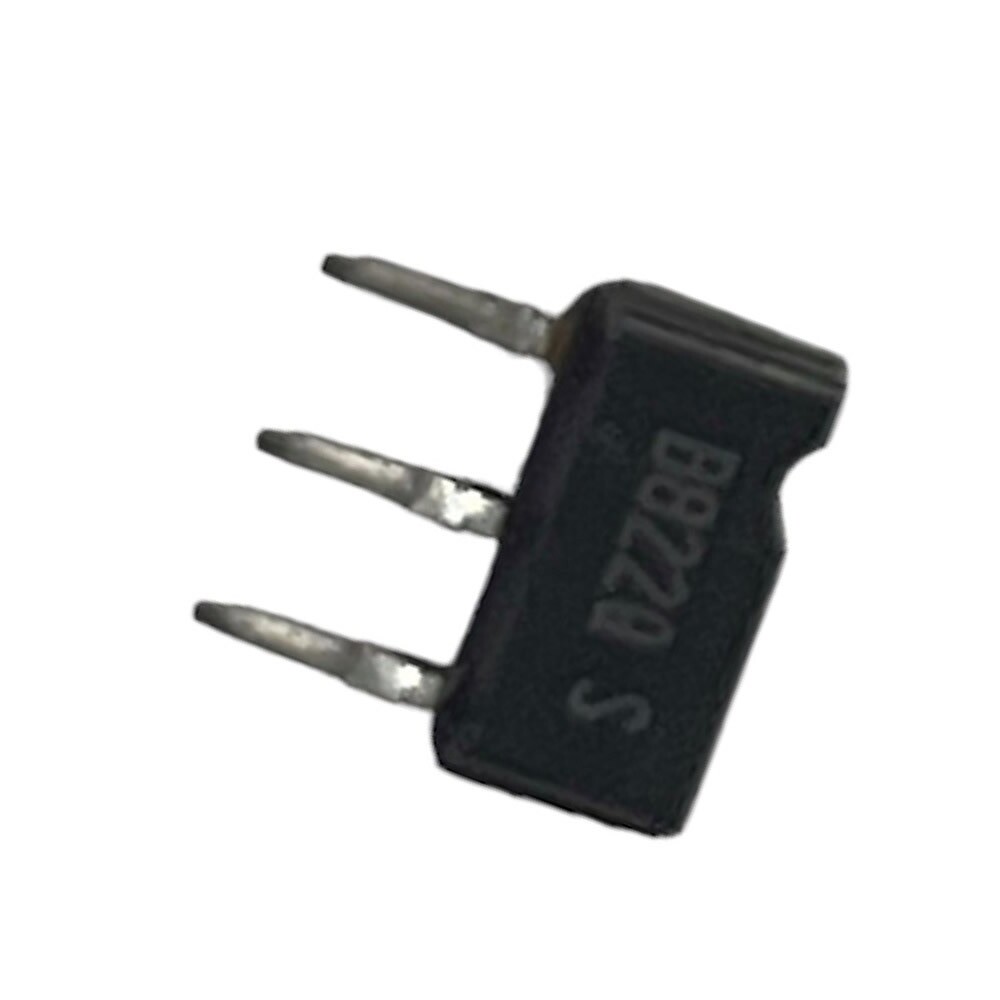

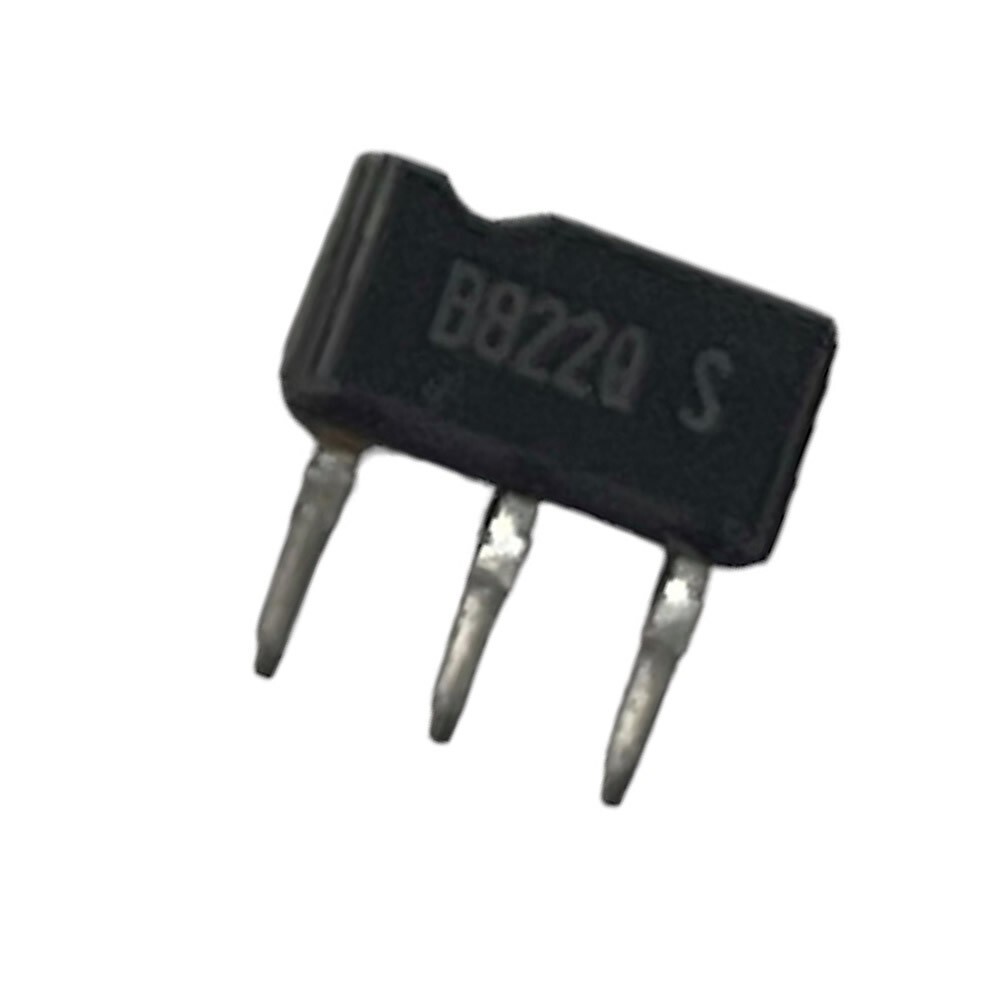

View detailed images (4)

2SB822

SKU: 2SB822
2SB822 Transistor Silicon PNP CASE: TO92S MAKE: Rohm Semiconductor
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 6 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SB822 Datasheet
Product specifications
Type Transistor Silicon PNP
Case TO92S
Manufacturer Rohm Semiconductor
Vbr CEO 32
Max. PD (W) 750m
C(ob) (F) 50p
hfe 390=
Ic Max. (A) 3.0
Polarity PNP
Trans. Freq (Hz) Min. 100M
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.75 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector-Emitter Voltage |Vce| 30 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 2 A
Max. Operating Junction Temperature (Tj) 135 °C
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN 90
SKU 86752
