2SB928
View detailed images (12)

2SB928

SKU: 2SB928

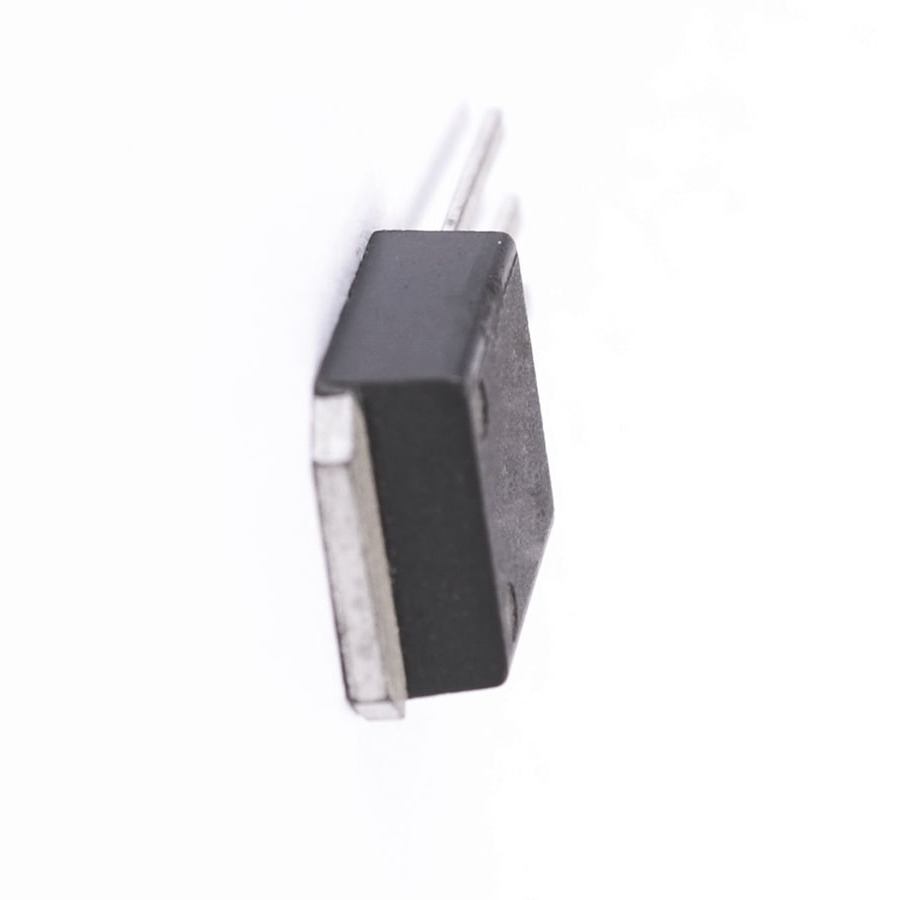

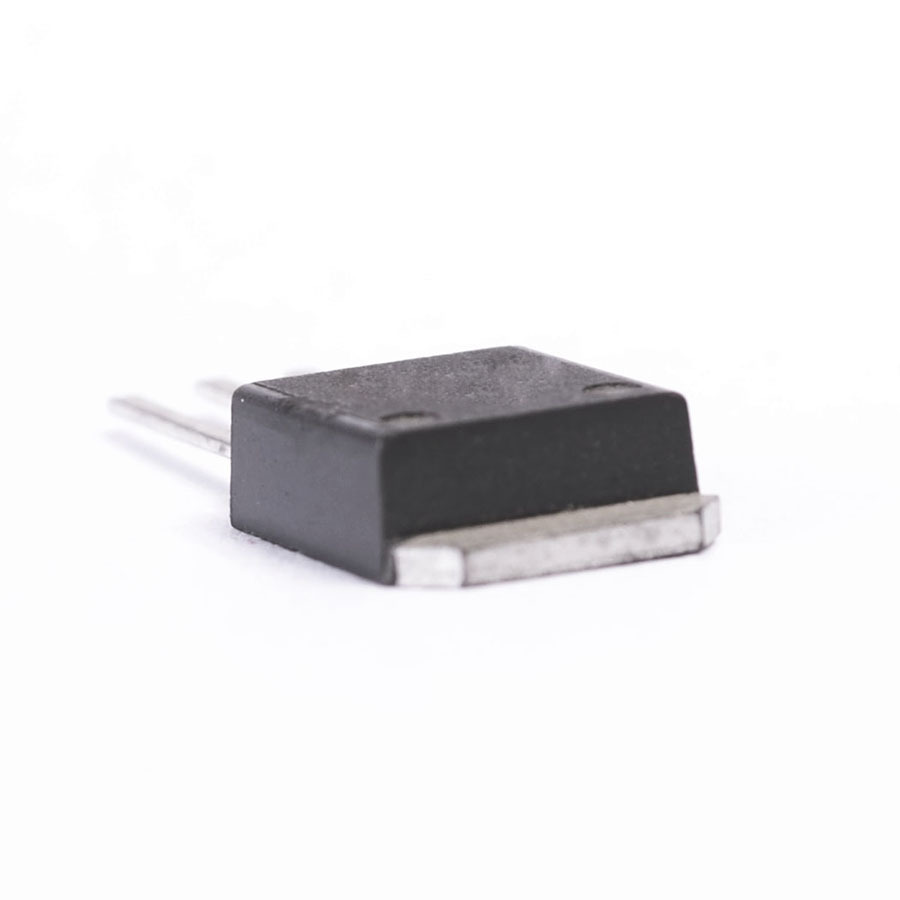

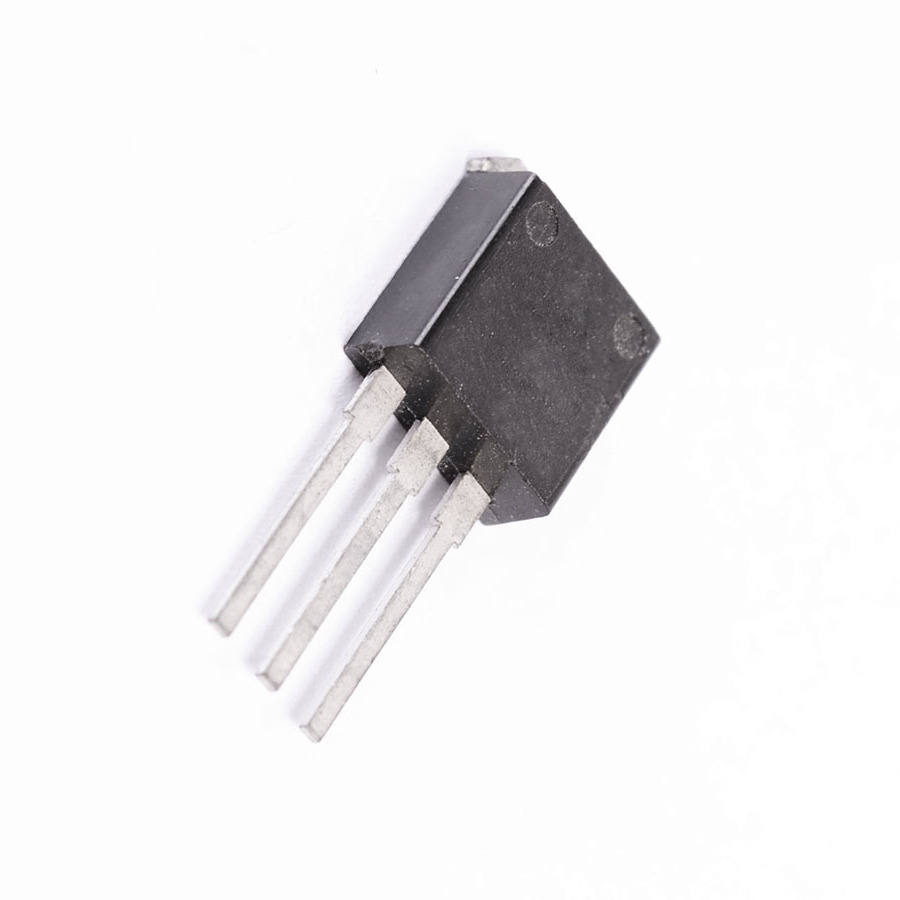

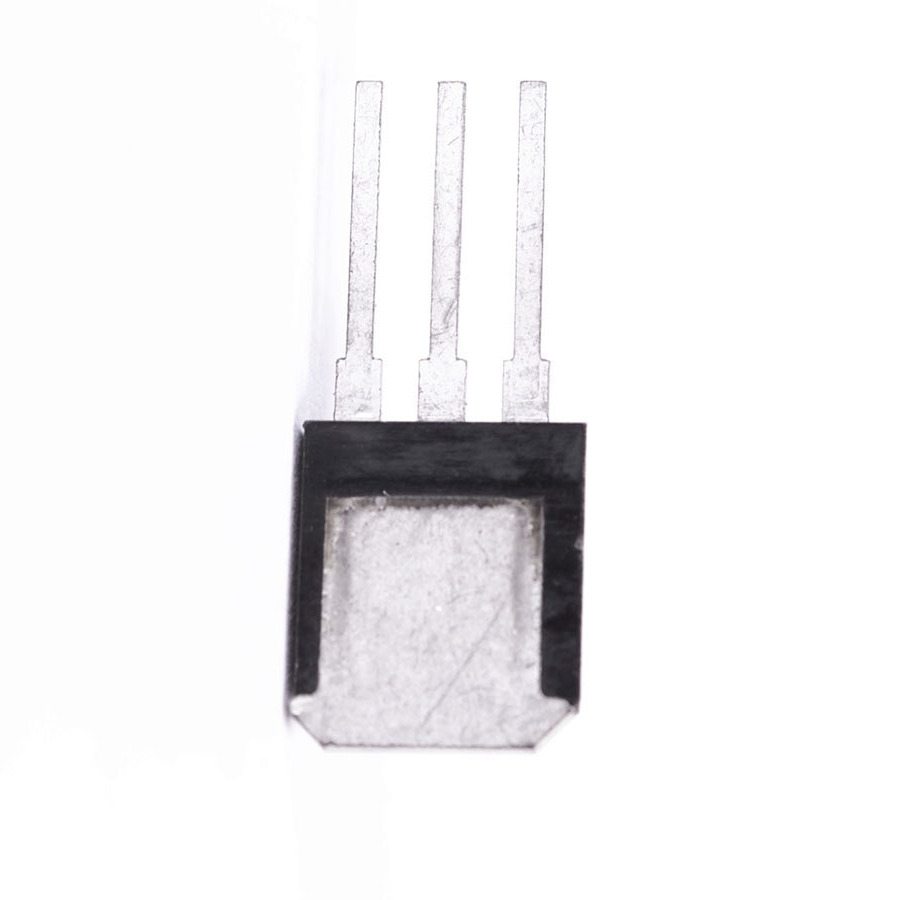

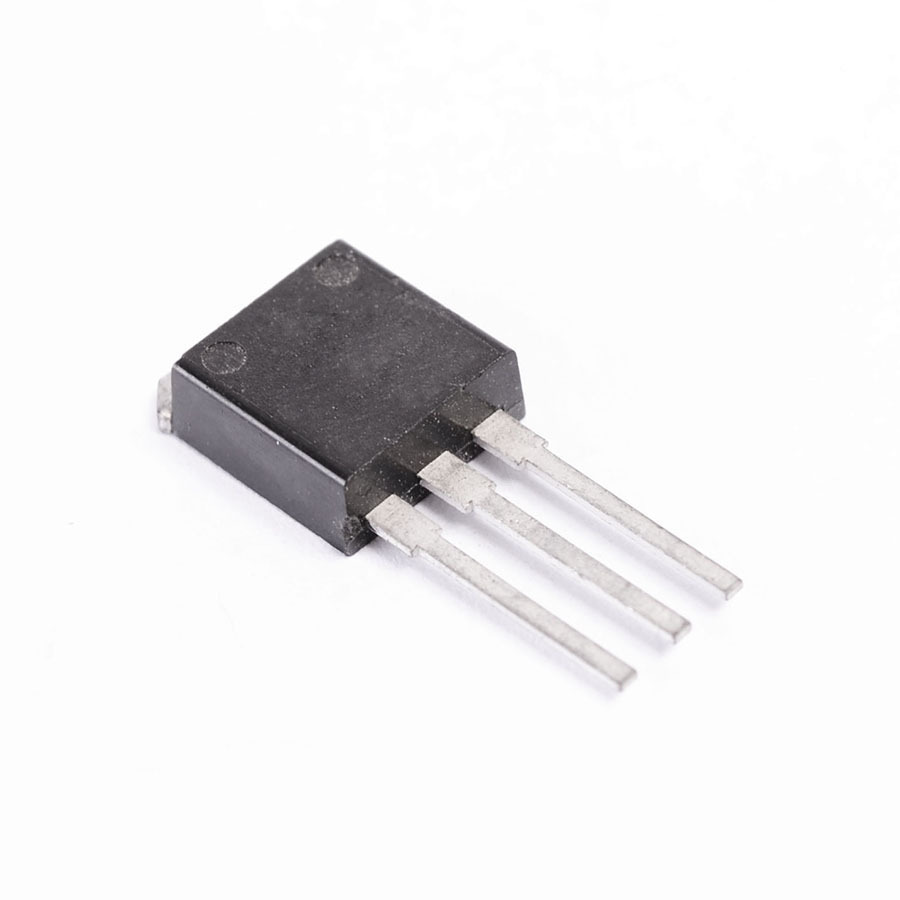

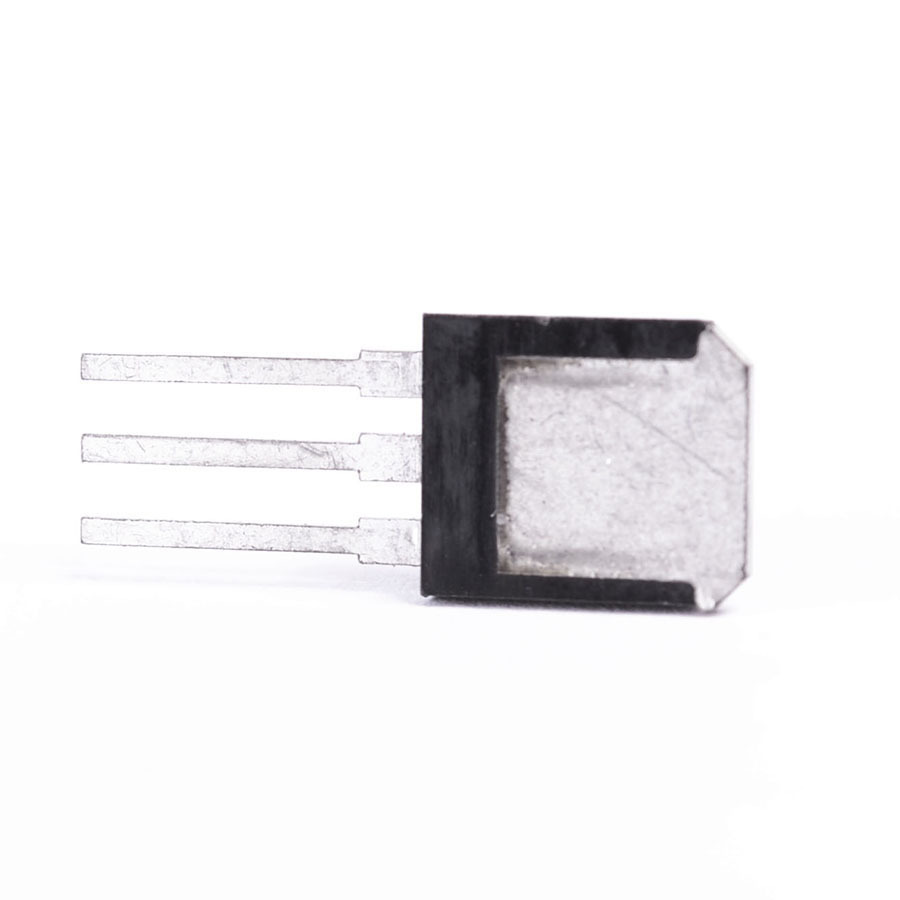

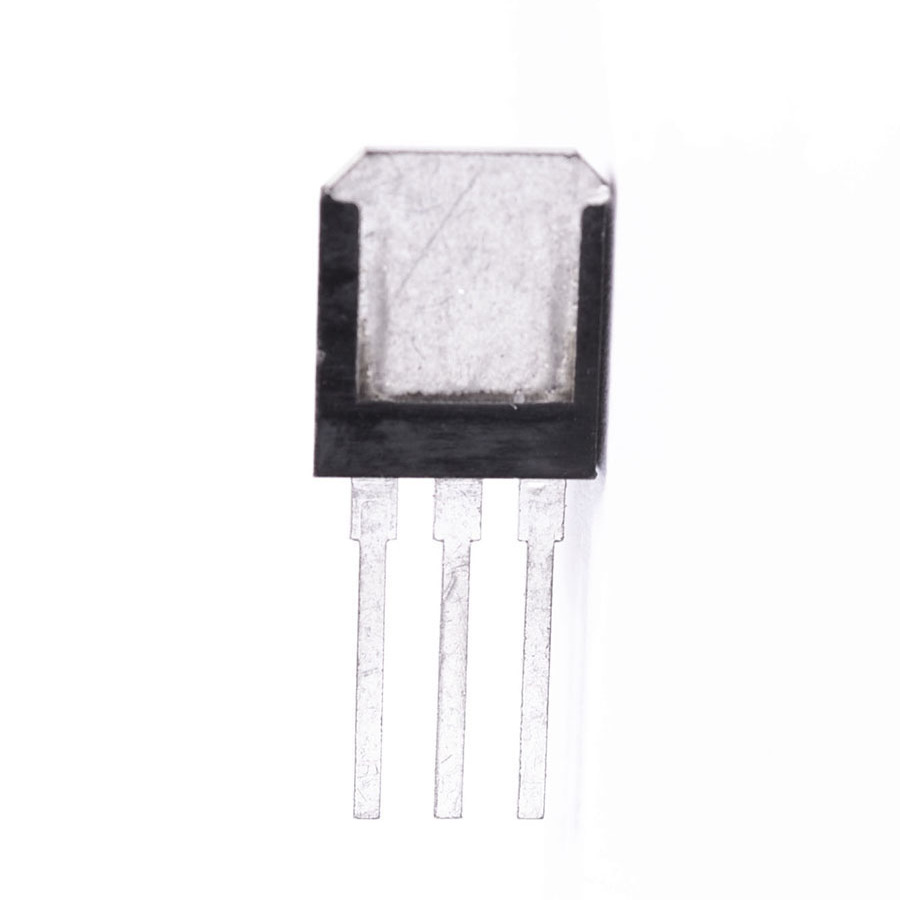

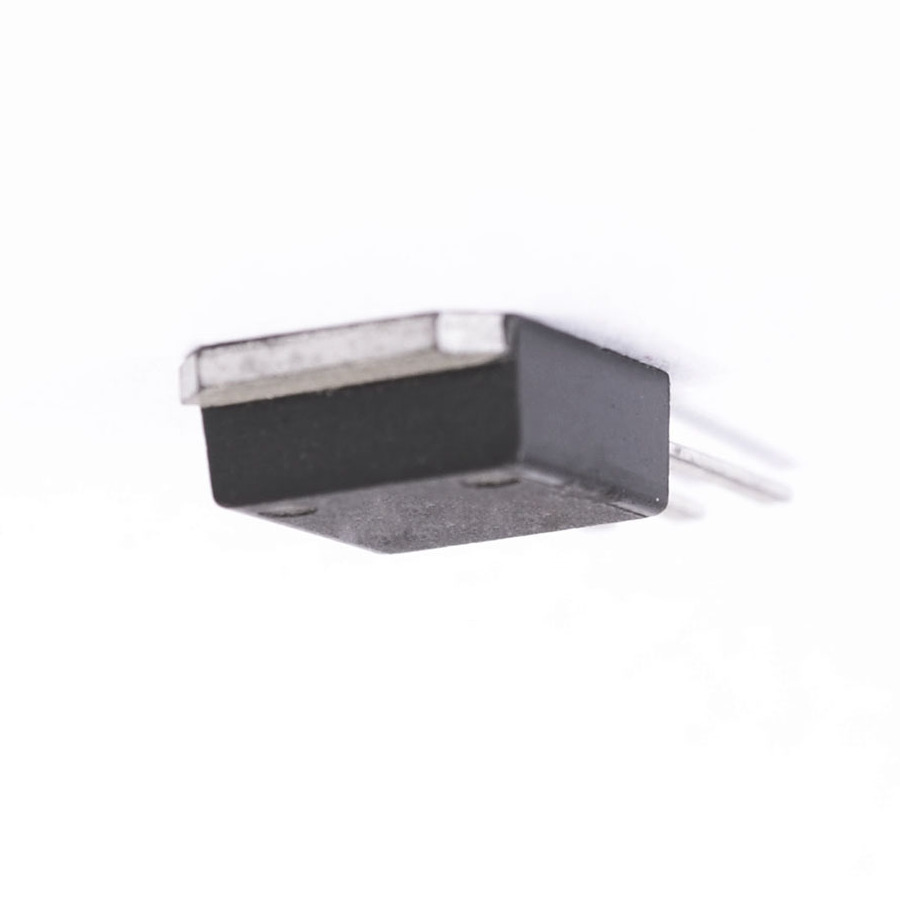

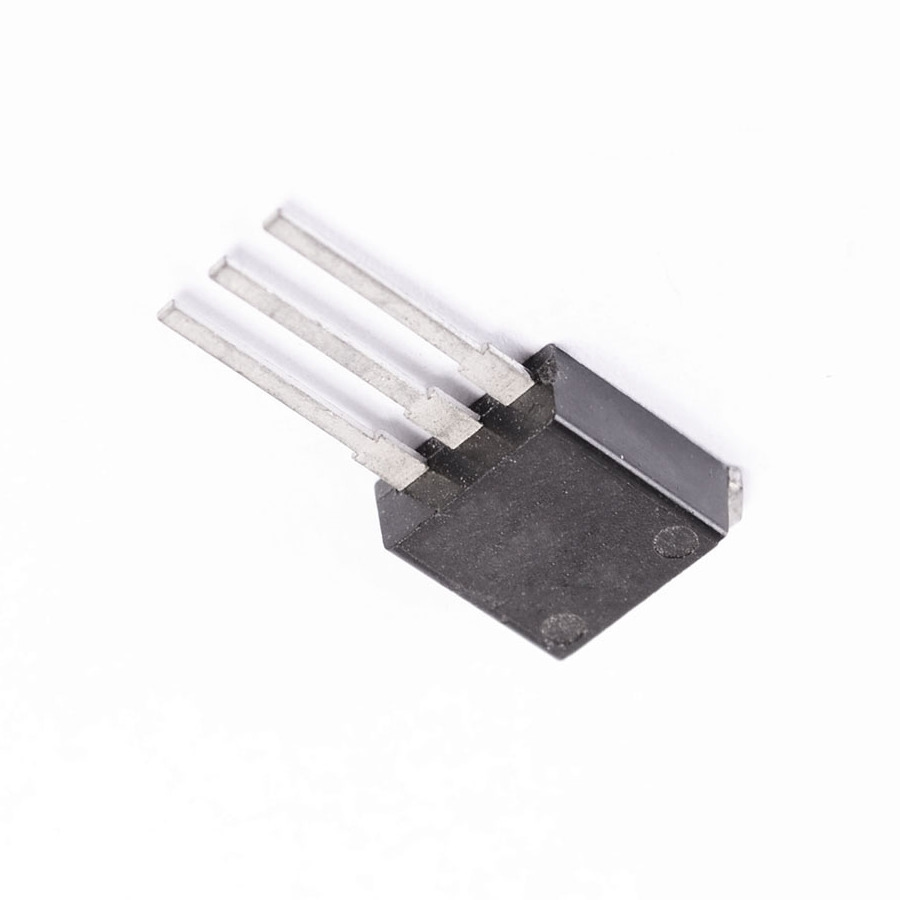

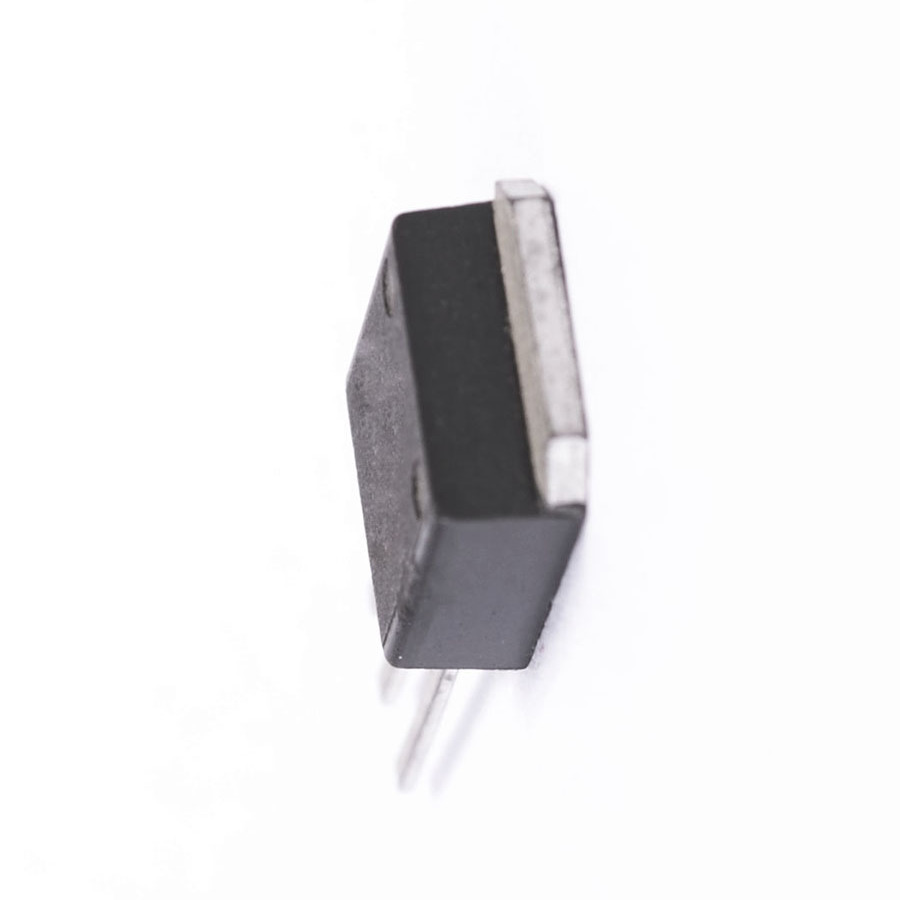

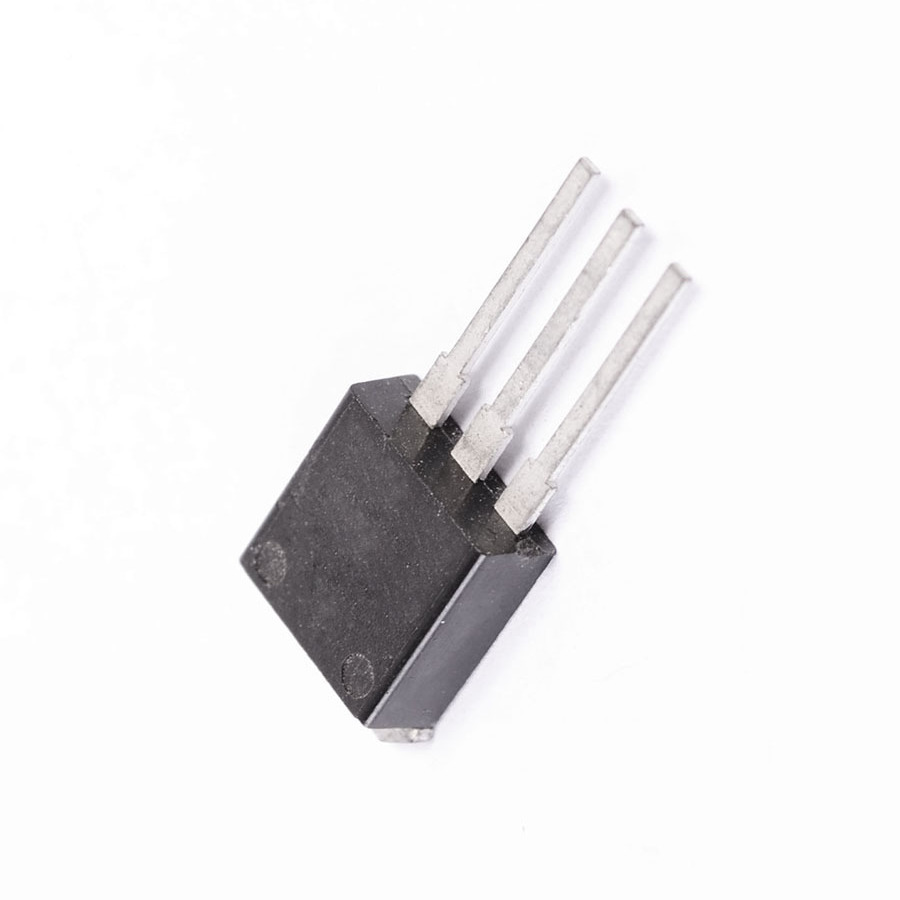

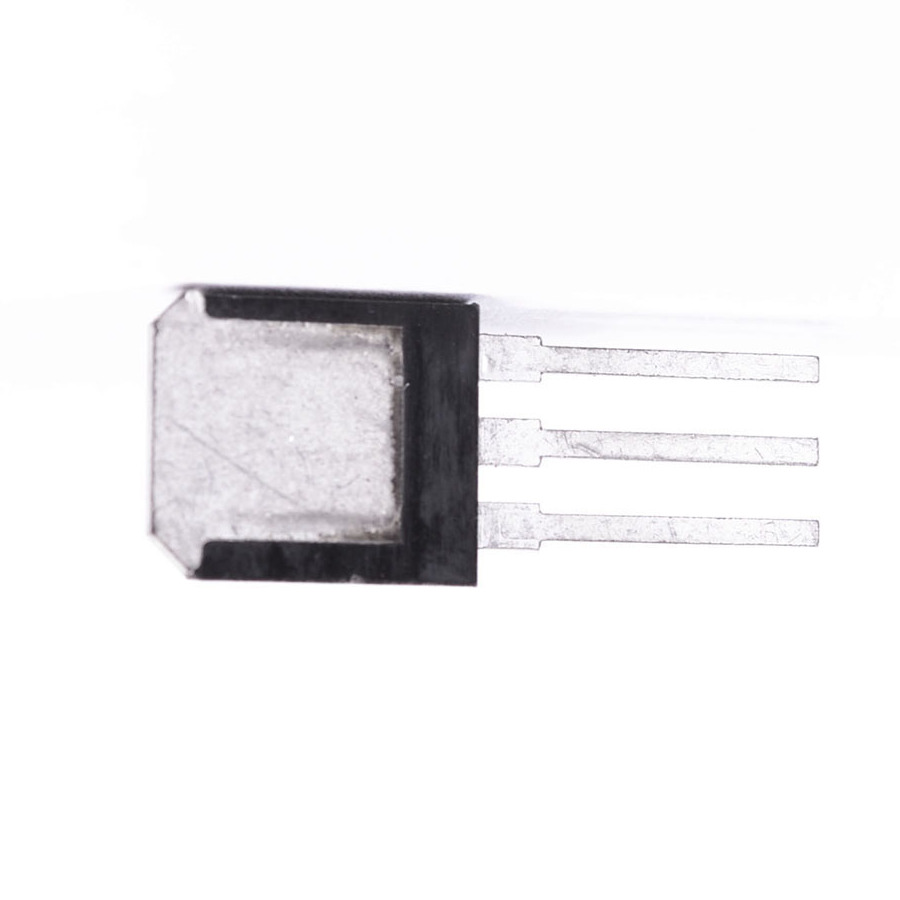

2SB928 Transistor Silicon PNP CASE: TO262 MAKE: Matsushita Electronics
Datasheet
2SB928 Datasheet
Product specifications
Equivalent 2SB928A
Type Transistor Silicon PNP
Case TO262
Manufacturer Matsushita Electronics
Vbr CBO 200
Vbr CEO 150
Max. PD (W) 30
Derate (Amb) (W/°C) 240m
Max. hFE 240
Min hFE 60
Ic Max. (A) 2.0
@Ic (test) (A) 150m
Icbo Max. @Vcb Max. (A) 50u
Polarity PNP
Oper. Temp (°C) Max. 140
@VCE (V) 10
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 30 W
Maximum Collector-Base Voltage |Vcb| 200 V
Maximum Collector-Emitter Voltage |Vce| 180 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 2 A
Max. Operating Junction Temperature (Tj) 175 °C
Forward Current Transfer Ratio (hFE), MIN 100
SKU 343727
