2SB963
View detailed images (12)

2SB963

SKU: 2SB963

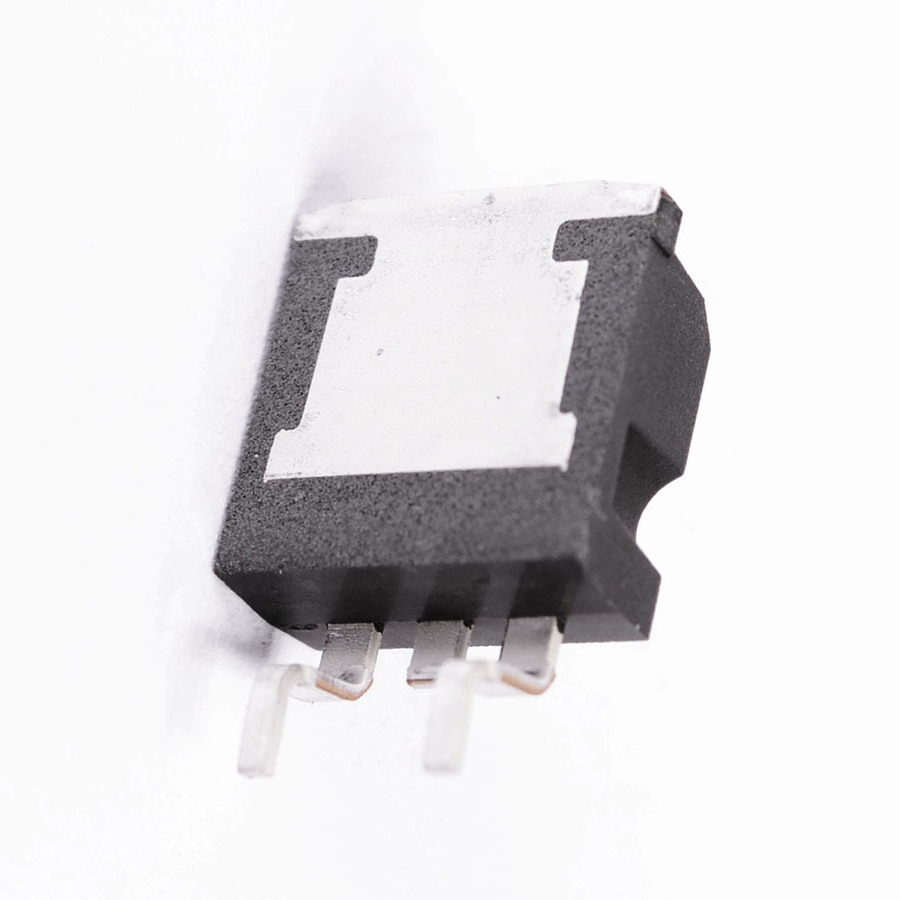

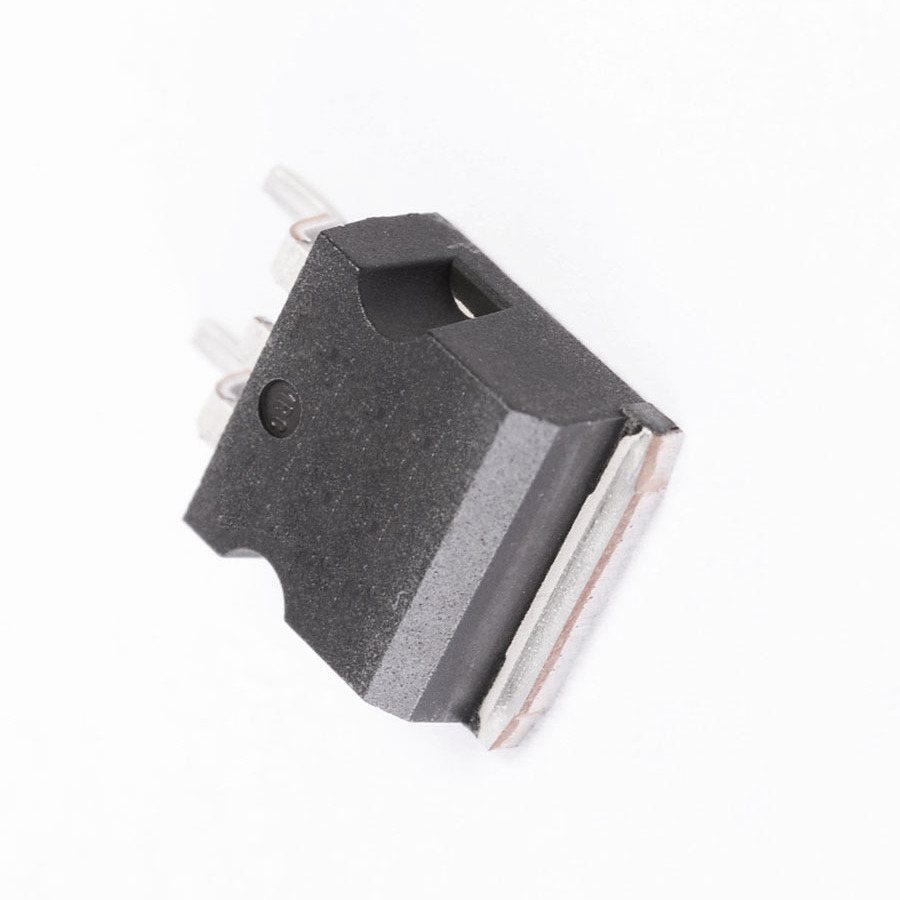

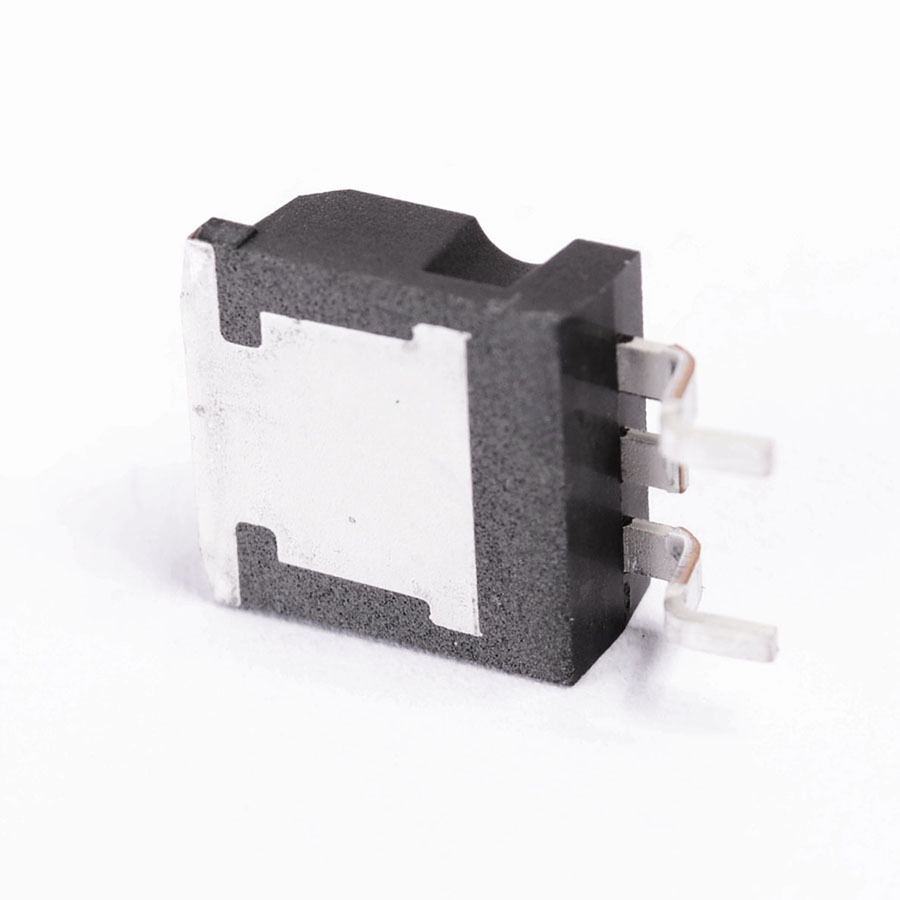

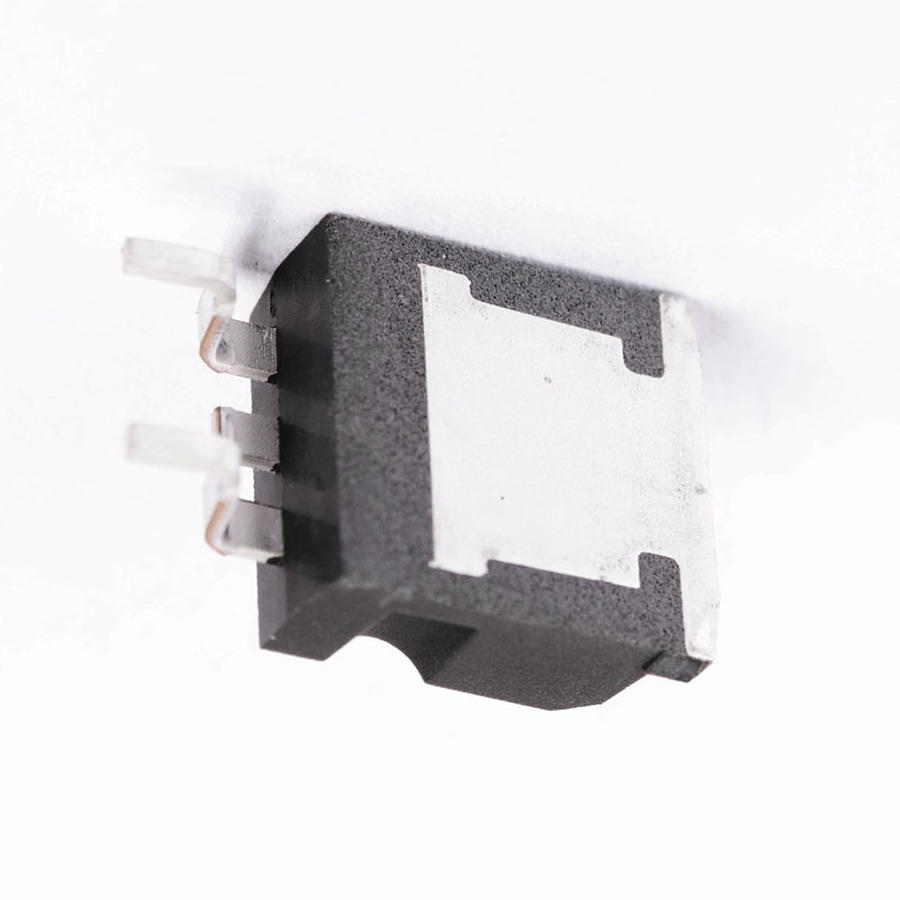

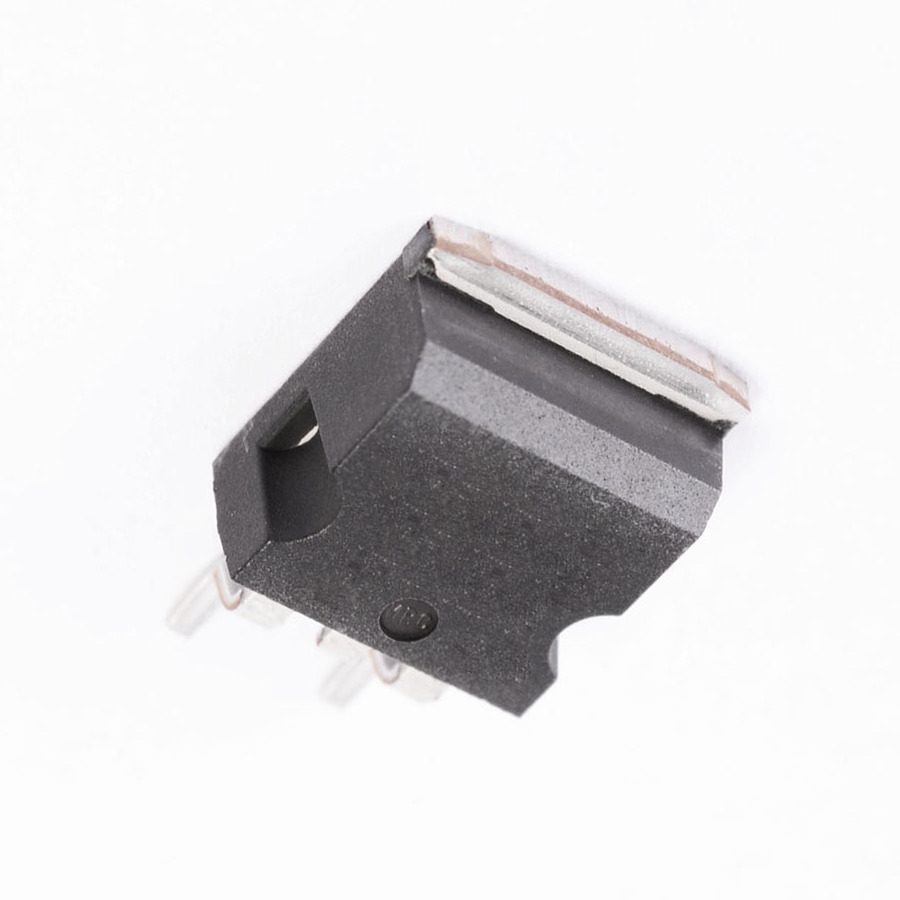

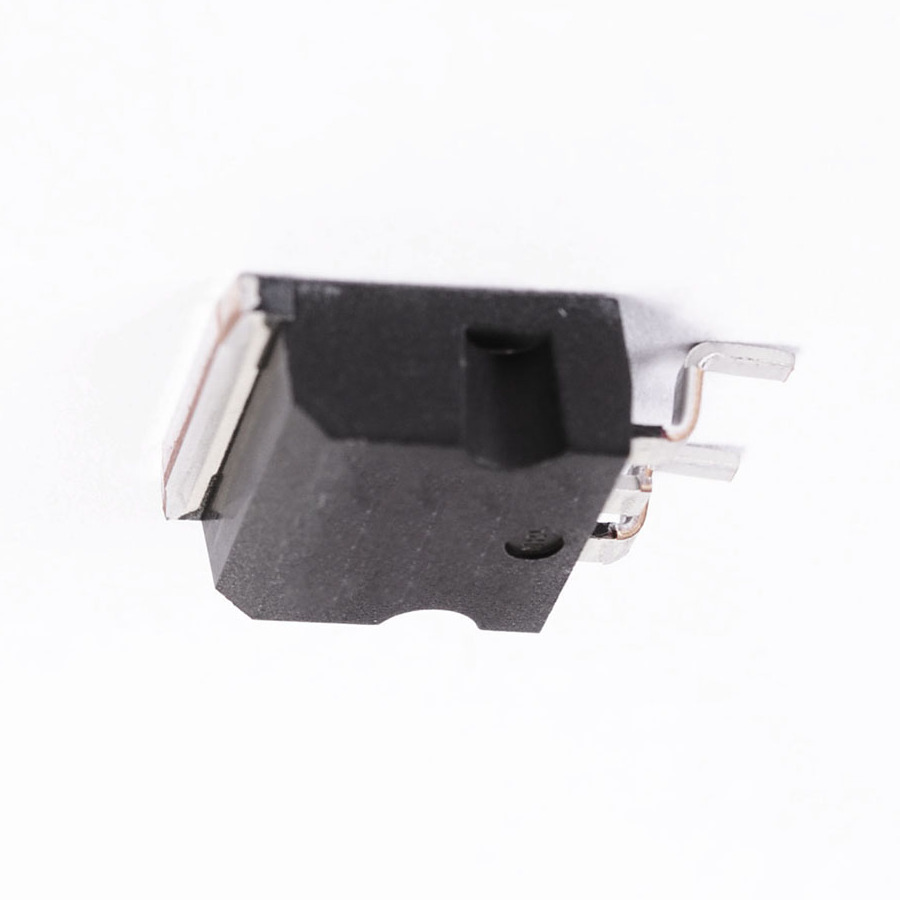

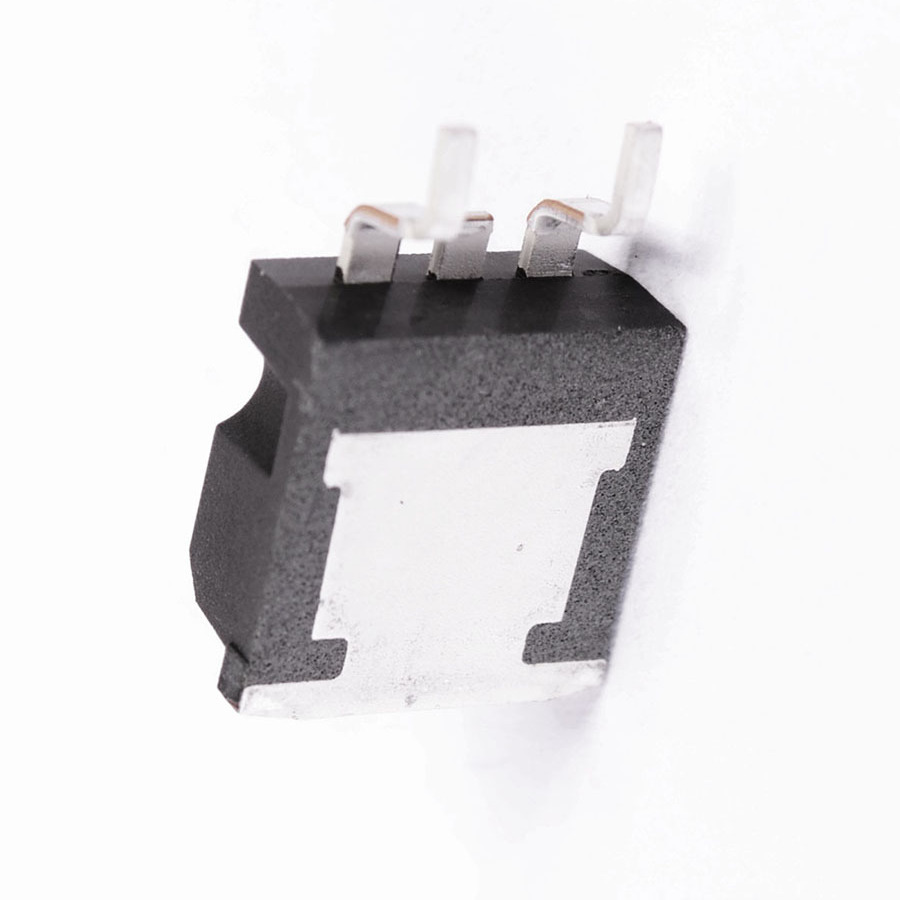

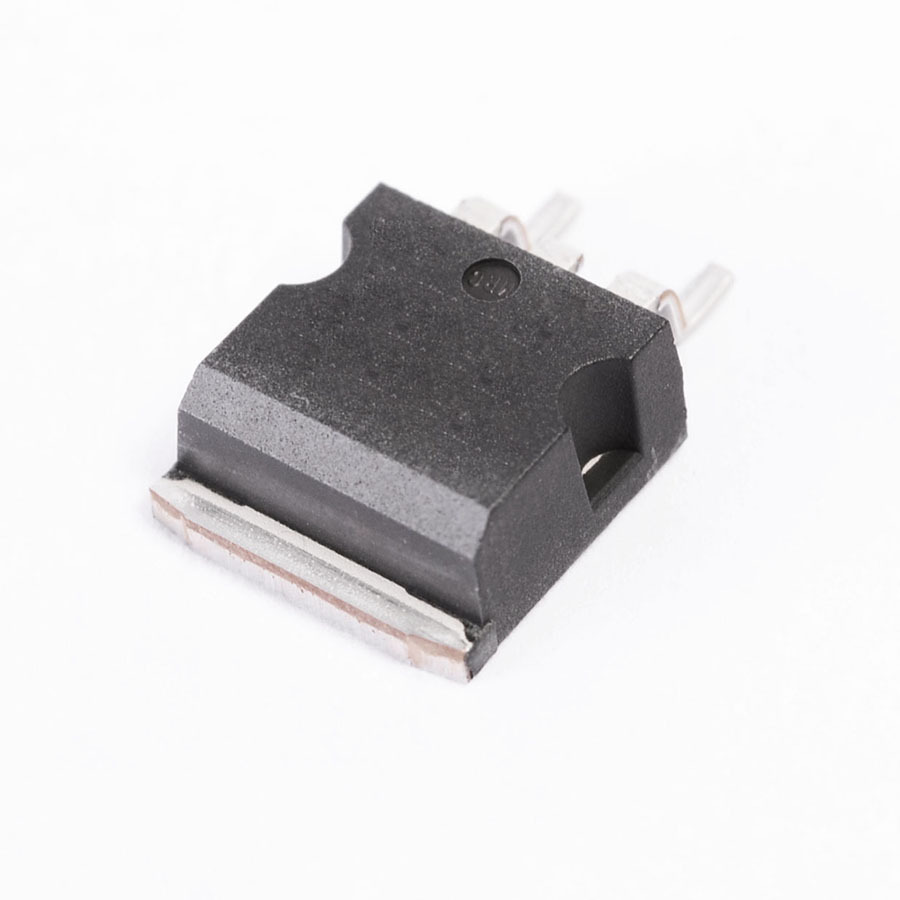

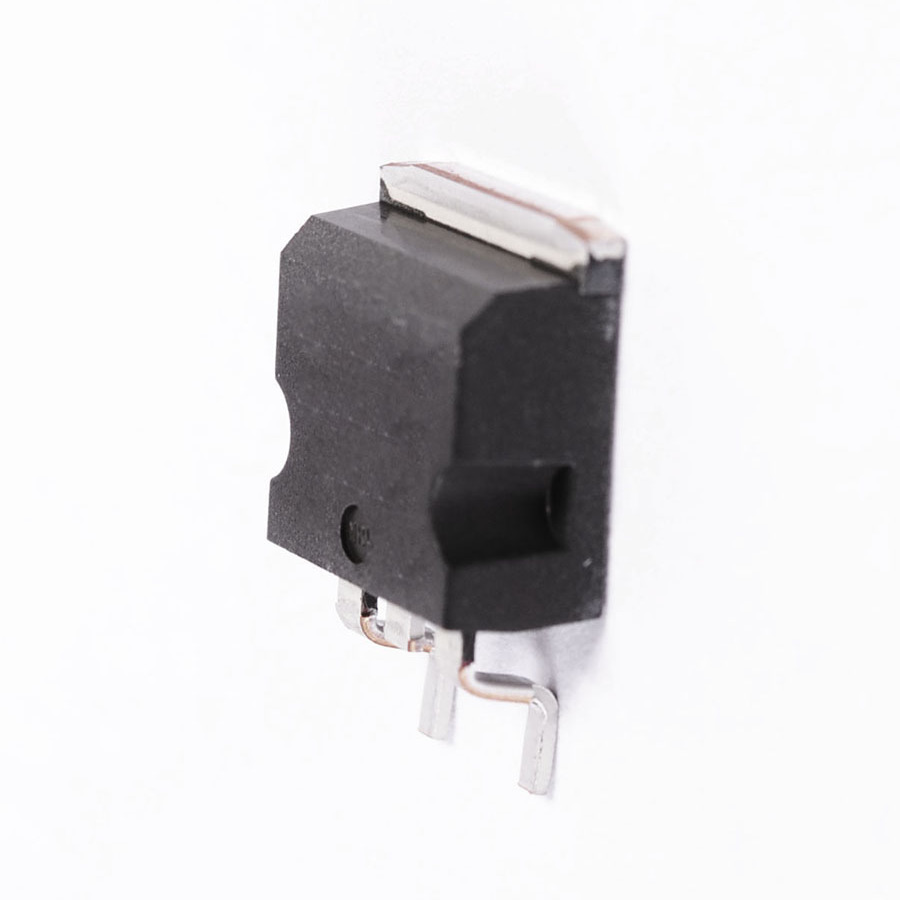

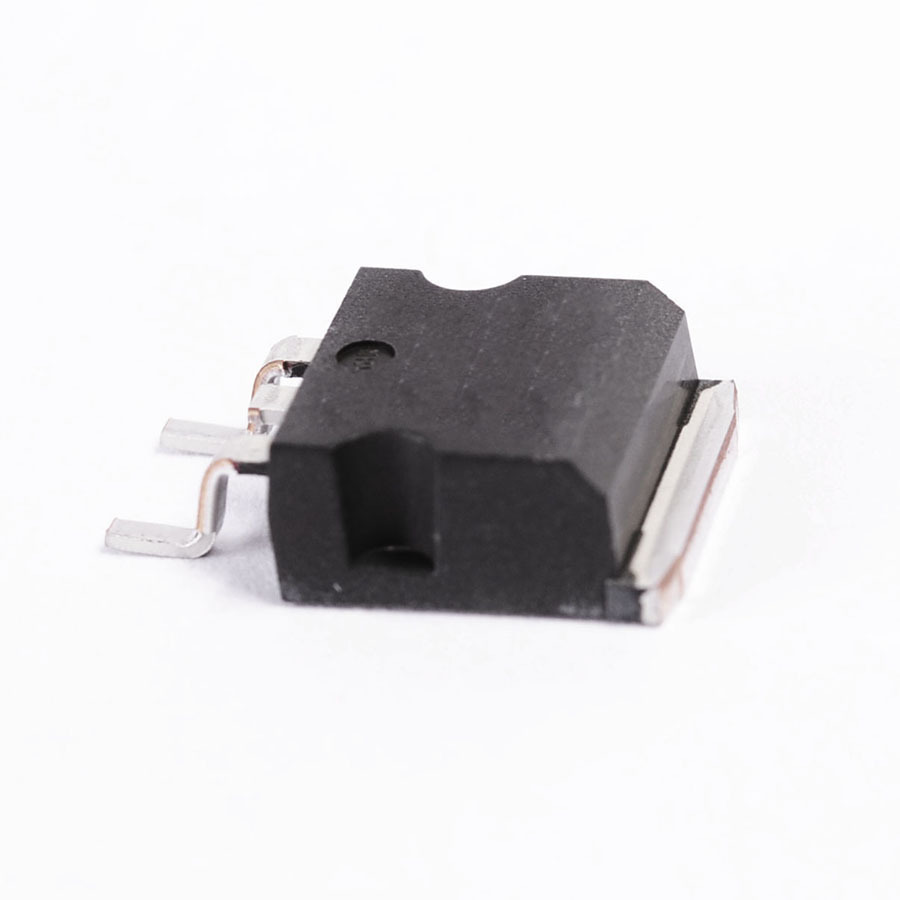

2SB963 Transistor Silicon PNP CASE: TO263 MAKE: NEC
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
2SB963 Datasheet
Product specifications
Type Transistor Silicon PNP
Case TO263
Manufacturer NEC
Vbr CEO 60
Max. PD (W) 8.0
t(f) Max. (S) 1.0u-
Max. hFE 30k
Min hFE 200
Ic Max. (A) 1.0
@Ic (test) (A) 500m
Mat. Silicon Logic
Polarity PNP
@VCE (test) 2.0
Oper. Temp (°C) Max. 150
Pinout Equivalence Number N/A
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 10 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 175 °C
Forward Current Transfer Ratio (hFE), MIN 8000
SKU 343763
