2SB963Z

2SB963Z

SKU: 2SB963Z

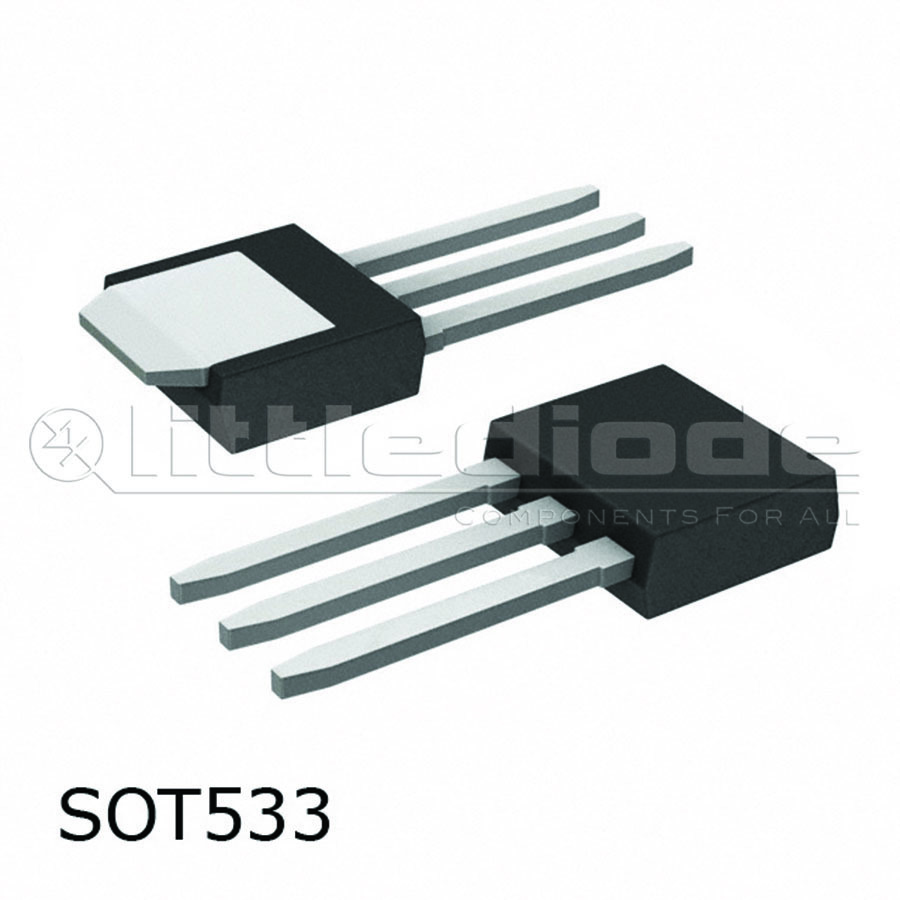

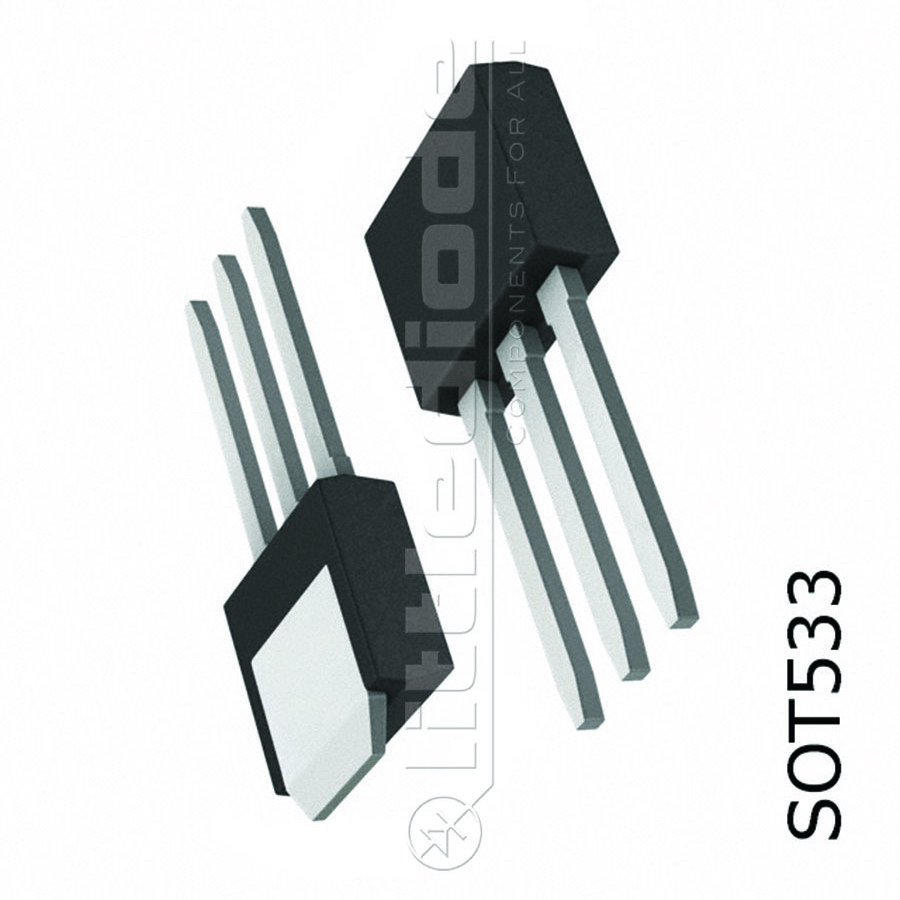

2SB963Z Transistor CASE: SOT533 MAKE: NEC
Product specifications
Type Transistor
Case SOT533
Manufacturer NEC
Vbr CEO 60
Max. PD (W) 2.0
t(on) Delay (S) 500n-
t(f) Max. (S) 1.0u-
Max. hFE 30k
Min hFE 2.0k
Ic Max. (A) 1.0
@Ic (test) (A) 500m
Icbo Max. @Vcb Max. (A) 10u
Mat. Silicon Logic
t(stor) Max. (S) 1.0u-
Derate Above 25°C 8.0m
@VCE (test) 2.0
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 4-104
Surface Mounted Yes/No YES
SKU 556947
