2SB965
View detailed images (4)

2SB965

SKU: 2SB965

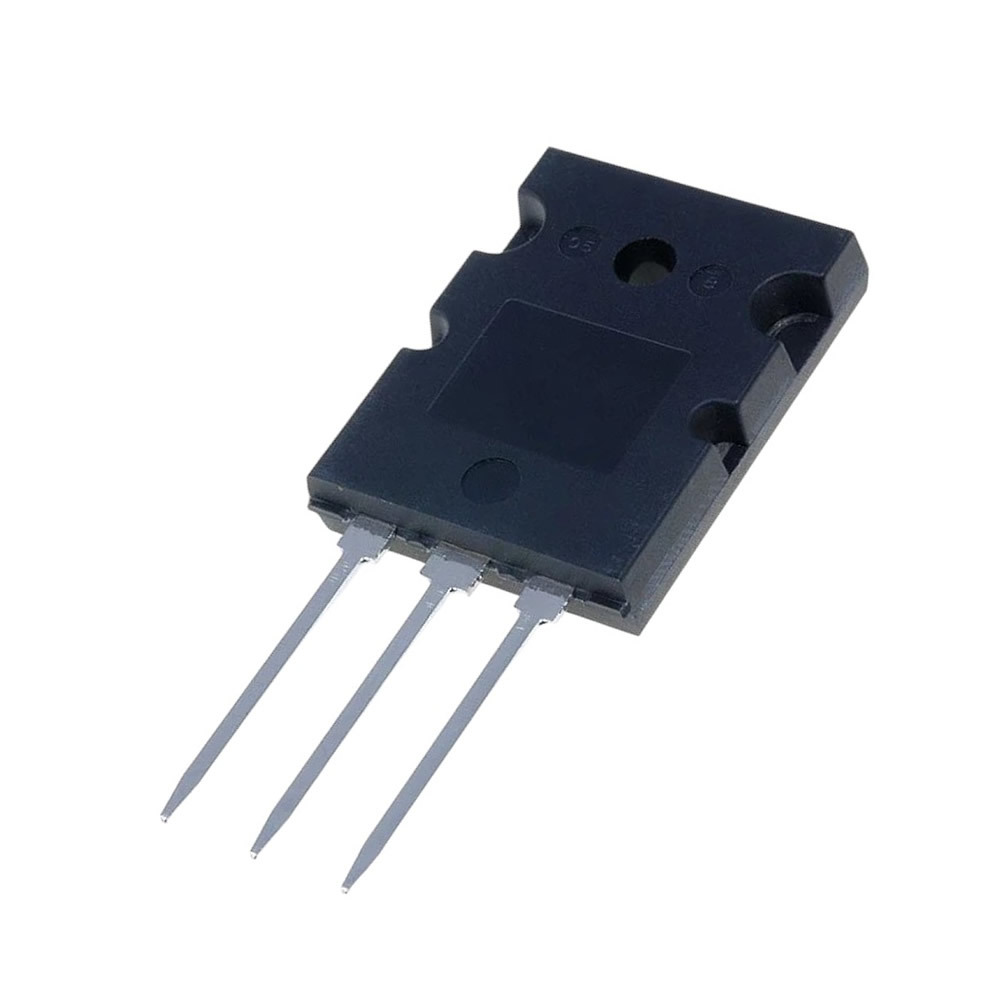

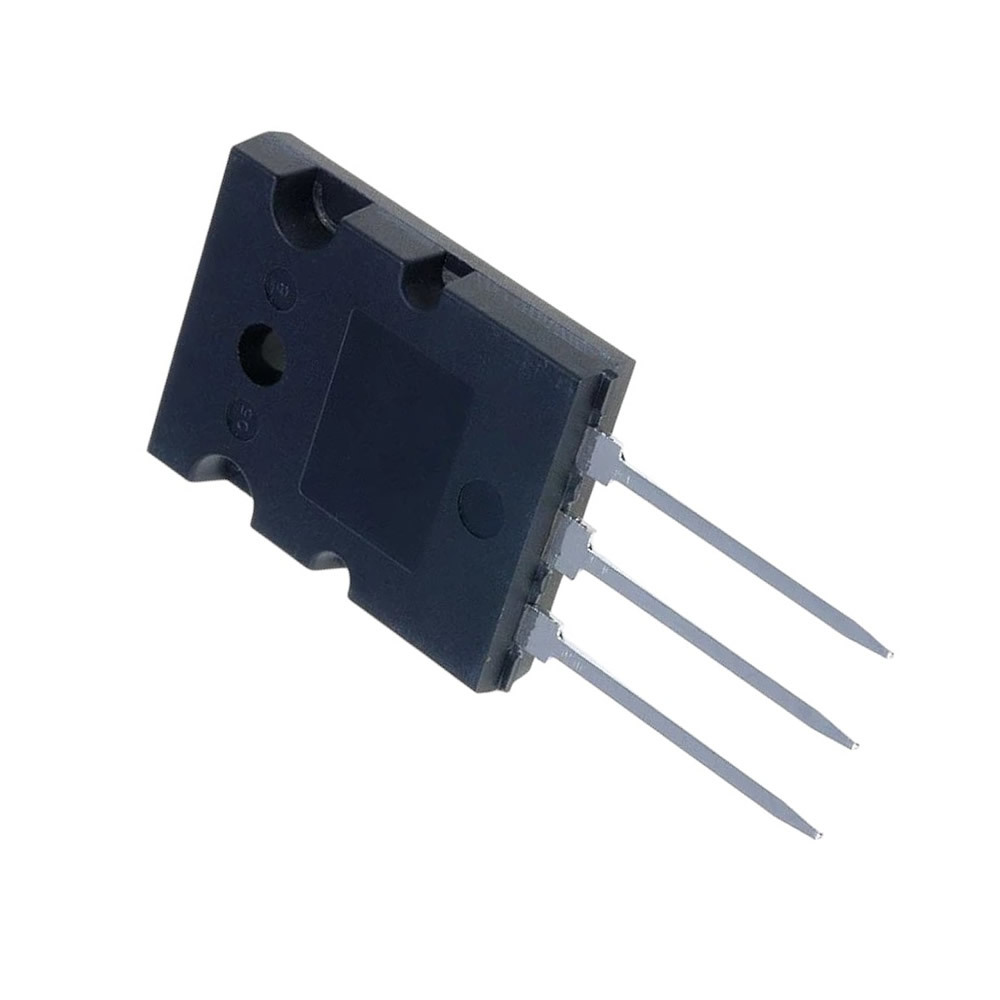

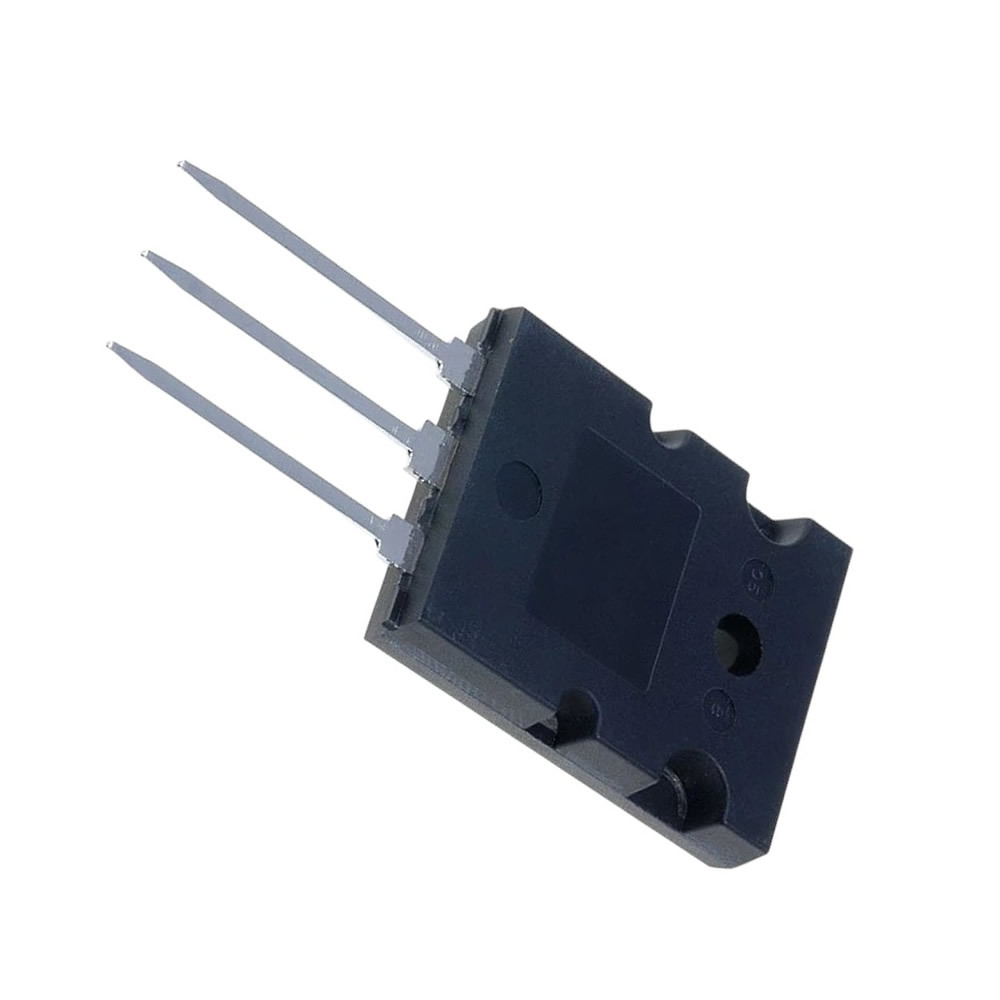

2SB965 Transistor Silicon PNP CASE: TO264 MAKE: NEC
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 1 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon PNP
Case TO264
Manufacturer NEC
Vbr CBO 120
Vbr CEO 120
Max. PD (W) 70
Max. hFE 320
Min hFE 60
Ic Max. (A) 7.0
@Ic (test) (A) 1.0
Polarity PNP
Trans. Freq (Hz) Min. 75M
Oper. Temp (°C) Max. 150
@VCE (V) 5.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 70 W
Maximum Collector-Base Voltage |Vcb| 120 V
Maximum Collector-Emitter Voltage |Vce| 120 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 7 A
Max. Operating Junction Temperature (Tj) 175 °C
Forward Current Transfer Ratio (hFE), MIN 120
SKU 84221
