2SC1070

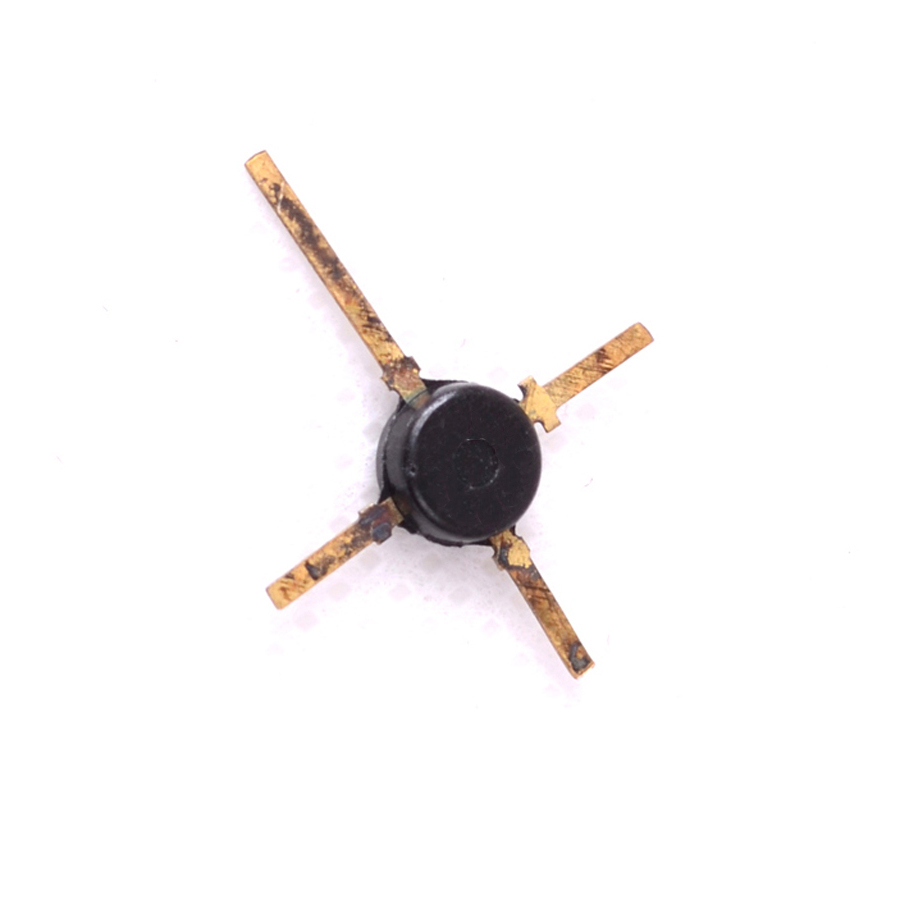

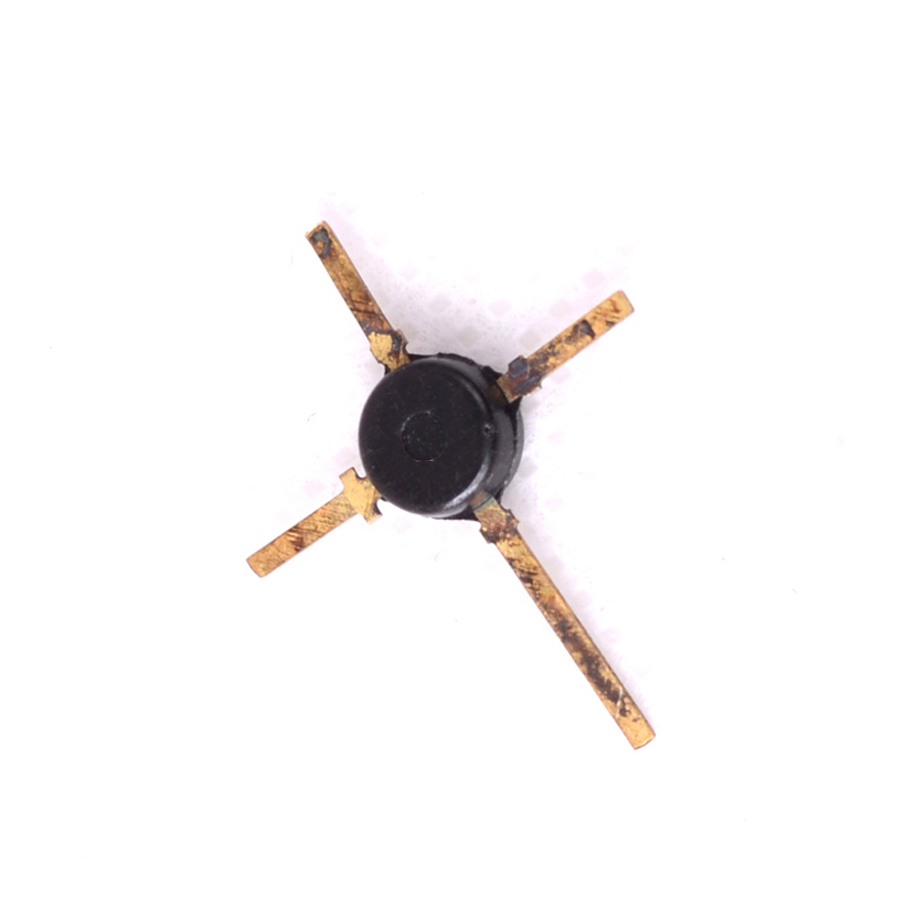

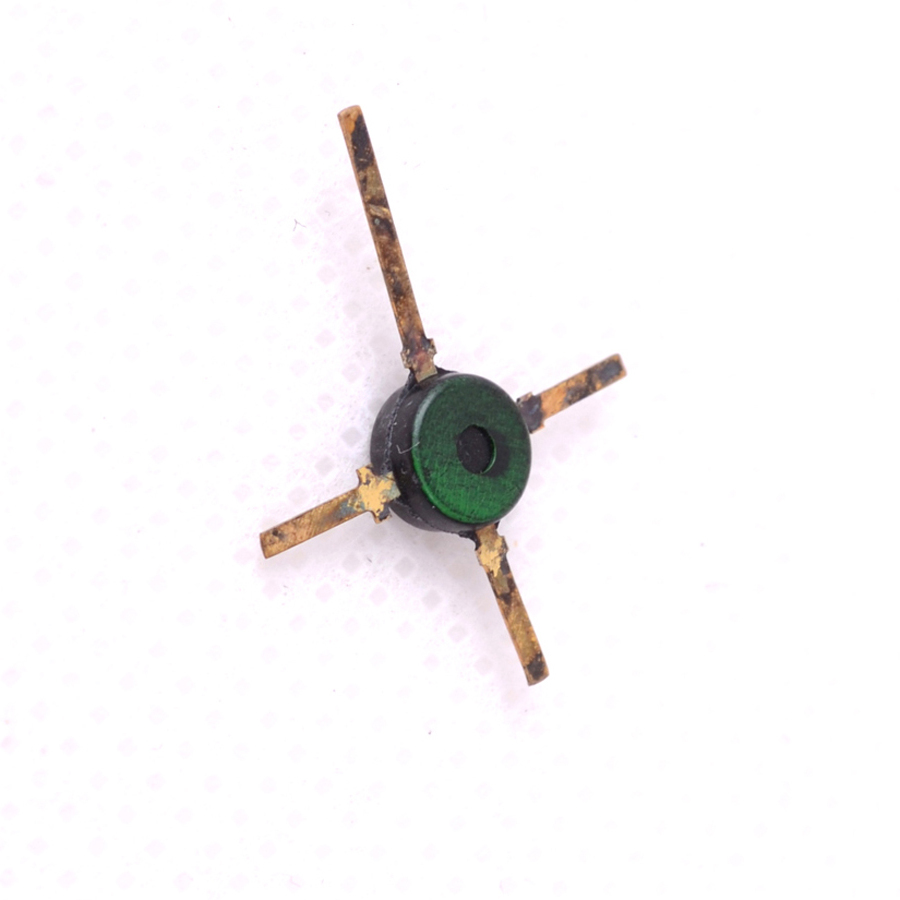

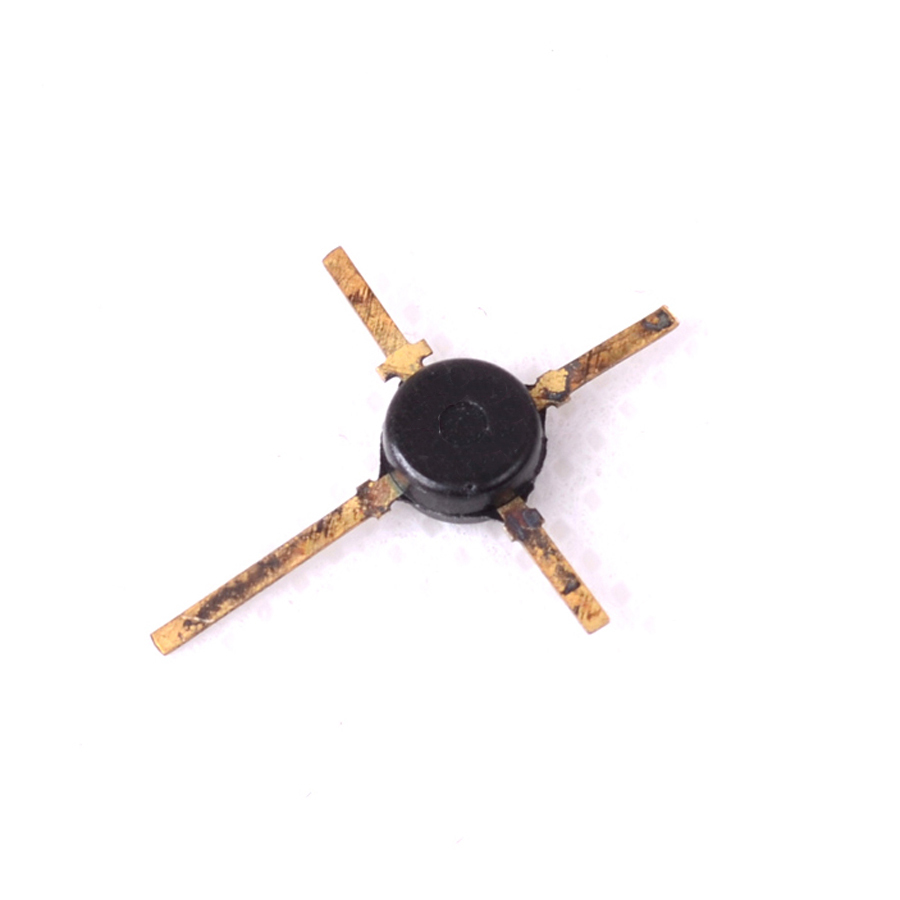

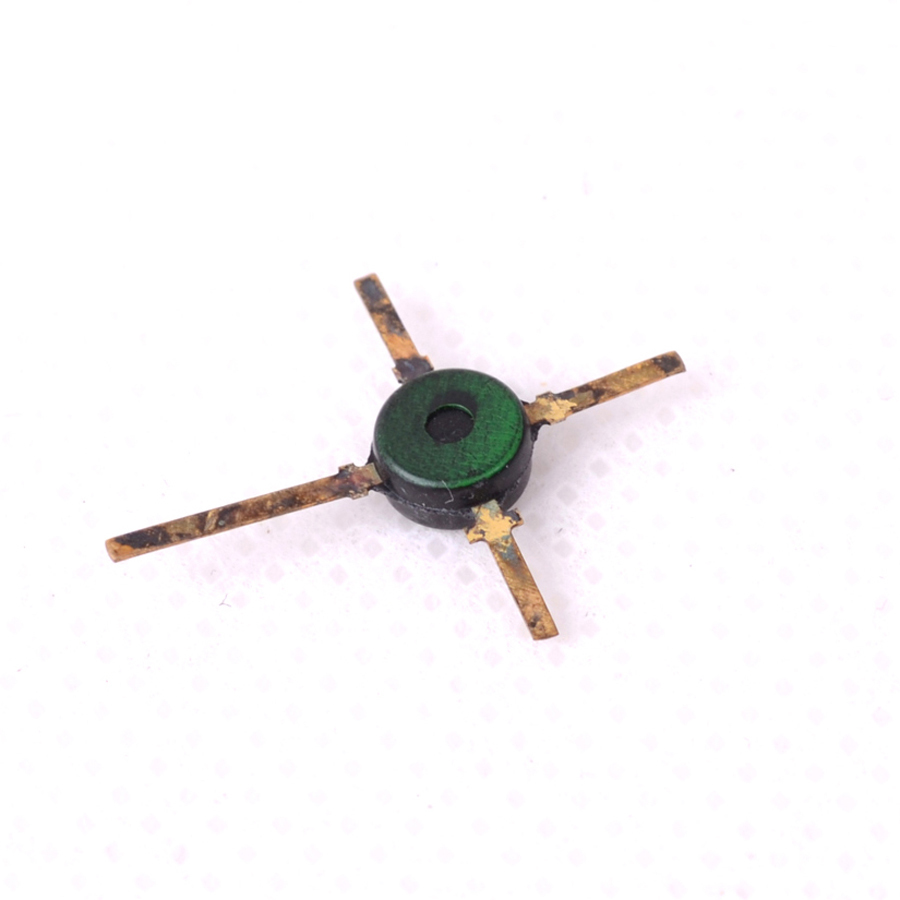

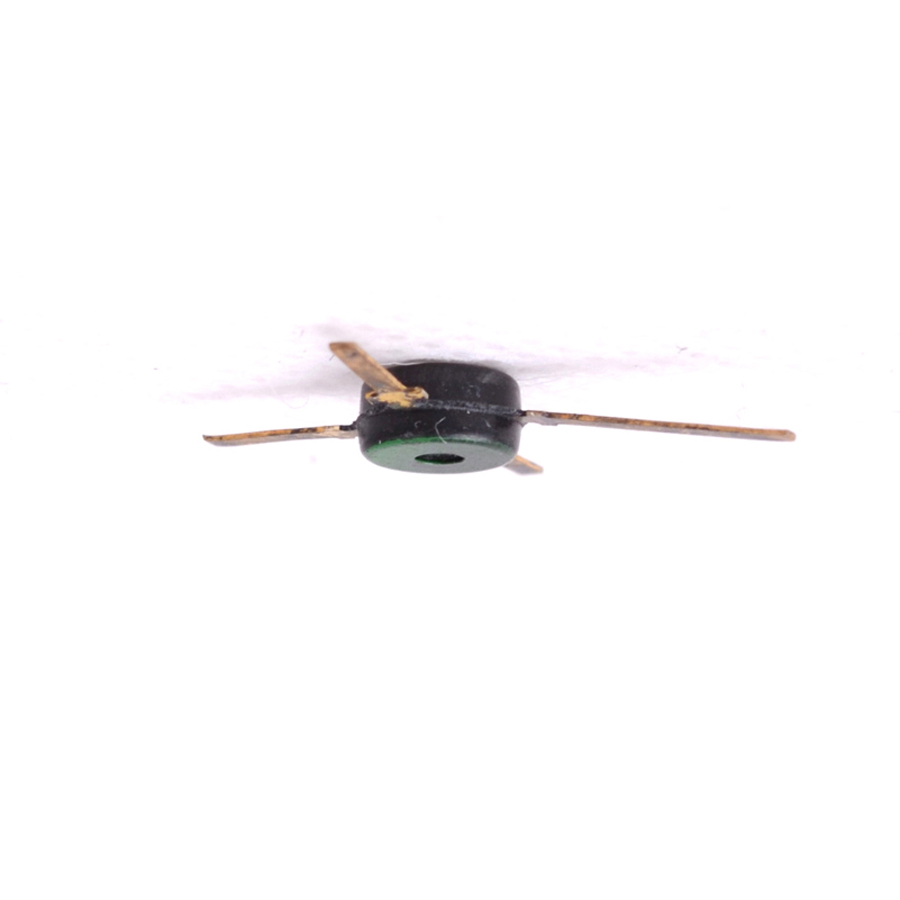

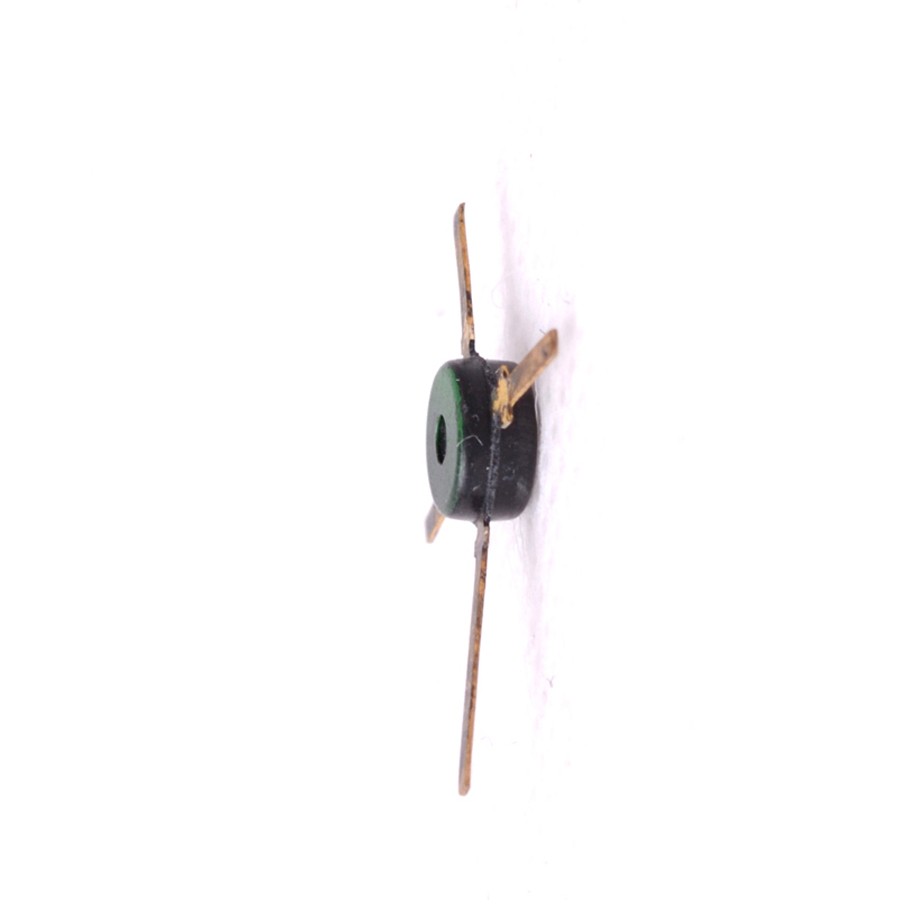

View detailed images (13)

2SC1070

SKU: 2SC1070
2SC1070 Transistor Silicon NPN CASE: SOT103 MAKE: NEC
Price:
£4.79 Inc. VAT (£3.99 Ex. VAT)
£4.79 Inc. VAT (£3.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
2SC1070 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT103
Manufacturer NEC
Vbr CBO 30
@Freq. (test) 900M
@Ic (A) 3.0m
@Ic (A) 3.0m
Mat. Silicon Logic
Noise Fig. 4.5
Oper. Gain Typ (S21) 15
f(osc) Max. (Hz) 900M
Polarity NPN
PD Max. (W) 150m
S11 Deg. (Typ) -44
S11 Mag Typ. 26
S22 Deg. Typ. 2.3
S22 Mag Typ. 1.2
@VDS (VCE) (test) (V) 10
Coll. (or drain) Current Max. 20m
@Freq. (test) 900M
@VCE (test) 10
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 4-127
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.15 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 25 V
Maximum Collector Current |Ic max| 0.02 A
Max. Operating Junction Temperature (Tj) 175 °C
Collector Capacitance (Cc) 0.8 pF
Transition Frequency (ft): 750 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SKU 115192
