2SC1236
View detailed images (4)

2SC1236

SKU: 2SC1236

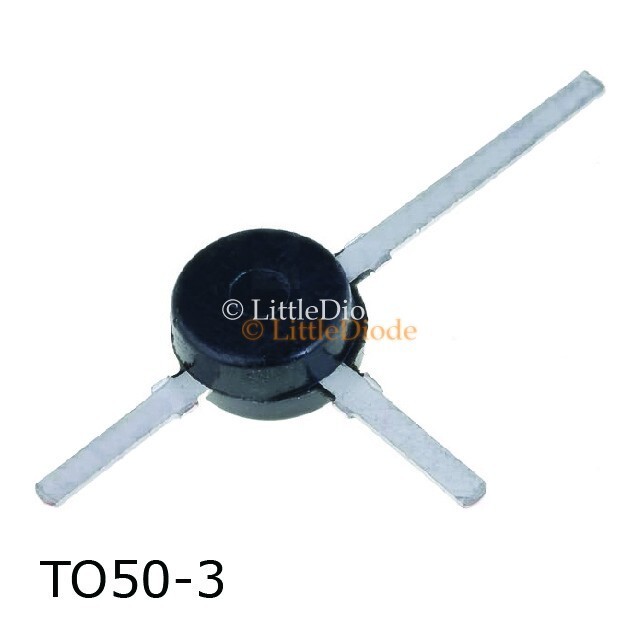

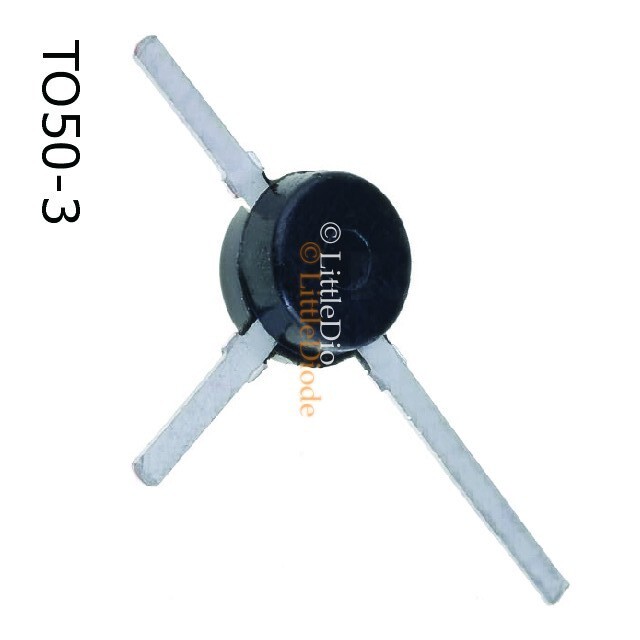

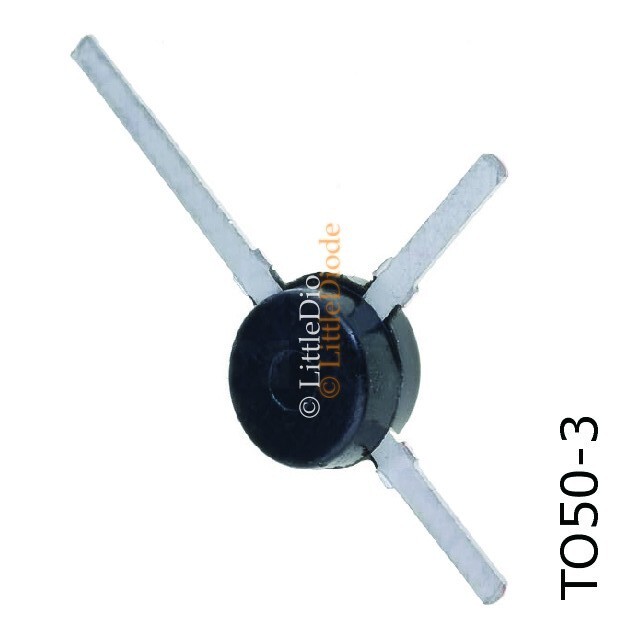

2SC1236 Transistor Silicon NPN CASE: TO50-3 MAKE: Toshiba
Product specifications
Type Transistor Silicon NPN
Case TO50-3
Manufacturer Toshiba
Vbr CBO 20
@Freq. (test) 4.0G
@Ic (A) 5.0m
@Ic (A) 5.0m
Mat. Silicon Logic
Noise Fig. 5.0
Oper. Gain Typ (S21) 7.0
f(osc) Max. (Hz) 11G
Polarity NPN
PD Max. (W) 200m
S11 Deg. (Typ) 107
S11 Mag Typ. .690
S22 Deg. Typ. -145
S22 Mag Typ. .500
@VDS (VCE) (test) (V) 10
Coll. (or drain) Current Max. 30m
@Freq. (test) 4.0G
@VCE (test) 10
Oper. Temp (°C) Max. 175
Pinout Equivalence Number 3-15
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.03 A
Max. Operating Junction Temperature (Tj) 175 °C
Transition Frequency (ft): 3000 MHz
Forward Current Transfer Ratio (hFE), MIN 20
SKU 766437
