2SC1512
View detailed images (12)

2SC1512

SKU: 2SC1512

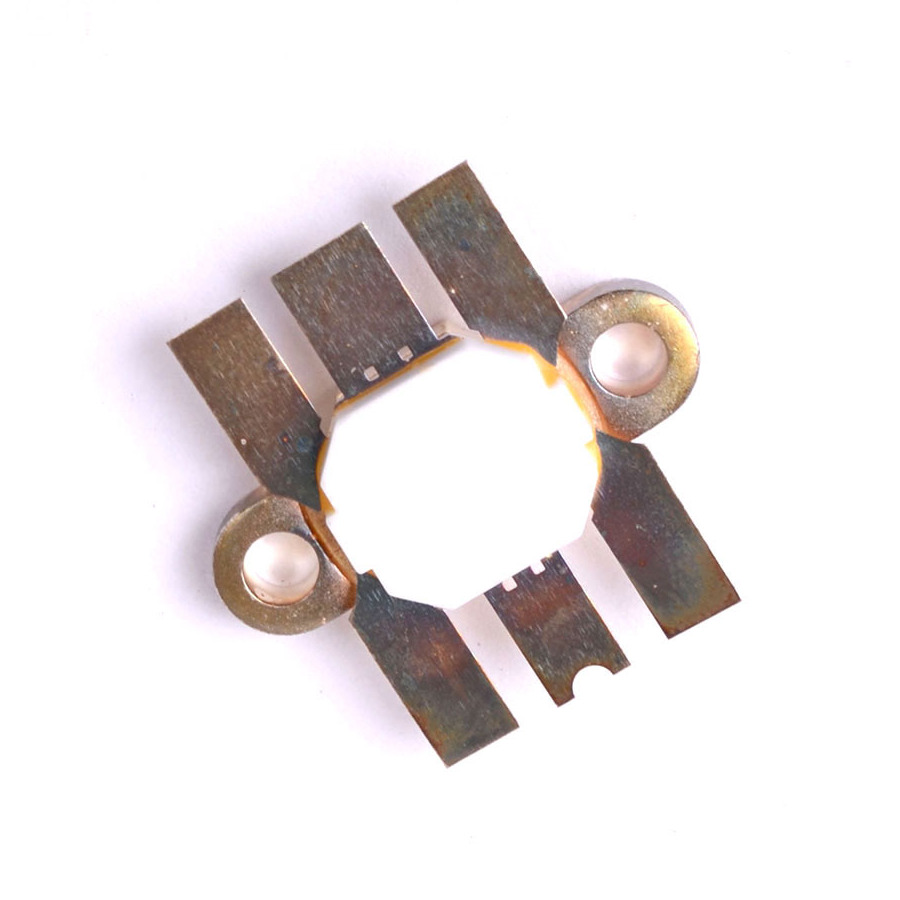

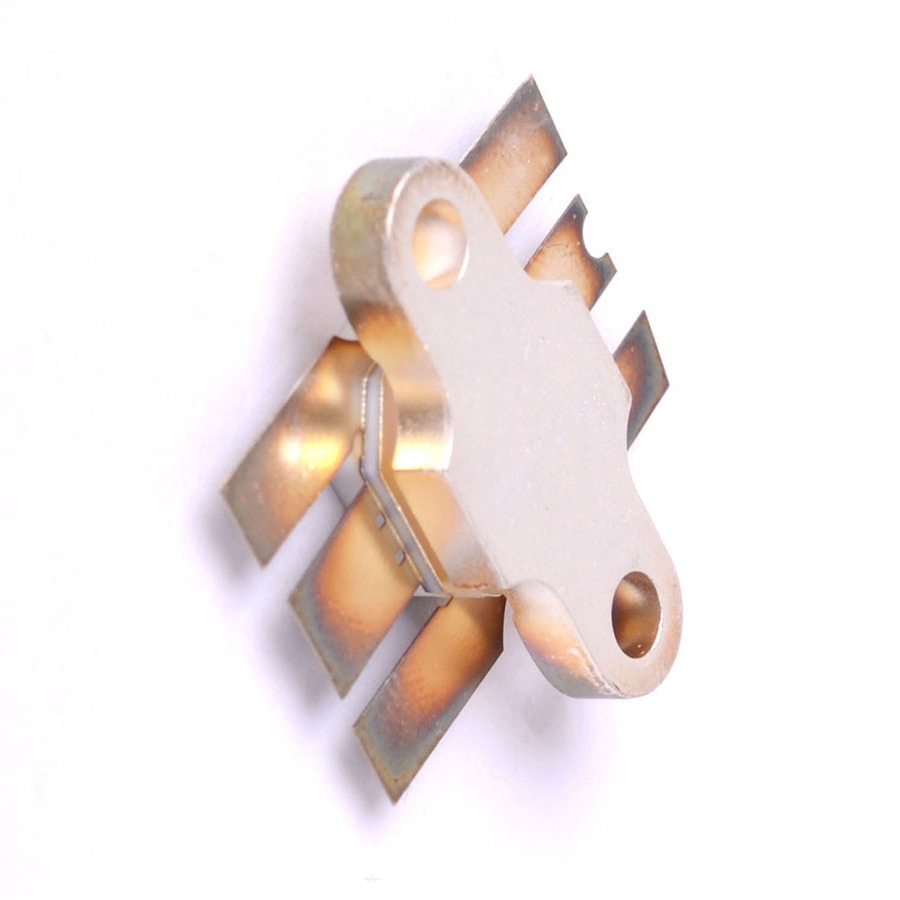

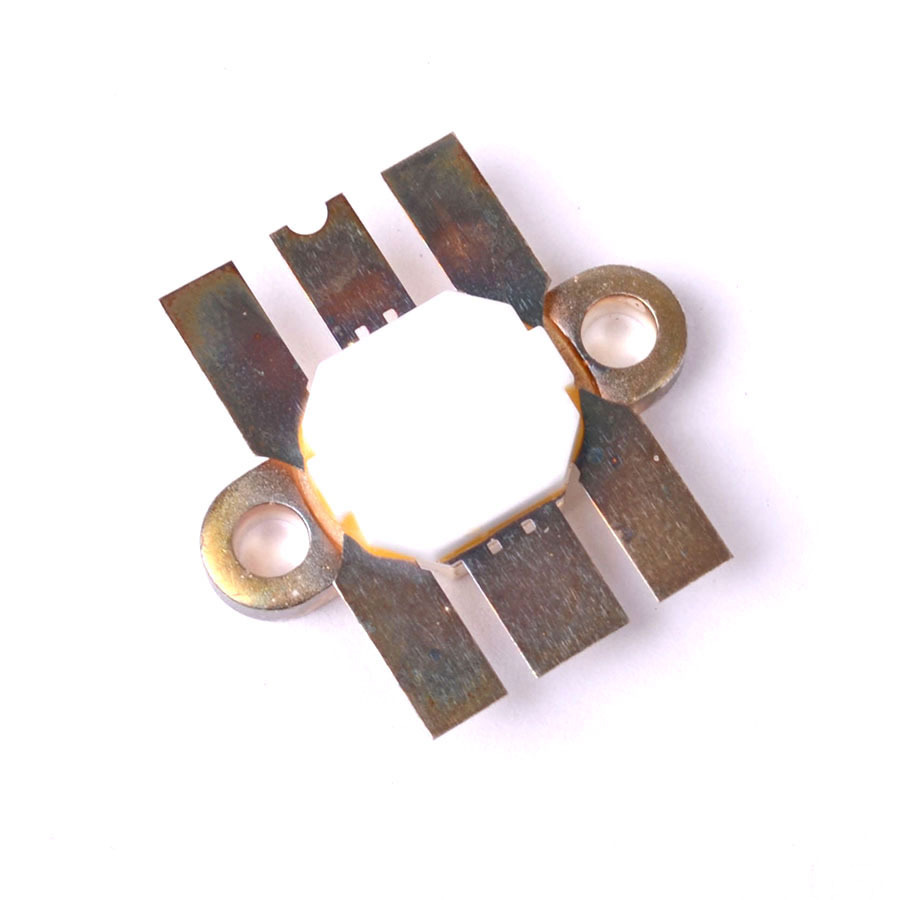

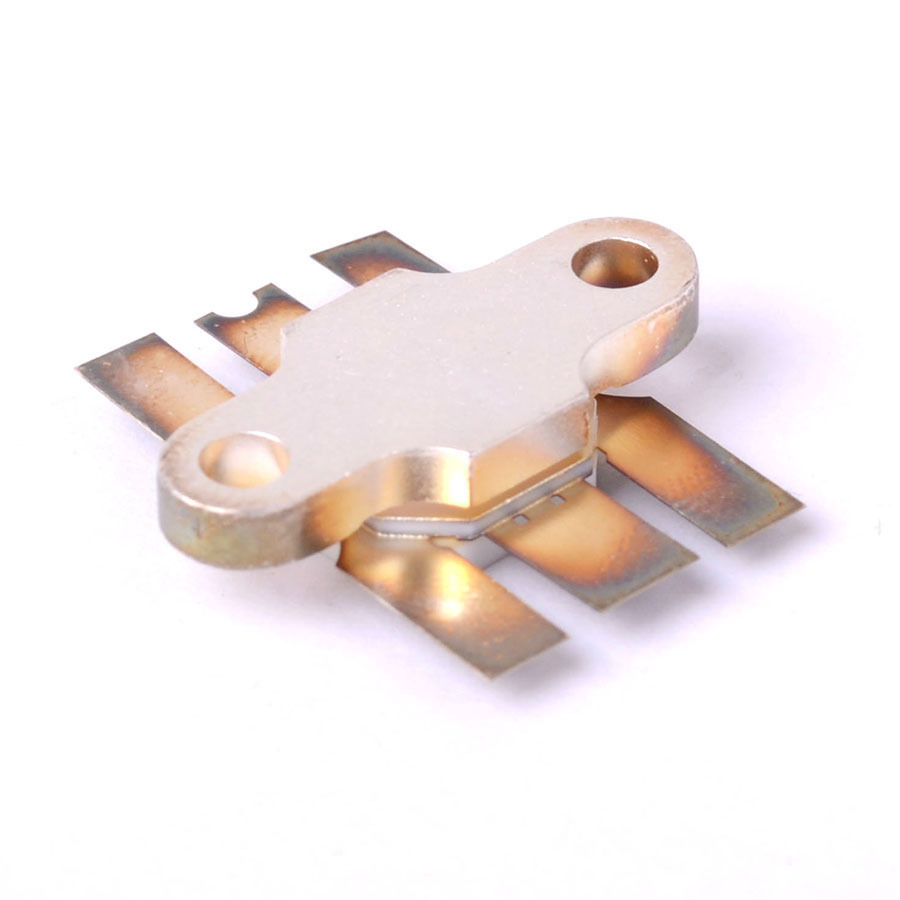

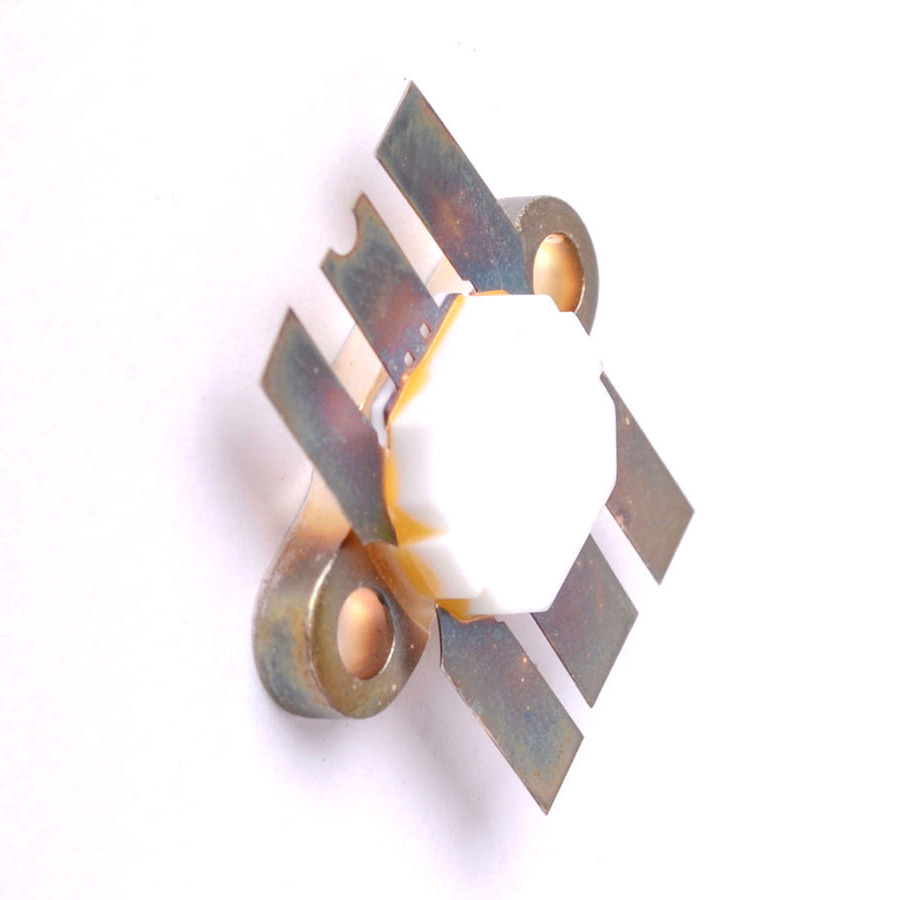

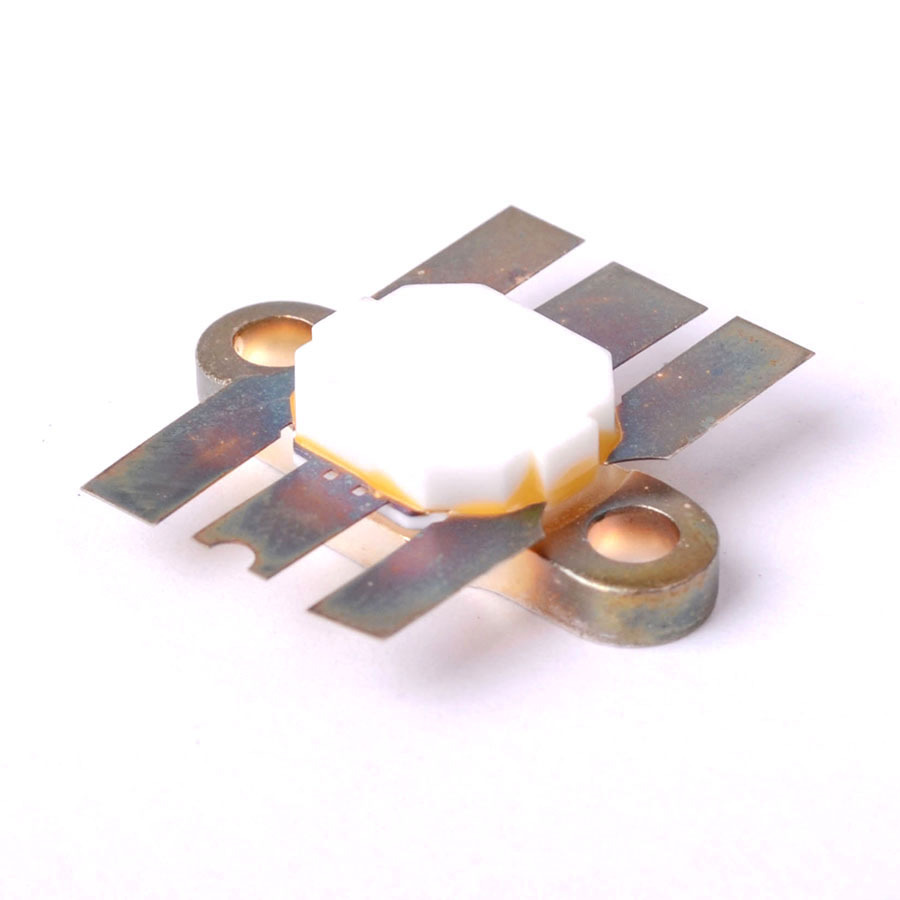

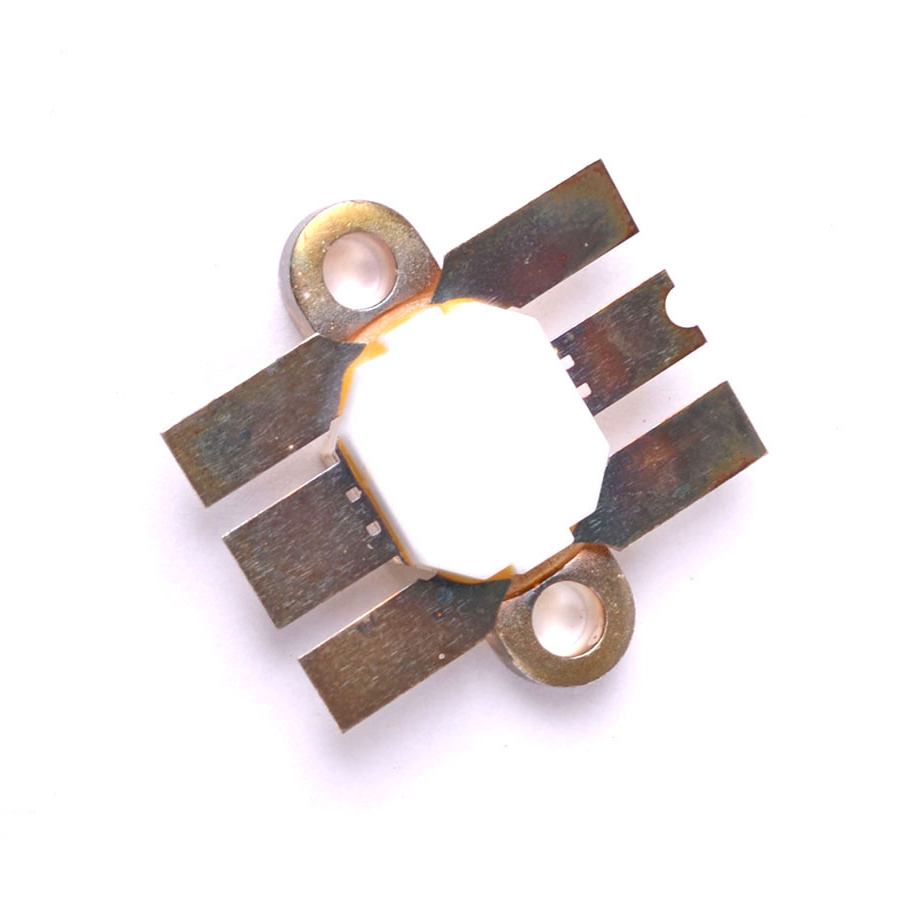

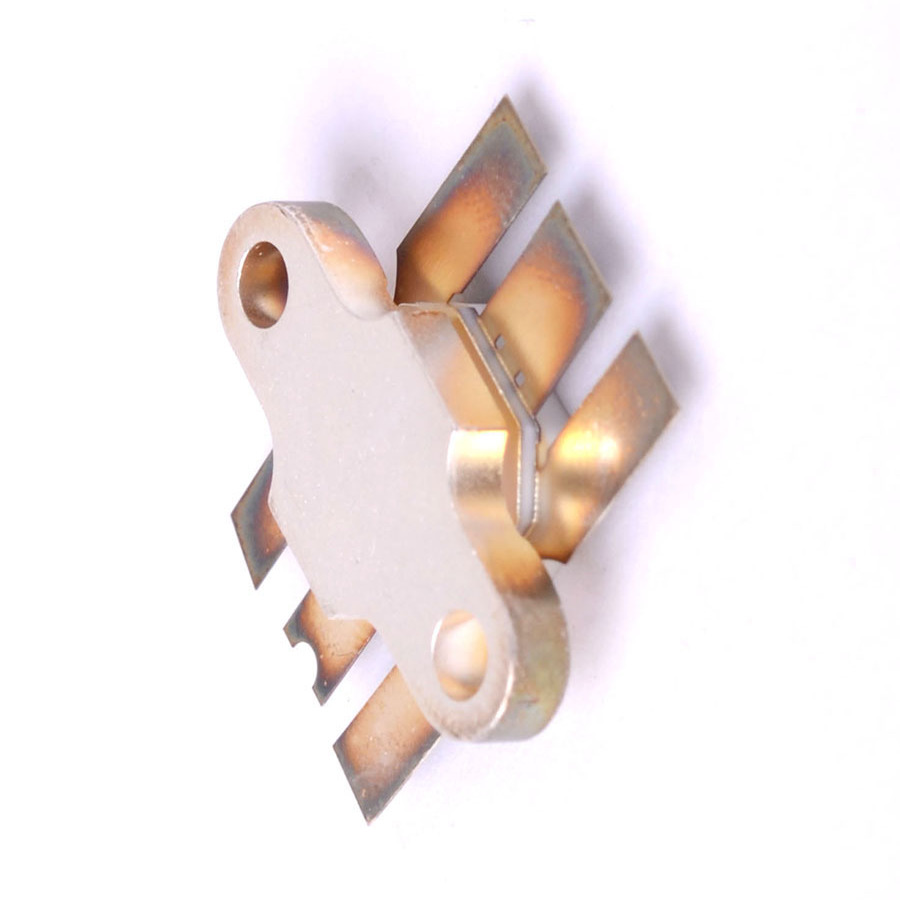

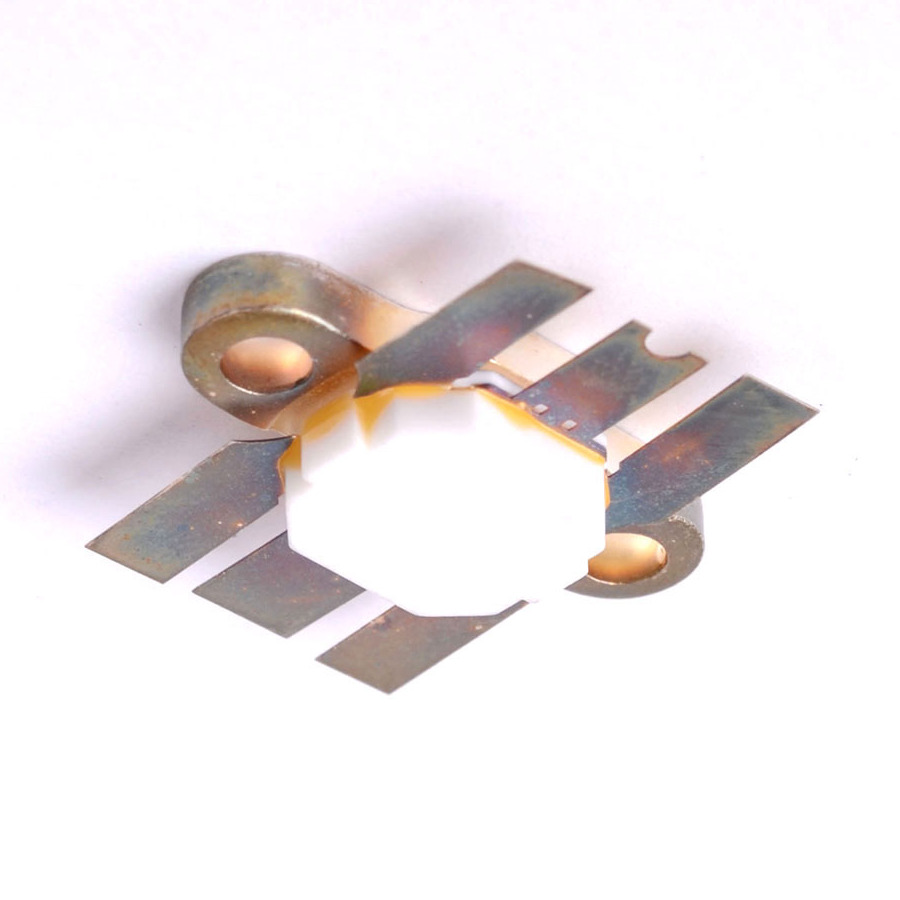

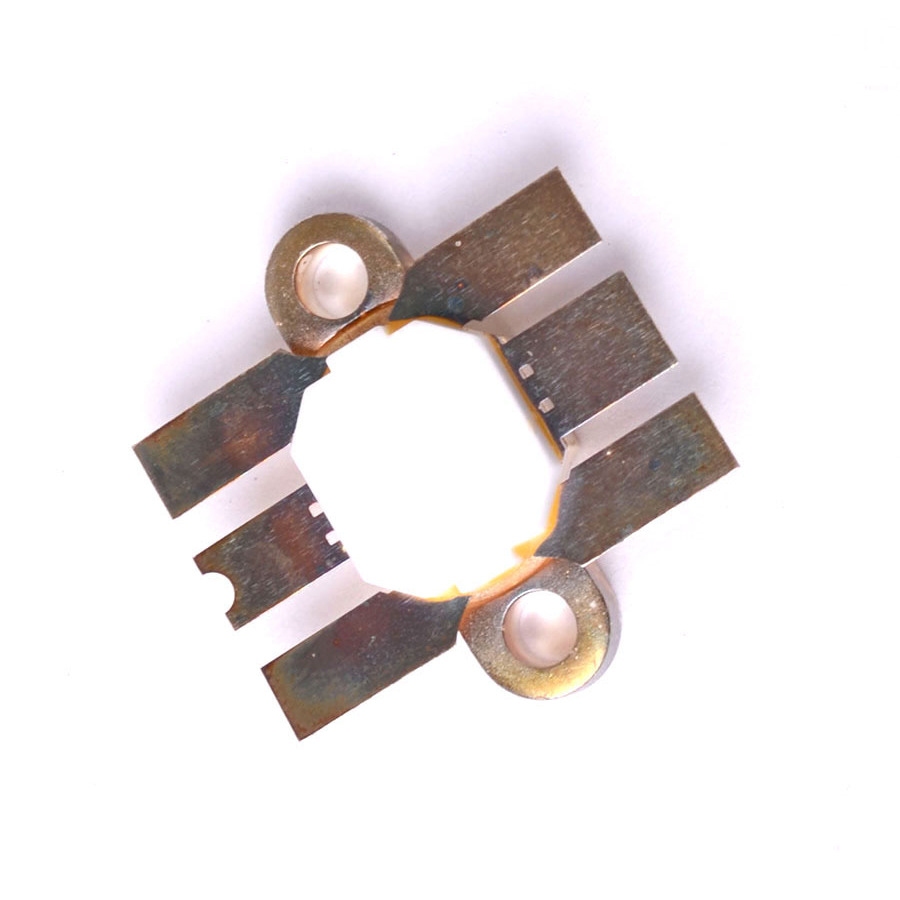

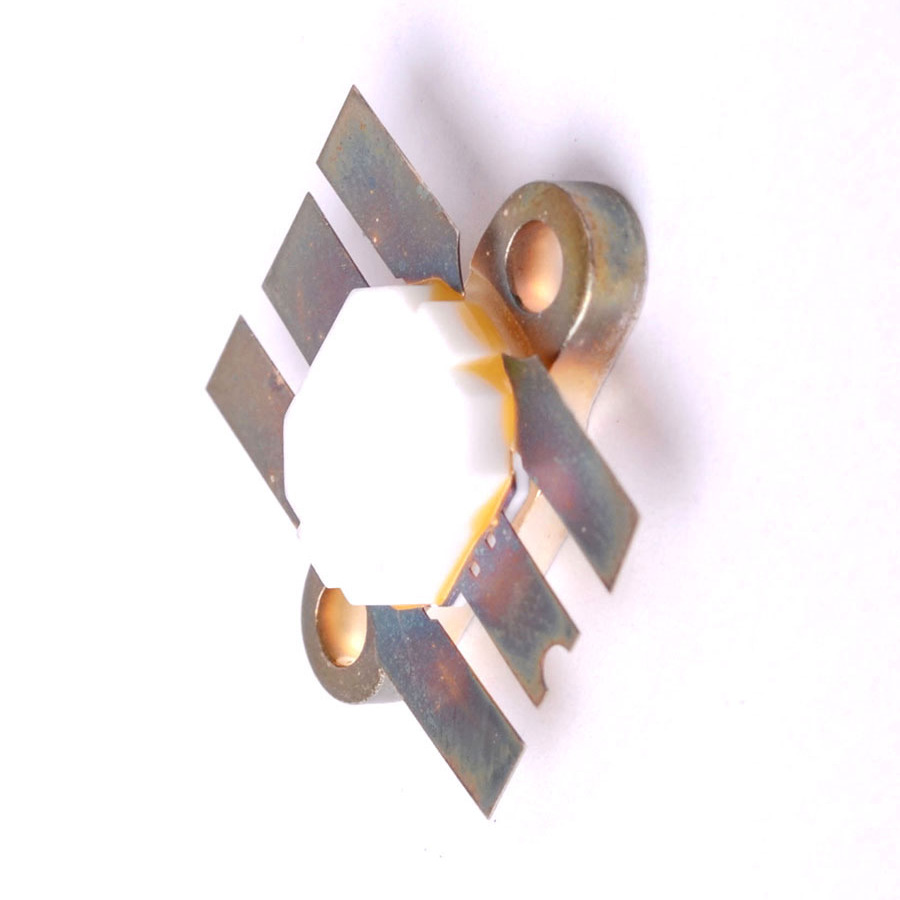

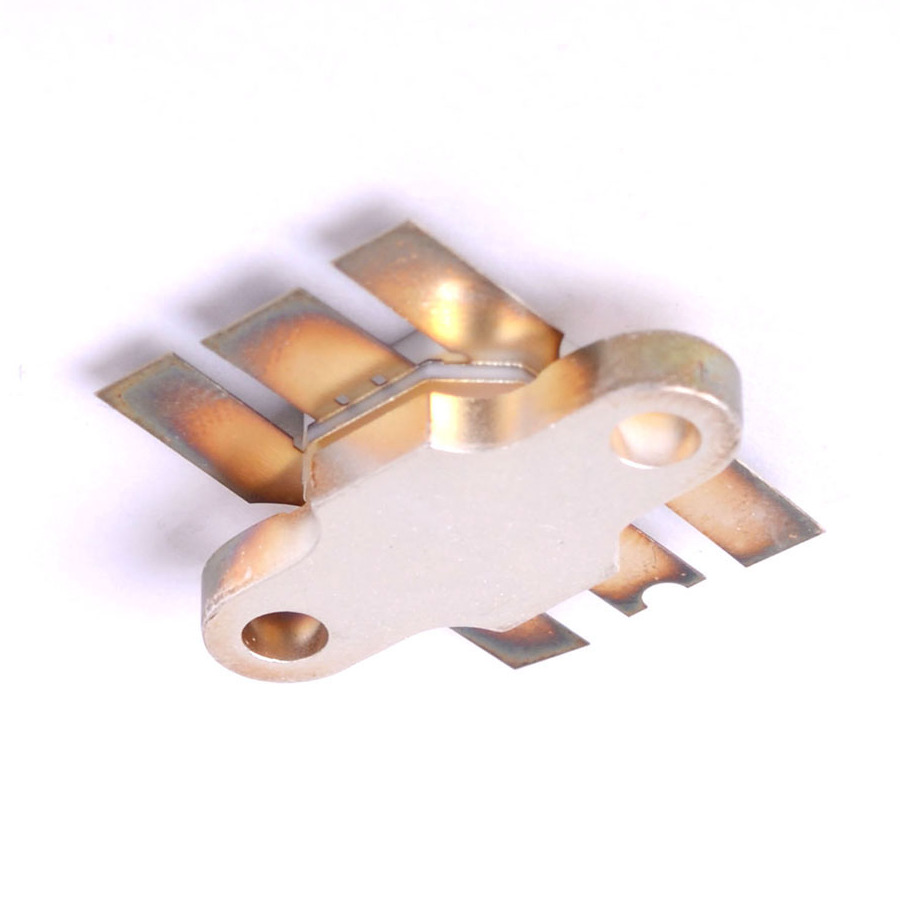

2SC1512 Transistor Silicon NPN CASE: SOT119 MAKE: NEC
Product specifications
Type Transistor Silicon NPN
Case SOT119
Manufacturer NEC
Vbr CBO 50
Vbr CEO 25
Max. PD (W) 65
Max. hFE 200
Min hFE 15
Ic Max. (A) 5.0
@Ic (test) (A) 700m
Icbo Max. @Vcb Max. (A) 3.0m
Polarity NPN
Derate Above 25°C 434m
Oper. Temp (°C) Max. 175
@VCE (V) 10
Pinout Equivalence Number 4-28
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 62 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 25 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 5 A
Max. Operating Junction Temperature (Tj) 175 °C
Collector Capacitance (Cc) 100 pF
Transition Frequency (ft): 120 MHz
Forward Current Transfer Ratio (hFE), MIN 15
SKU 556982
