2SC1518

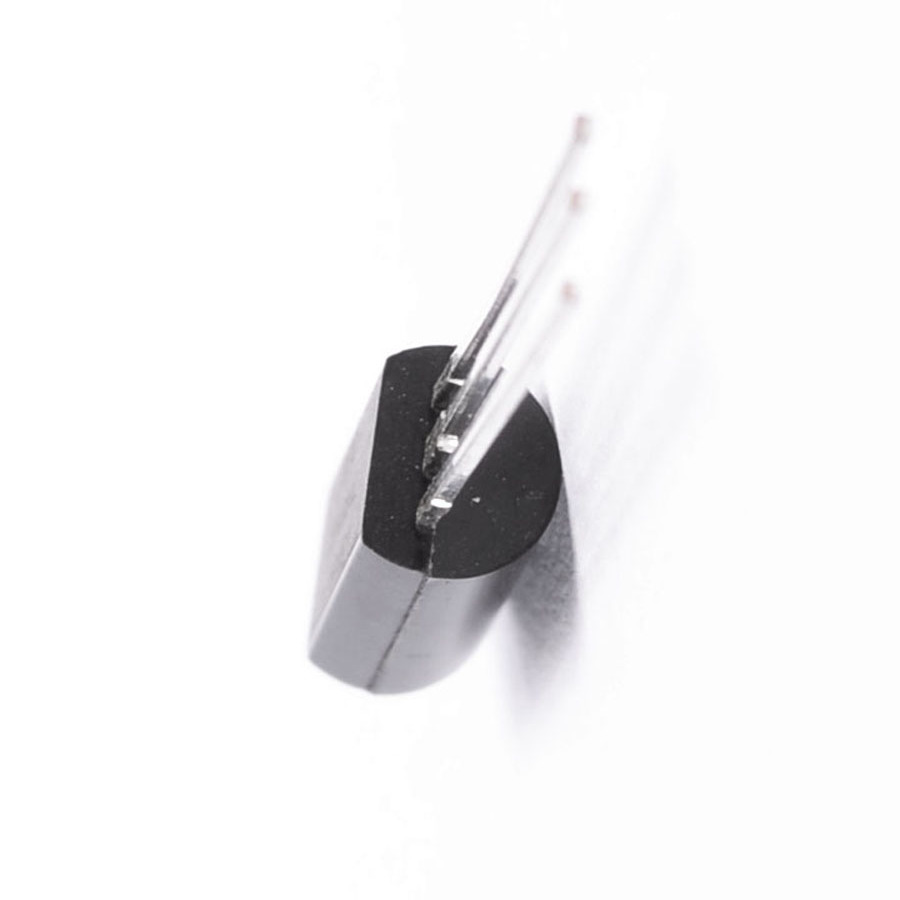

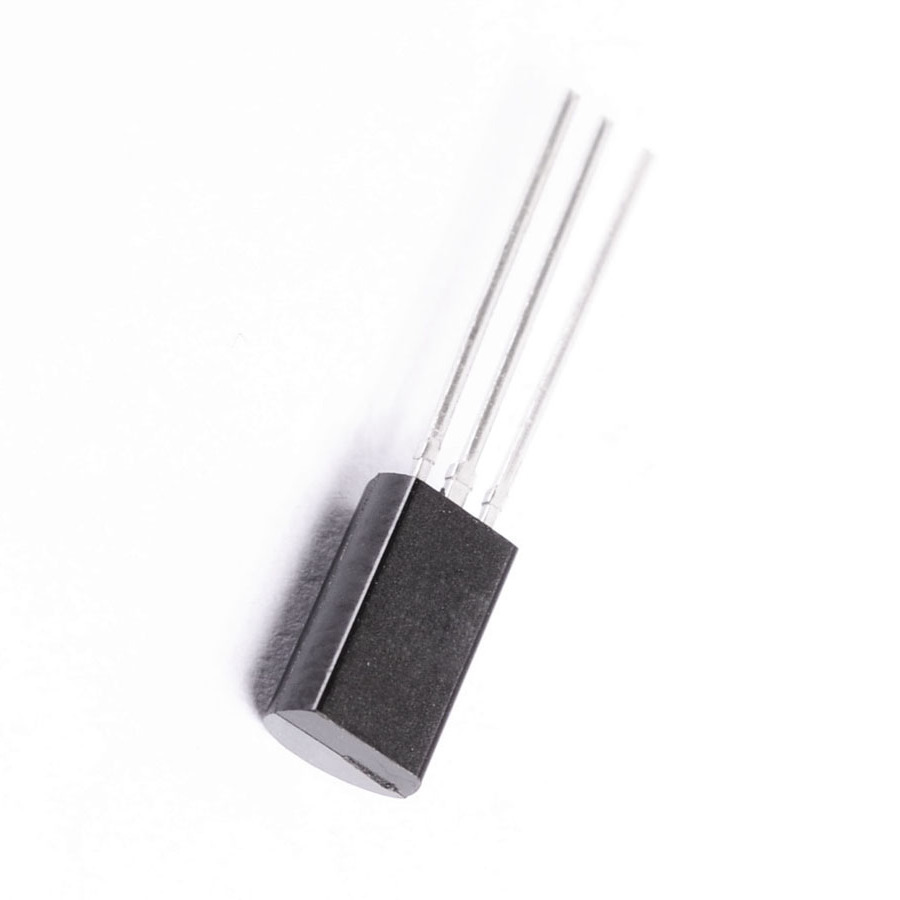

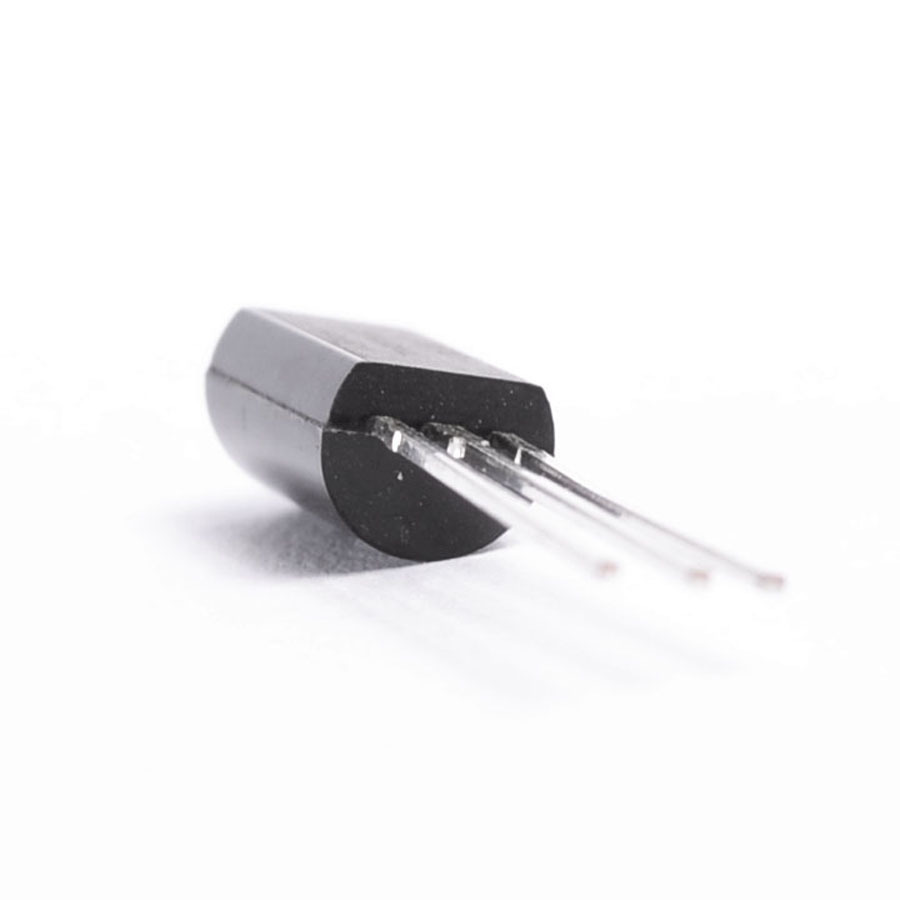

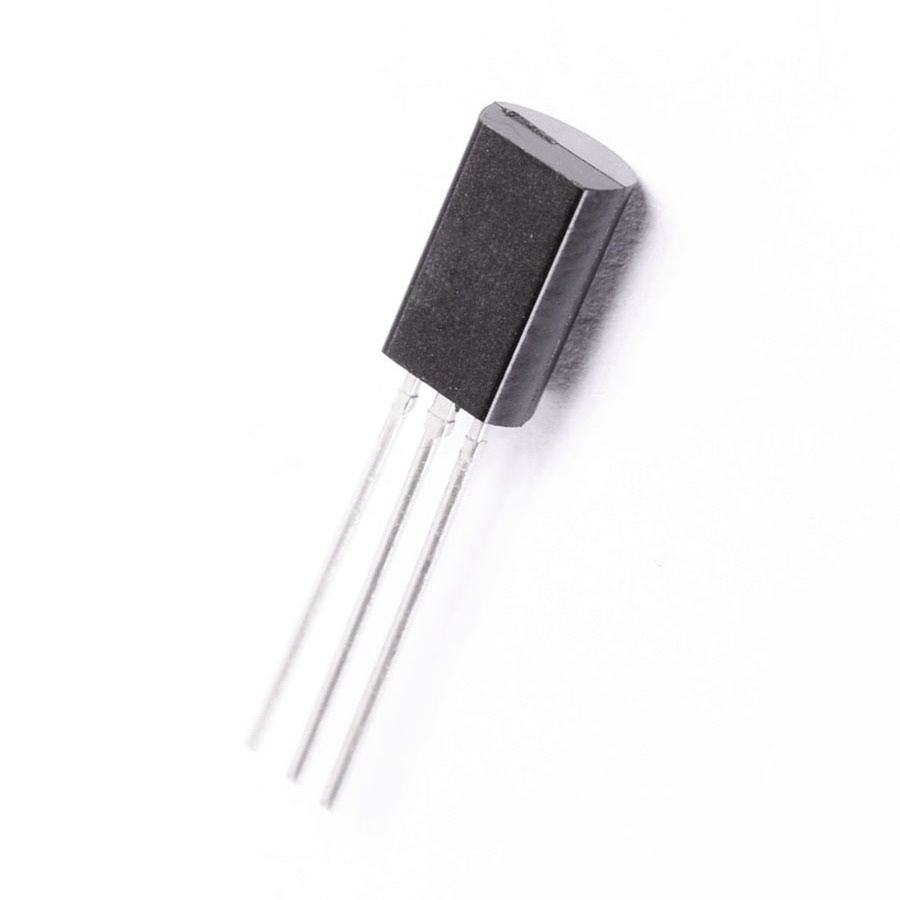

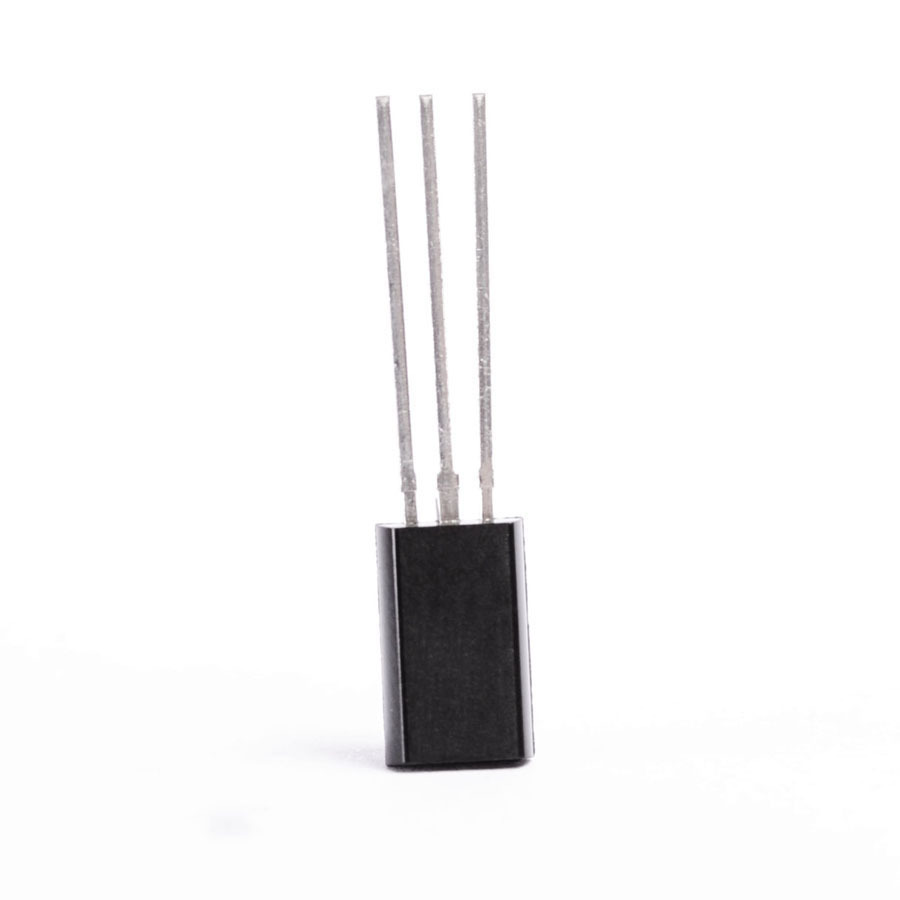

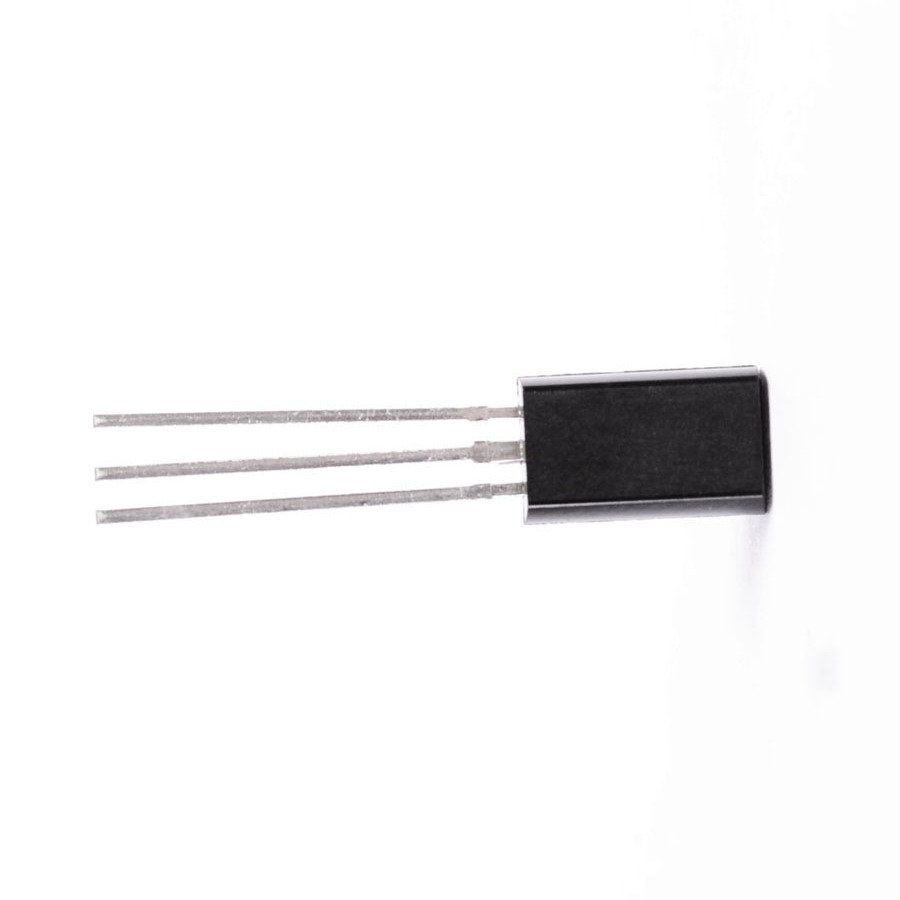

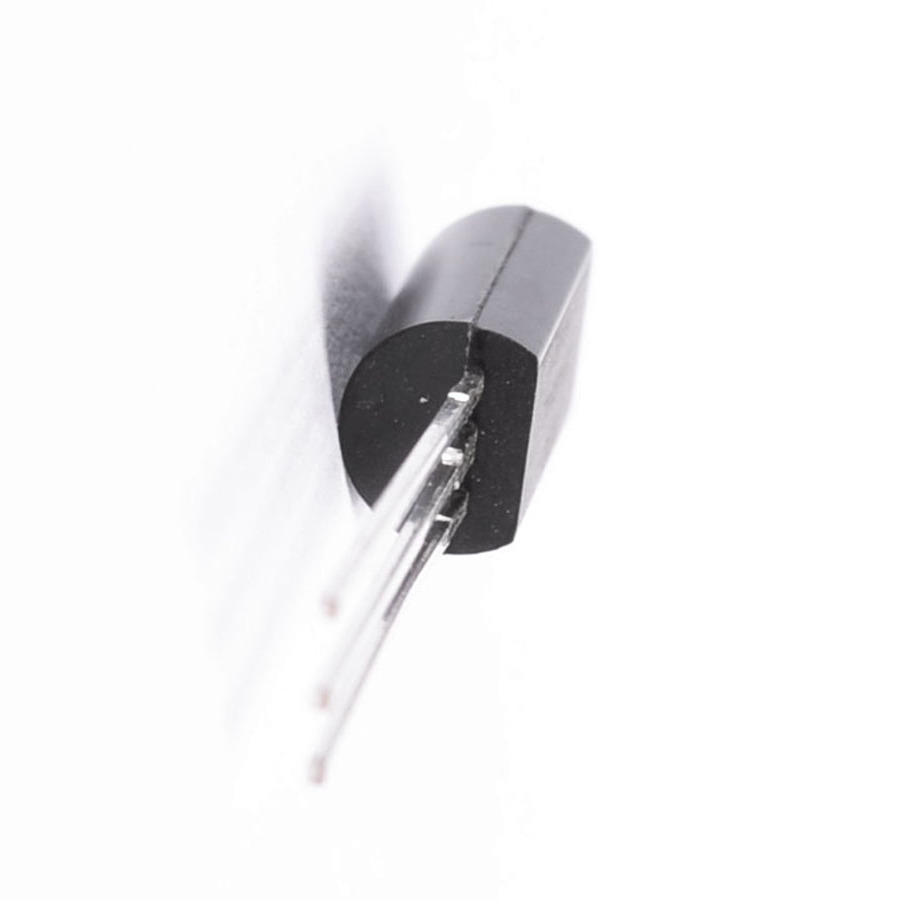

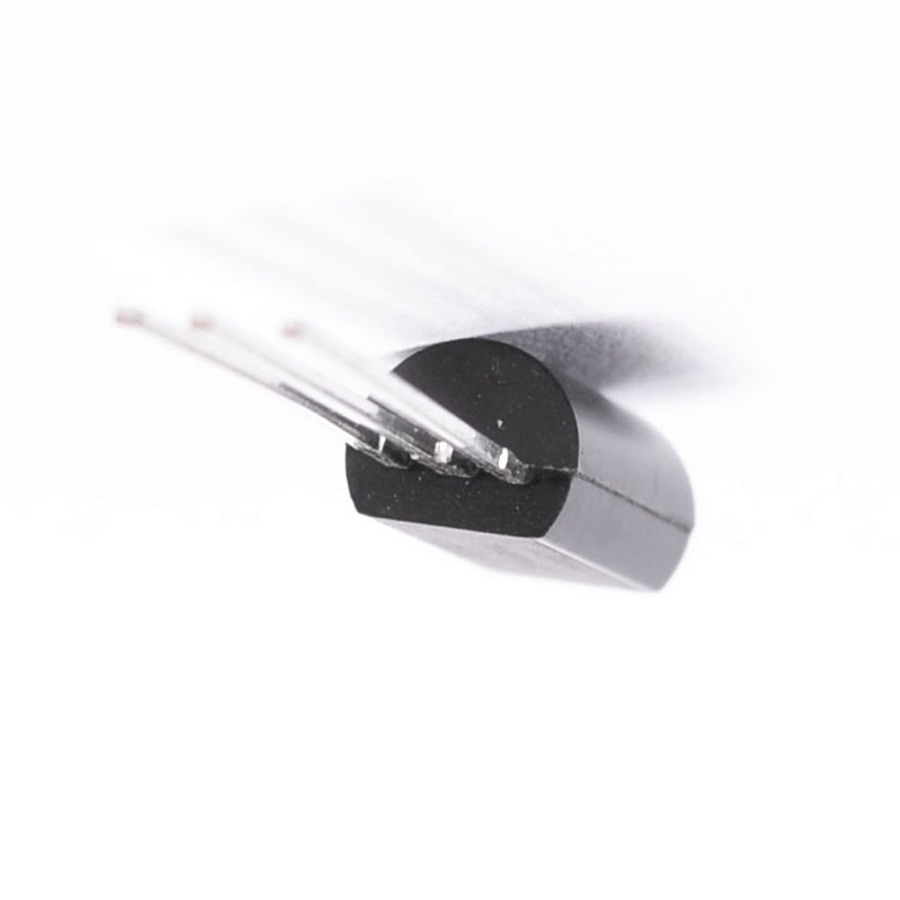

View detailed images (12)

2SC1518

SKU: 2SC1518

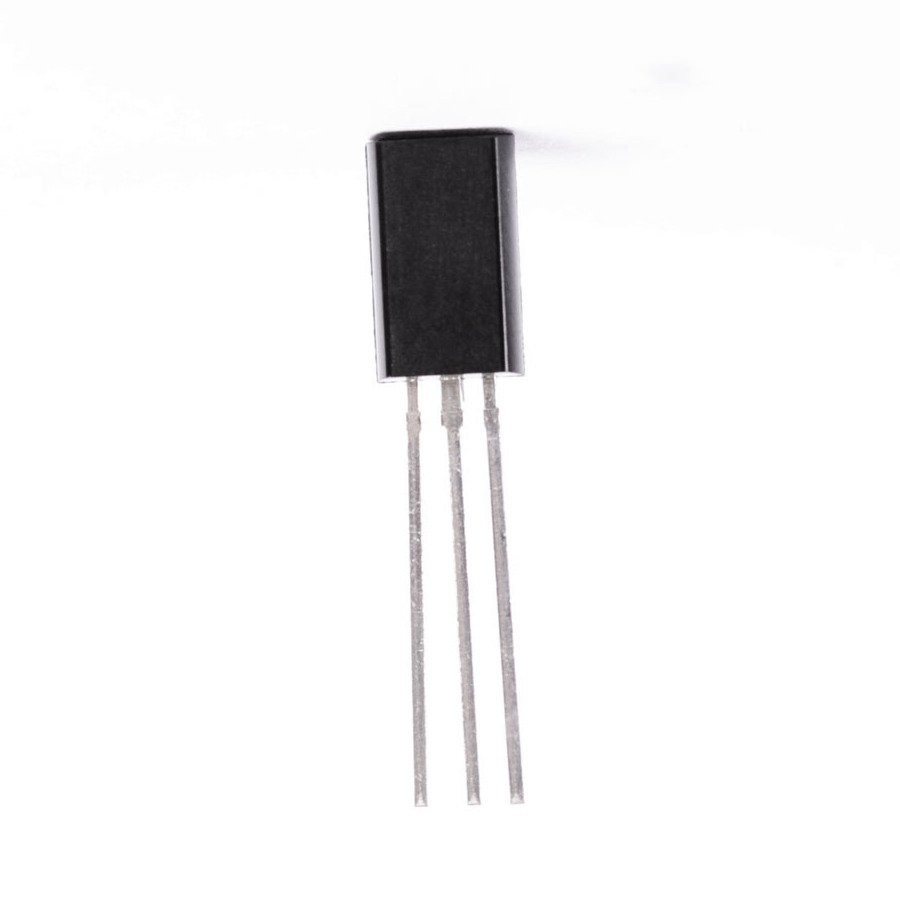

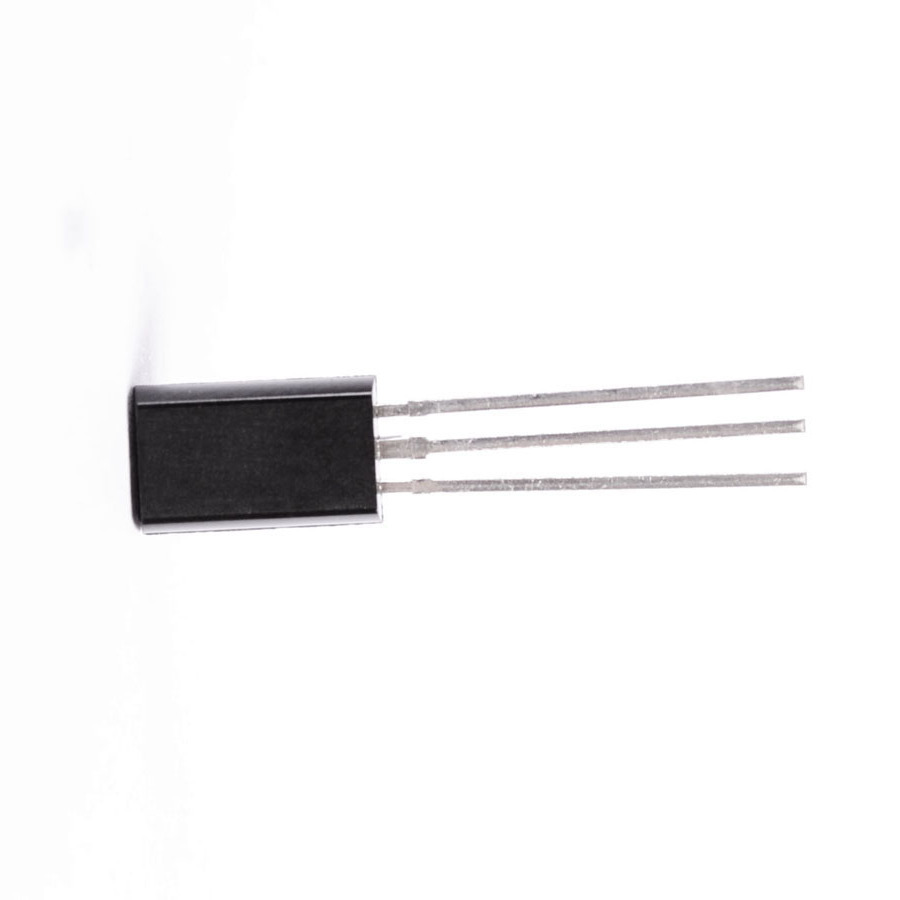

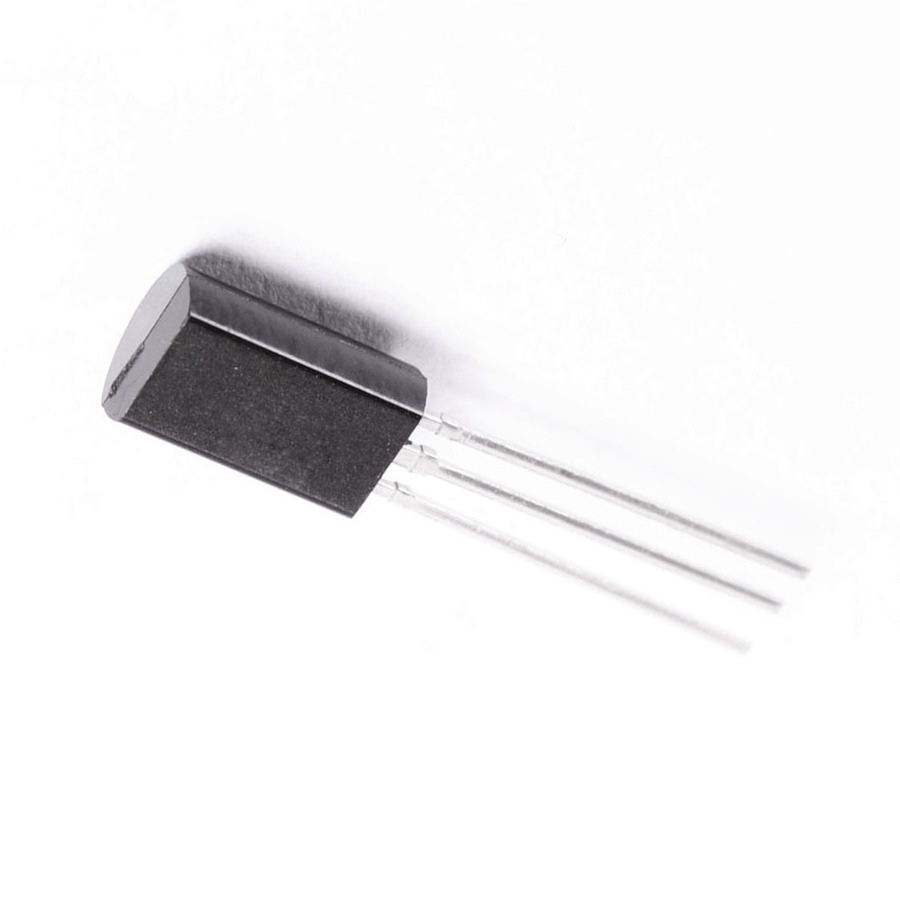

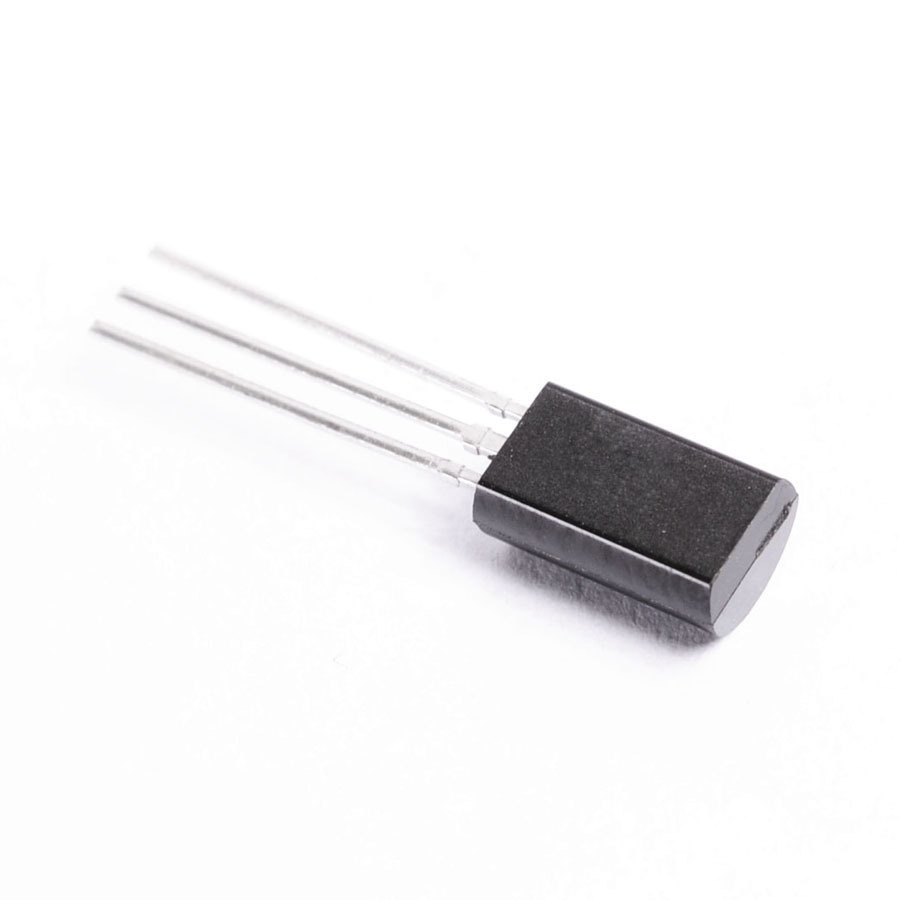

2SC1518 Transistor - CASE: TO92L MAKE: Panasonic
+ VAT 20% for UK purchases
Datasheet
2SC1518 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO92L
Manufacturer Panasonic
Vbr CBO 25
Vbr CEO 20
Max. PD (W) 750m
Derate (Amb) (W/°C) 6.8m
hfe 65
Ic Max. (A) 1.0
Icbo Max. @Vcb Max. (A) 100n
Polarity NPN
Trans. Freq (Hz) Min. 150M
@VCE (test) (V) 2.0
Oper. Temp (°C) Max. 135
@Ic (A) 500m
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.75 W
Maximum Collector-Base Voltage |Vcb| 25 V
Maximum Collector-Emitter Voltage |Vce| 20 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 160 °C
Transition Frequency (ft): 75 MHz
Forward Current Transfer Ratio (hFE), MIN 65
SKU 86220
