2SC1519
View detailed images (5)

2SC1519

SKU: 2SC1519

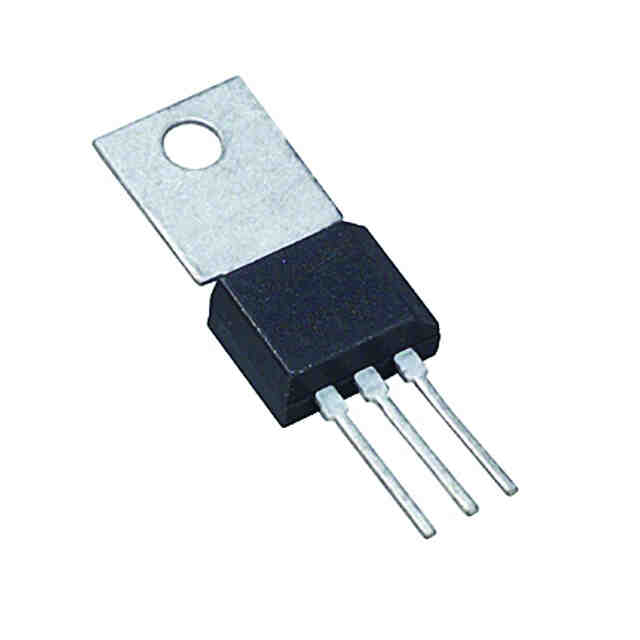

2SC1519 Transistor - CASE: SOT128 MAKE: NEC
+ VAT 20% for UK purchases
Product specifications
Type Transistor Silicon NPN
Case SOT128
Manufacturer NEC
Polarity NPN
Maximum Collector Power Dissipation (Pc) 10 W
Maximum Collector-Base Voltage |Vcb| 250 V
Maximum Collector-Emitter Voltage |Vce| 230 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 0.2 A
Max. Operating Junction Temperature (Tj) 180 °C
Collector Capacitance (Cc) 3.5 pF
Transition Frequency (ft): 40 MHz
Forward Current Transfer Ratio (hFE), MIN 90
SKU 556983
