2SC1528
View detailed images (13)

2SC1528

SKU: 2SC1528

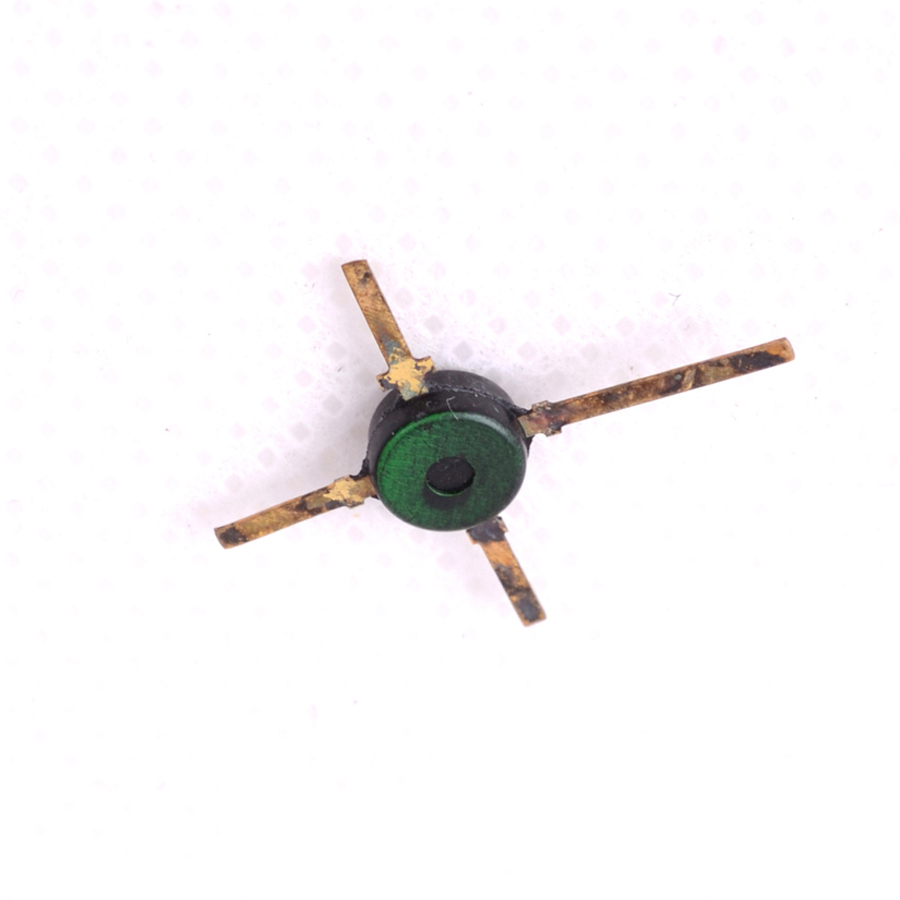

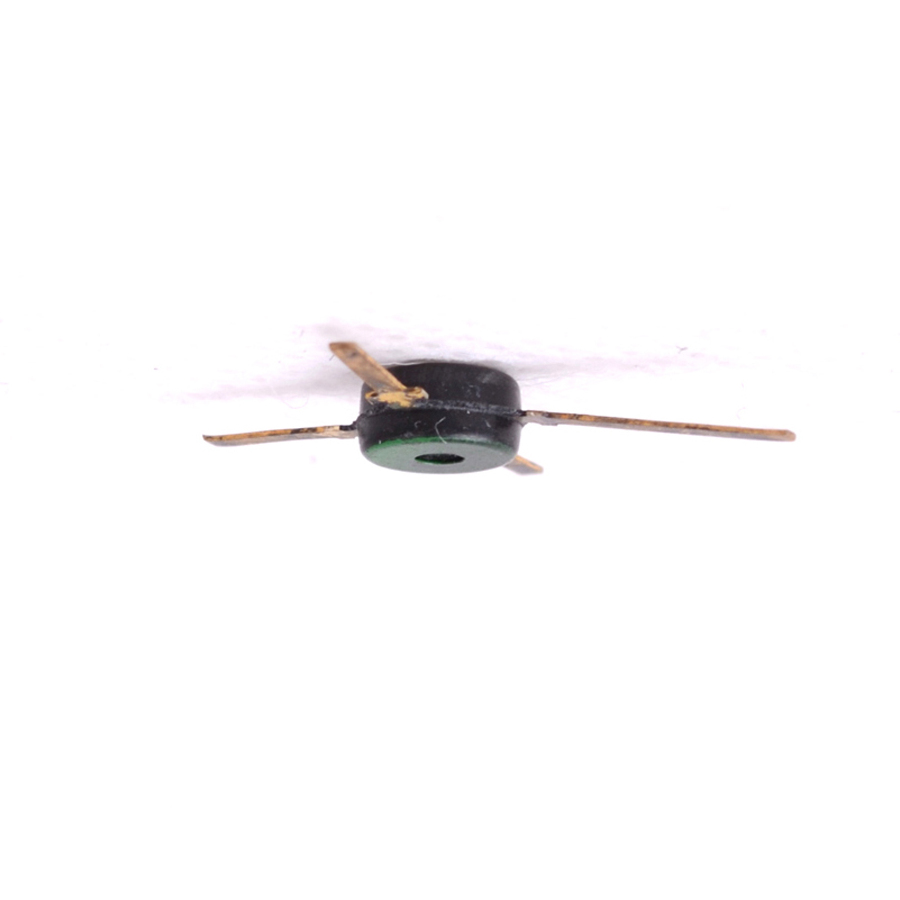

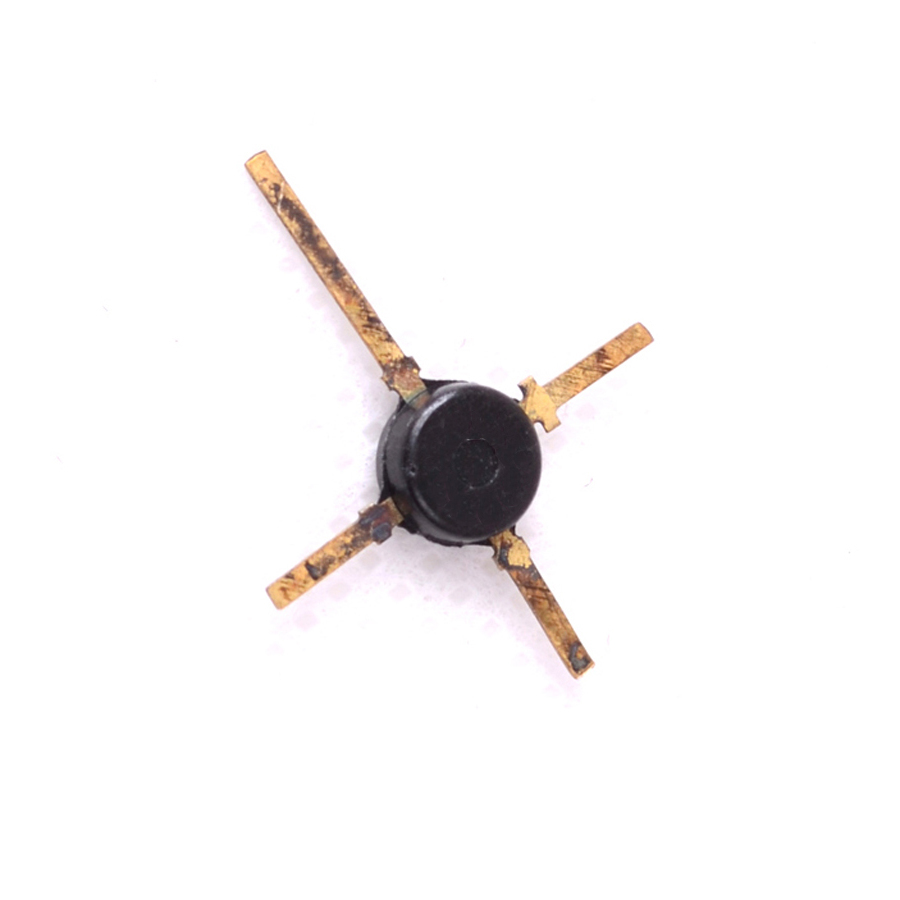

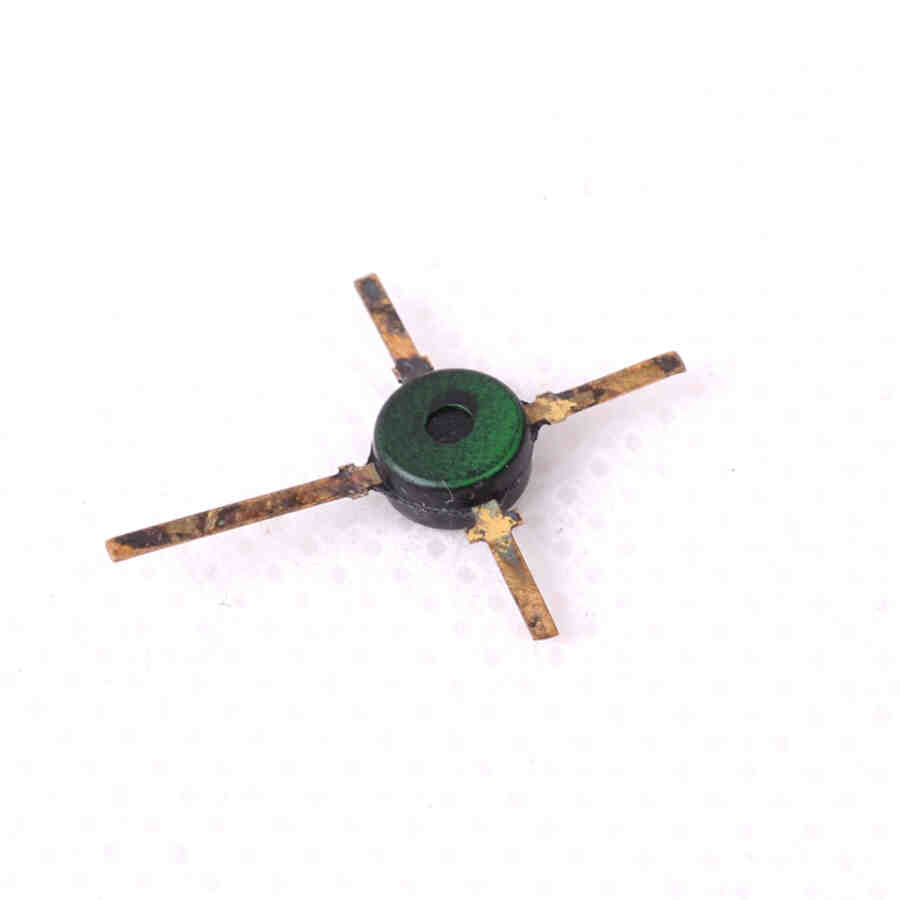

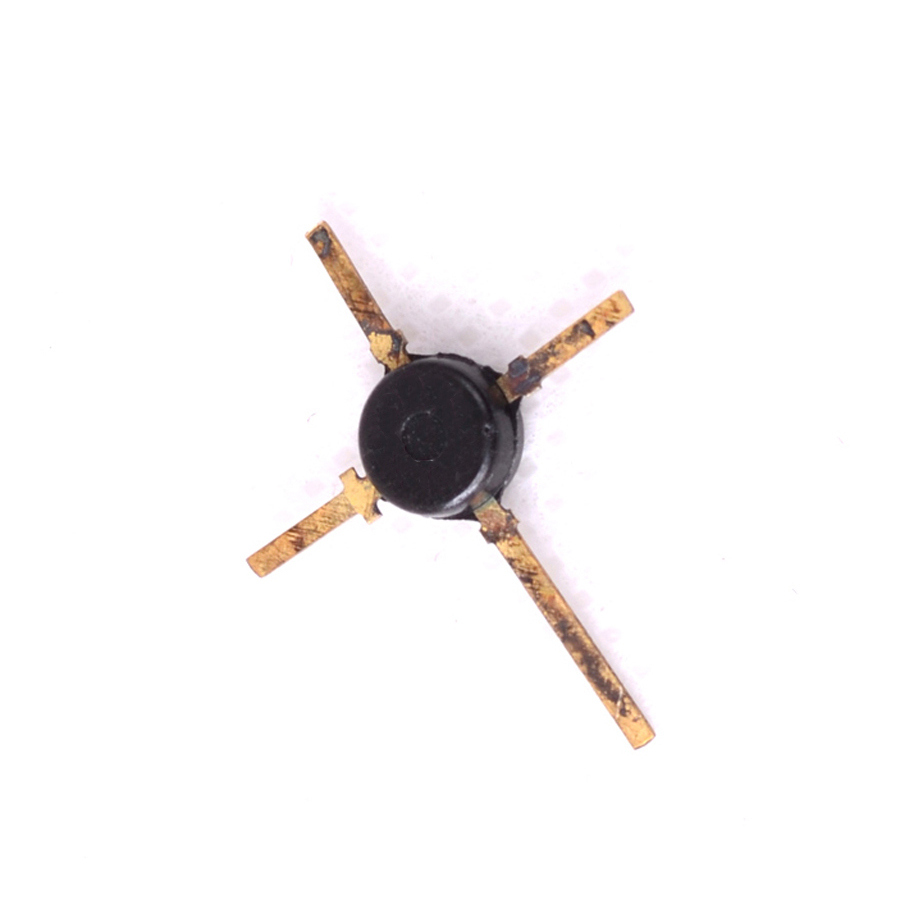

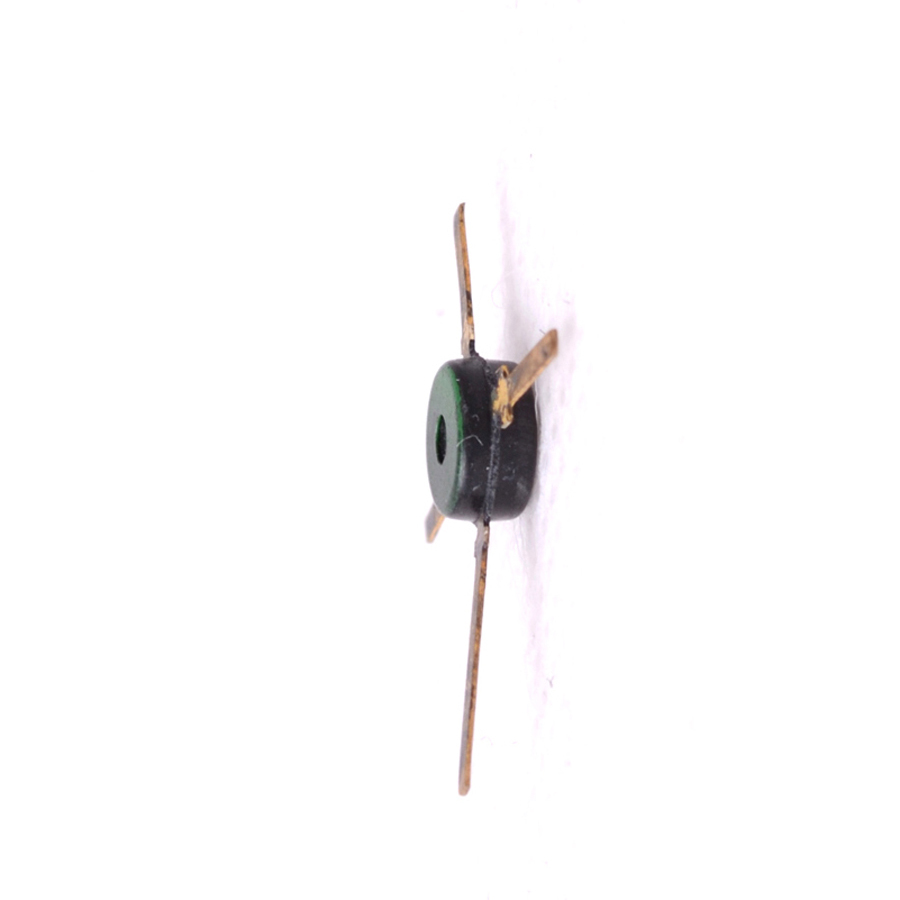

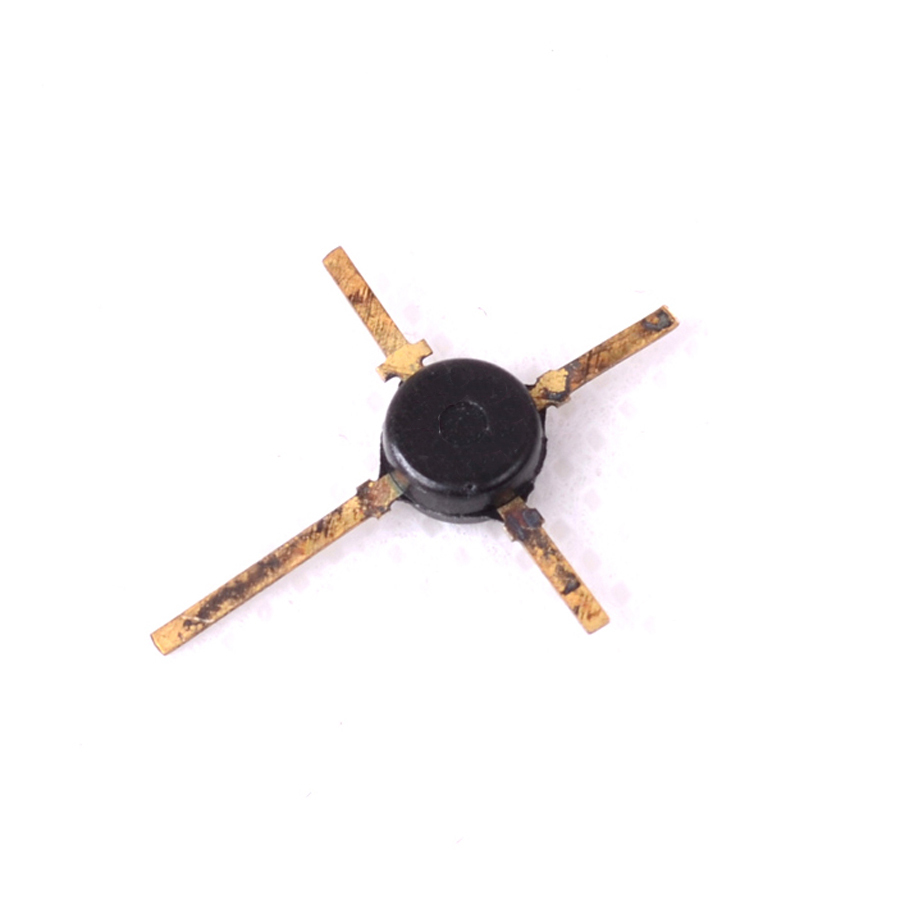

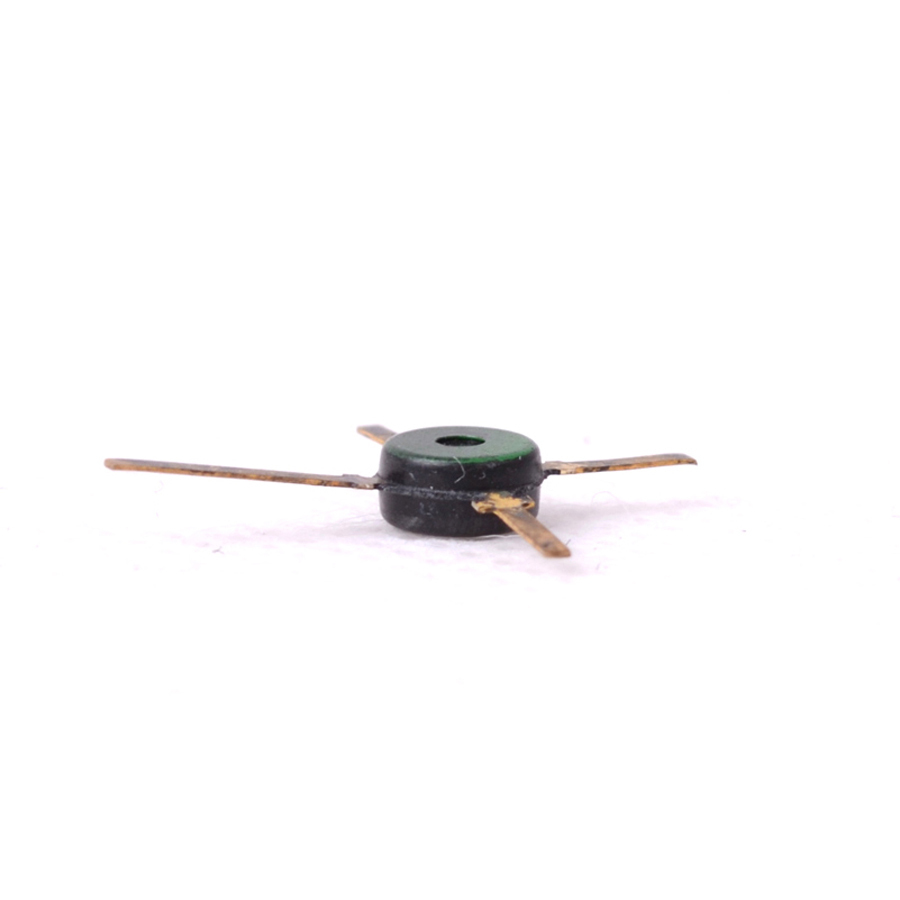

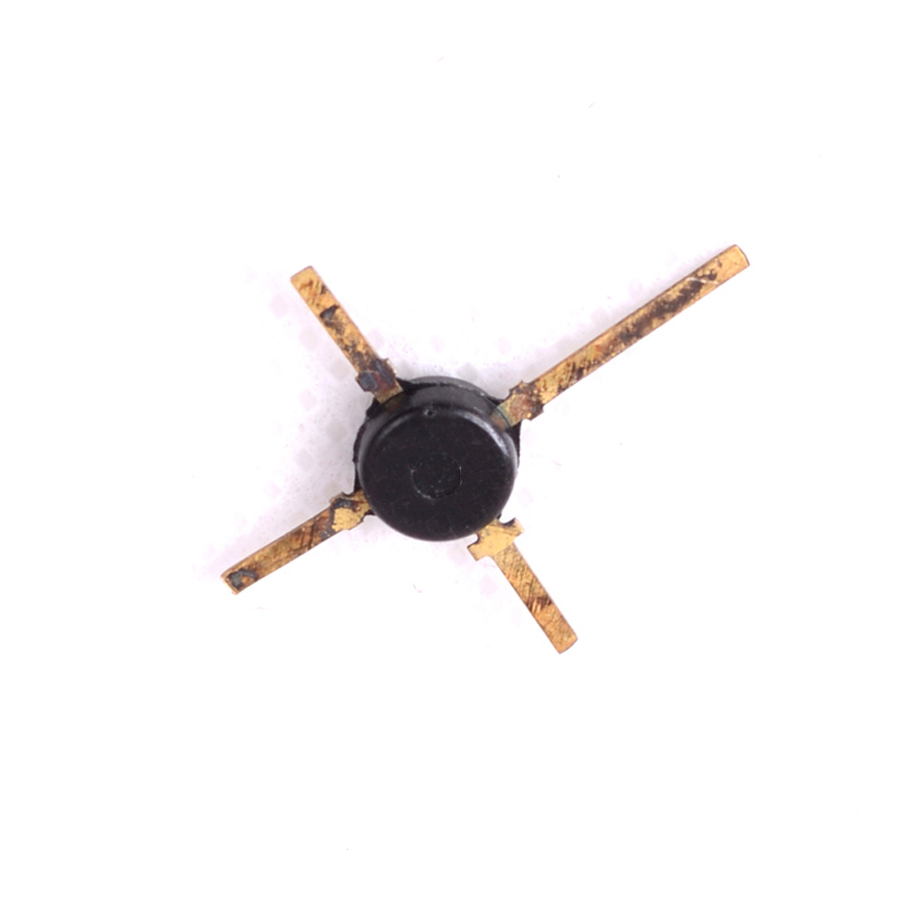

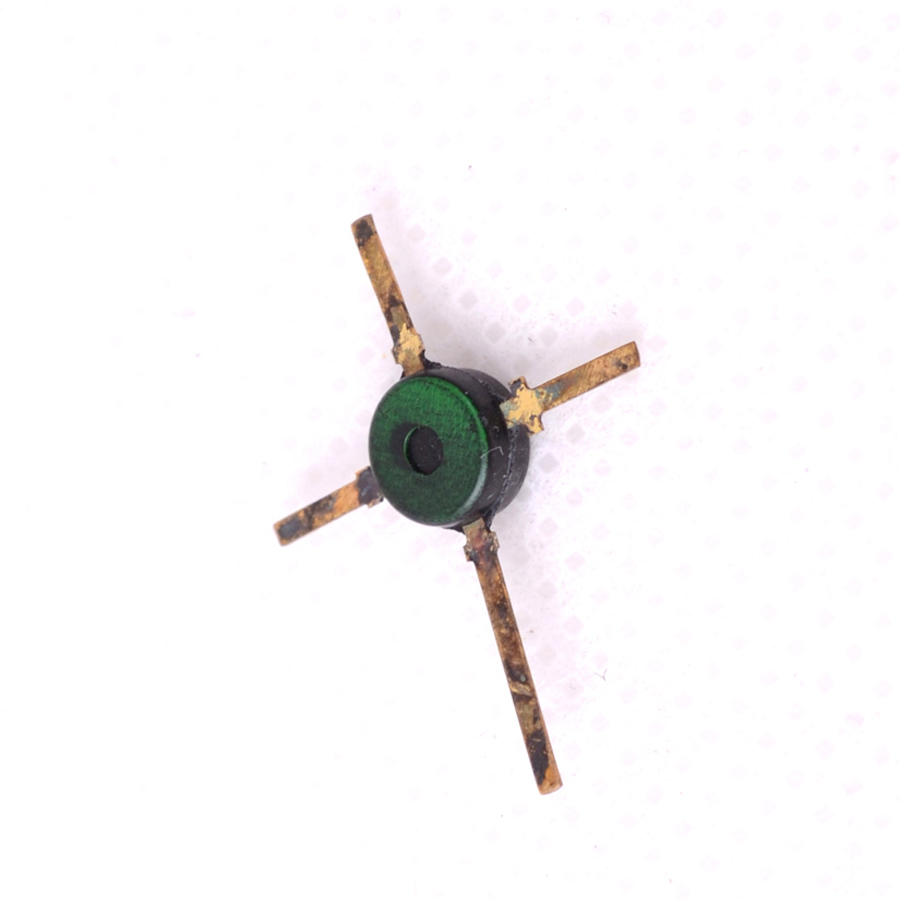

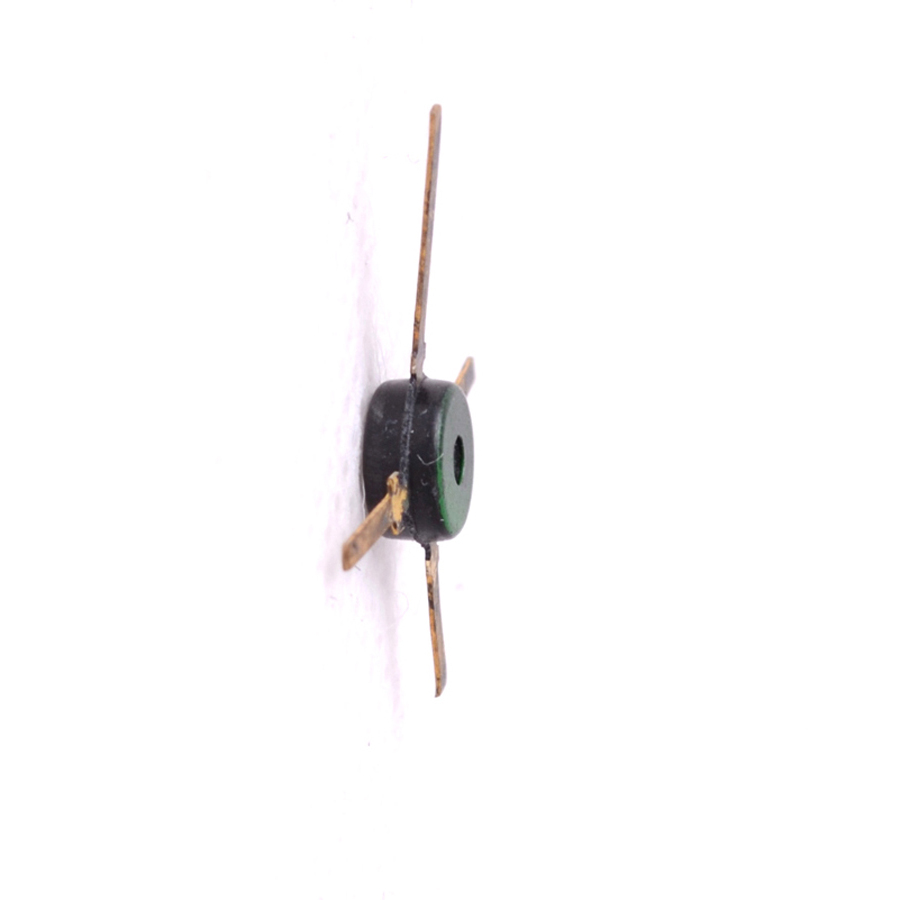

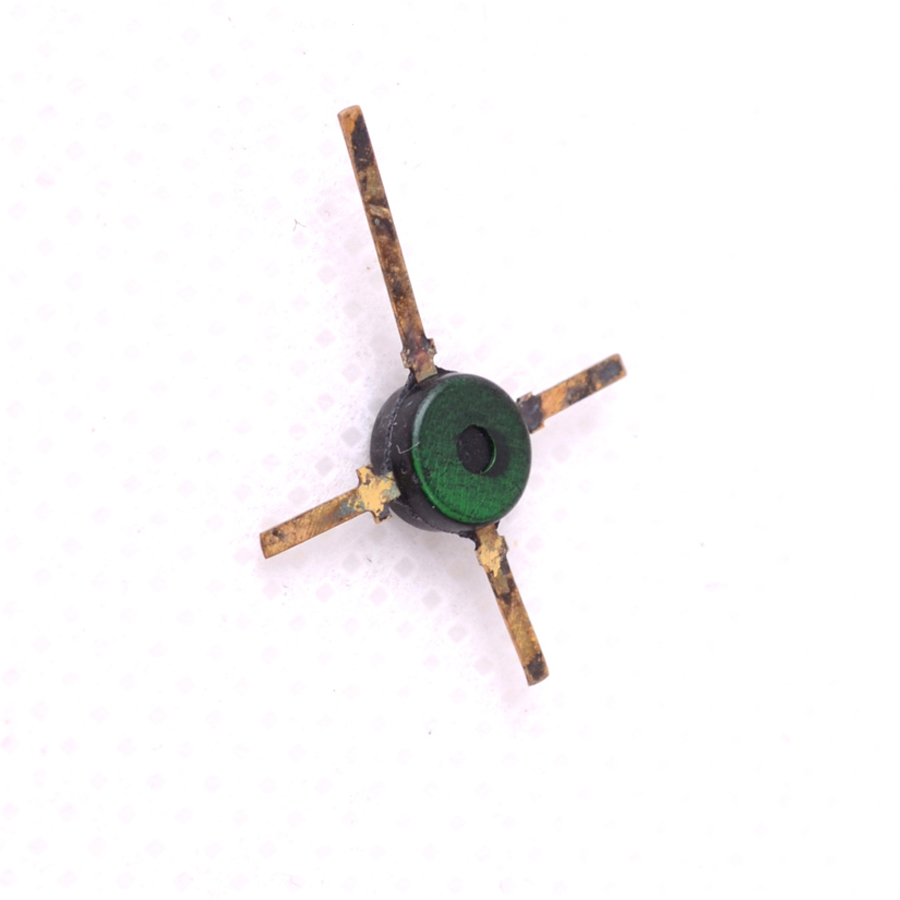

2SC1528 Transistor Silicon NPN CASE: SOT103 MAKE: Mitsubishi
Product specifications
Type Transistor Silicon NPN
Case SOT103
Manufacturer Mitsubishi
Vbr CBO 40
Vbr CEO 18
Max. PD (W) 25
Max. hFE 180
Min hFE 10
Ic Max. (A) 2.5
@Ic (test) (A) 100m
Icbo Max. @Vcb Max. (A) 500u
Polarity NPN
Derate Above 25°C 166m
Trans. Freq (Hz) Min. 450M
Oper. Temp (°C) Max. 175
@VCE (V) 10
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 25 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector-Emitter Voltage |Vce| 18 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 2.5 A
Max. Operating Junction Temperature (Tj) 180 °C
Transition Frequency (ft): 225 MHz
Forward Current Transfer Ratio (hFE), MIN 10
SKU 552269
