2SC1583
View detailed images (4)

2SC1583

SKU: 2SC1583

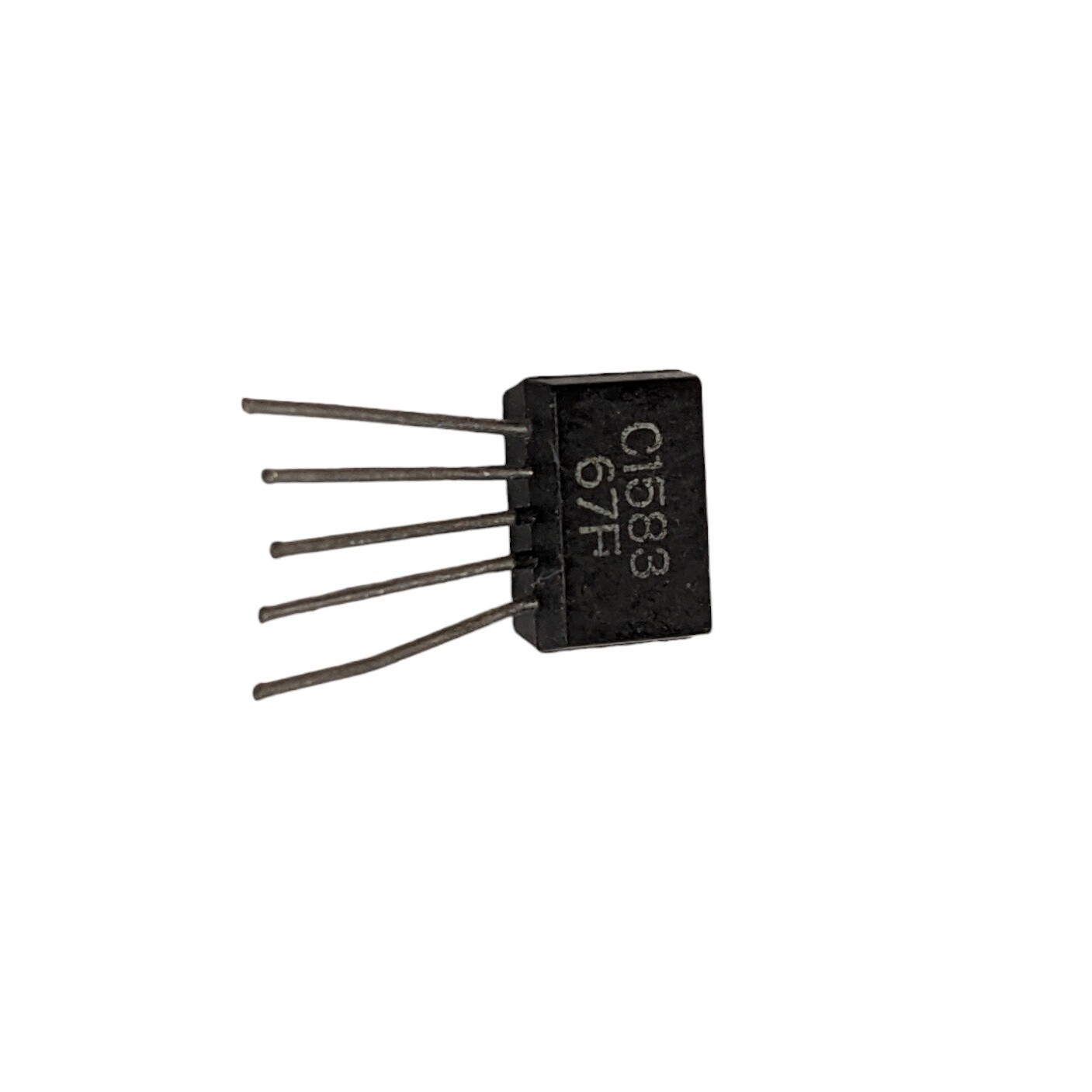

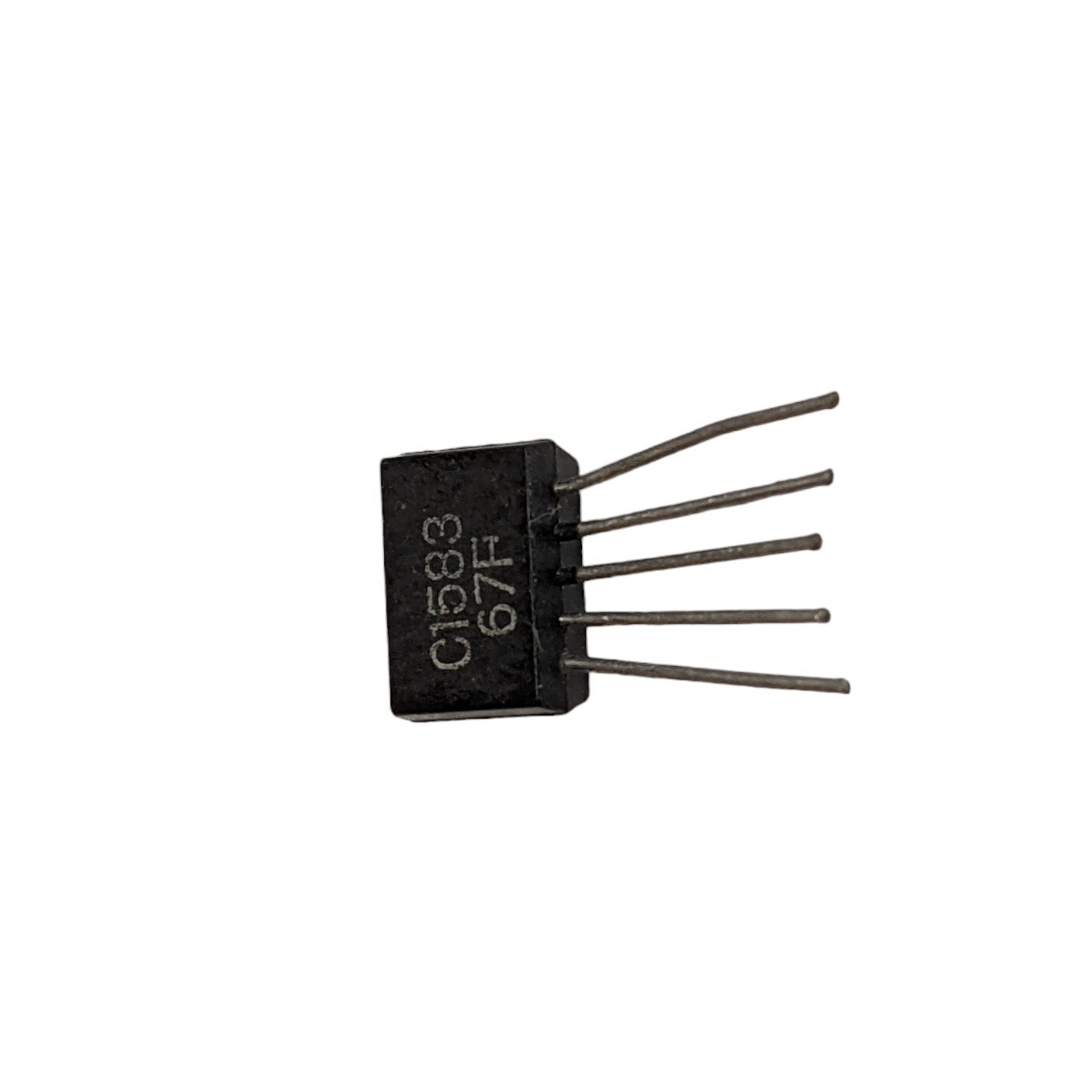

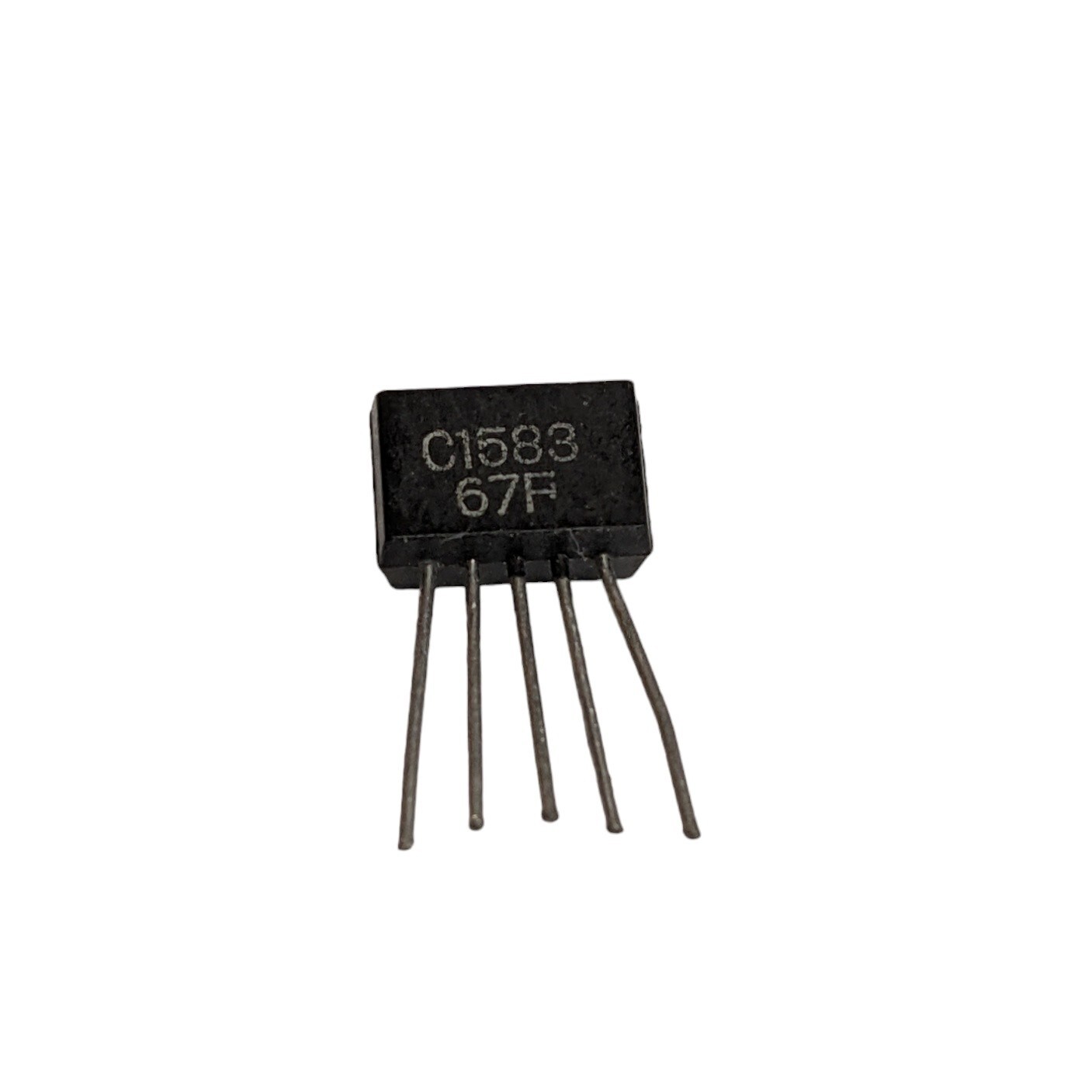

2SC1583 Transistor Silicon NPN - CASE: ZIP5 MAKE: Mitsubishi
Price: £19.99
+ VAT 20% for UK purchases
£19.99
Qty
+ VAT 20% for UK purchases
  • 6 pieces in 1-2 Days
  • More pieces shipped in 14 days
Datasheet
2SC1583 Datasheet
Product specifications
Type Transistor Silicon NPN
Manufacturer Mitsubishi
Case ZIP5
Mat. Silicon Logic
Polarity NPN
PD Max. (W) 400m
Vceo Max. 50.0
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.4 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 2.5 pF
Transition Frequency (ft): 150 MHz
Forward Current Transfer Ratio (hFE), MIN 500
SKU 84513
