2SC1655
View detailed images (12)

2SC1655

SKU: 2SC1655

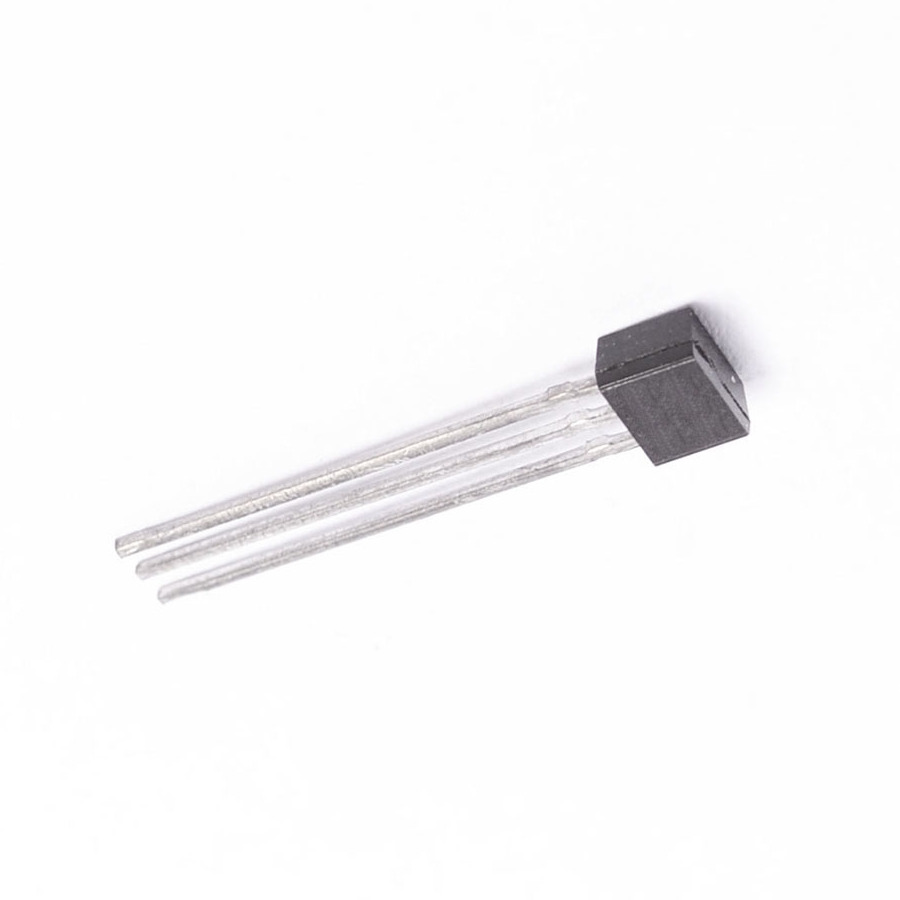

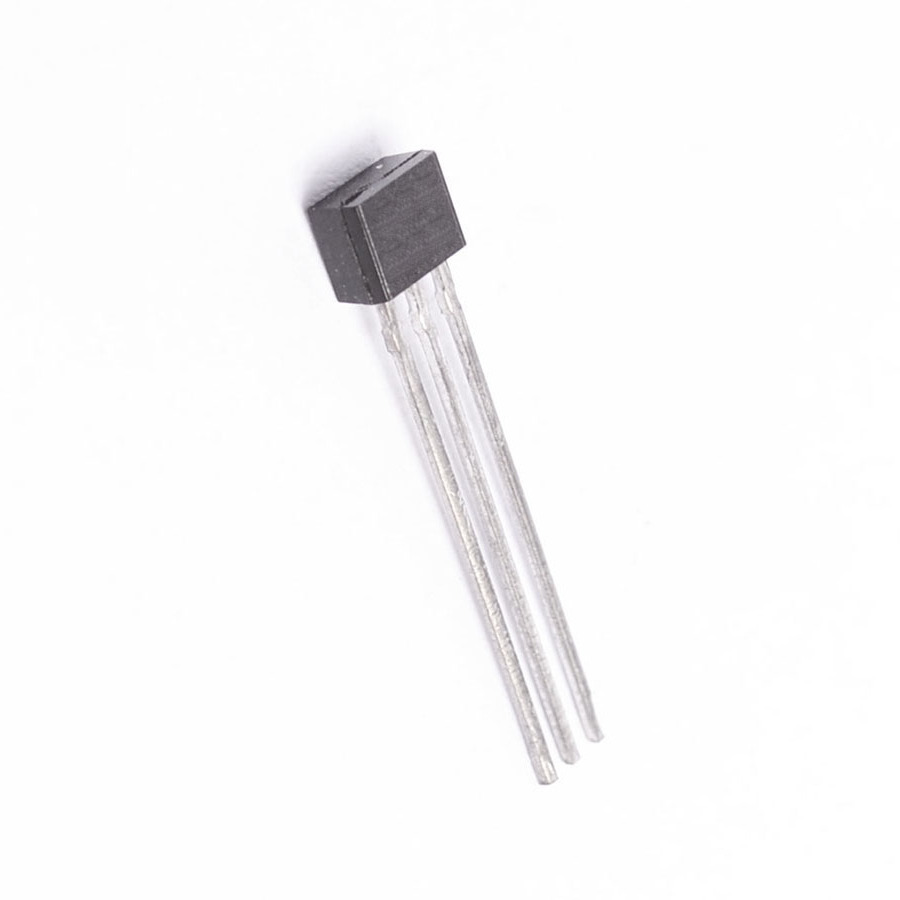

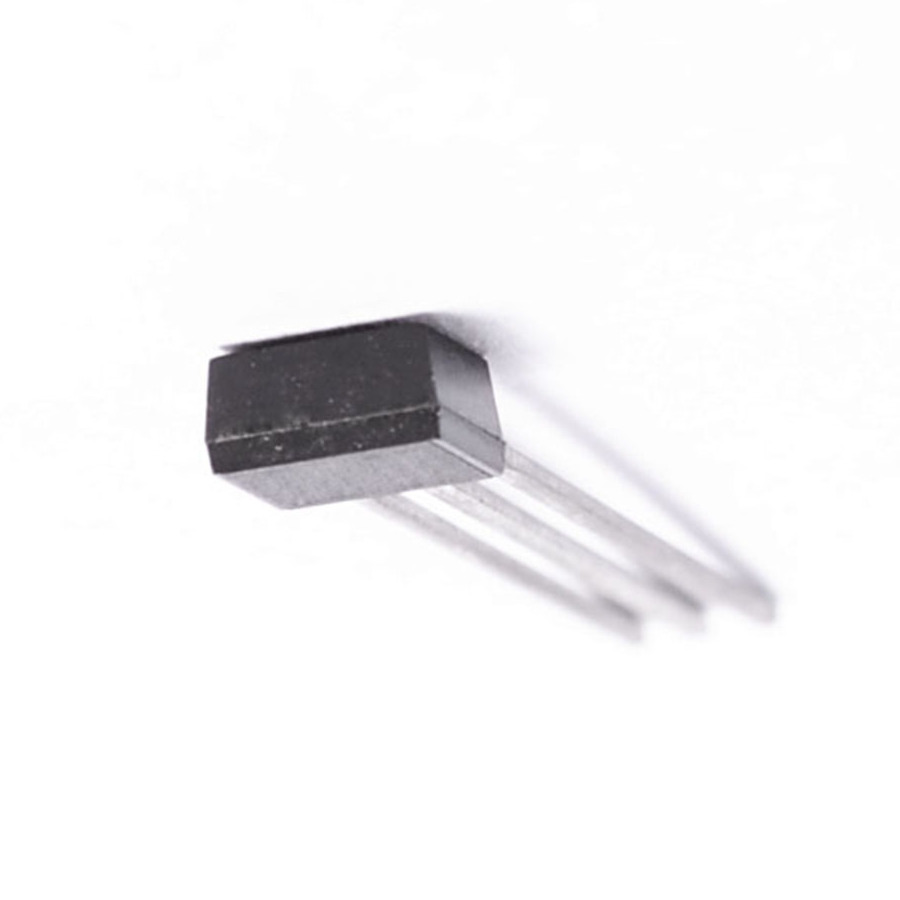

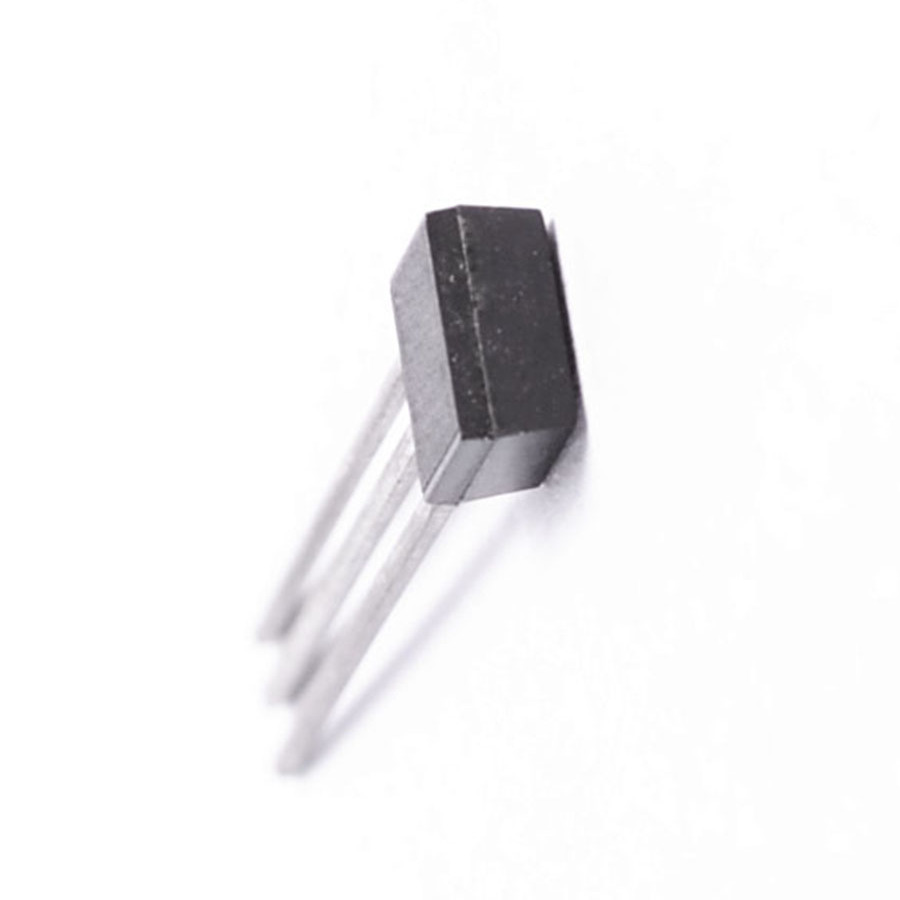

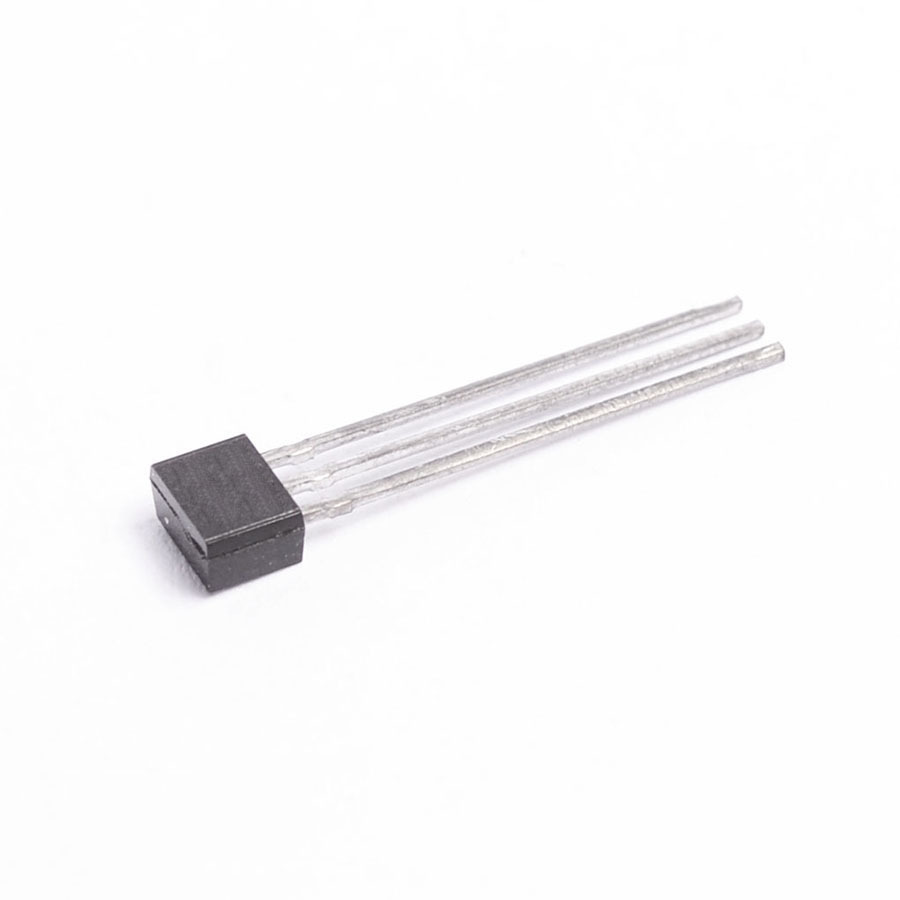

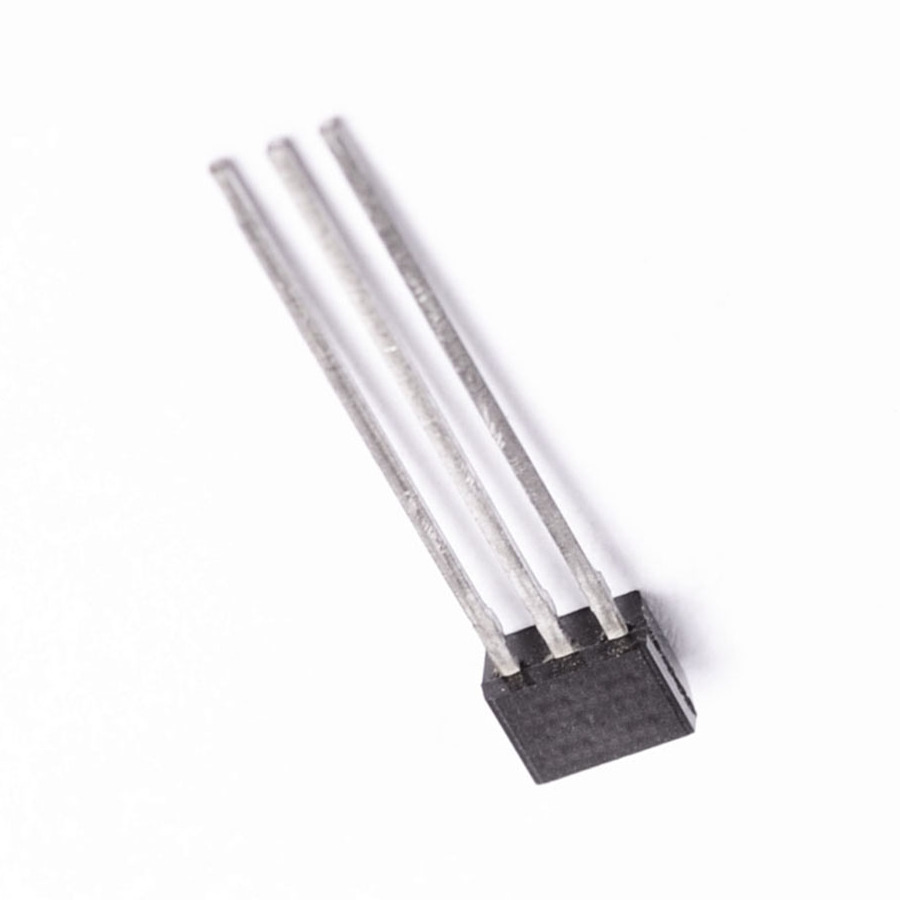

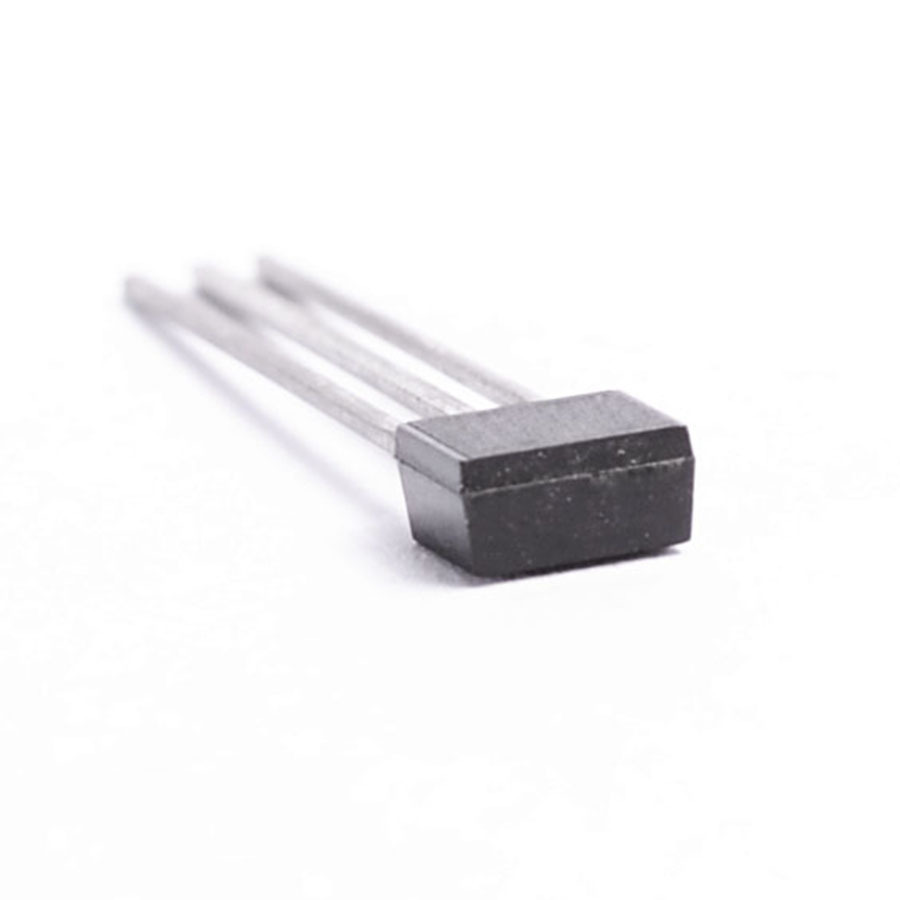

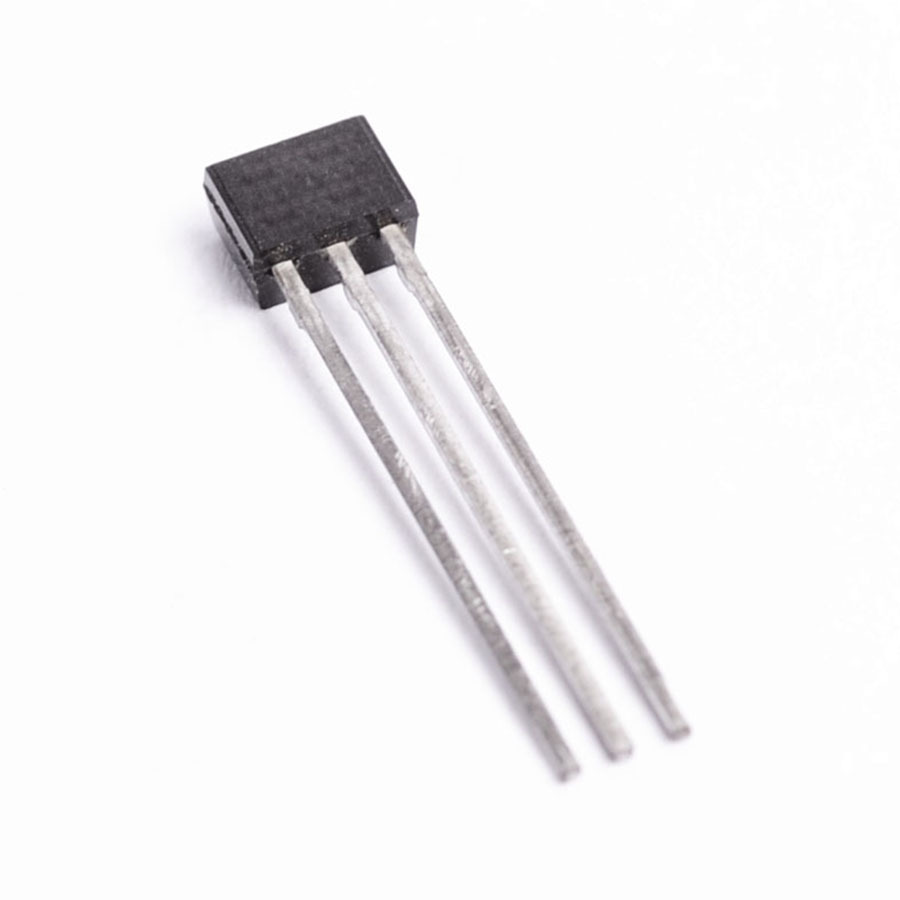

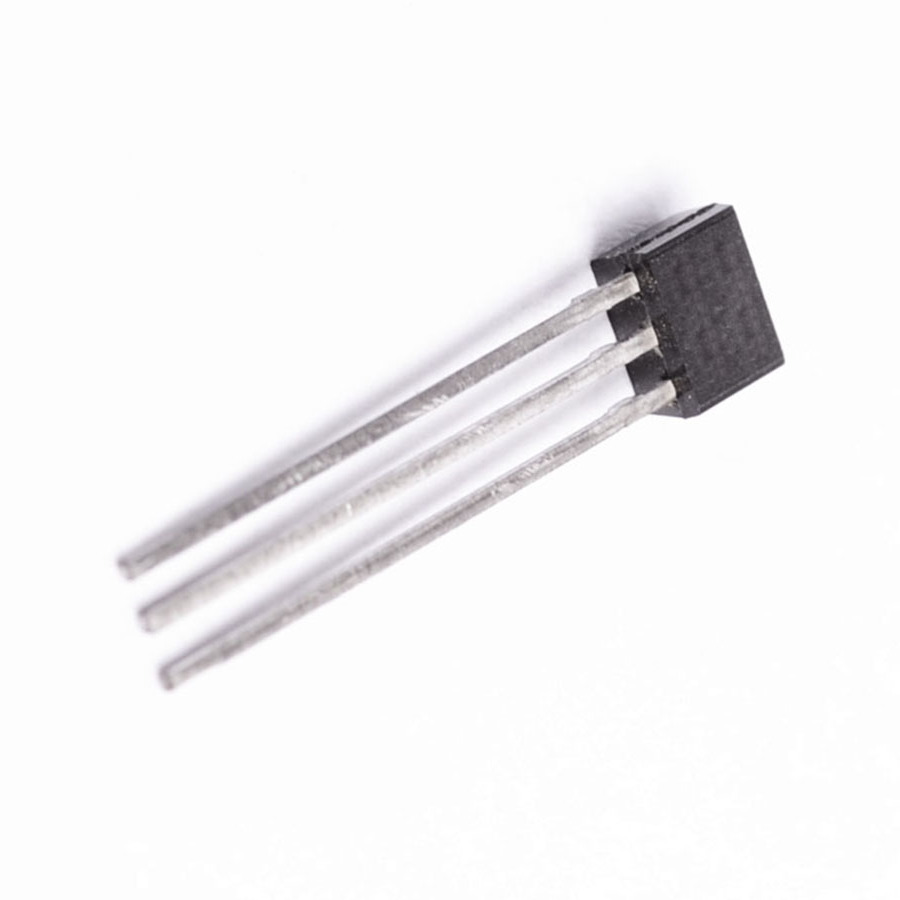

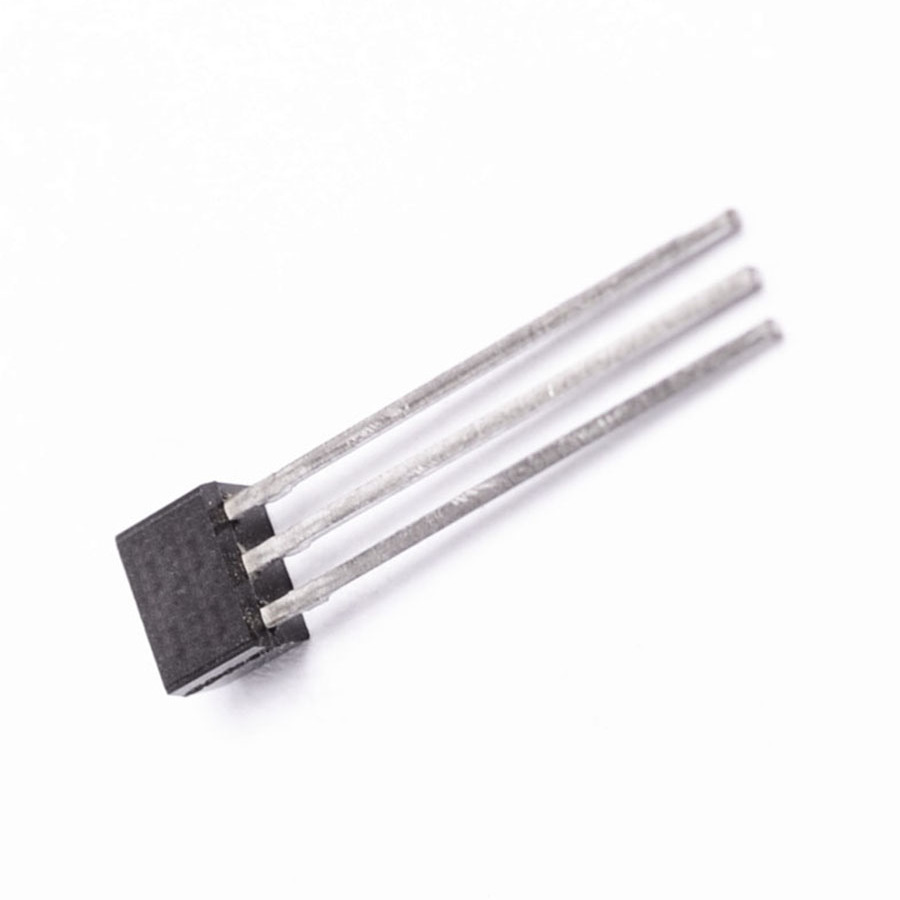

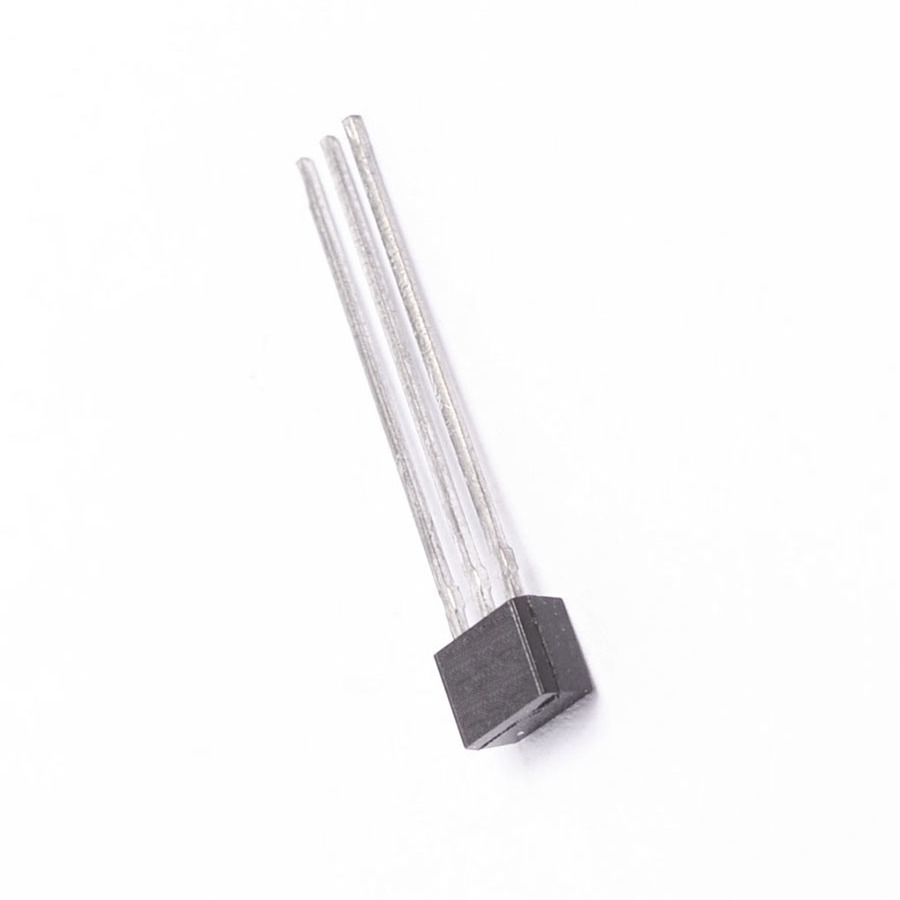

2SC1655 Transistor Silicon NPN CASE: SOT100 MAKE: NEC
Product specifications
Equivalent 2SC1655A
Type Transistor Silicon NPN
Case SOT100
Manufacturer NEC
Vbr CBO 16
@Freq. (test) 2.0G
@Ic (A) 5.0m
@Ic (A) 10m
Mat. Silicon Logic
Noise Fig. 3.0=
Oper. Gain Typ (S21) 8.0
f(osc) Max. (Hz) 8.0G
Polarity NPN
PD Max. (W) 150m
S11 Deg. (Typ) 156
S11 Mag Typ. .252
S22 Deg. Typ. -79
S22 Mag Typ. .241
@VDS (VCE) (test) (V) 6.0
Coll. (or drain) Current Max. 30m
@Freq. (test) 500M
@VCE (test) 6.0
Oper. Temp (°C) Max. 175
Pinout Equivalence Number 4-29
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.15 W
Maximum Collector-Base Voltage |Vcb| 16 V
Maximum Collector-Emitter Voltage |Vce| 8 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.03 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 0.5 pF
Transition Frequency (ft): 8000 MHz
Forward Current Transfer Ratio (hFE), MIN 50
SKU 556986
