2SC1946A
View detailed images (12)

2SC1946A

SKU: 2SC1946A

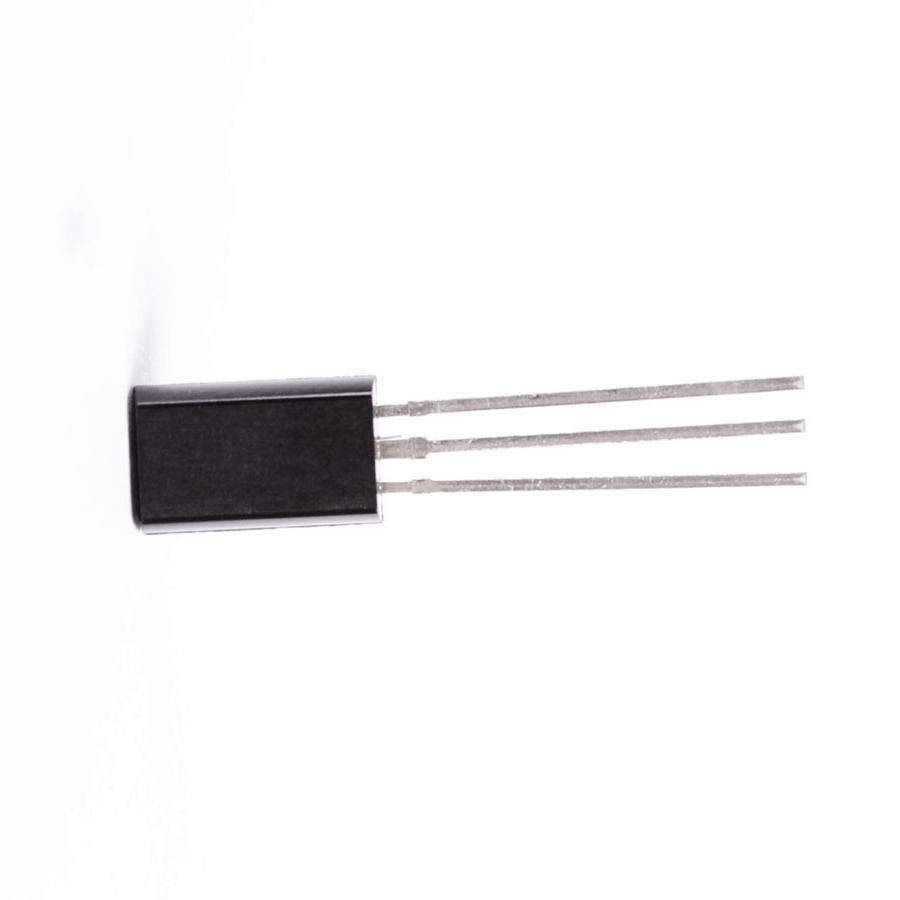

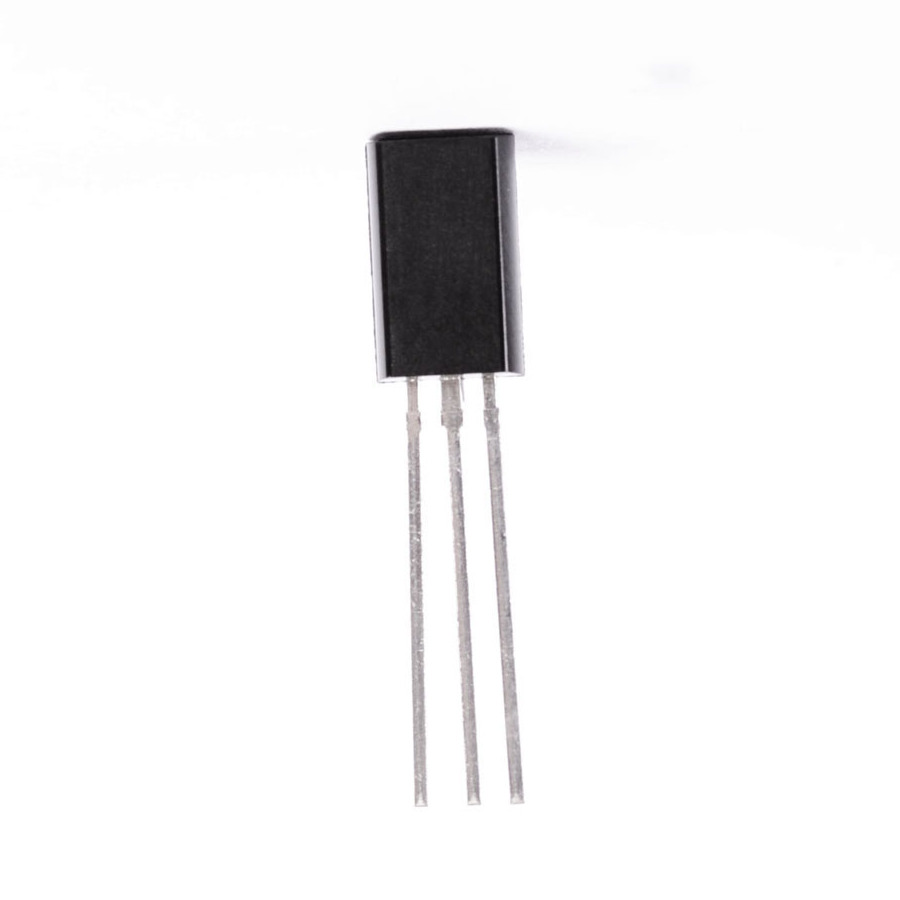

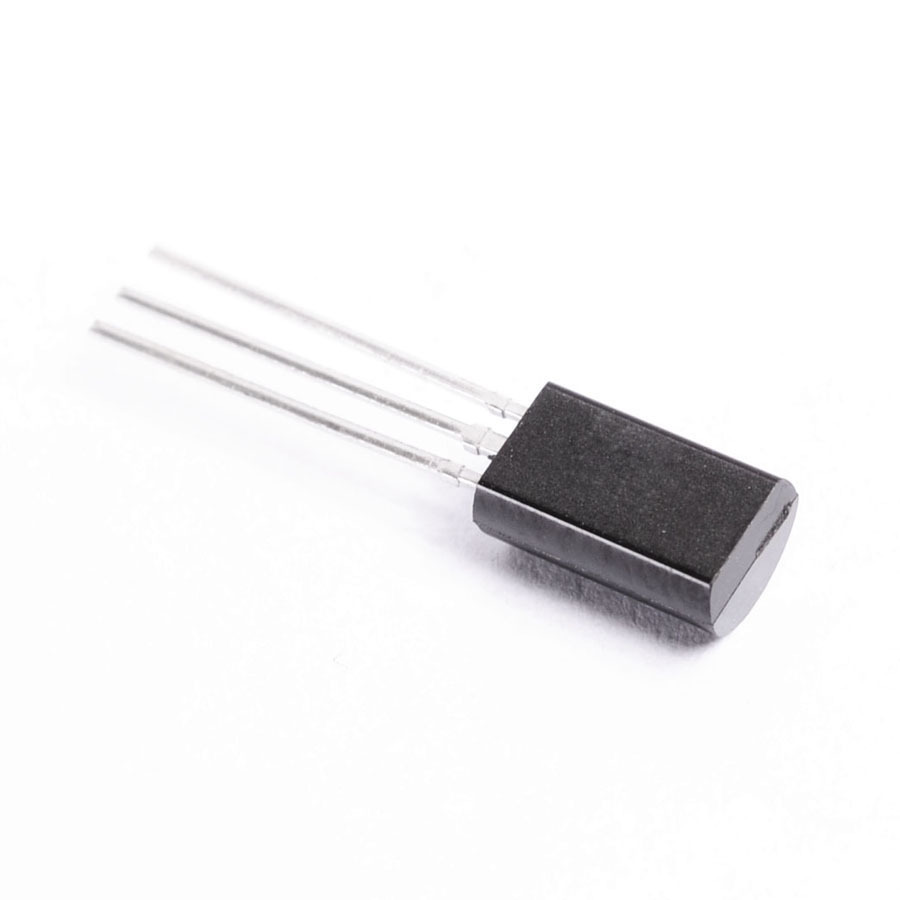

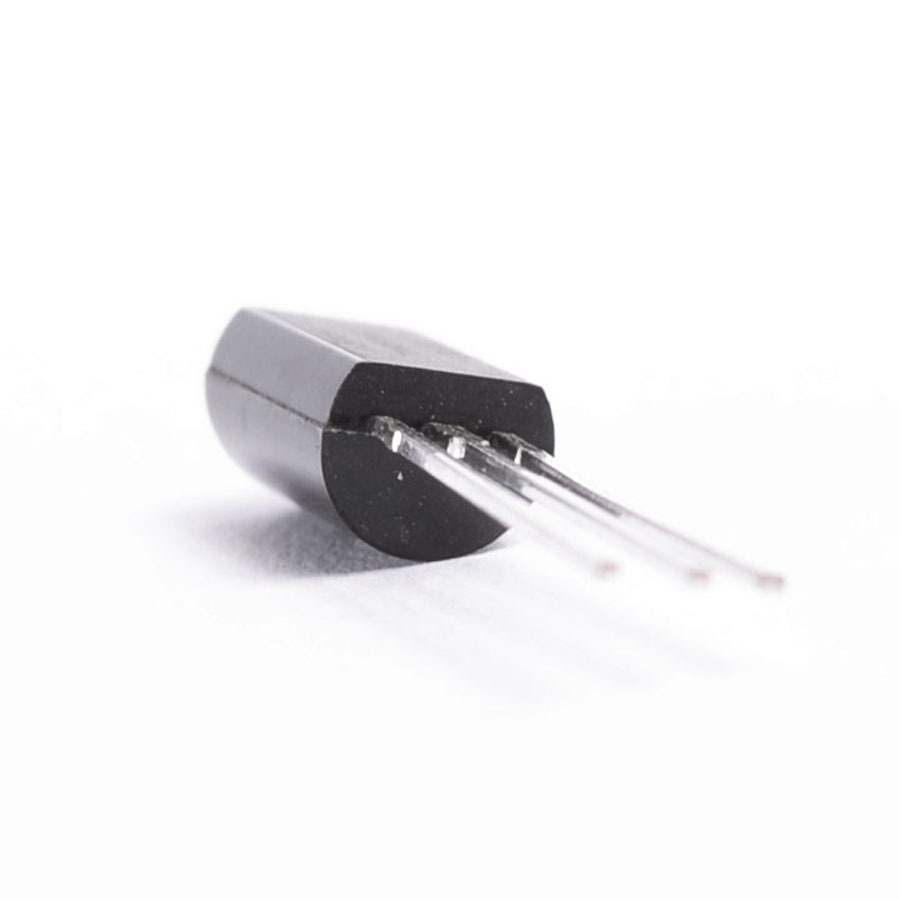

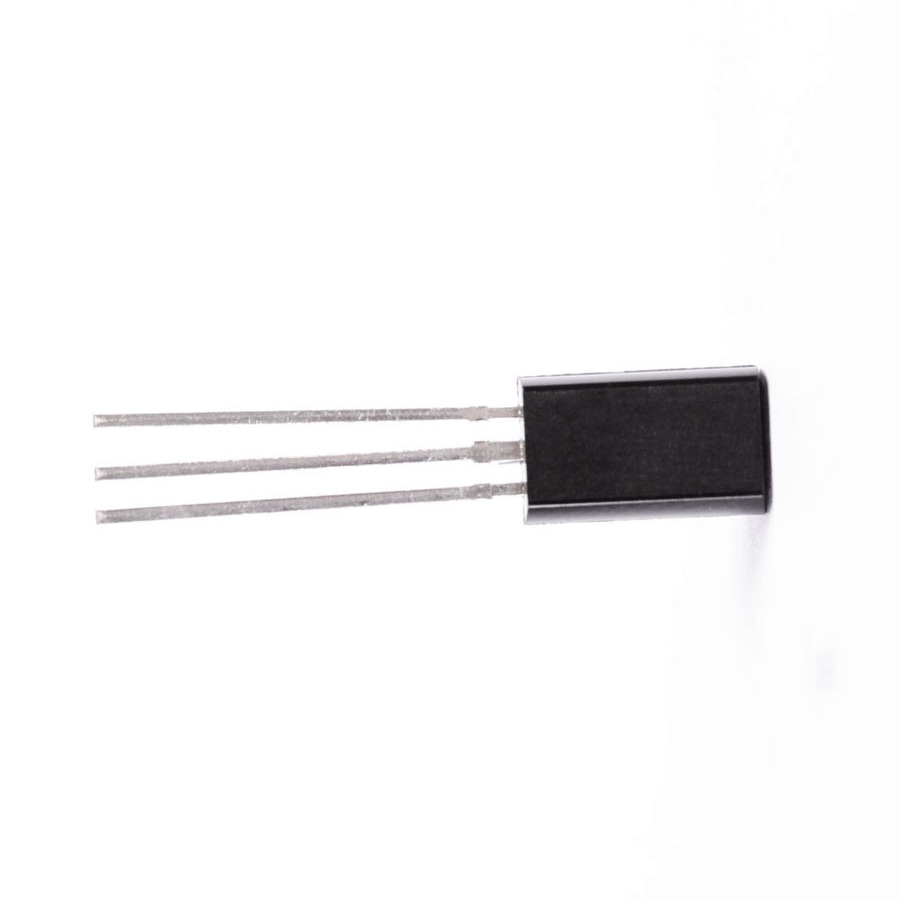

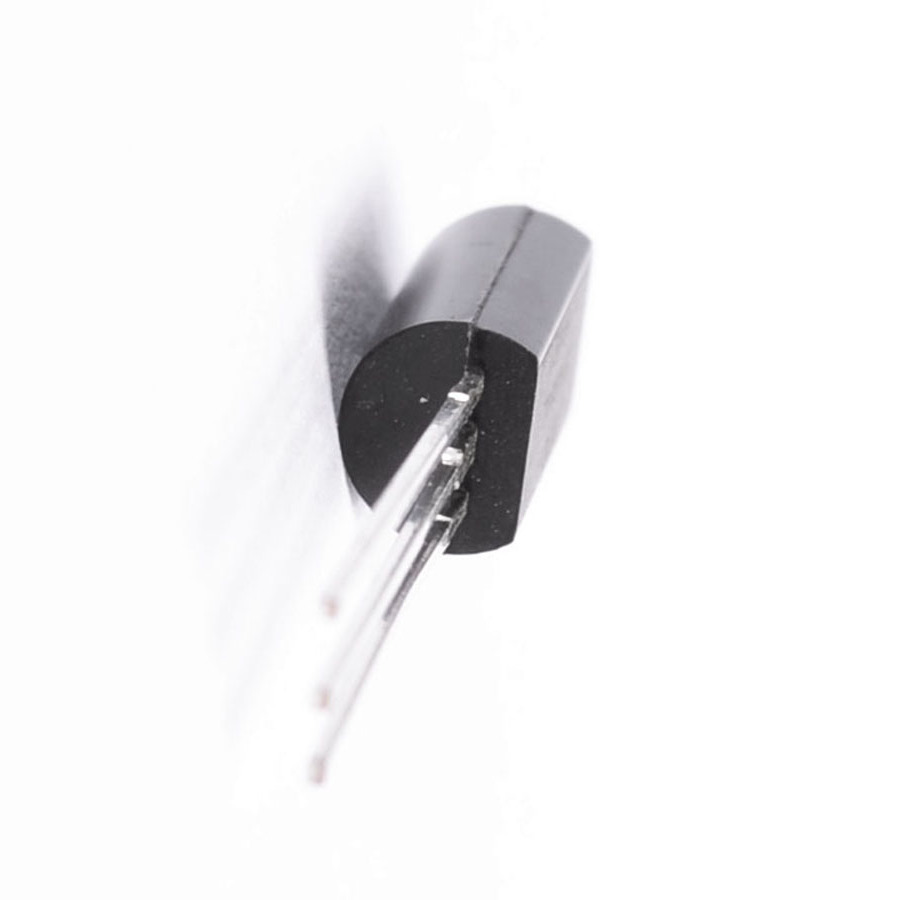

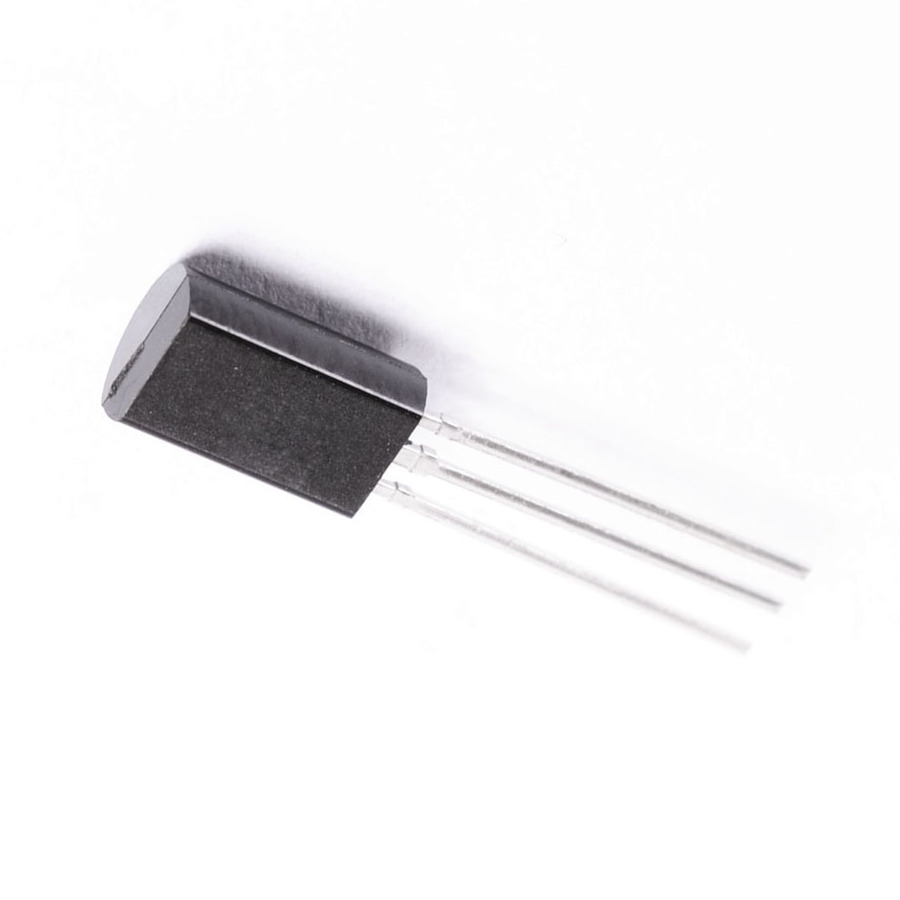

2SC1946A Transistor Silicon NPN - CASE: TO92L MAKE: Mitsubishi
Price: £19.99
+ VAT 20% for UK purchases
£19.99
Qty
+ VAT 20% for UK purchases
  • 11 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SC1946A Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO92L
Manufacturer Mitsubishi
Vbr CBO 35
Vbr CEO 17
Max. PD (W) 60
Max. hFE 180
Min hFE 10
Ic Max. (A) 7.0
@Ic (test) (A) 200m
Icbo Max. @Vcb Max. (A) 2.0m
Polarity NPN
Derate Above 25°C 333m
Oper. Temp (°C) Max. 175
@VCE (V) 10
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 50 W
Maximum Collector-Base Voltage |Vcb| 35 V
Maximum Collector-Emitter Voltage |Vce| 17 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 7 A
Max. Operating Junction Temperature (Tj) 175 °C
Transition Frequency (ft): 200 MHz
Forward Current Transfer Ratio (hFE), MIN 20
SKU 80948
