2SC2273
View detailed images (12)

2SC2273

SKU: 2SC2273

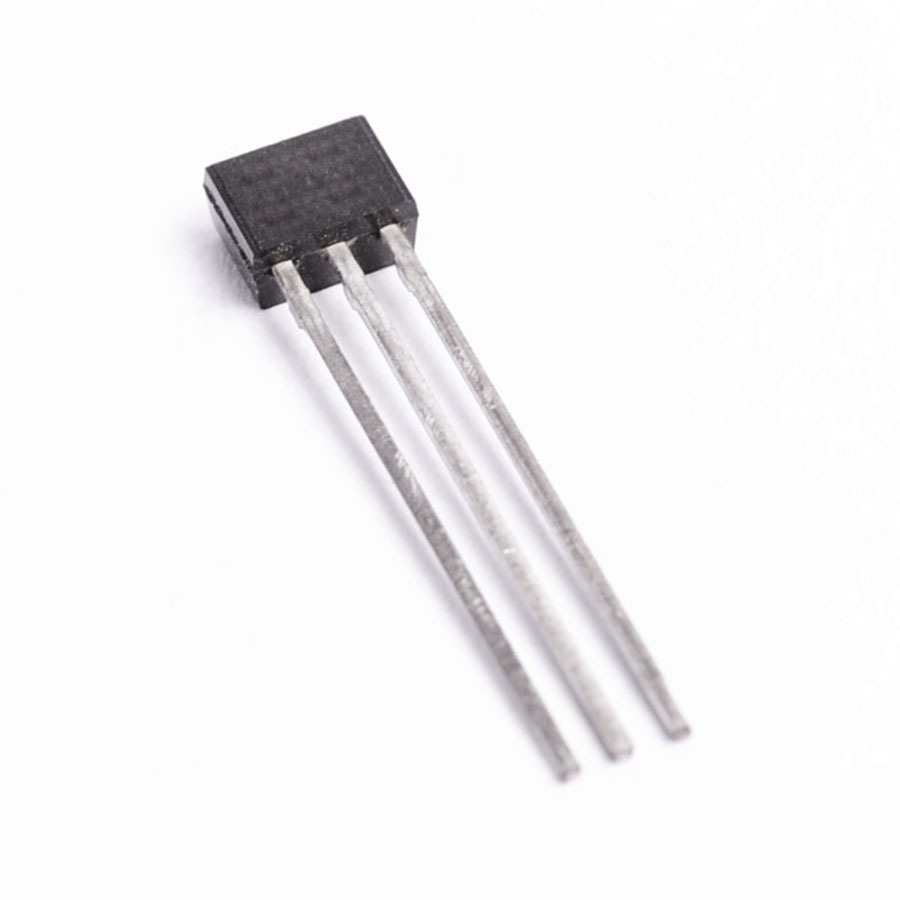

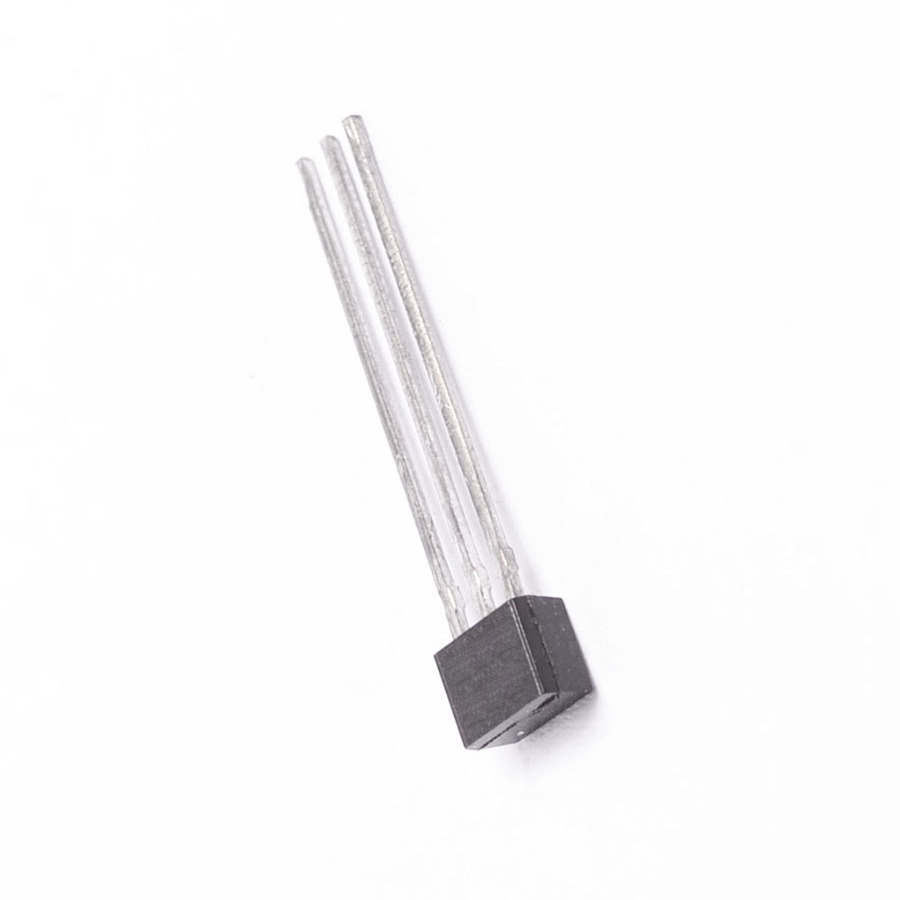

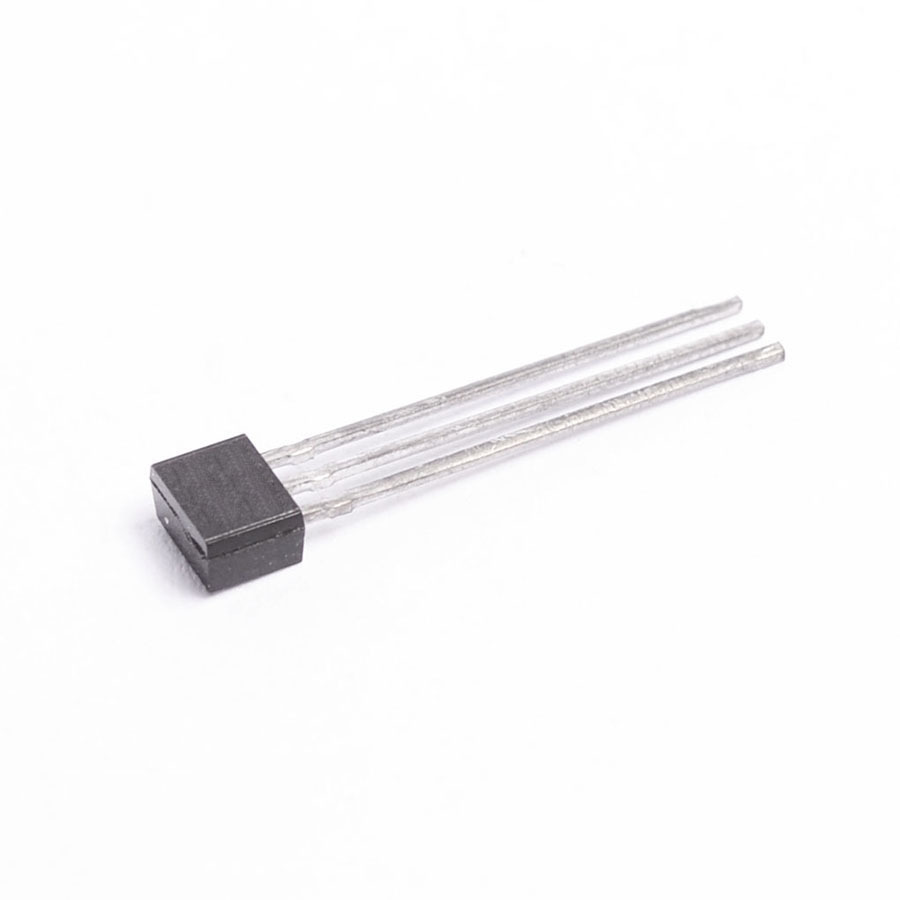

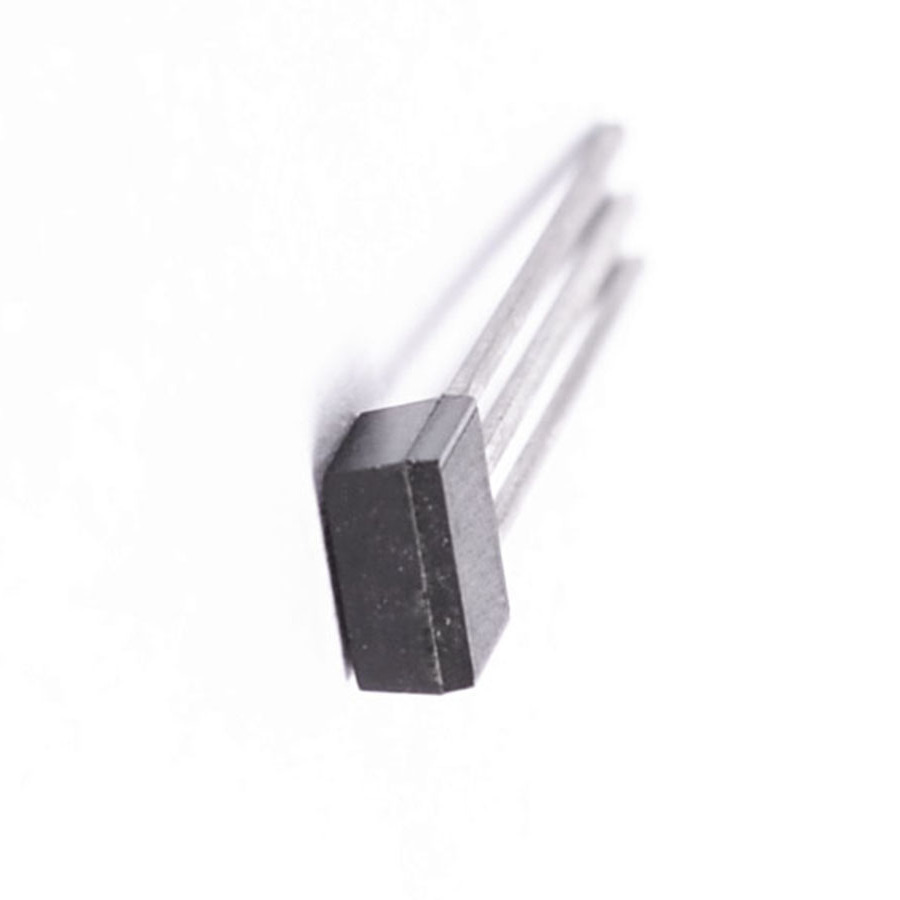

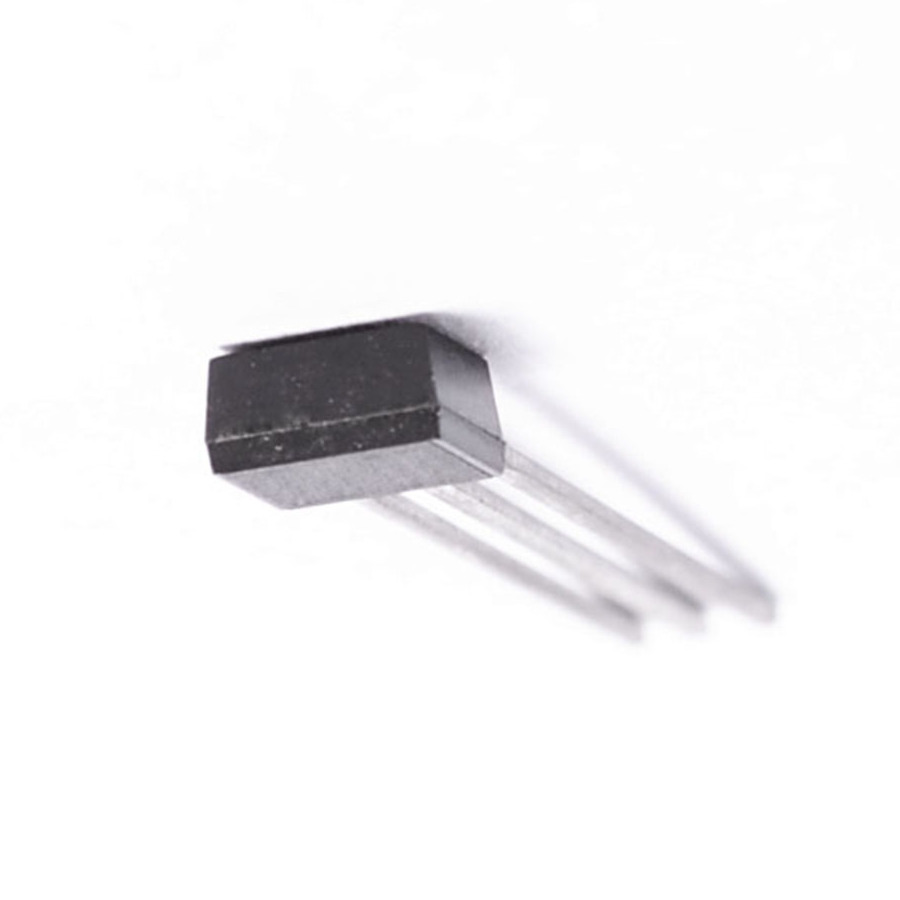

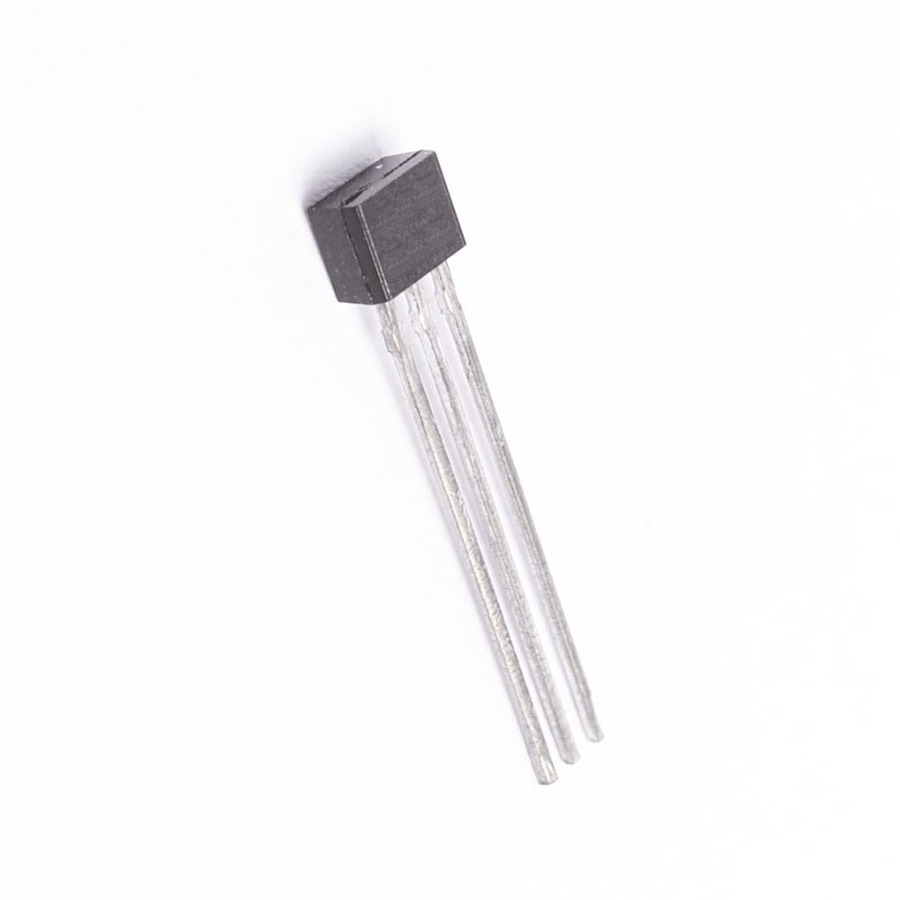

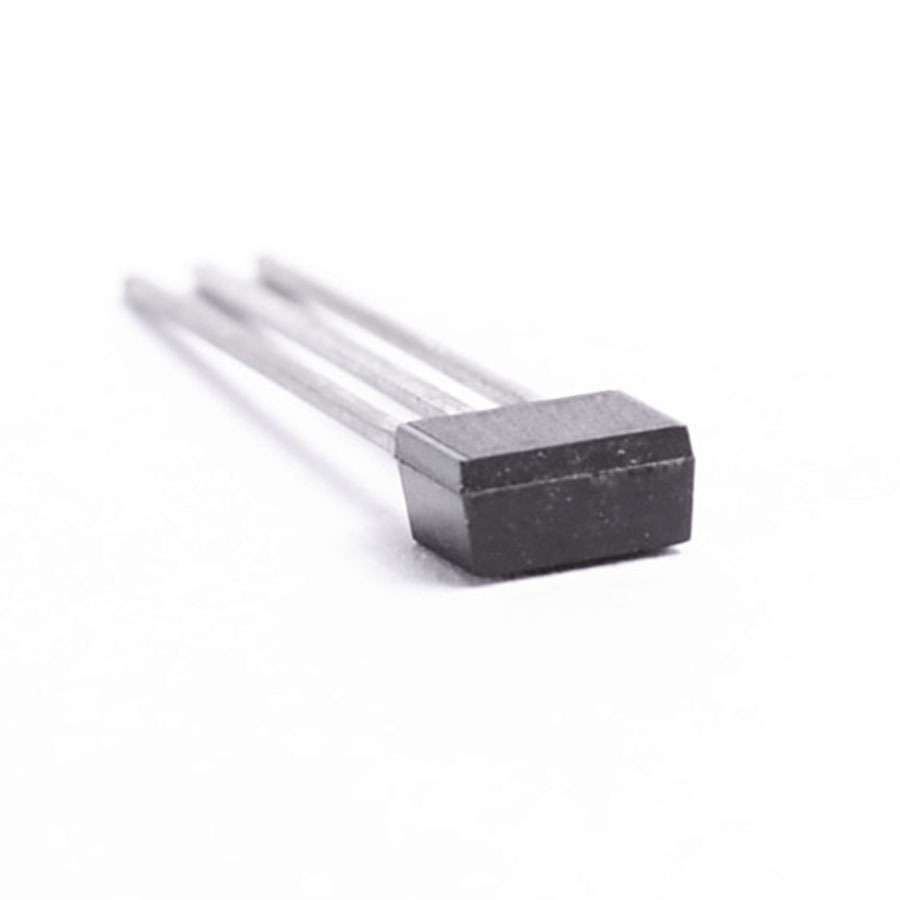

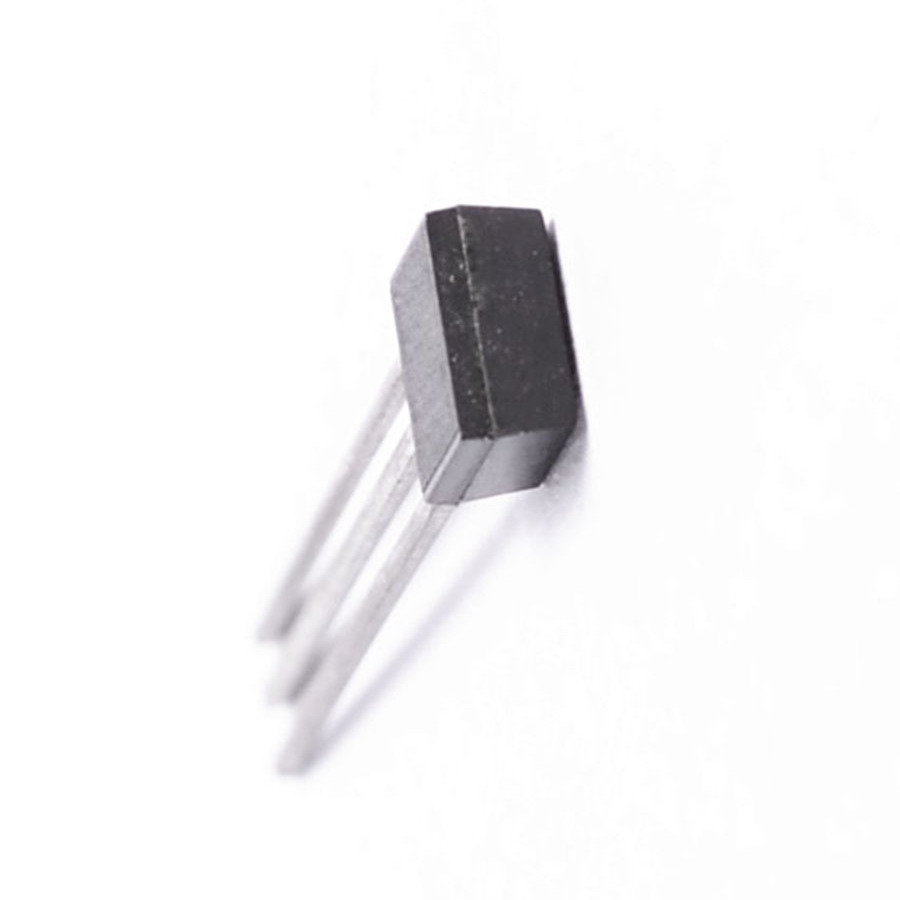

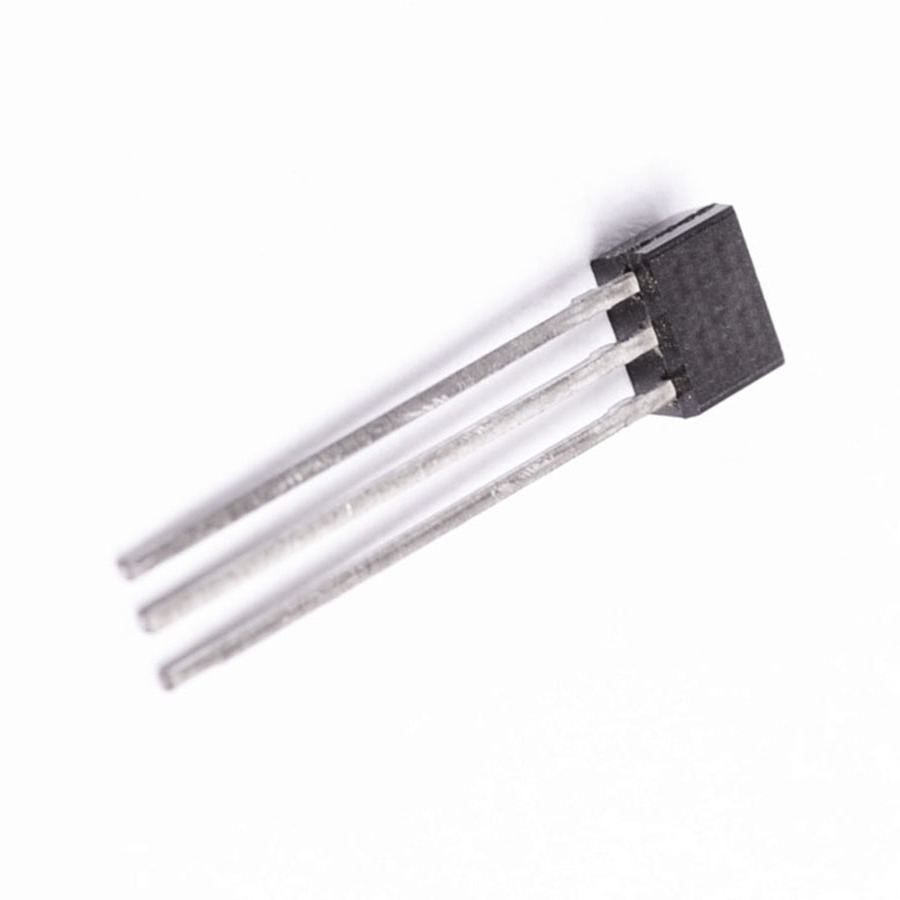

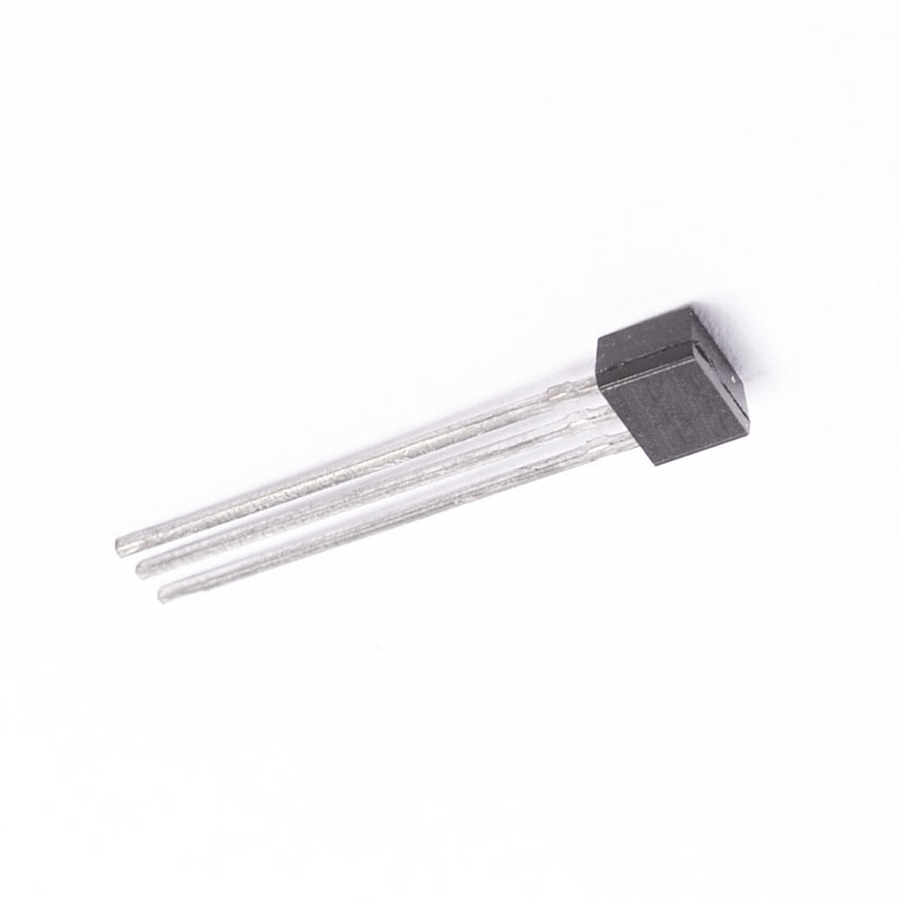

2SC2273 Transistor Silicon NPN CASE: SOT100 MAKE: NEC
Product specifications
Type Transistor Silicon NPN
Case SOT100
Manufacturer NEC
Vbr CBO 25
@Freq. (test) 2.0G
@Ic (A) 7.0m
@Ic (A) 7.0m
Mat. Silicon Logic
Noise Fig. 2.0
Oper. Gain Typ (S21) 12
f(osc) Max. (Hz) 8.5G-
Polarity NPN
PD Max. (W) 400m
S11 Deg. (Typ) -172
S11 Mag Typ. .63
S22 Deg. Typ. -60
S22 Mag Typ. .51
@VDS (VCE) (test) (V) 8.0
Coll. (or drain) Current Max. 65m
@Freq. (test) 2.0G
@VCE (test) 8
Oper. Temp (°C) Max. 200
Pinout Equivalence Number 4-29
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.44 W
Maximum Collector-Base Voltage |Vcb| 25 V
Maximum Collector-Emitter Voltage |Vce| 12 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.065 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 0.6 pF
Transition Frequency (ft): 8500 MHz
Forward Current Transfer Ratio (hFE), MIN 50
SKU 557022
