2SC2302
View detailed images (12)

2SC2302

SKU: 2SC2302

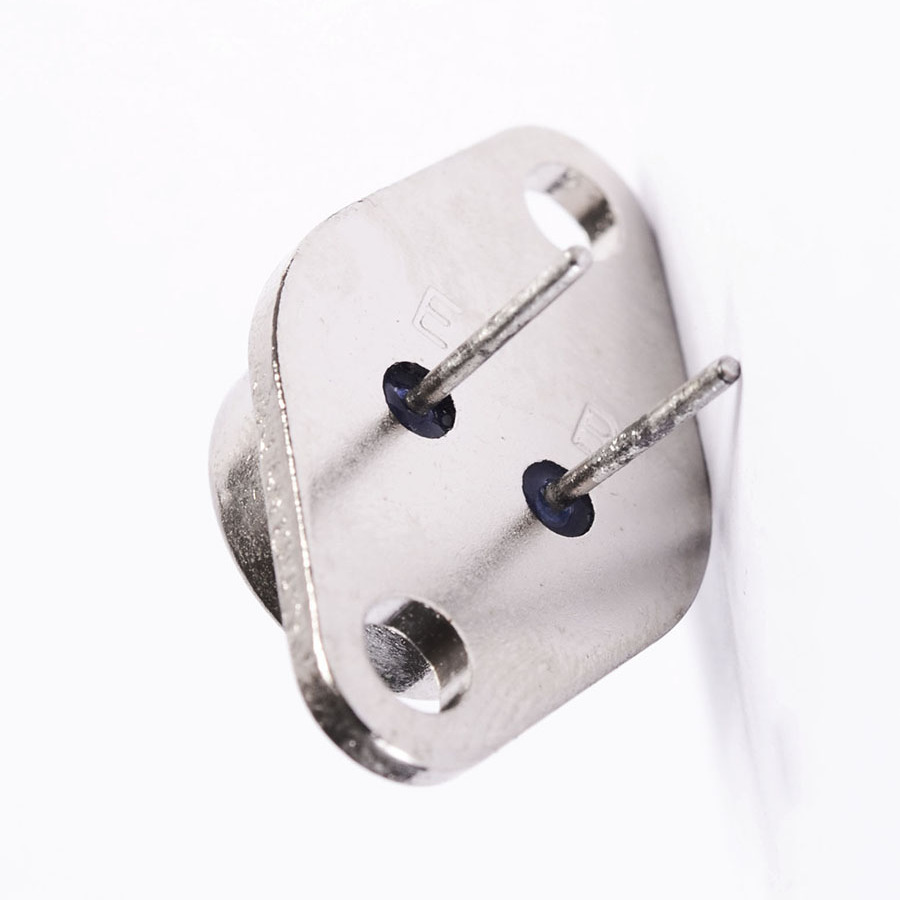

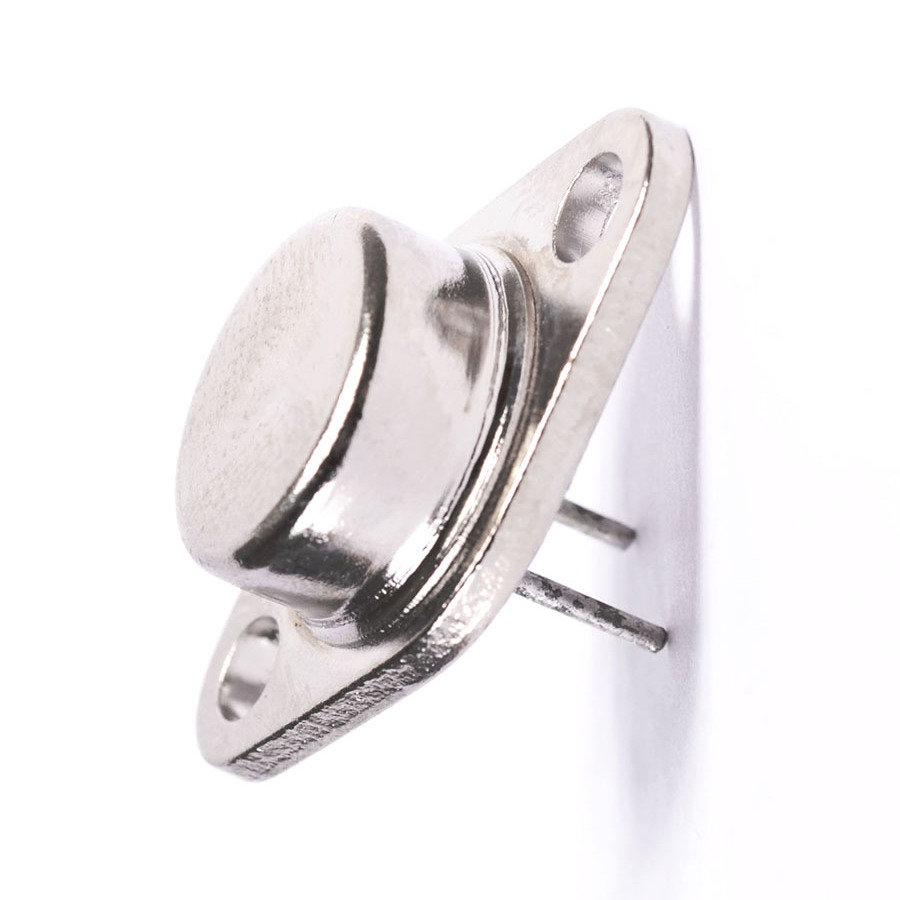

2SC2302 Transistor Silicon NPN CASE: SOT9 MAKE: Sanken
Product specifications
Type Transistor Silicon NPN
Case SOT9
Manufacturer Sanken
Vbr CBO 500
Vbr CEO 400
Max. PD (W) 40
Min hFE 10
Ic Max. (A) 7.0
@Ic (test) (A) 5.0
Icbo Max. @Vcb Max. (A) 100u
Polarity NPN
Trans. Freq (Hz) Min. 35M
Oper. Temp (°C) Max. 140
@VCE (V) 4.0
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 40 W
Maximum Collector-Base Voltage |Vcb| 500 V
Maximum Collector-Emitter Voltage |Vce| 400 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 7 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 35 MHz
Forward Current Transfer Ratio (hFE), MIN 15
SKU 570945
