2SC2328
View detailed images (12)

2SC2328

SKU: 2SC2328

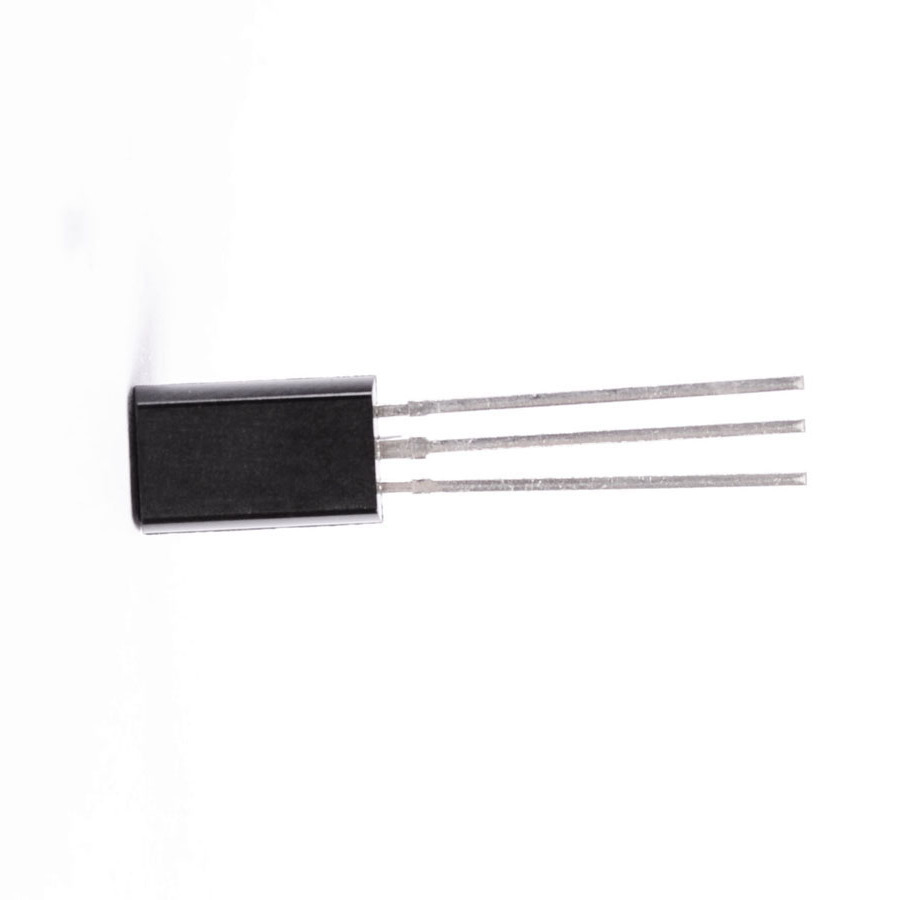

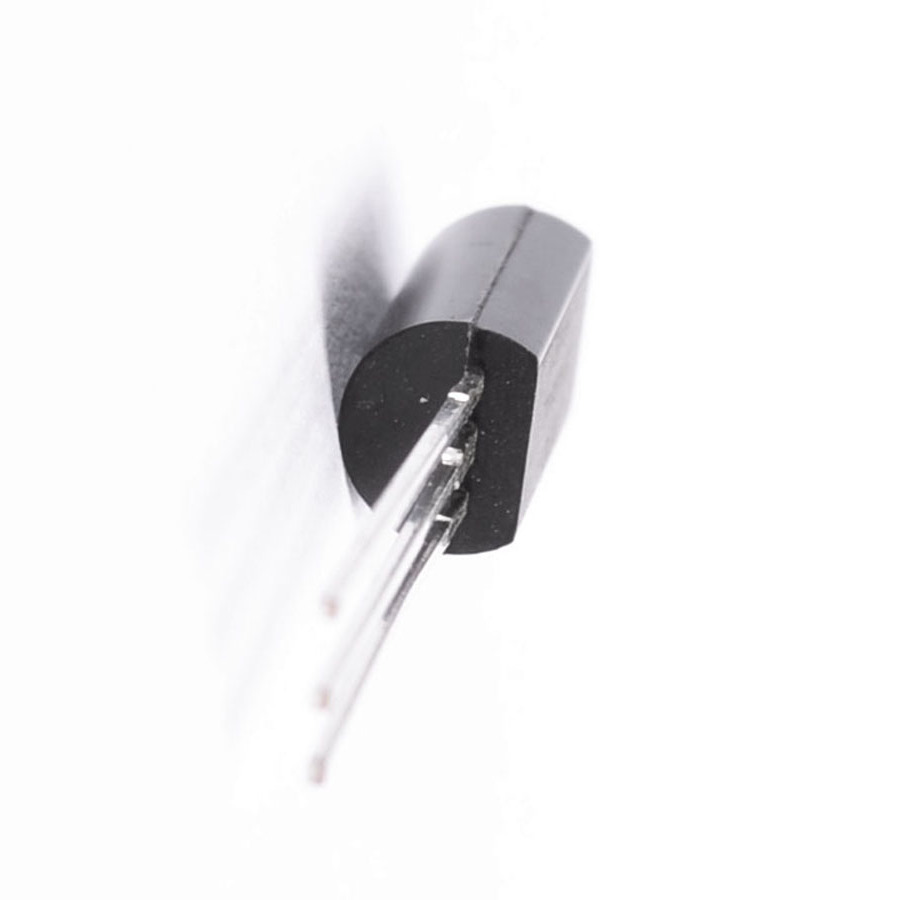

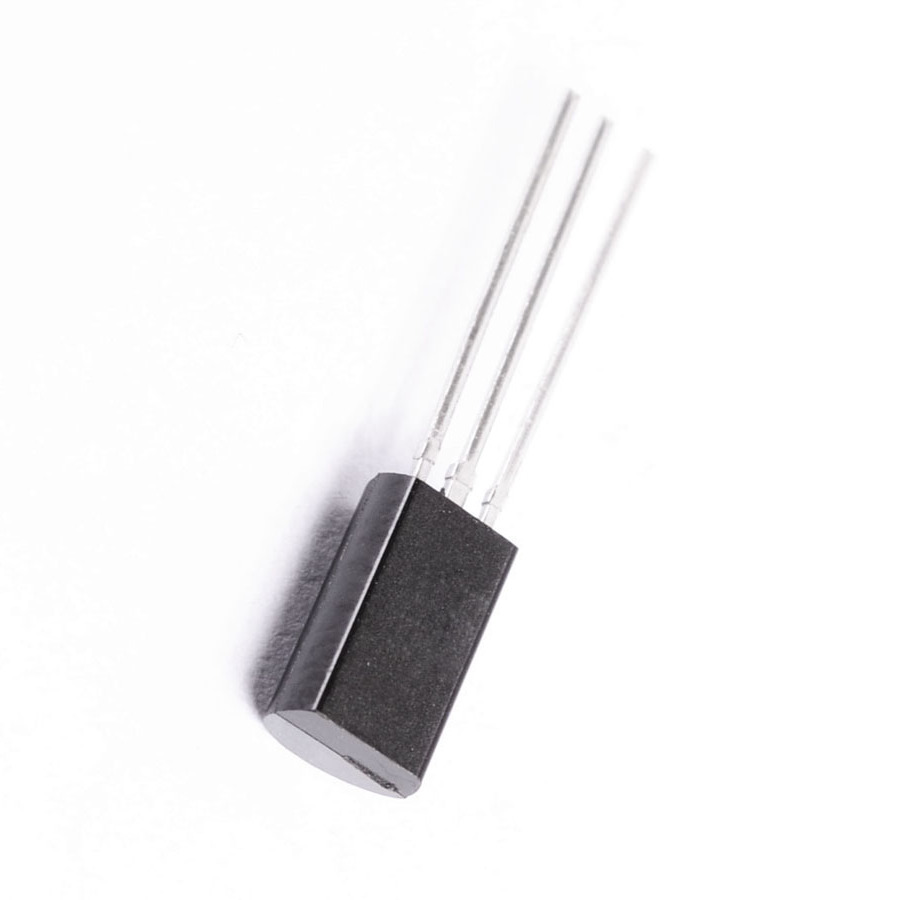

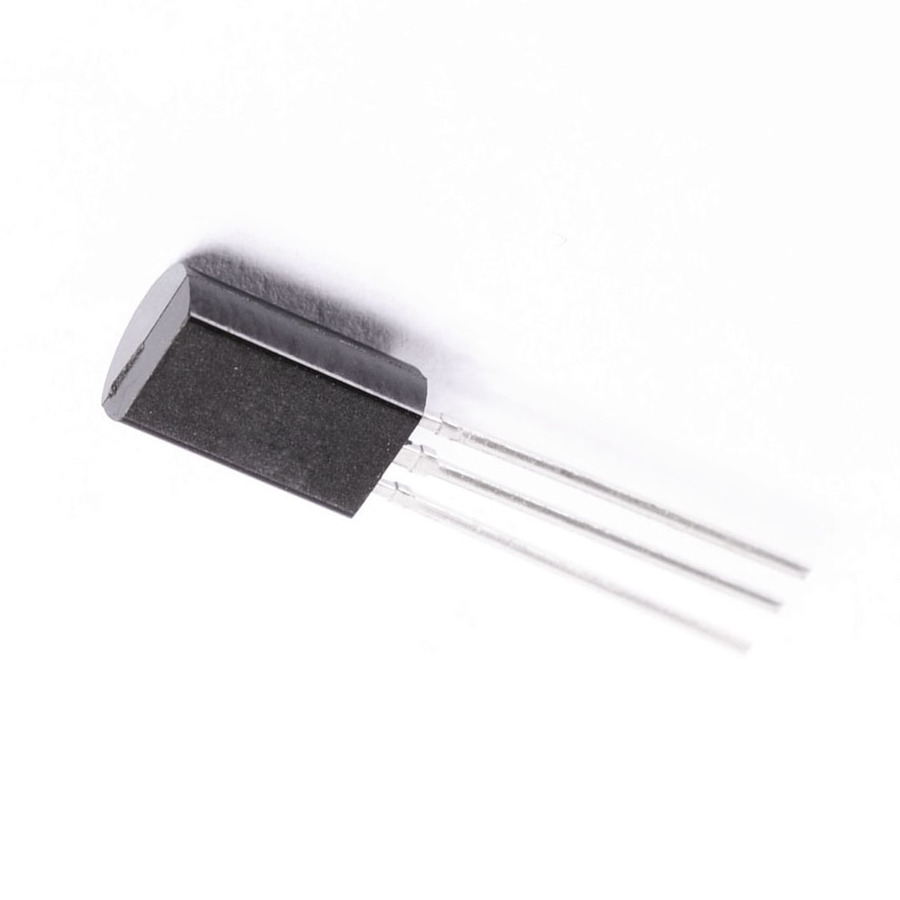

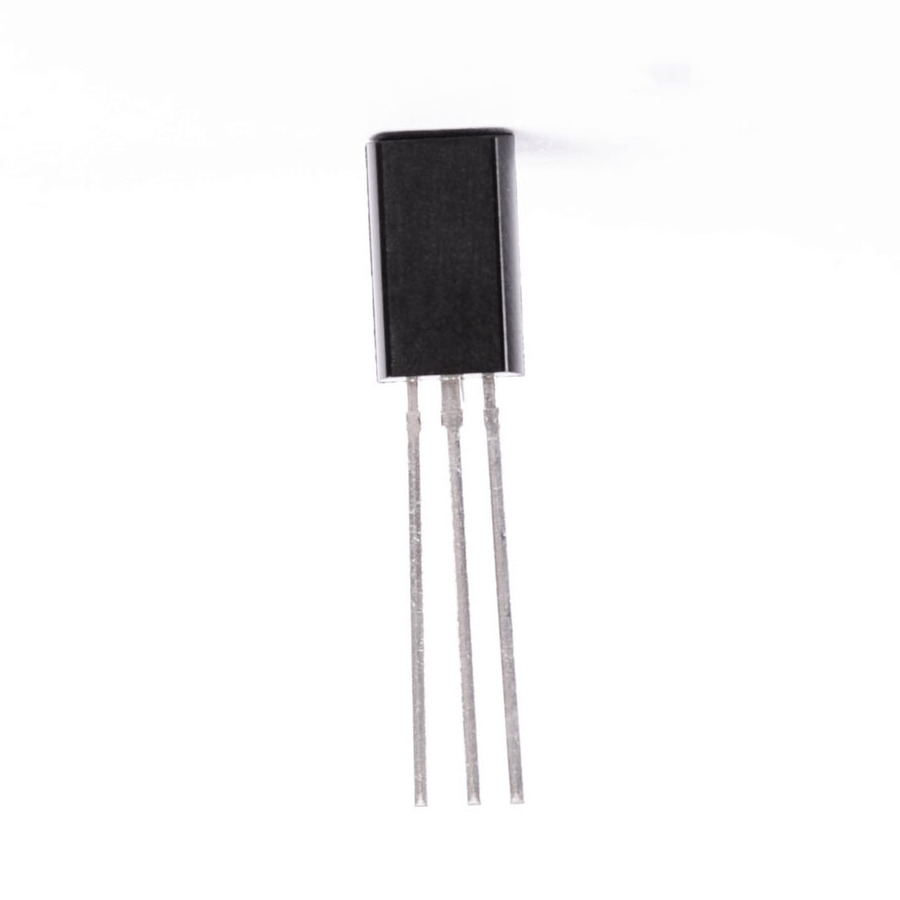

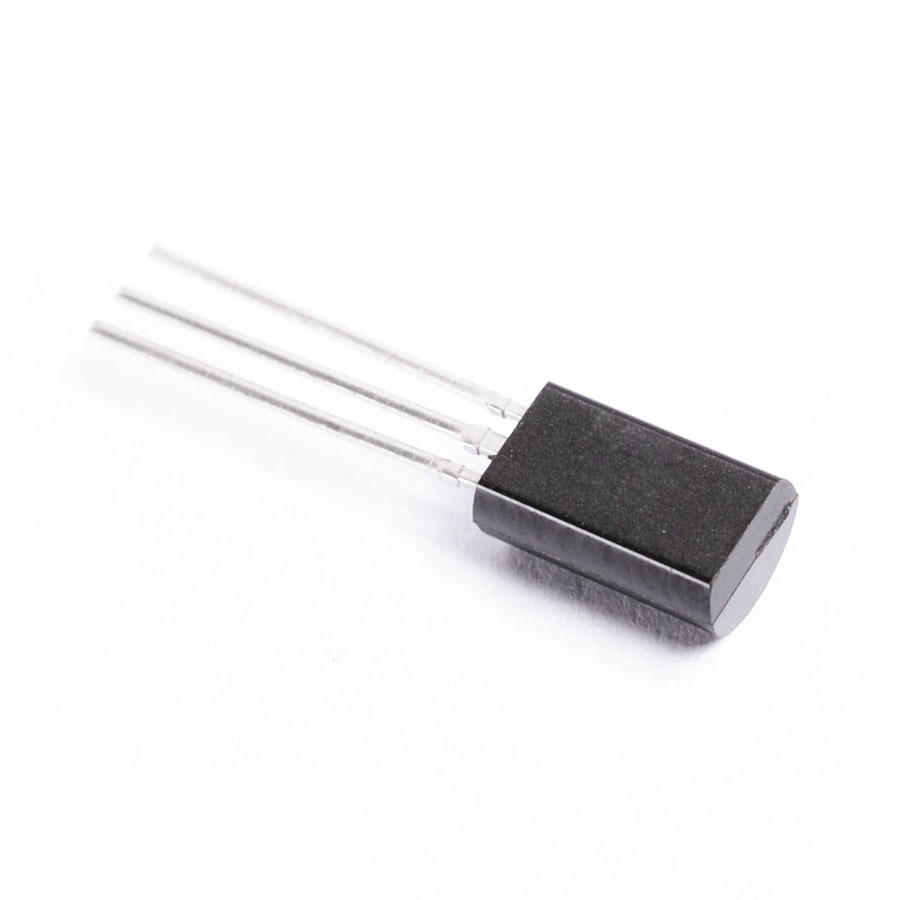

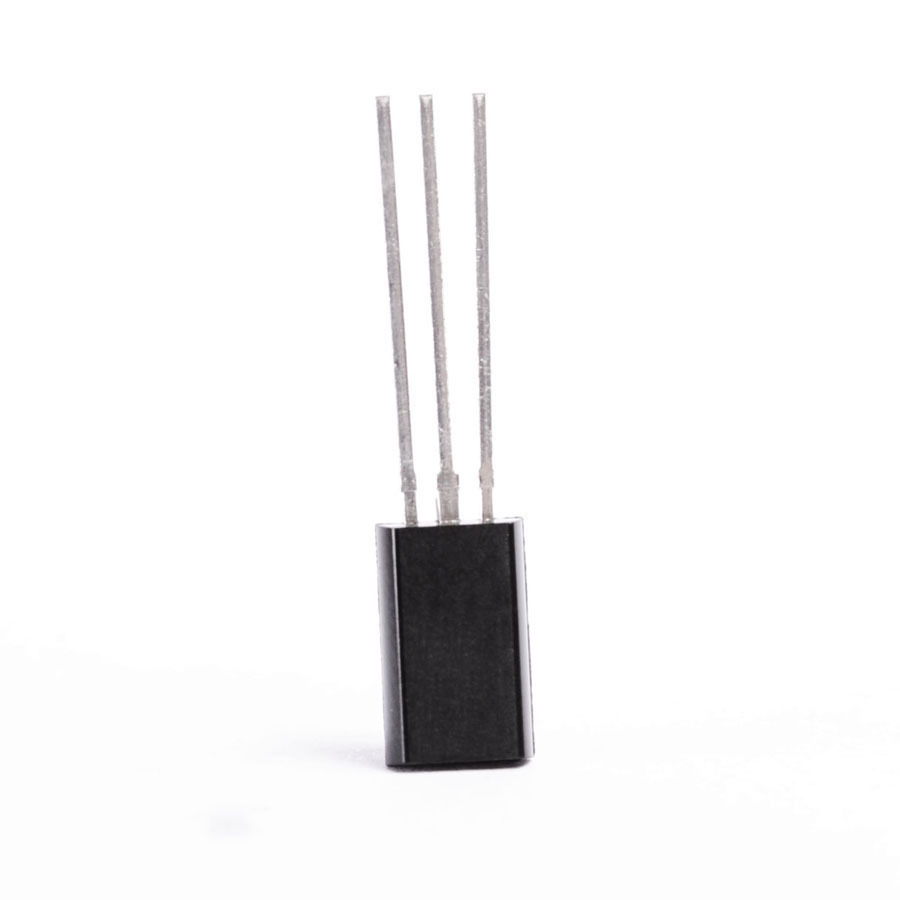

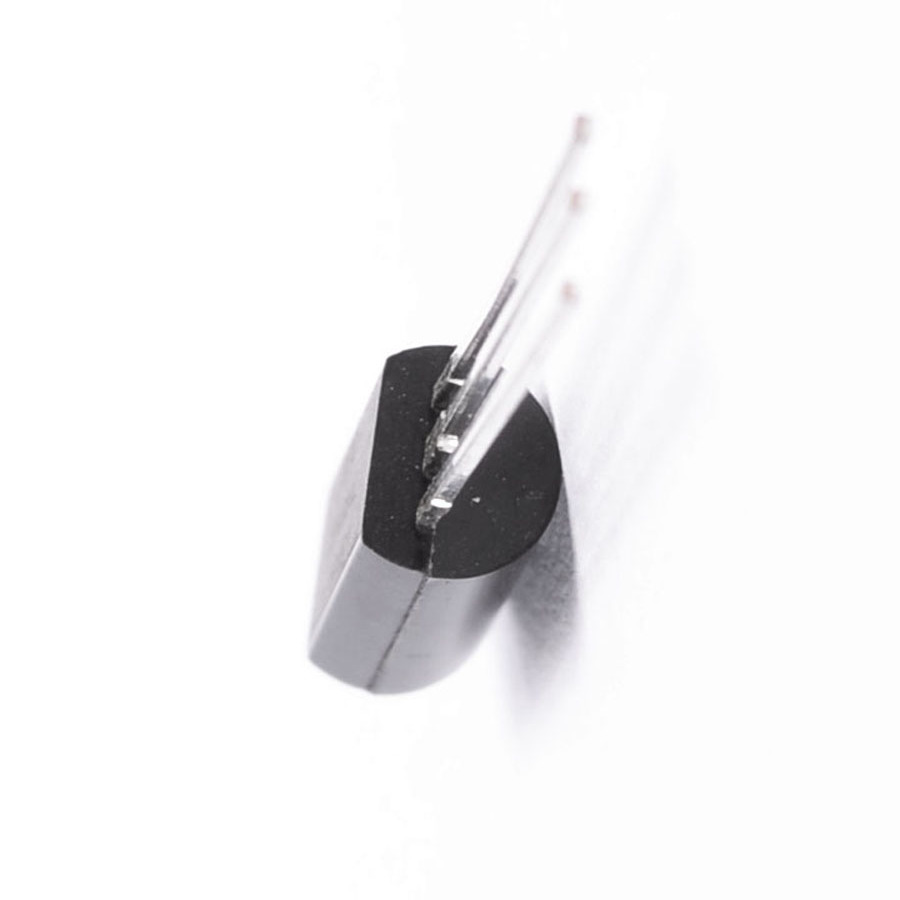

2SC2328 Transistor Silicon NPN CASE: TO92L MAKE: Toshiba
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 30 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case TO92L
Manufacturer Toshiba
Vbr CBO 20
@Freq. (test) 500M
@Ic (A) 1.0m
@Ic (A) 1.0m
Mat. Silicon Logic
Noise Fig. 2.5
Oper. Gain Typ (S21) 9.5
f(osc) Max. (Hz) 3.0G
Polarity NPN
PD Max. (W) 150m
S11 Deg. (Typ) -58
S11 Mag Typ. .750
S22 Deg. Typ. -40
S22 Mag Typ. .750
@VDS (VCE) (test) (V) 1.0
Coll. (or drain) Current Max. 30m
@Freq. (test) 500M
@VCE (test) 1.0
Oper. Temp (°C) Max. 125
Pinout Equivalence Number 3-15
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 1 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 30 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 2 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 30 pF
Transition Frequency (ft): 120 MHz
Forward Current Transfer Ratio (hFE), MIN 50
SKU 84529
