2SC233
View detailed images (4)

2SC233

SKU: 2SC233

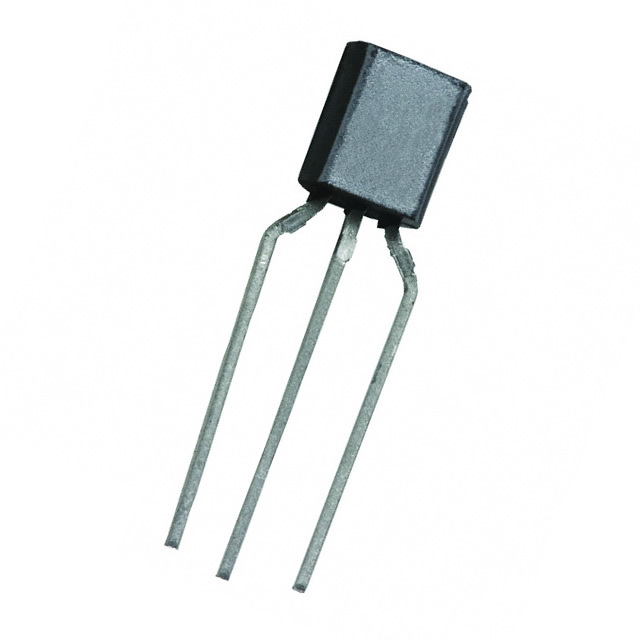

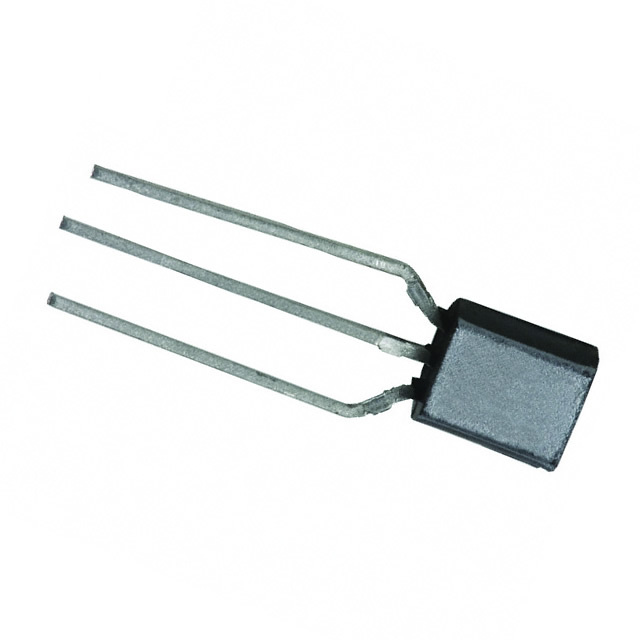

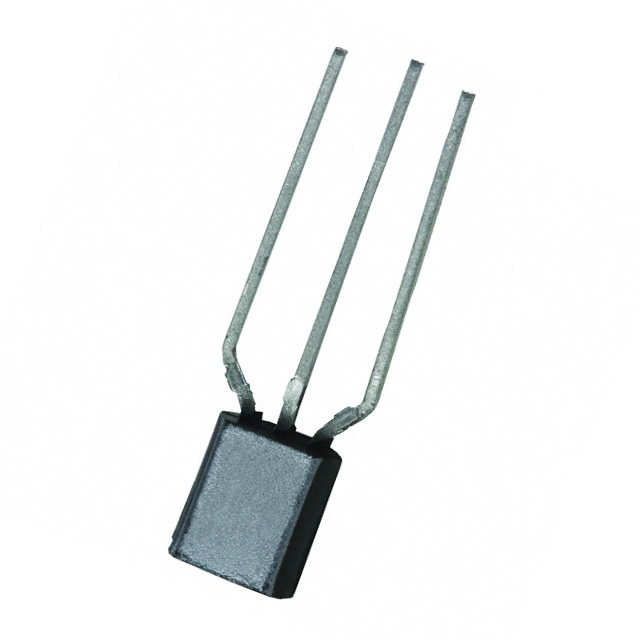

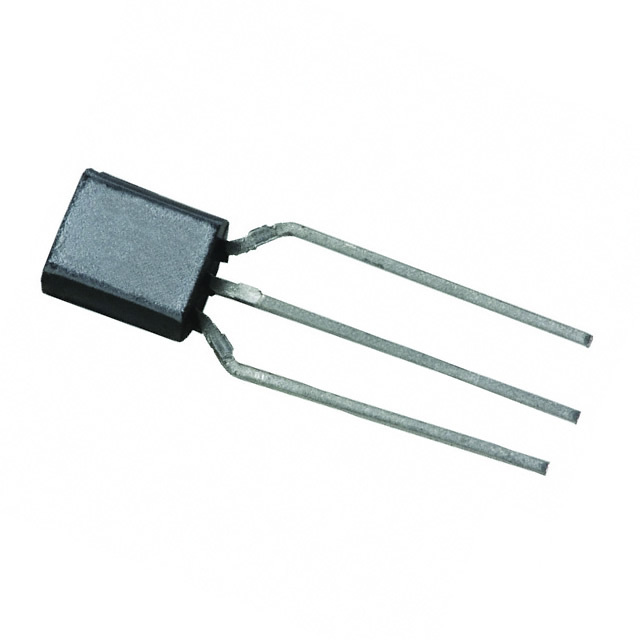

2SC233 Transistor Silicon NPN CASE: TO92T MAKE: Fujitsu
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 5 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case TO92T
Manufacturer Fujitsu
Vbr CBO 80
Vbr CEO 80
Max. PD (W) 650m
Derate (Amb) (W/°C) 4.3m
hfe 40
Ic Max. (A) 700m
Icbo Max. @Vcb Max. (A) 1.0u
Polarity NPN
@VCE (test) (V) 1.0
Oper. Temp (°C) Max. 175
@Ic (A) 150m
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.65 W
Maximum Collector-Base Voltage |Vcb| 80 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.7 A
Max. Operating Junction Temperature (Tj) 175 °C
Forward Current Transfer Ratio (hFE), MIN 40
SKU 540129
