2SC2466
View detailed images (13)

2SC2466

SKU: 2SC2466

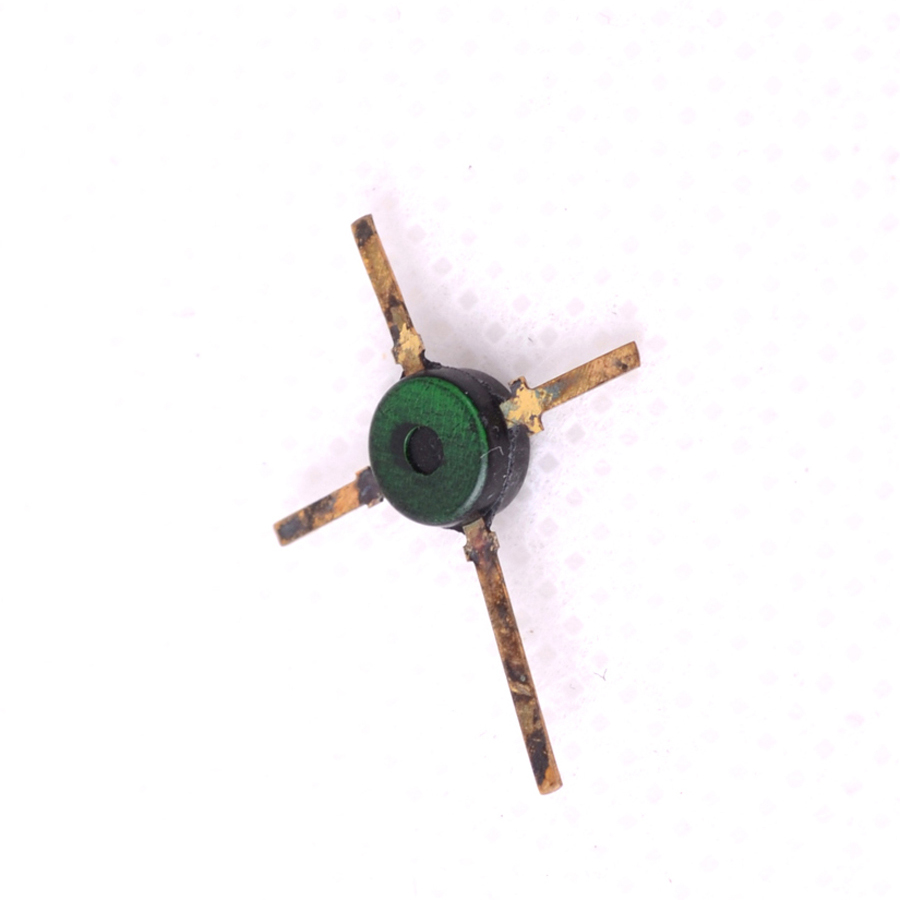

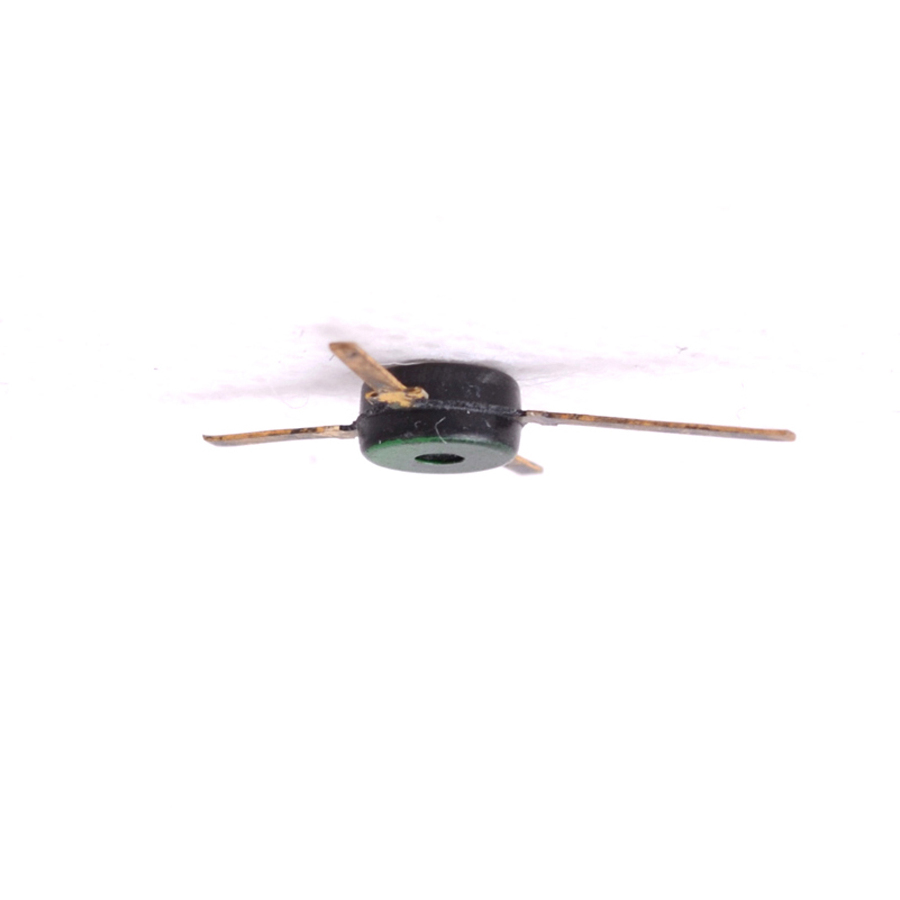

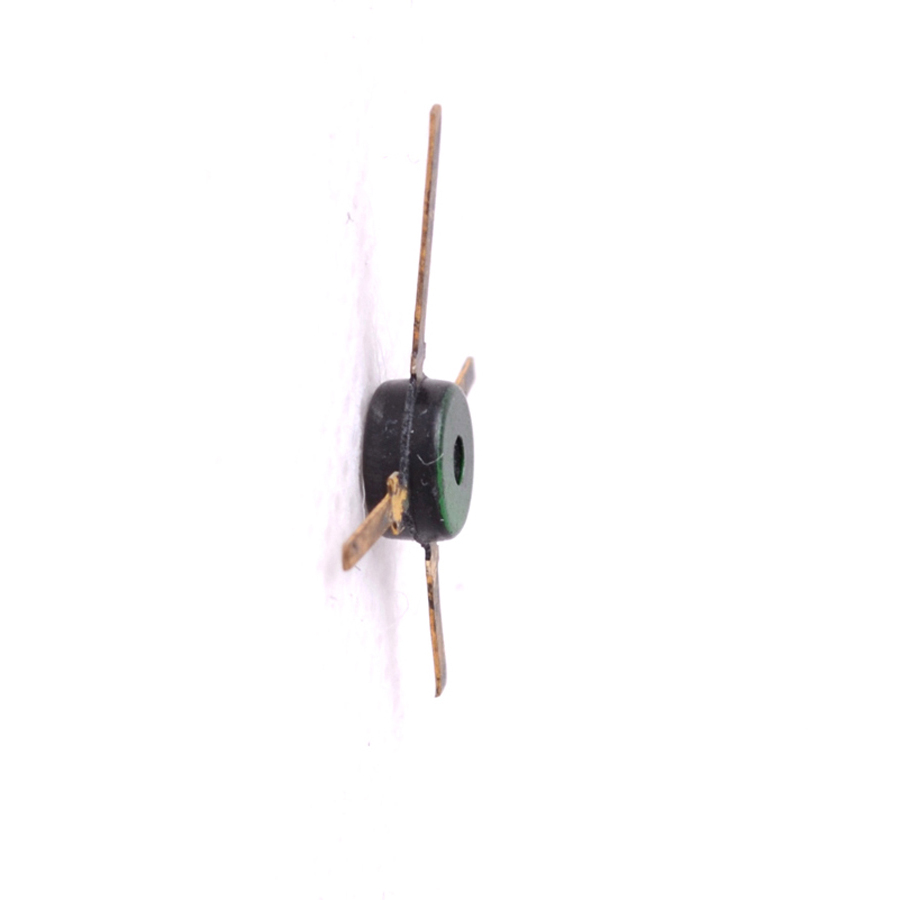

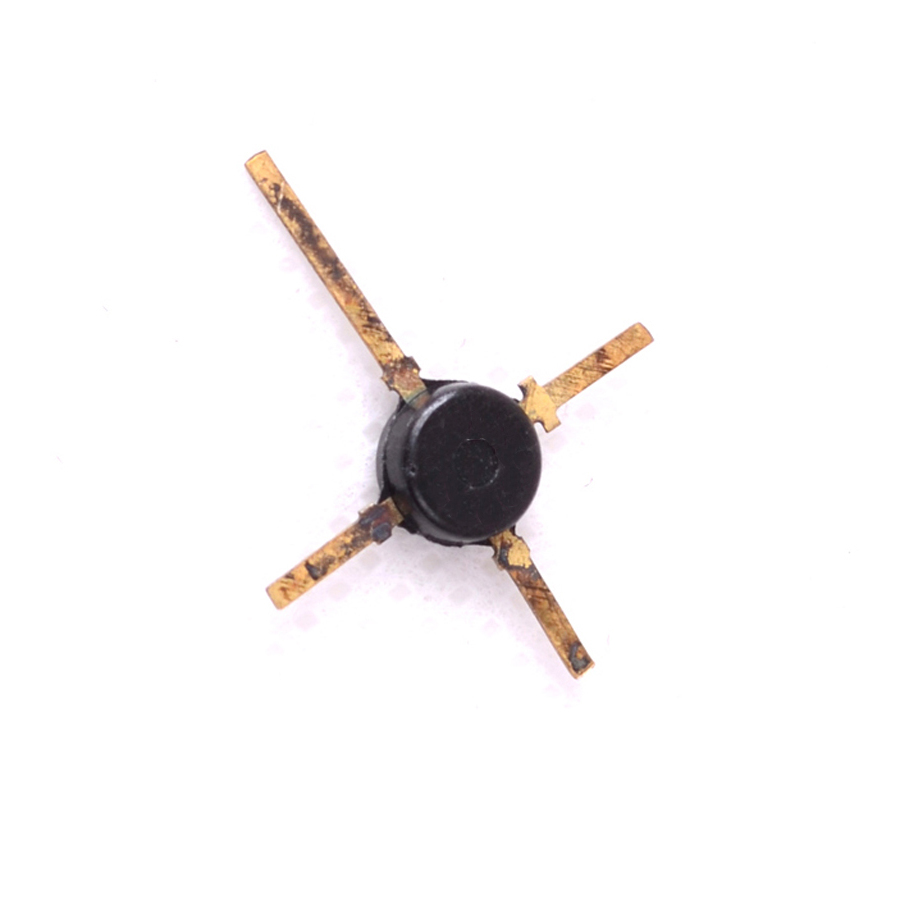

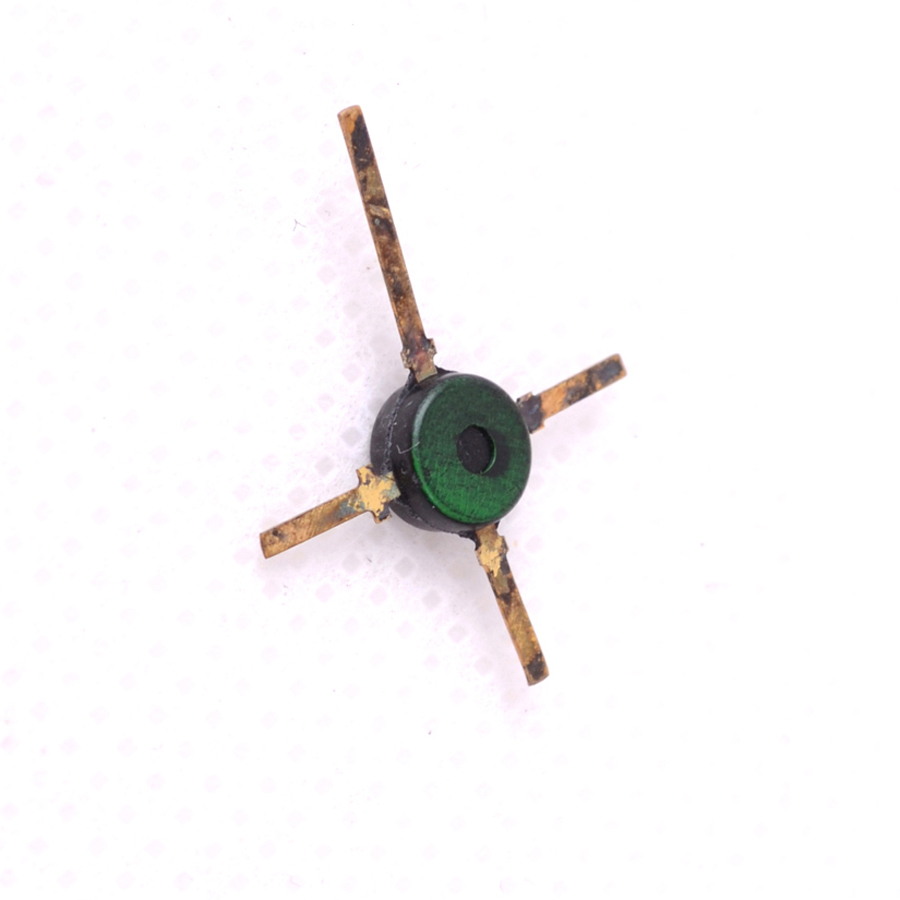

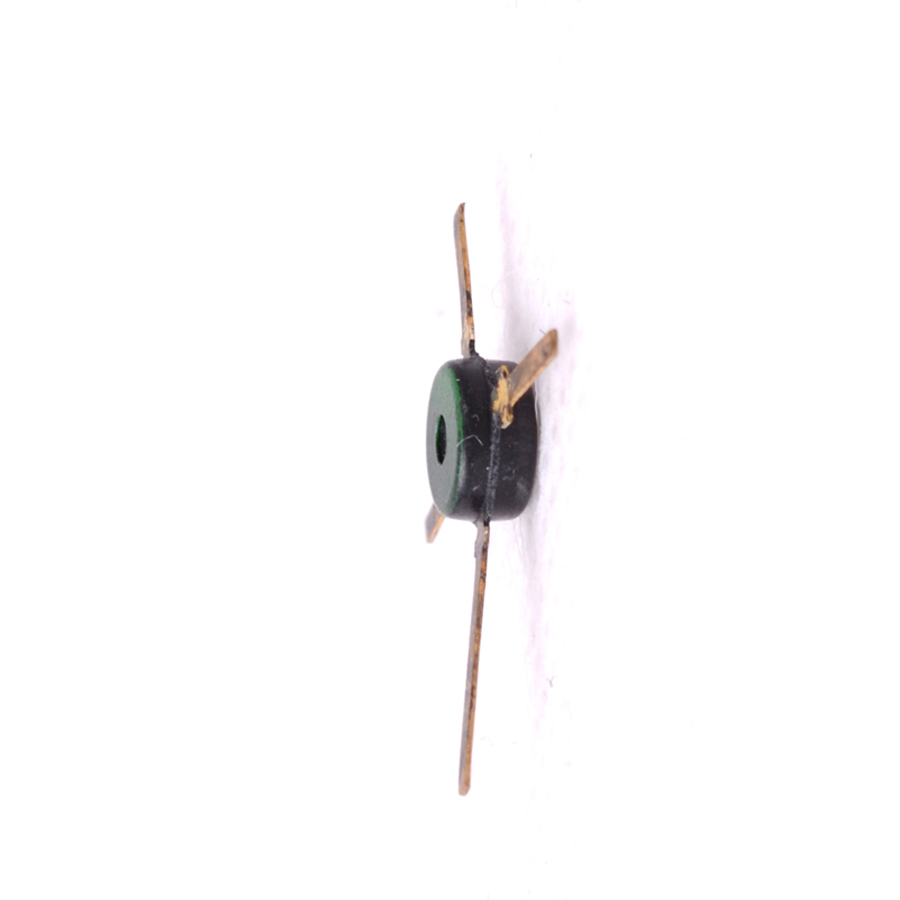

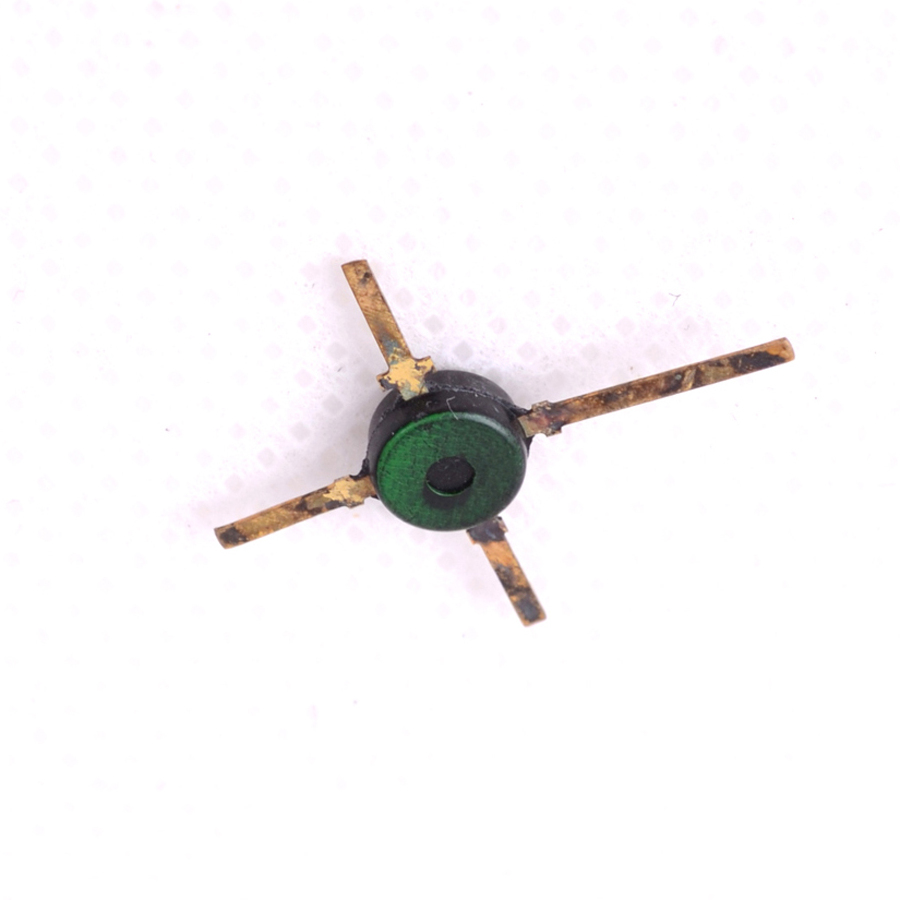

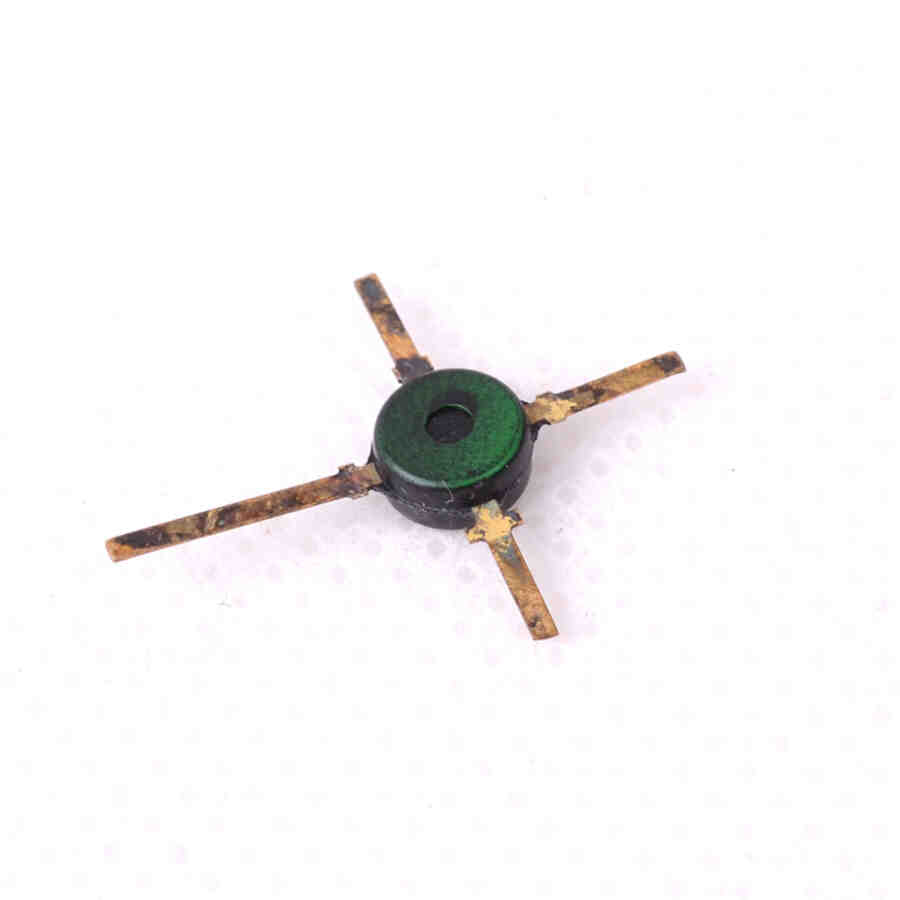

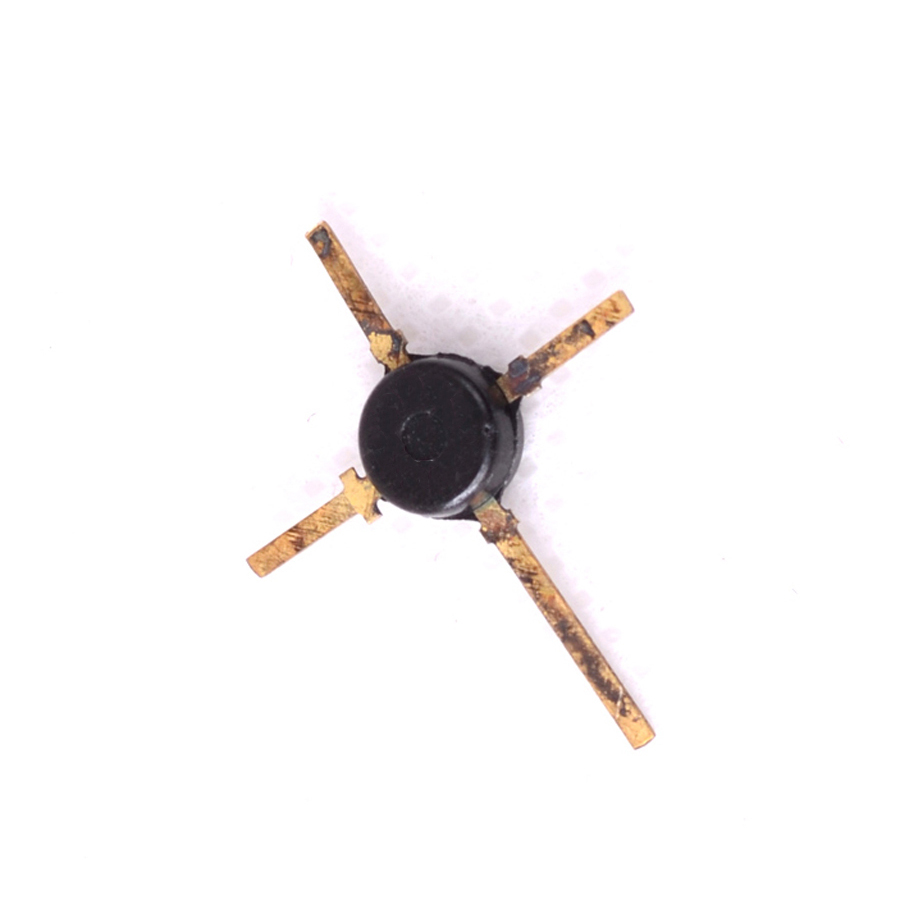

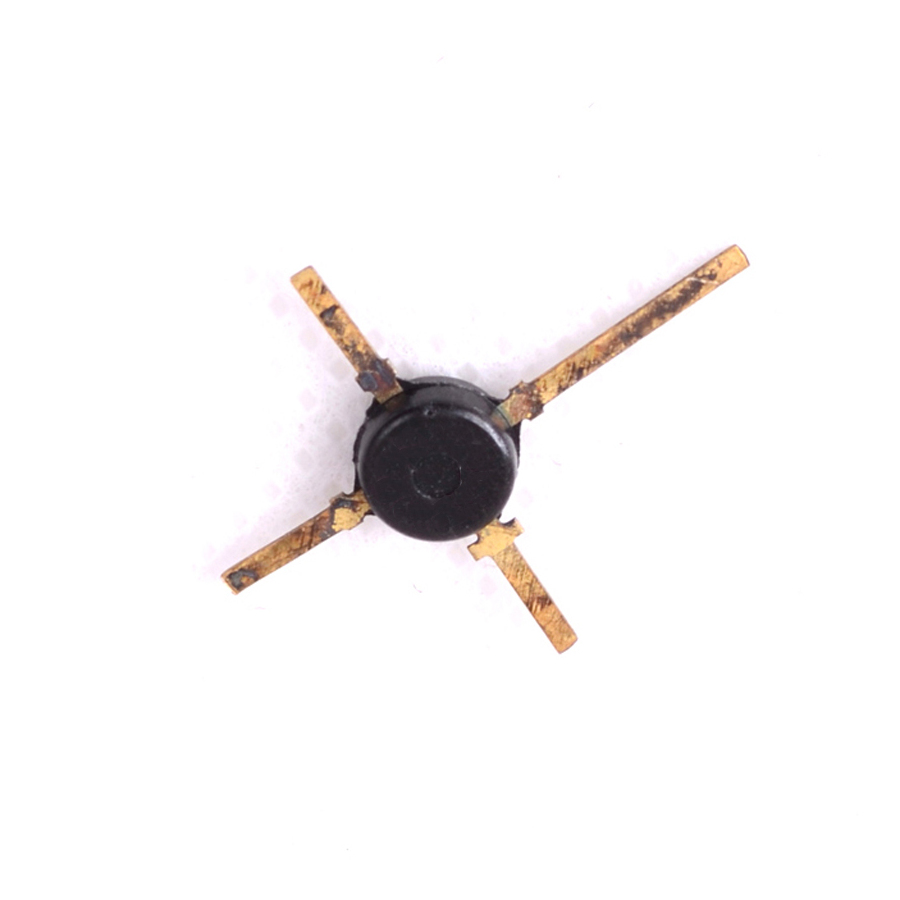

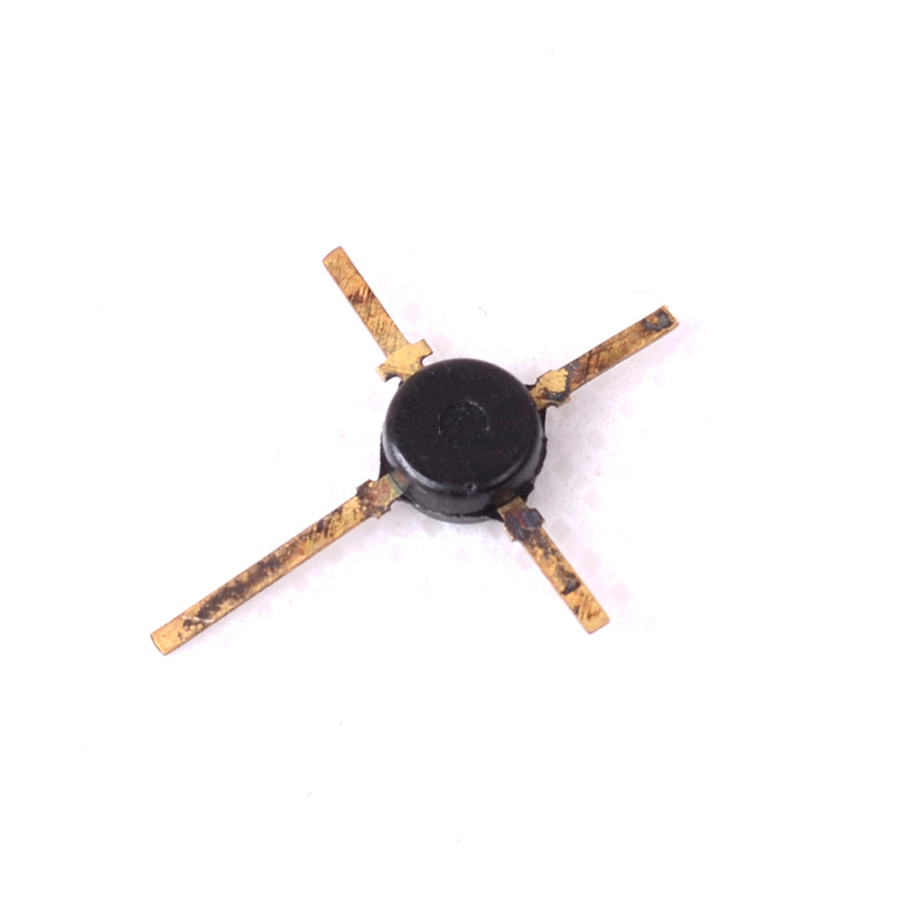

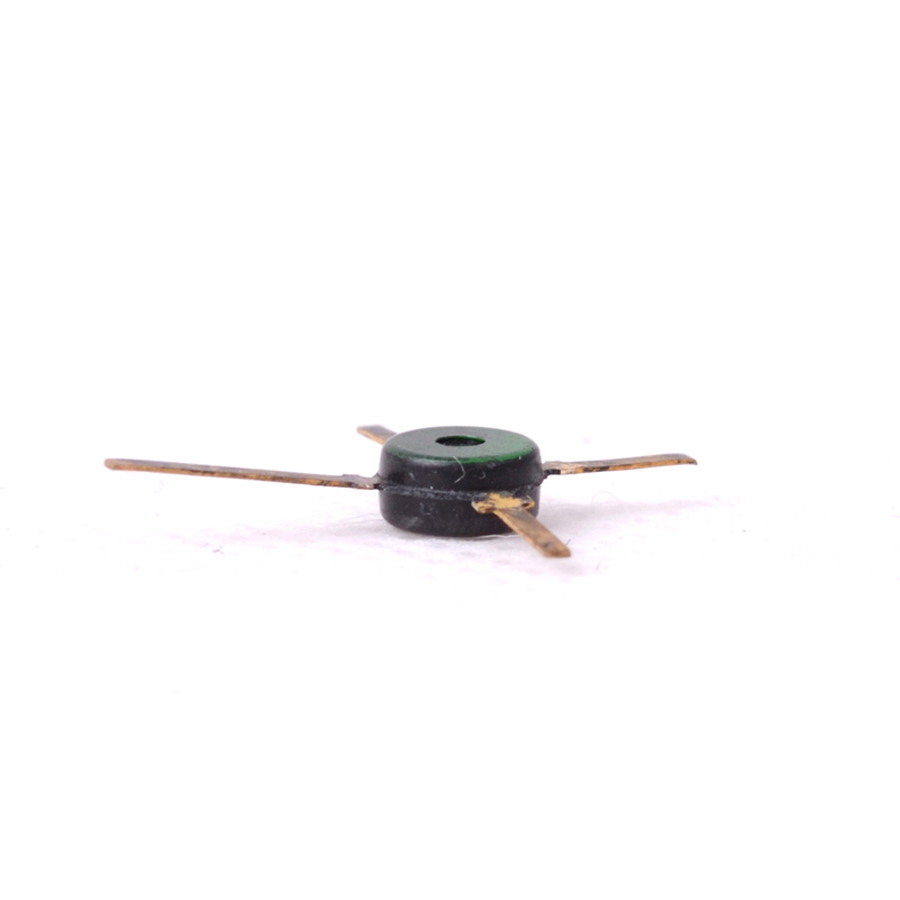

2SC2466 Transistor Silicon NPN CASE: SOT103 MAKE: Hitachi
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 2 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SC2466 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT103
Manufacturer Hitachi
Mat. Silicon Logic
Polarity NPN
Mat. Struct. NPN
Pinout Equivalence Number 4-34
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 0.2 pF
Transition Frequency (ft): 2200 MHz
Forward Current Transfer Ratio (hFE), MIN 30
SKU 84533
