2SC2566
View detailed images (4)

2SC2566

SKU: 2SC2566

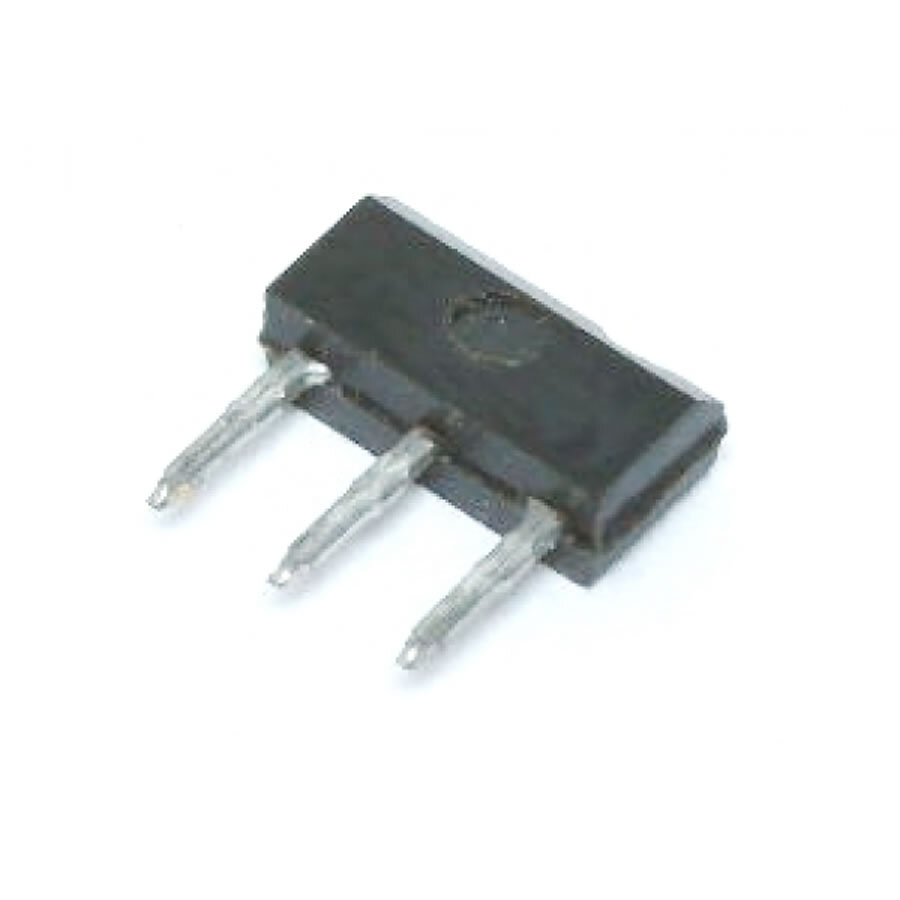

2SC2566 Transistor Silicon NPN CASE: SOT33 MAKE: Matsushita Electronics
Product specifications
Type Transistor Silicon NPN
Case SOT33
Manufacturer Matsushita Electronics
Vbr CBO 30
Vbr CEO 25
Max. PD (W) 150m
C(ob) (F) 0.8p
Derate (Amb) (W/°C) 1.5m
hfe 40
Ic Max. (A) 15m
Polarity NPN
Trans. Freq (Hz) Min. 650M
@VCE (test) (V) 6.0i
Oper. Temp (°C) Max. 125
@Ic (A) 1.0m
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.15 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 25 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.015 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 0.8 pF
Transition Frequency (ft): 325 MHz
Forward Current Transfer Ratio (hFE), MIN 40
