2SC2587A
View detailed images (13)

2SC2587A

SKU: 2SC2587A

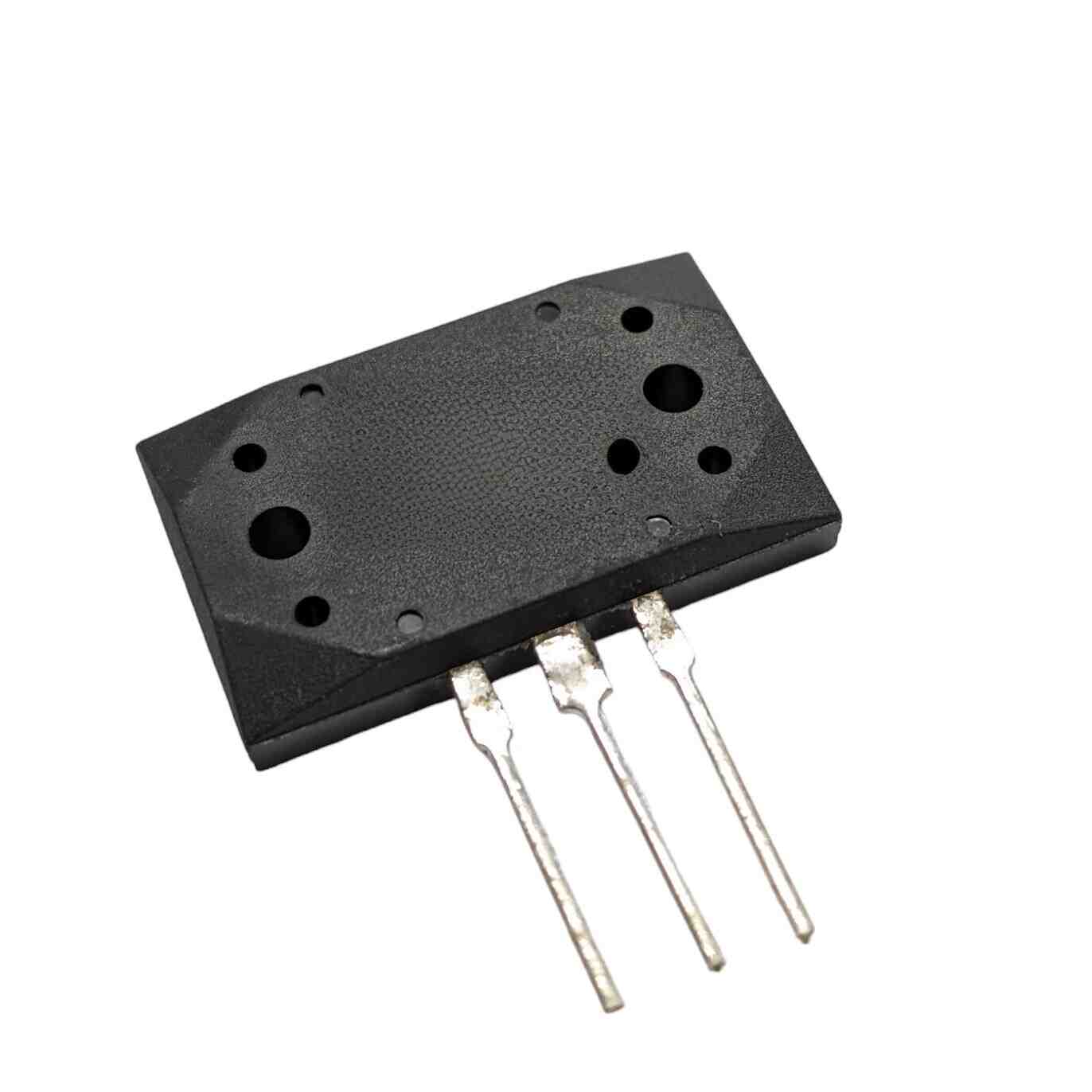

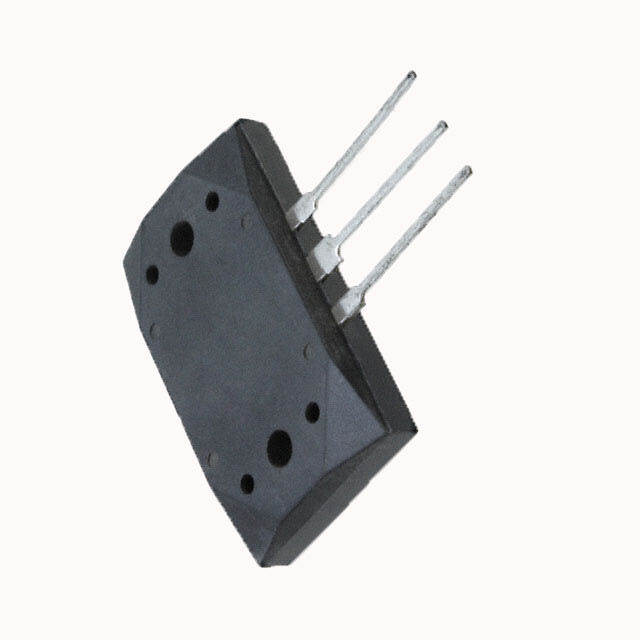

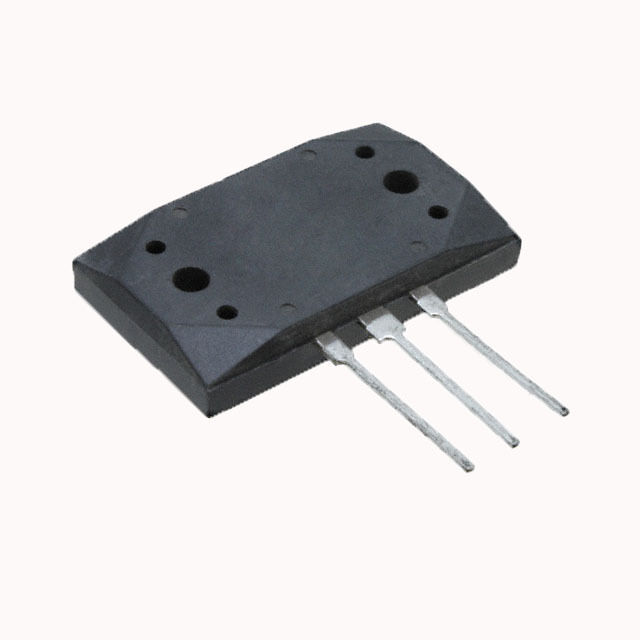

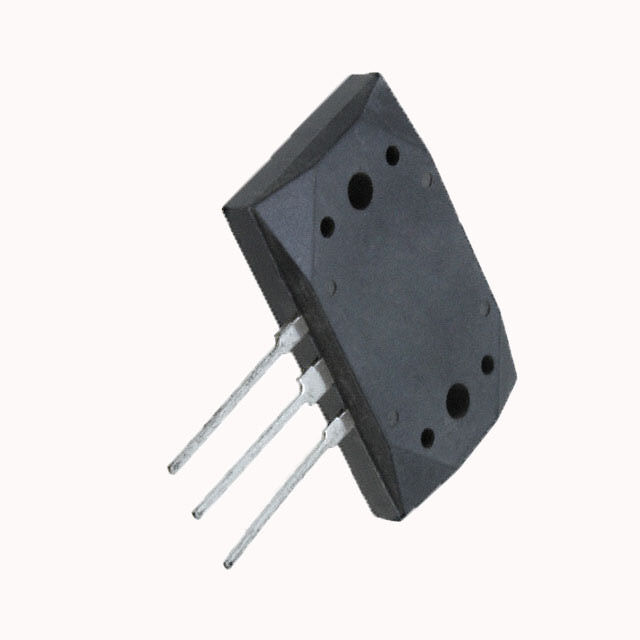

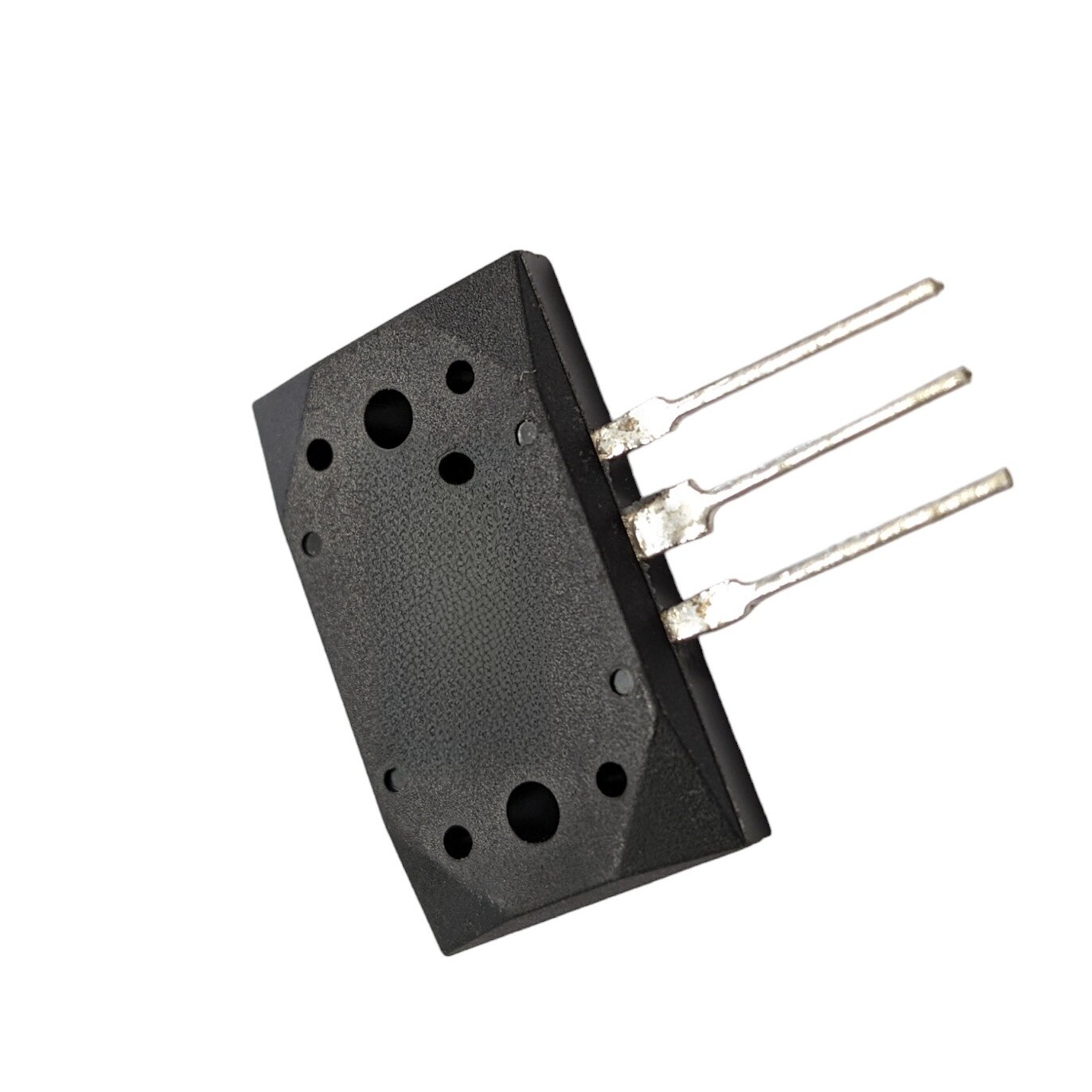

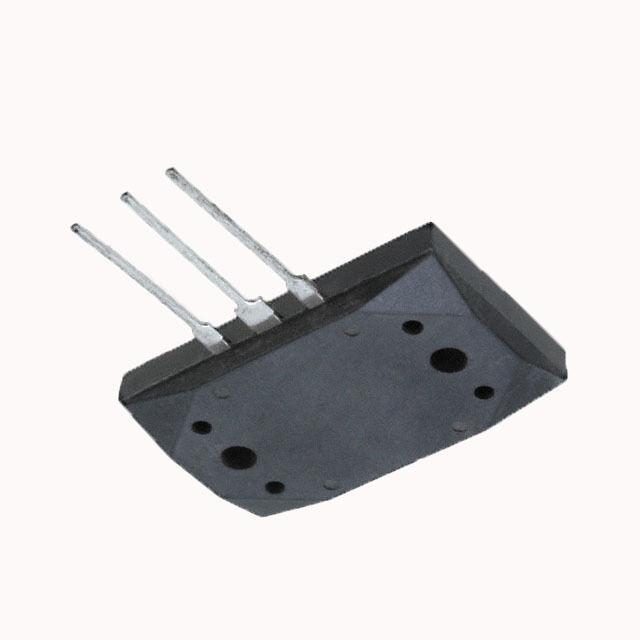

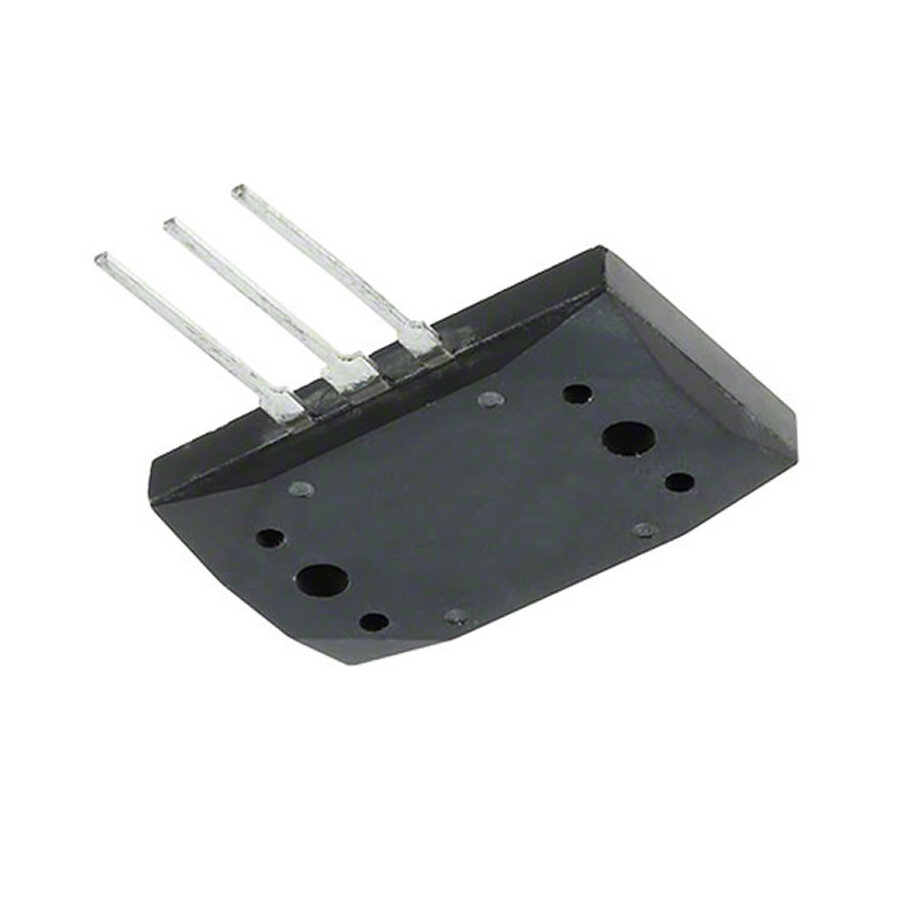

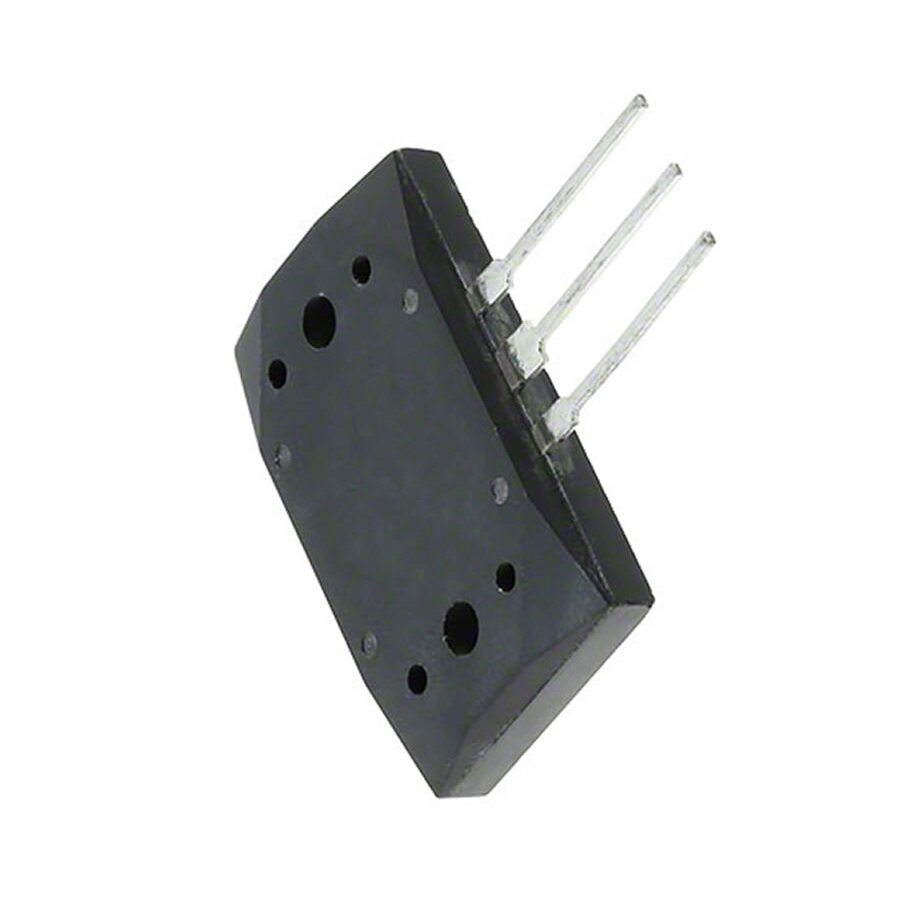

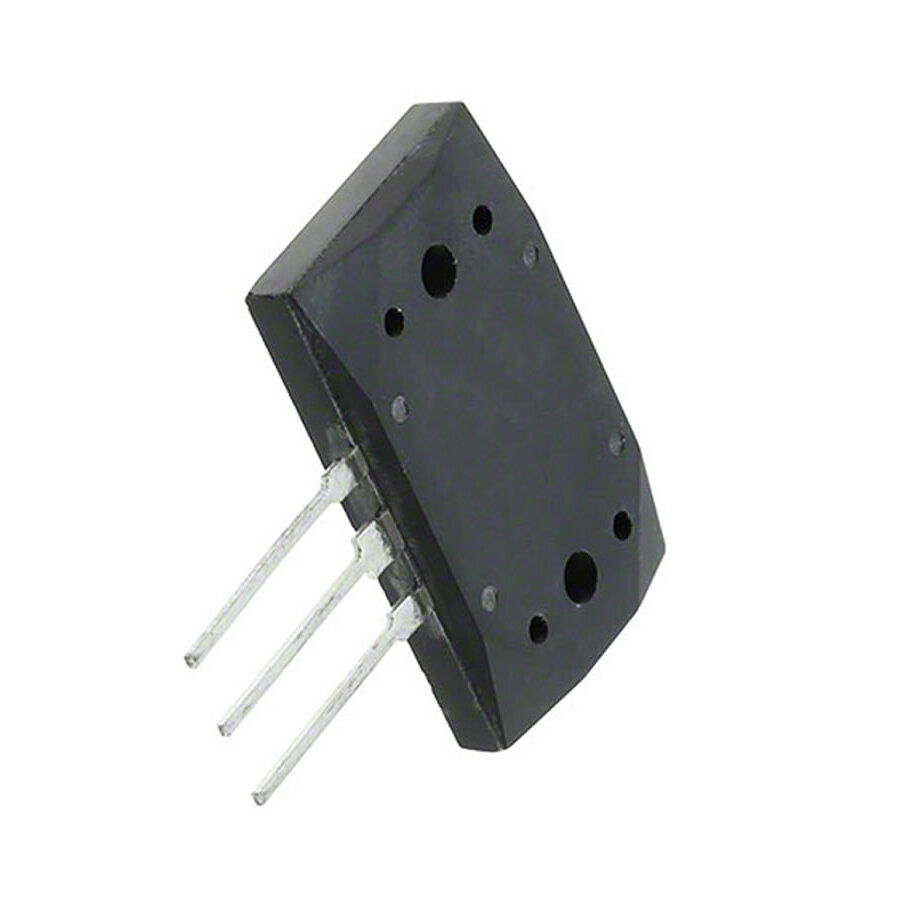

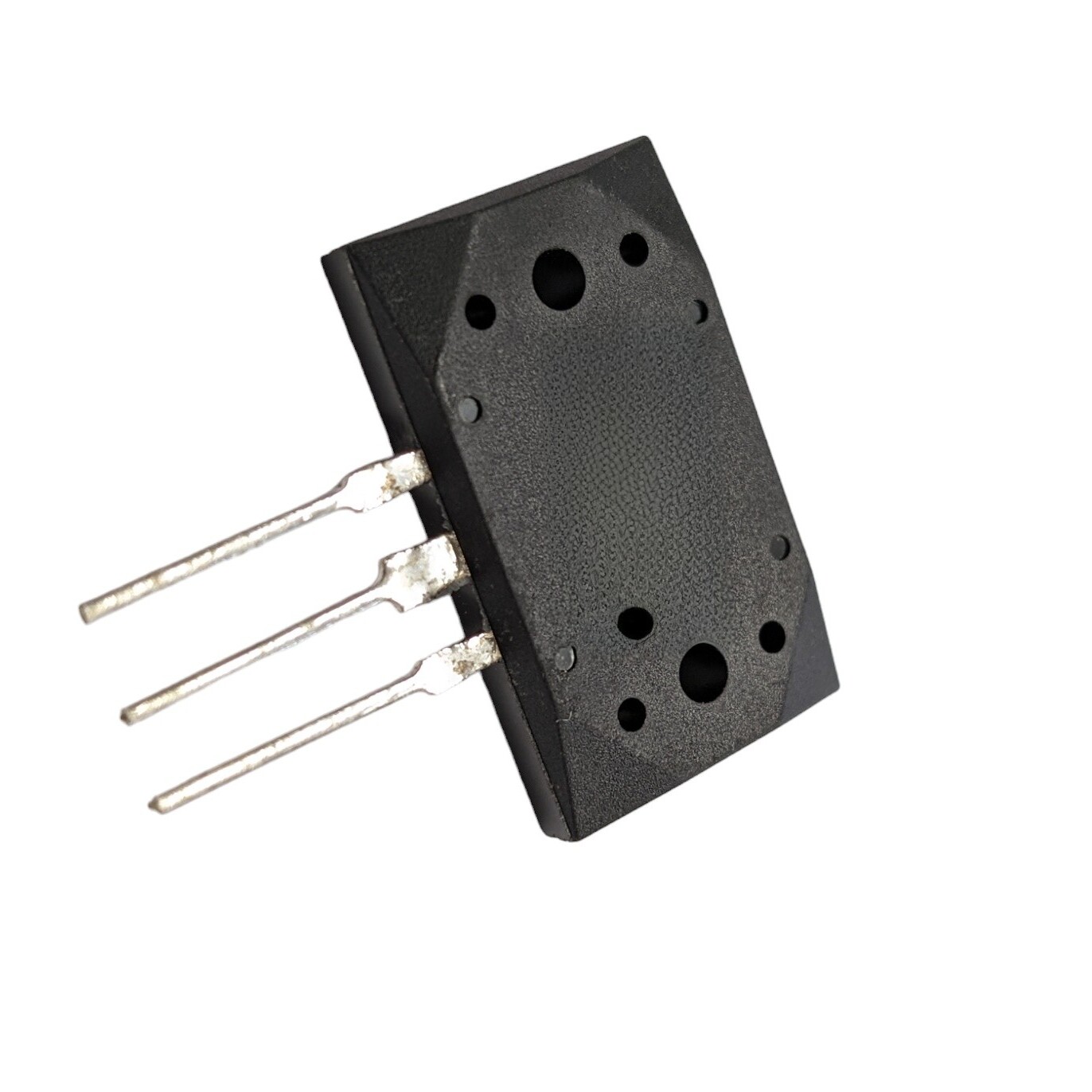

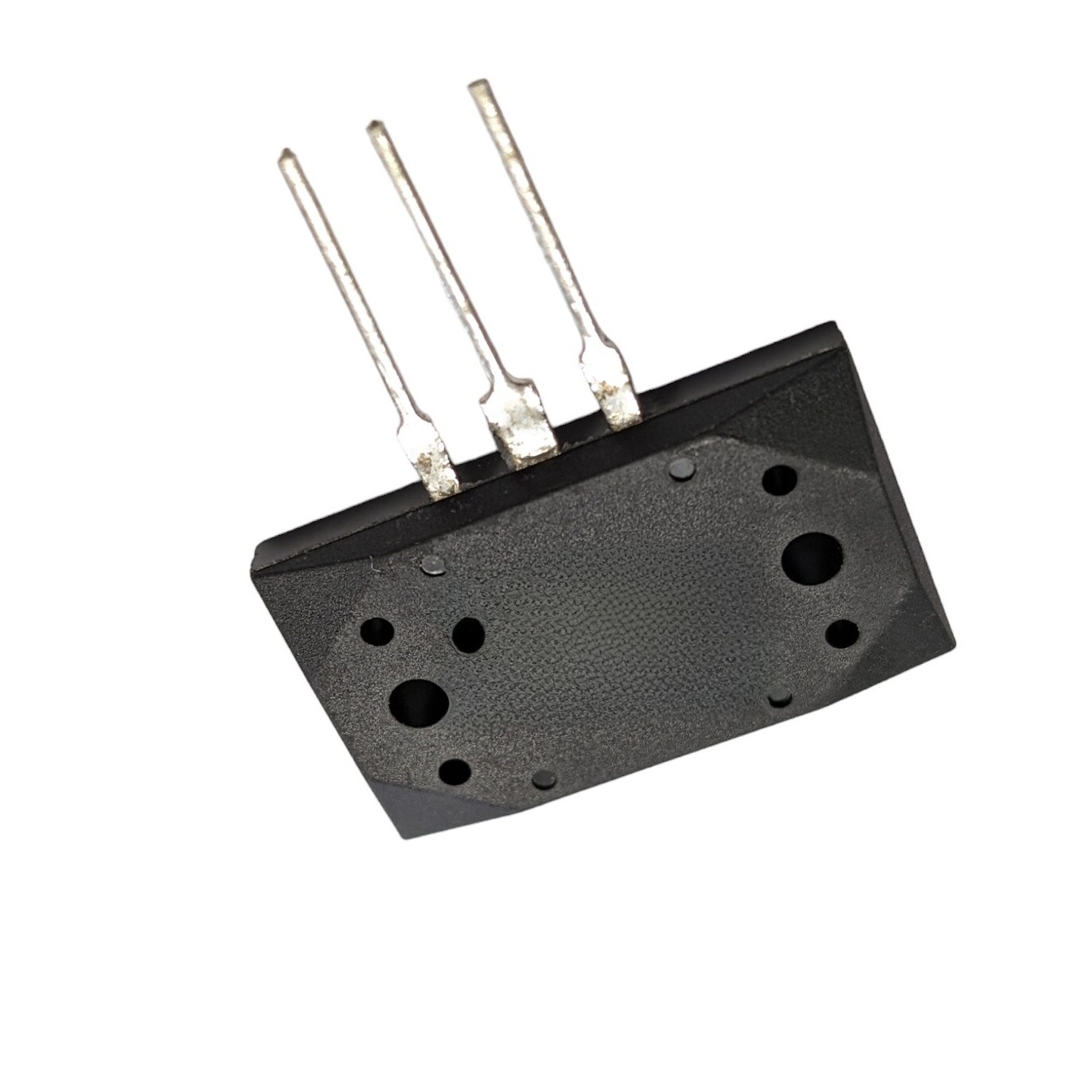

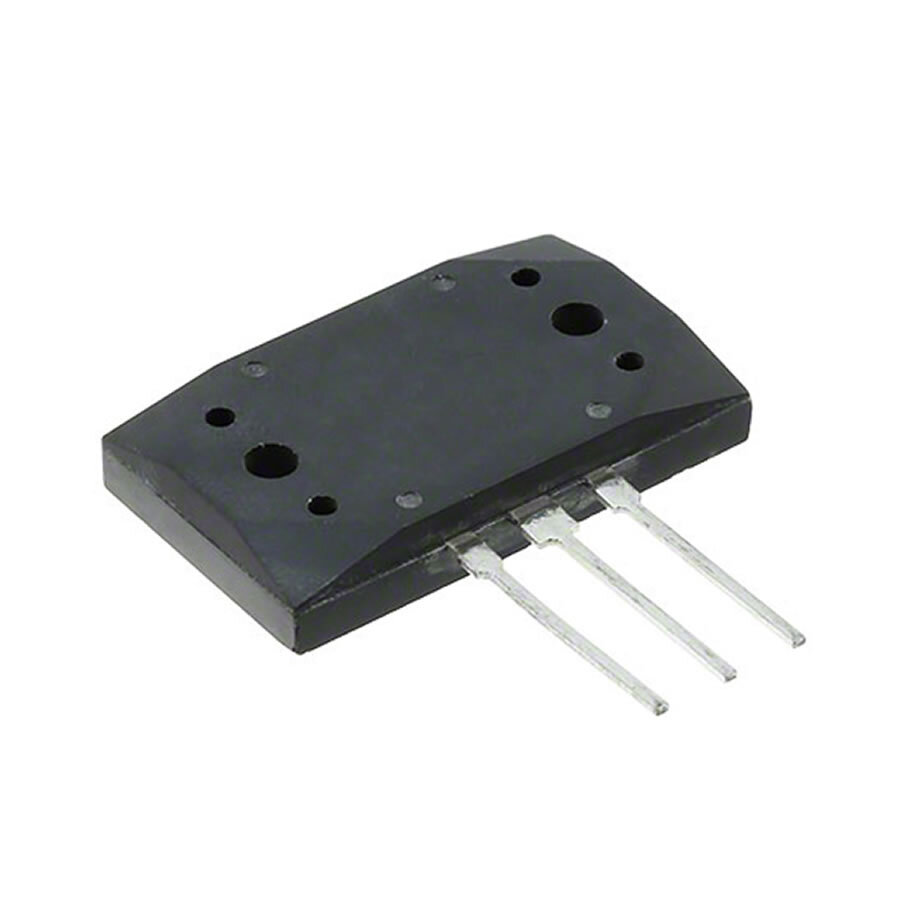

2SC2587A Transistor Silicon NPN CASE: MT200 MAKE: NEC
Product specifications
Equivalent 2SC2587
Type Transistor Silicon NPN
Case MT200
Manufacturer NEC
Polarity NPN
Maximum Collector Power Dissipation (Pc) 120 W
Maximum Collector-Base Voltage |Vcb| 150 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 10 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 150 pF
Transition Frequency (ft): 35 MHz
Forward Current Transfer Ratio (hFE), MIN 200
SKU 765592
