2SC2650
View detailed images (12)

2SC2650

SKU: 2SC2650

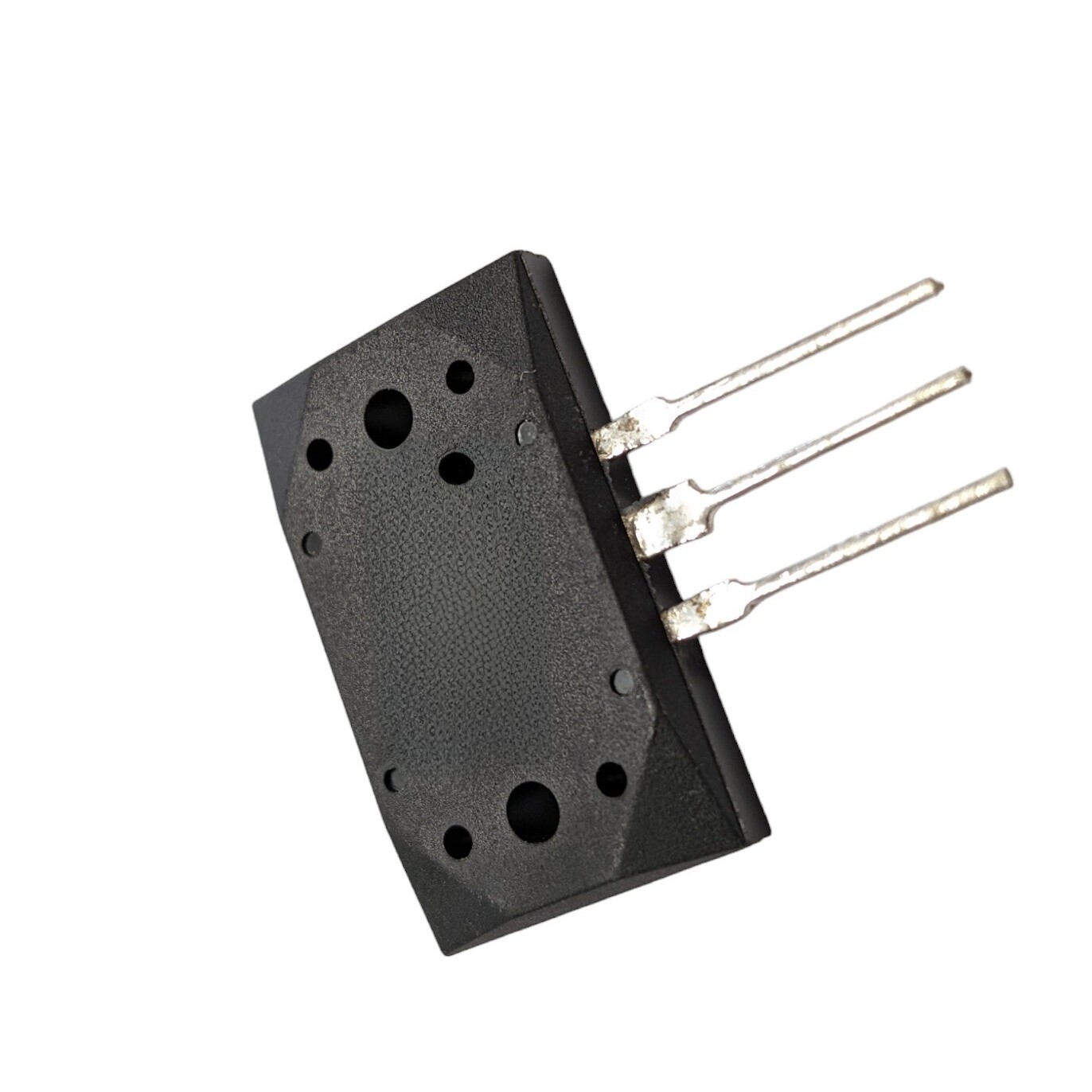

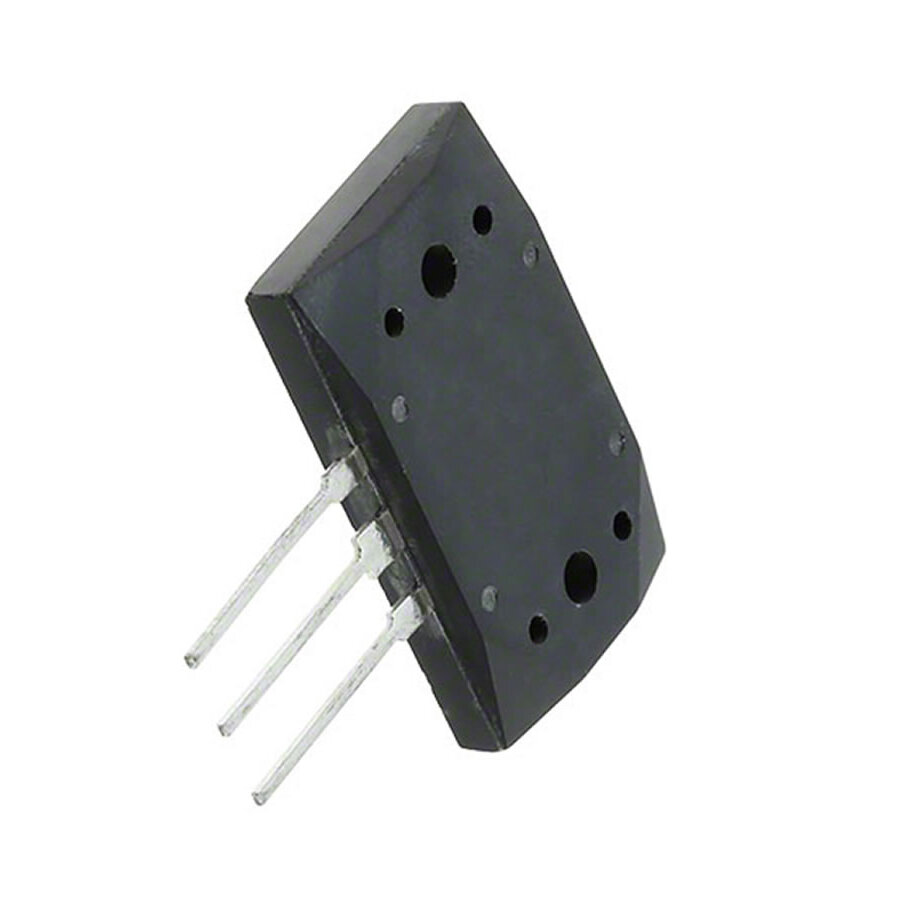

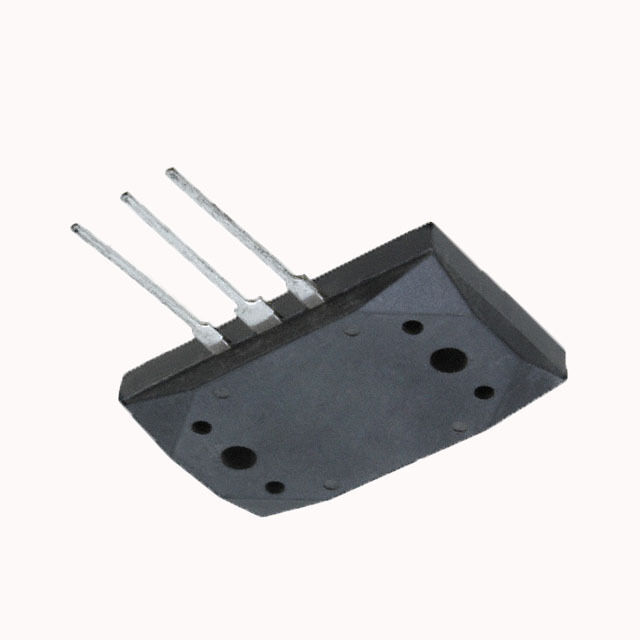

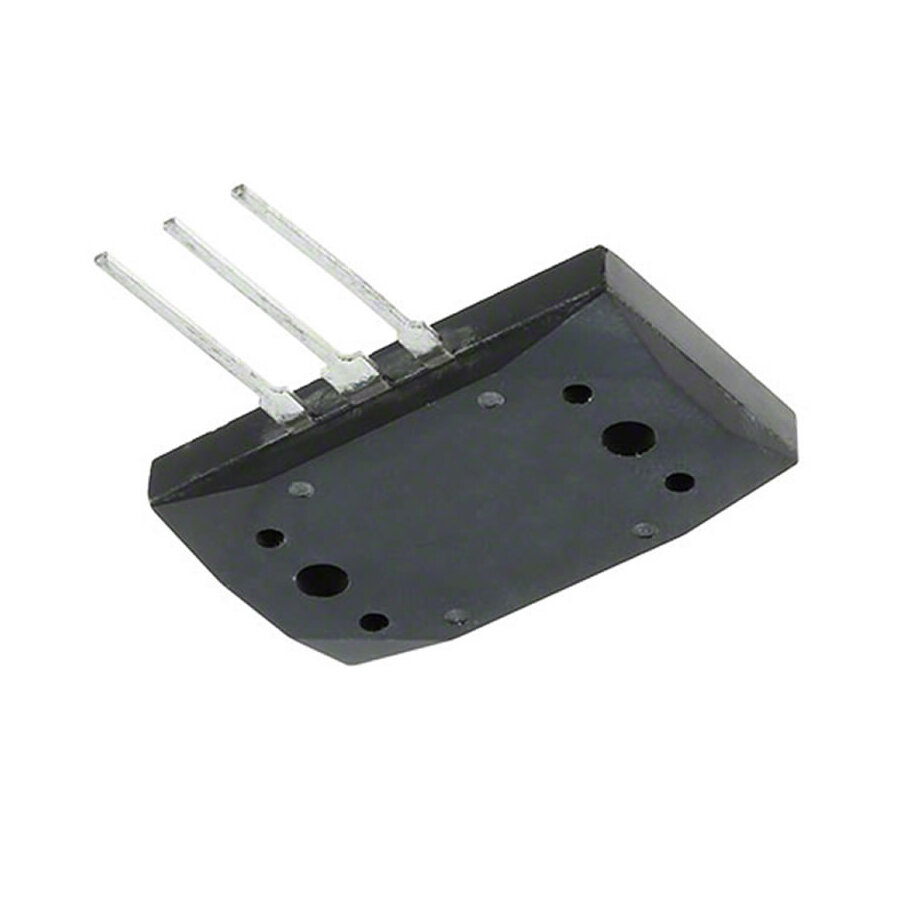

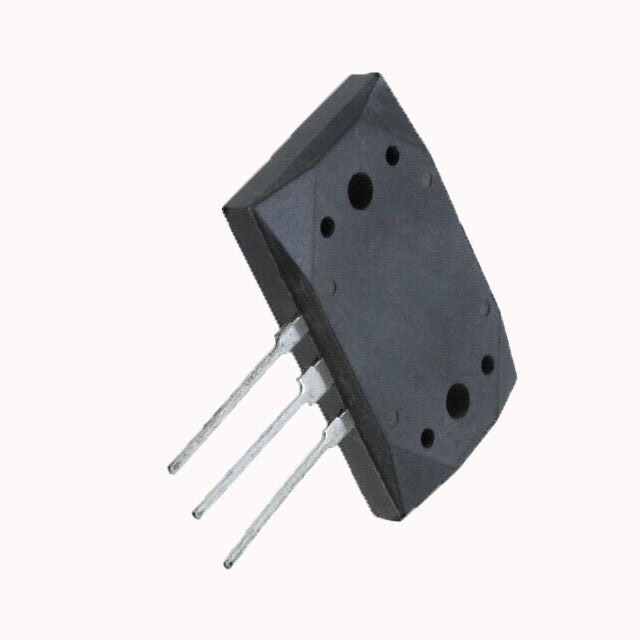

2SC2650 Transistor - CASE: MT200 MAKE: Toshiba
Price: £15.99
+ VAT 20% for UK purchases
£15.99
Qty
+ VAT 20% for UK purchases
  • 3 pieces in 1-2 Days
Product specifications
Case MT200
Type Transistor Silicon NPN
Manufacturer Toshiba
Vbr CBO 500
Vbr CEO 400
Max. PD (W) 100
t(f) Max. (S) 1.0u
Min hFE 10
Ic Max. (A) 10
@Ic (test) (A) 5.0
Icbo Max. @Vcb Max. (A) 100u
Polarity NPN
Tr Max. (s) 1.0u
Derate Above 25°C 800m
Oper. Temp (°C) Max. 140
@VCE (V) 5.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 100 W
Maximum Collector-Base Voltage |Vcb| 500 V
Maximum Collector-Emitter Voltage |Vce| 400 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 10 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 10
SKU 395180
