2SC2774
View detailed images (8)

2SC2774

SKU: 2SC2774

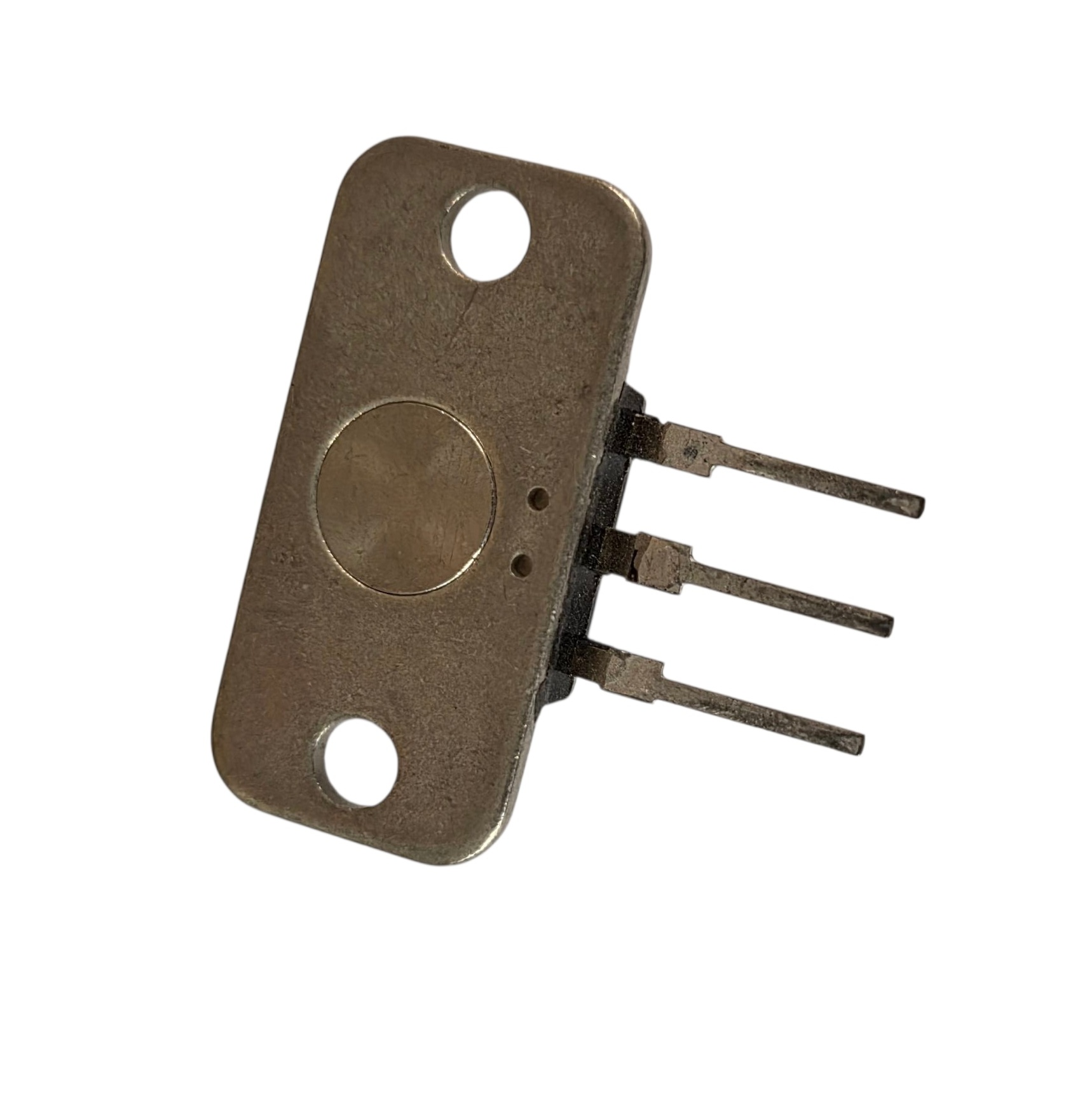

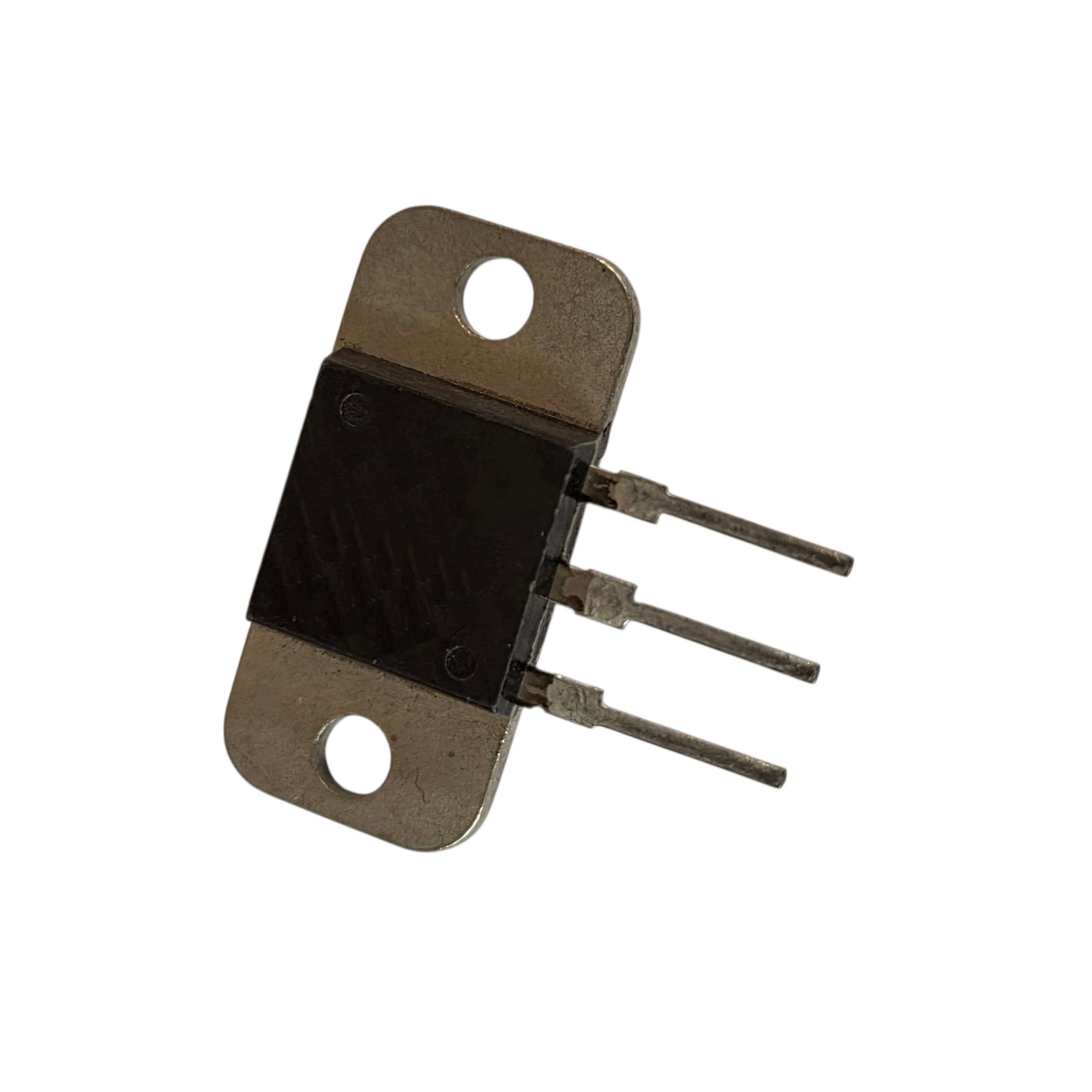

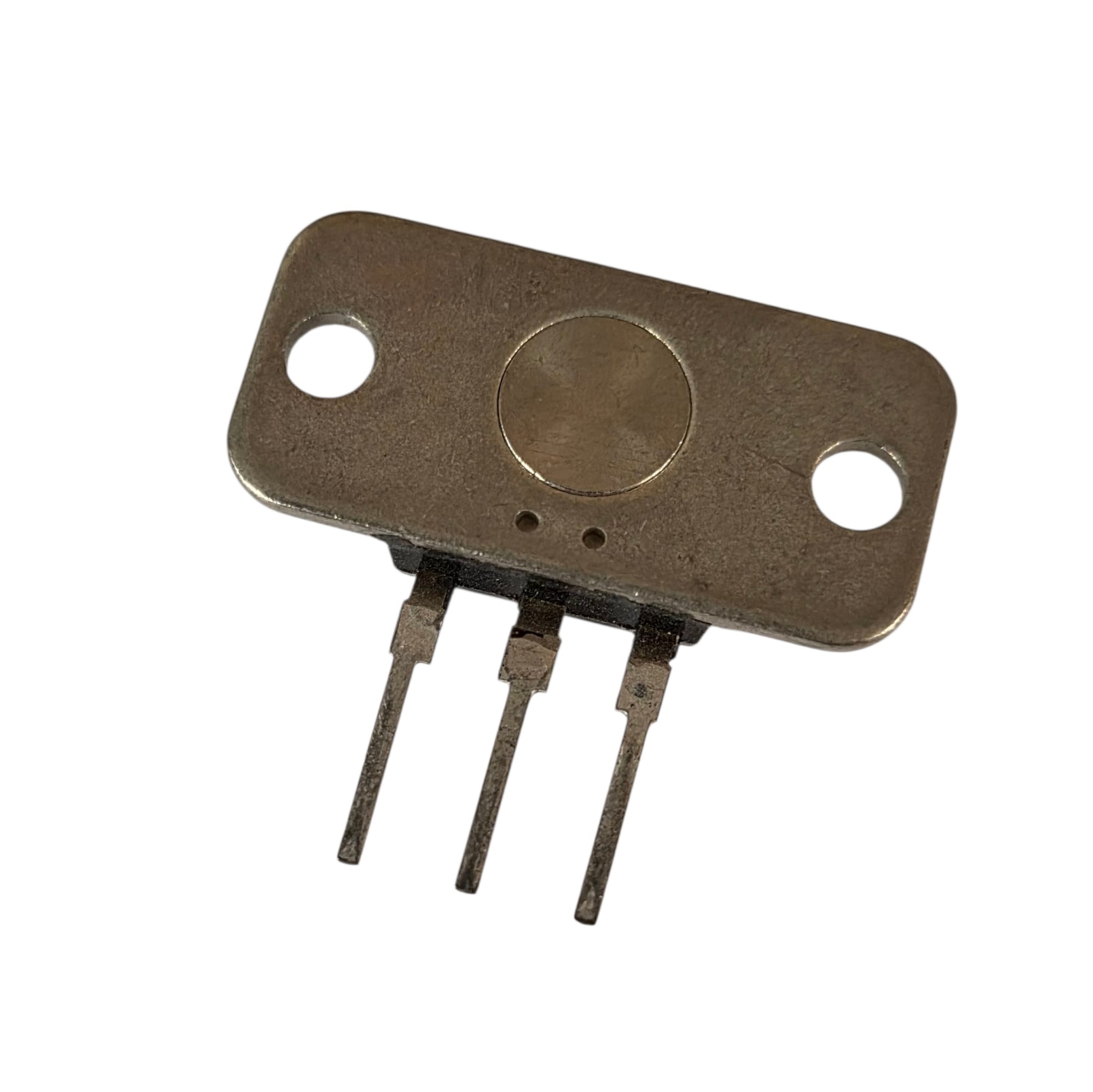

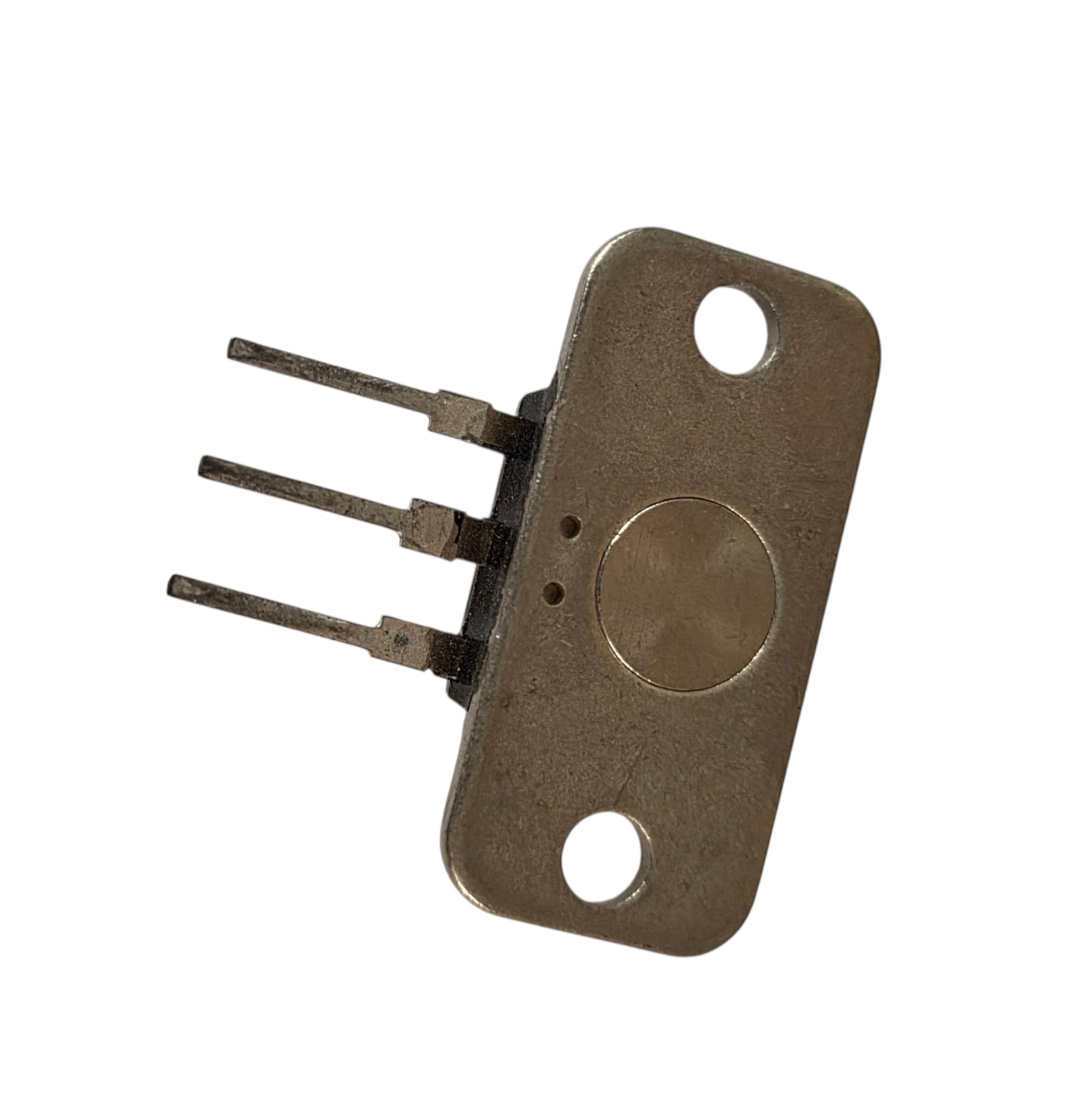

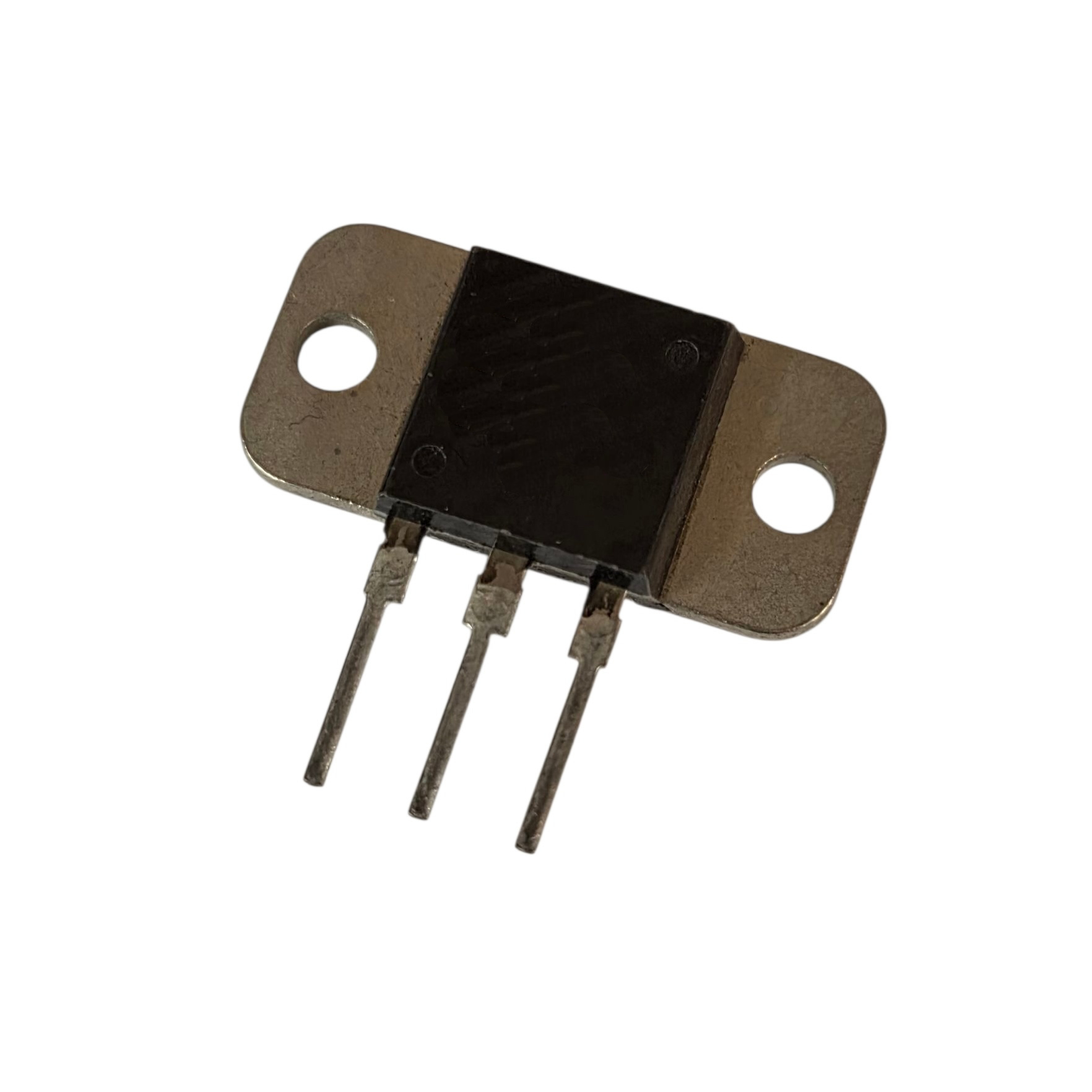

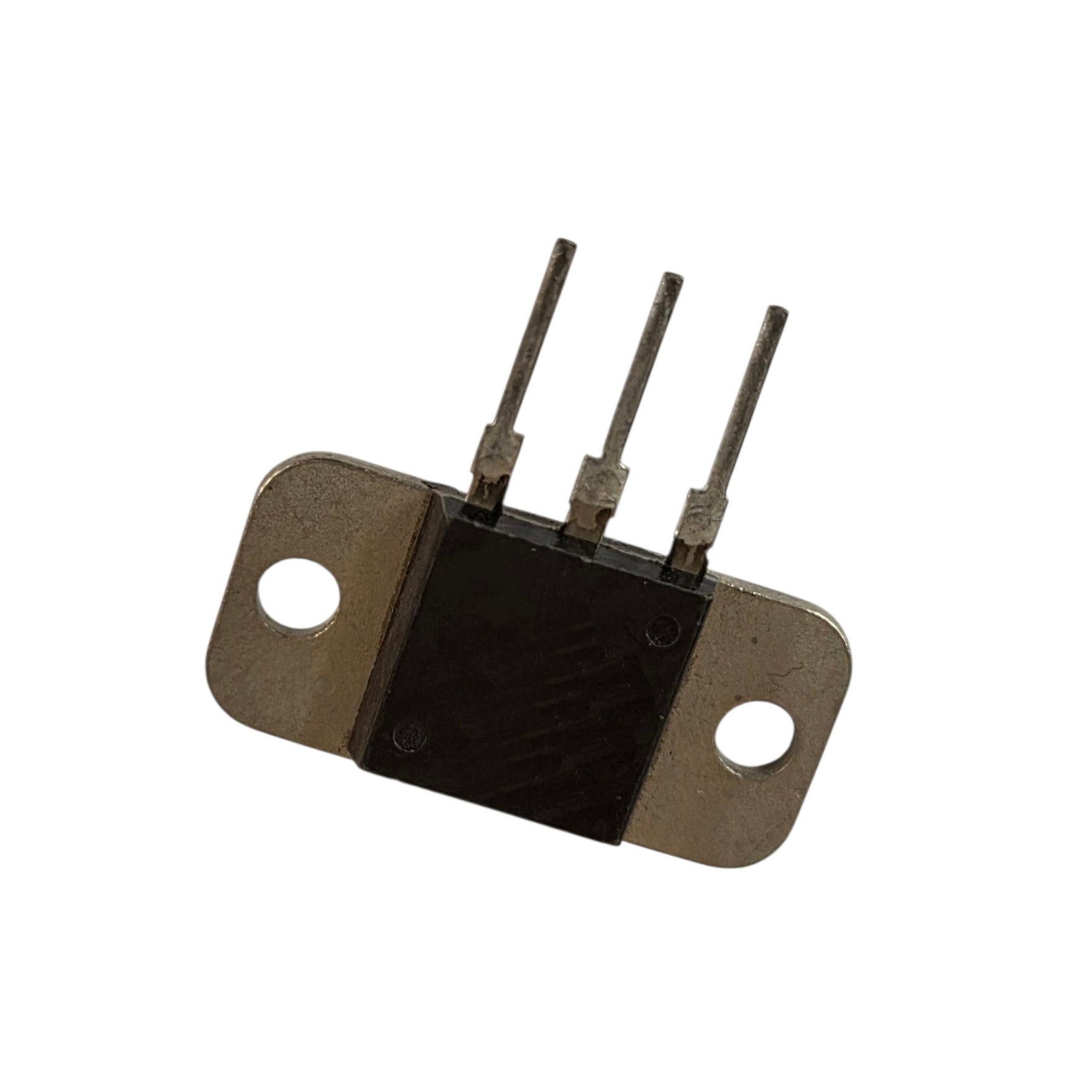

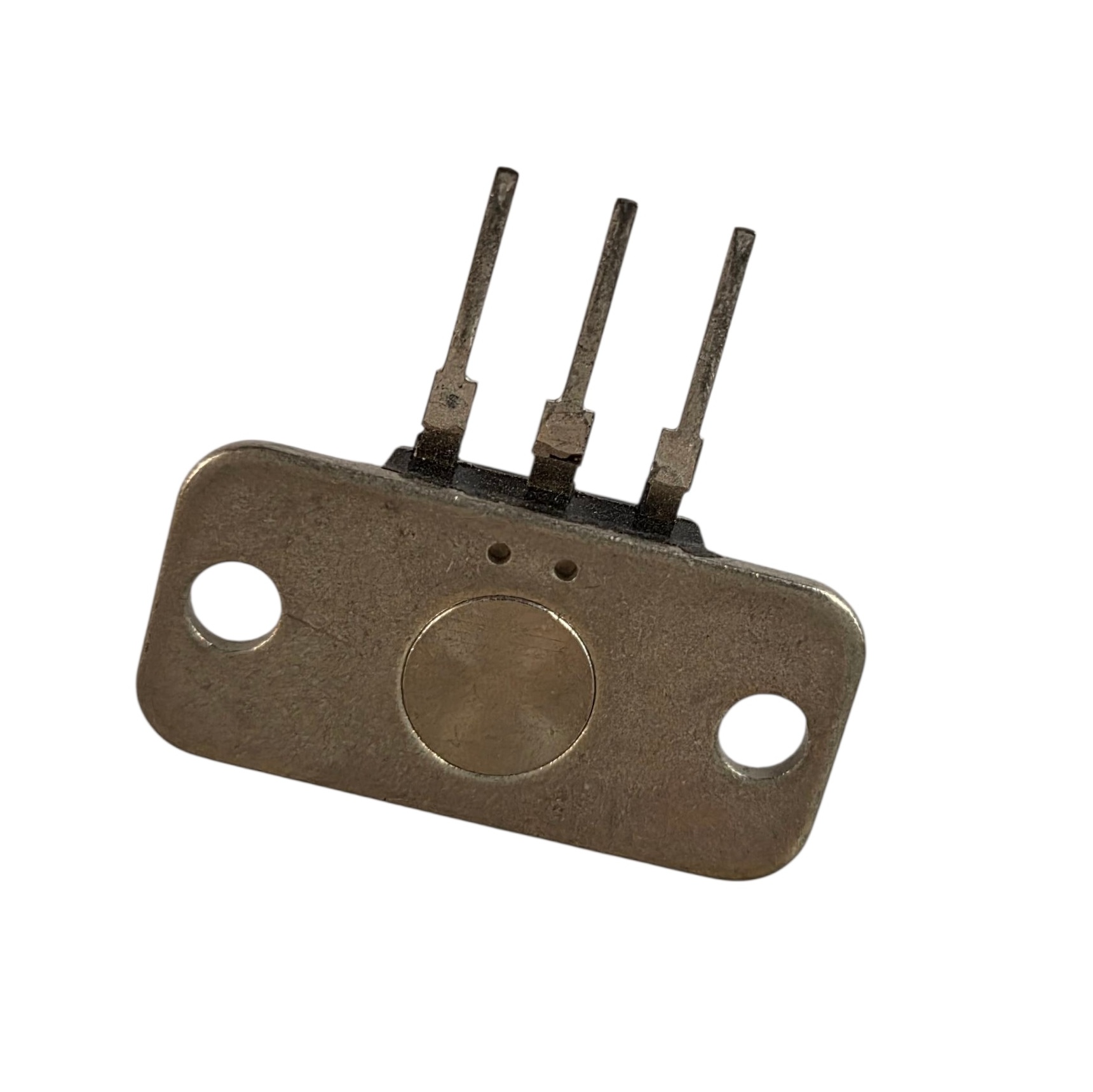

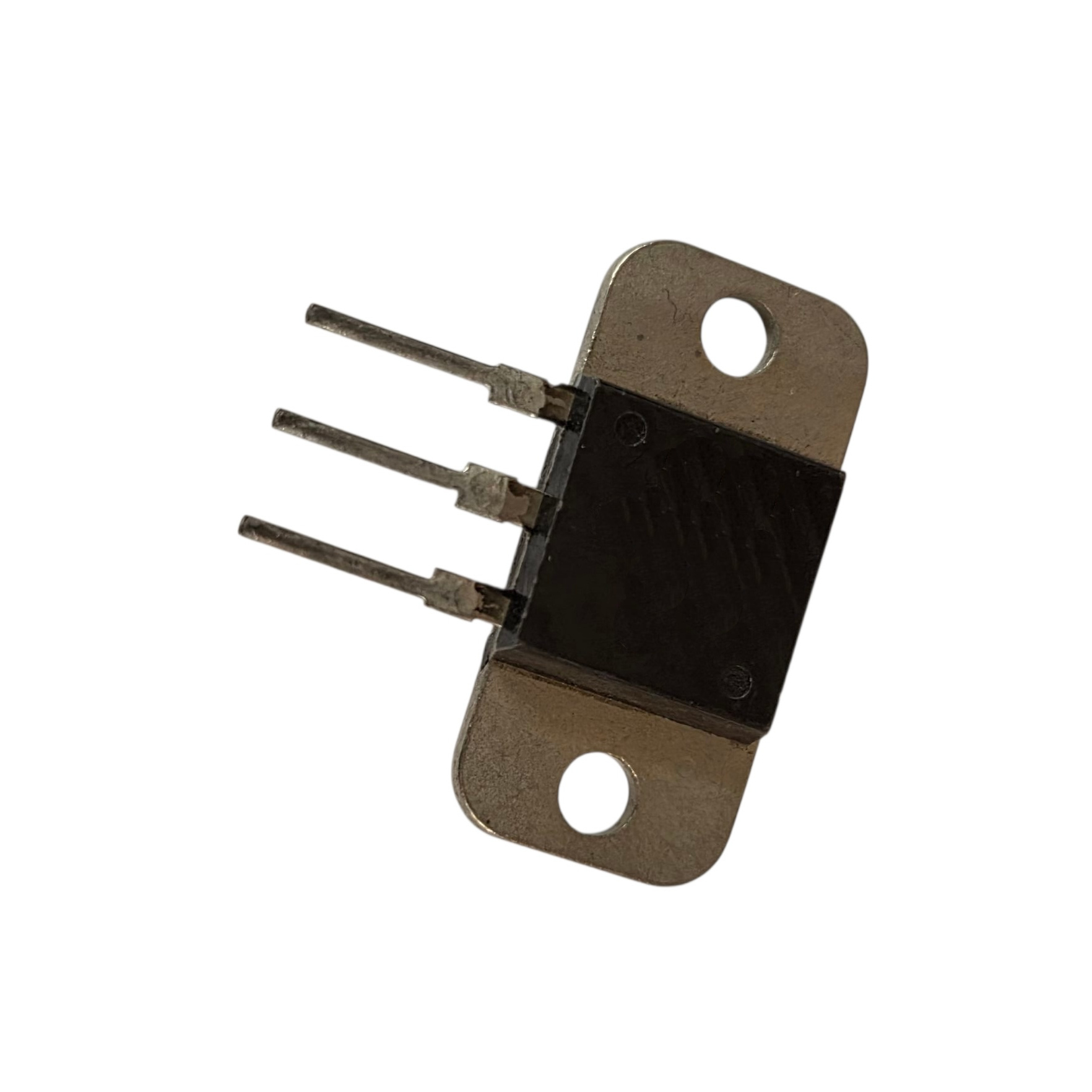

2SC2774 Transistor Silicon NPN CASE: HPAK MAKE: Sanken
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case HPAK
Manufacturer Sanken
Vbr CBO 200
Vbr CEO 200
Max. PD (W) 200
Max. hFE 200
Min hFE 20
Ic Max. (A) 17
@Ic (test) (A) 8.0
Icbo Max. @Vcb Max. (A) 100u
Polarity NPN
R(sat) (Û) 250m
Derate Above 25°C 1.6
Trans. Freq (Hz) Min. 20M
Oper. Temp (°C) Max. 140
@VCE (V) 4.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 200 W
Maximum Collector-Base Voltage |Vcb| 200 V
Maximum Collector-Emitter Voltage |Vce| 200 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 17 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 300 pF
Transition Frequency (ft): 10 MHz
Forward Current Transfer Ratio (hFE), MIN 70
SKU 83734
