2SC2787
View detailed images (4)

2SC2787

SKU: 2SC2787

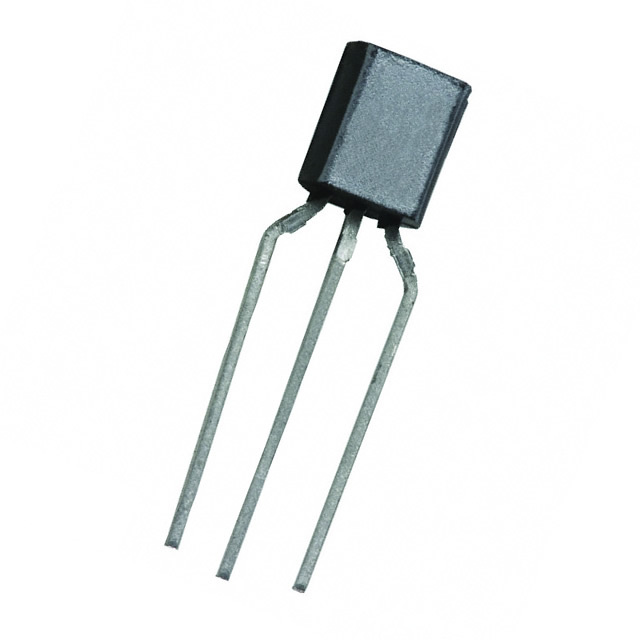

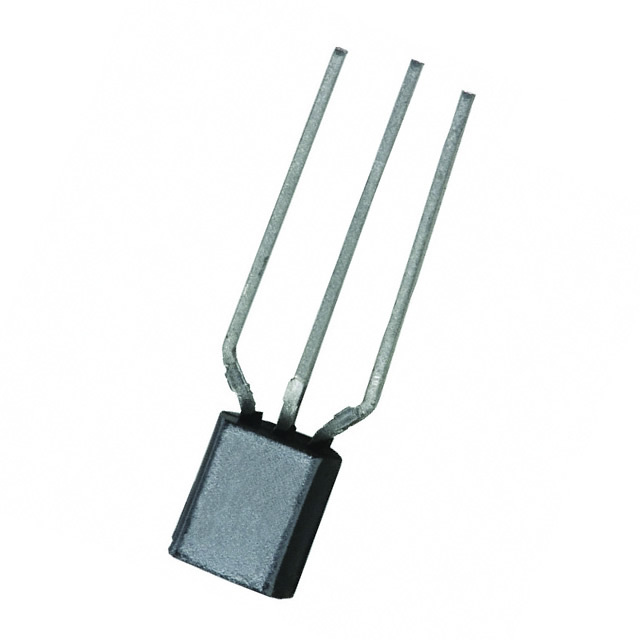

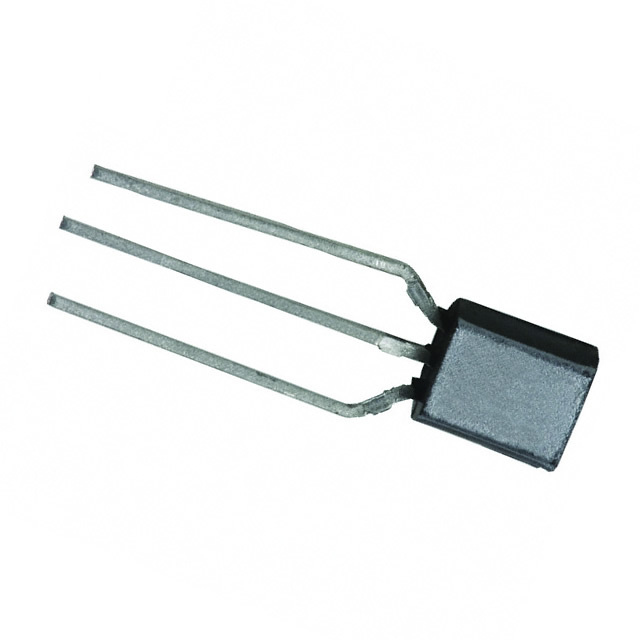

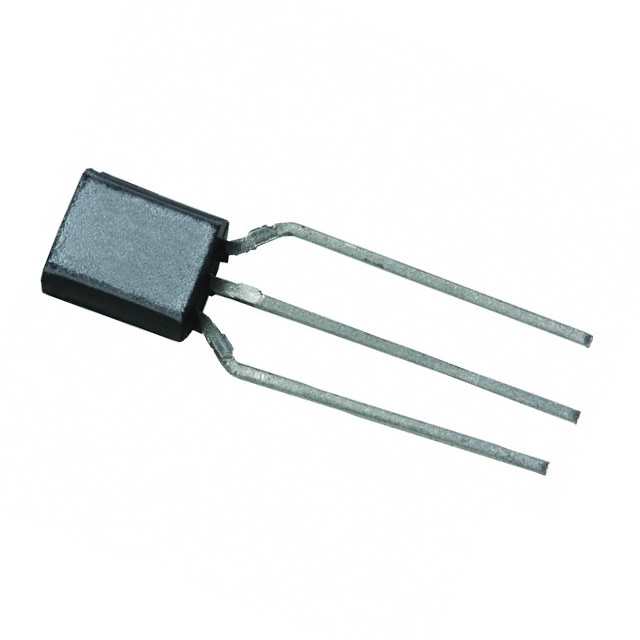

2SC2787 Transistor Silicon NPN - CASE: TO92T MAKE: NEC
Price: £4.79
+ VAT 20% for UK purchases
£4.79
Qty
+ VAT 20% for UK purchases
  • 19 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SC2787 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO92T
Manufacturer NEC
Vbr CBO 50
Vbr CEO 30
Max. PD (W) 300m
C(ob) (F) 1.9p
Derate (Amb) (W/°C) 3.0m
hfe 90
Ic Max. (A) 30m
Icbo Max. @Vcb Max. (A) 100n
Polarity NPN
Trans. Freq (Hz) Min. 250M
@VCE (test) (V) 6.0
Oper. Temp (°C) Max. 125
@Ic (A) 1.0m
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.25 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 20 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.03 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 1.9 pF
Transition Frequency (ft): 150 MHz
Forward Current Transfer Ratio (hFE), MIN 90
SKU 81048
