2SC2804
View detailed images (13)

2SC2804

SKU: 2SC2804

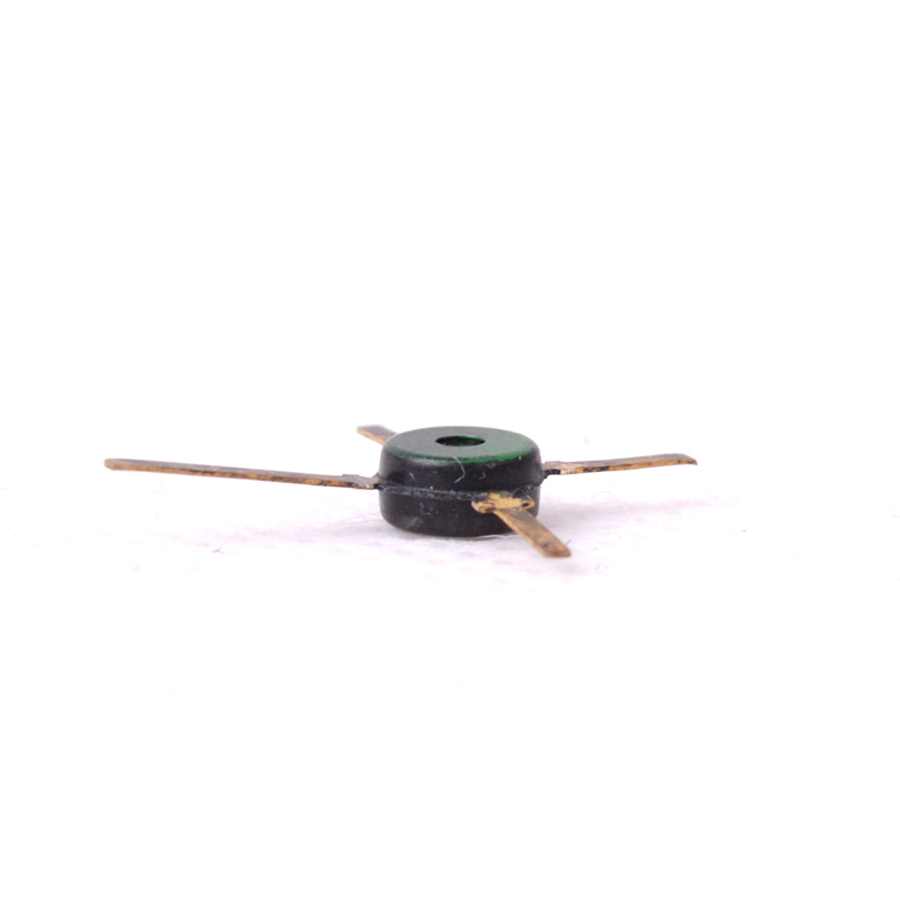

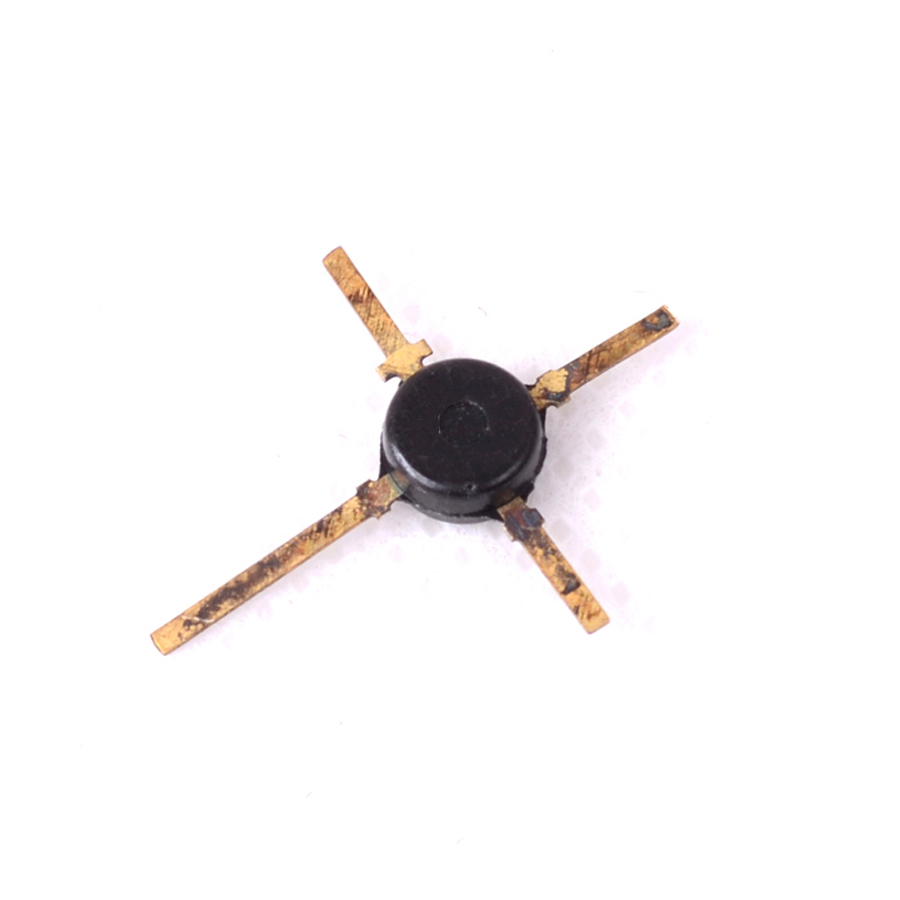

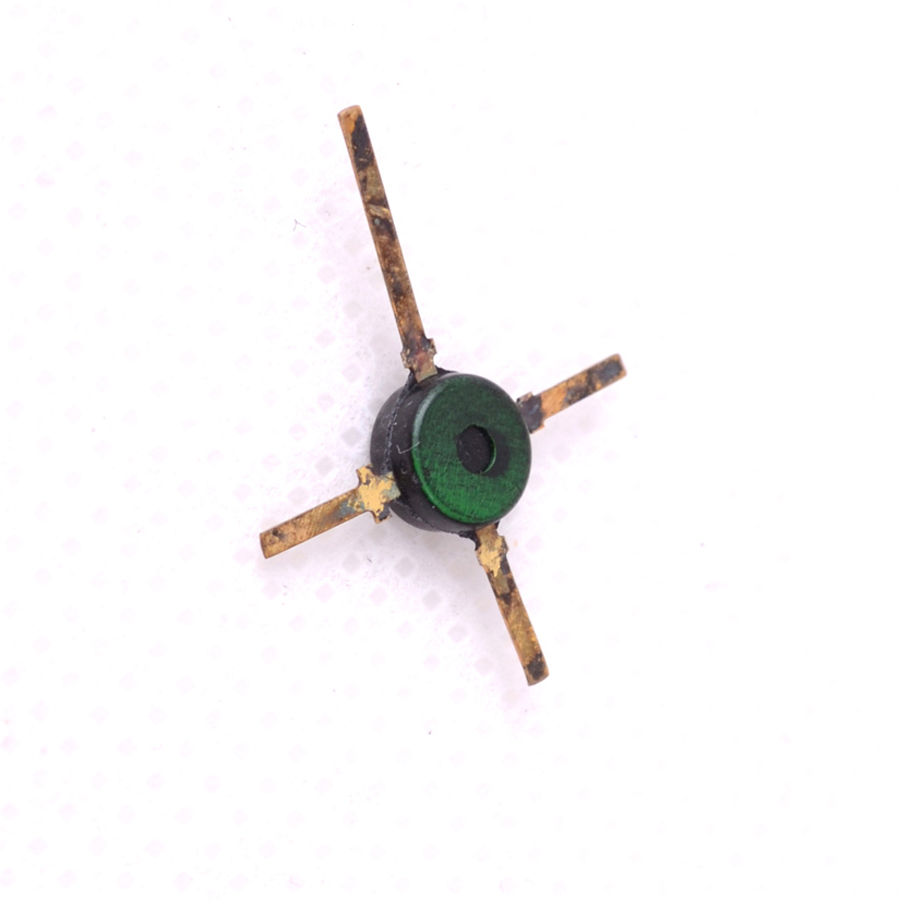

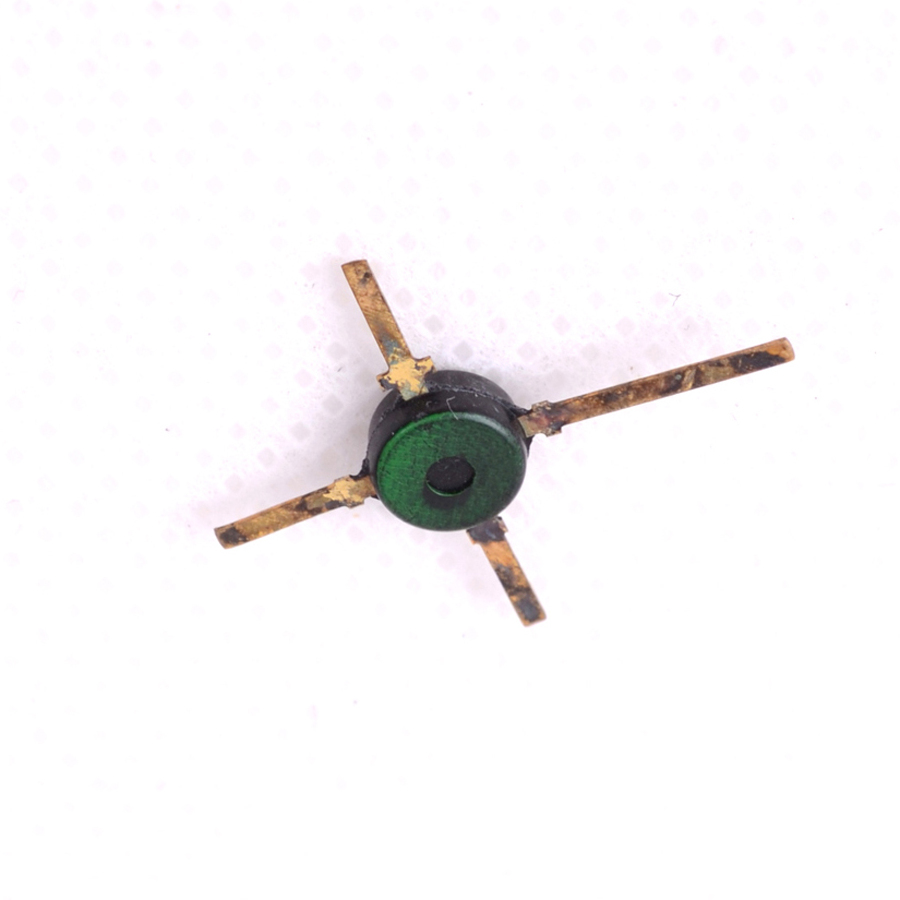

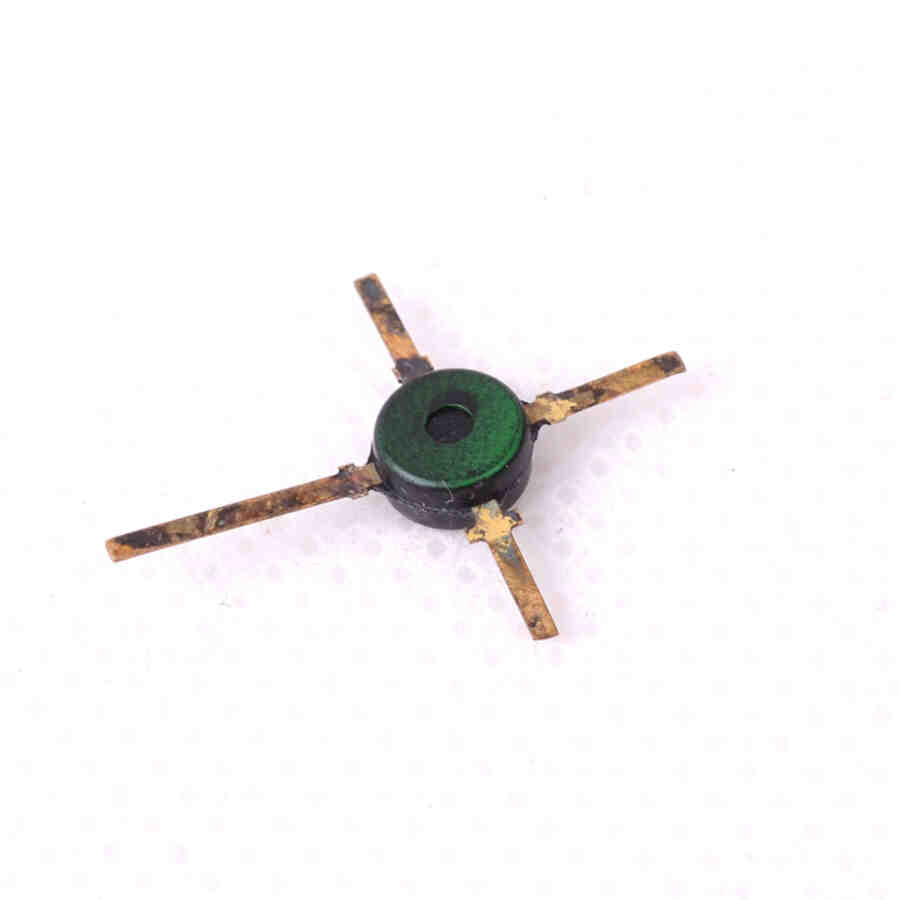

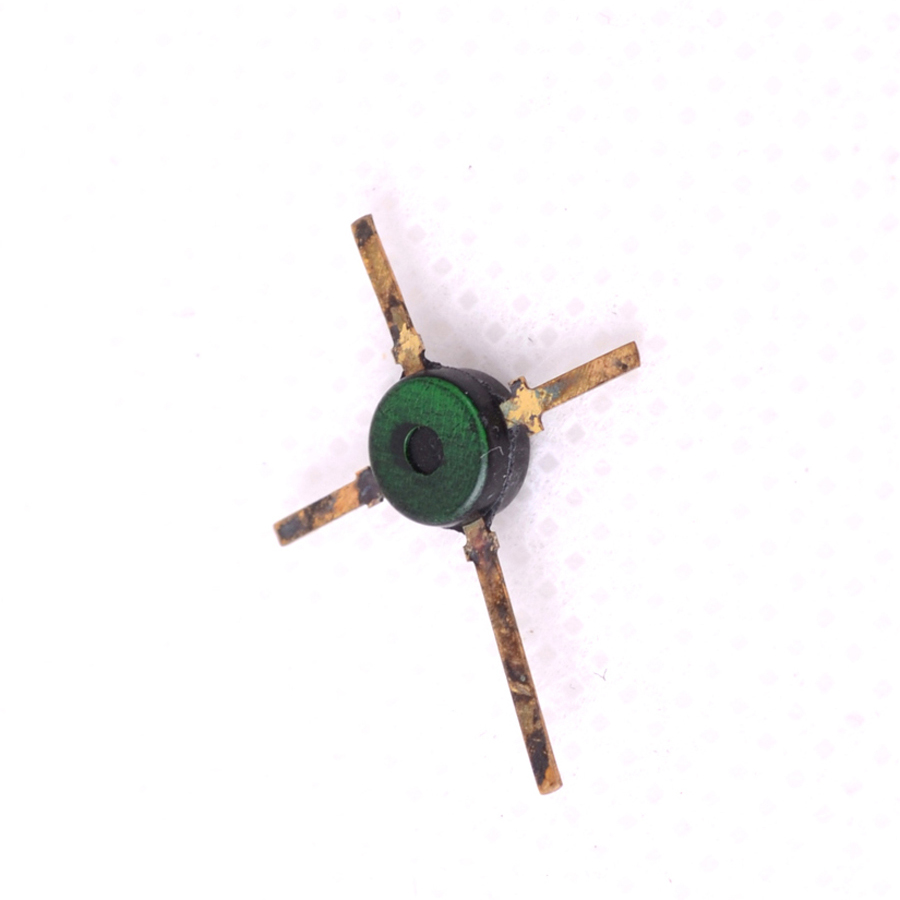

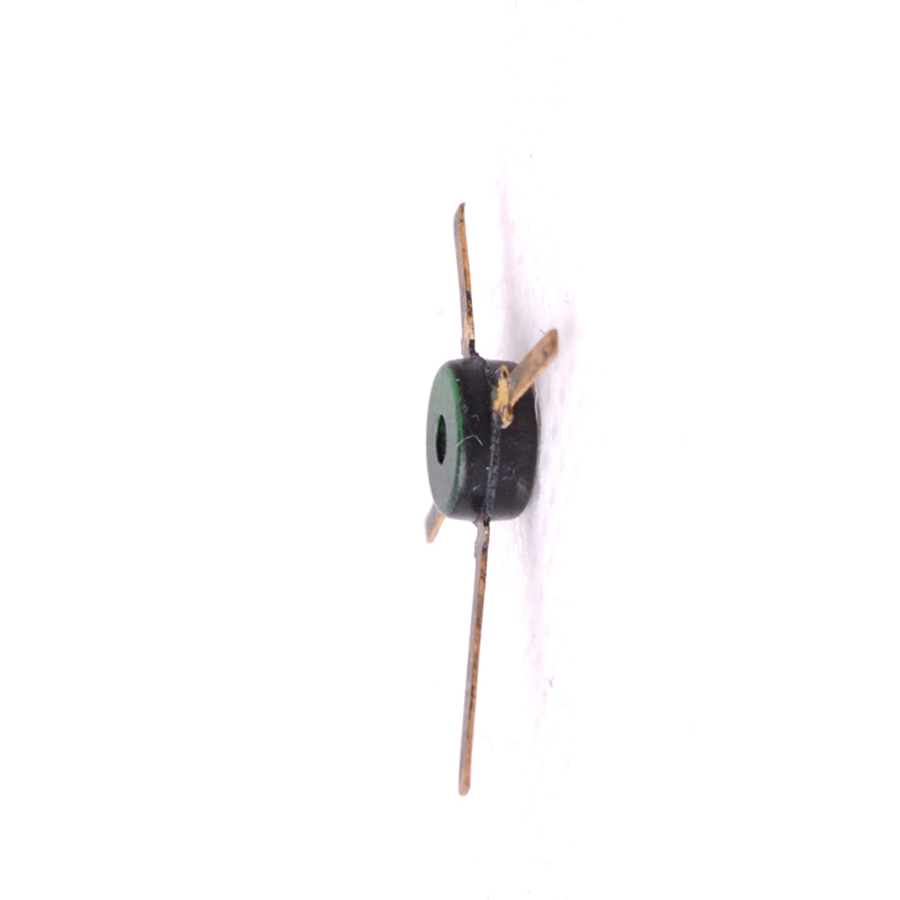

2SC2804 Transistor Silicon NPN CASE: SOT103 MAKE: Toshiba
Price:
£4.79 Inc. VAT (£3.99 Ex. VAT)
£4.79 Inc. VAT (£3.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case SOT103
Manufacturer Toshiba
Vbr CBO 25
Vbr CEO 20
Max. PD (W) 200m
Derate (Amb) (W/°C) 2.0m
hfe 25
Ic Max. (A) 20m
Icbo Max. @Vcb Max. (A) 100n
Polarity NPN
Trans. Freq (Hz) Min. 900M
@VCE (test) (V) 10
Oper. Temp (°C) Max. 125
@Ic (A) 2.0m
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 25 V
Maximum Collector-Emitter Voltage |Vce| 20 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.02 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 0.4 pF
Transition Frequency (ft): 600 MHz
Forward Current Transfer Ratio (hFE), MIN 25
SKU 395193
