2SC2805
View detailed images (13)

2SC2805

SKU: 2SC2805

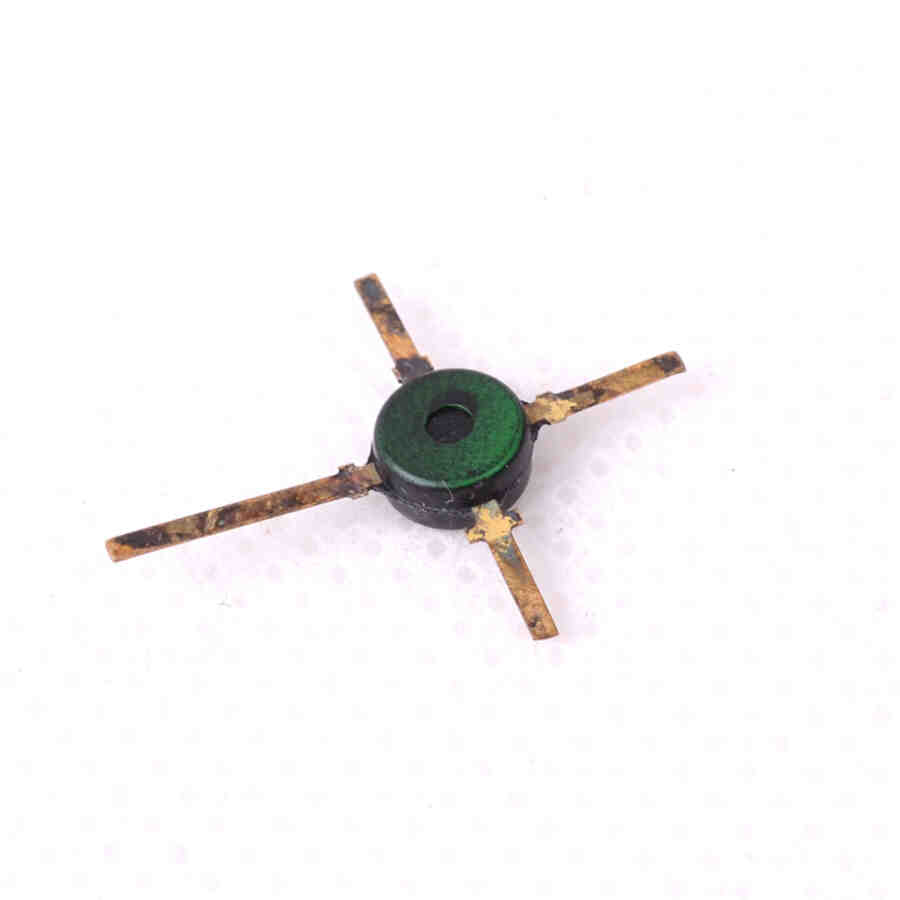

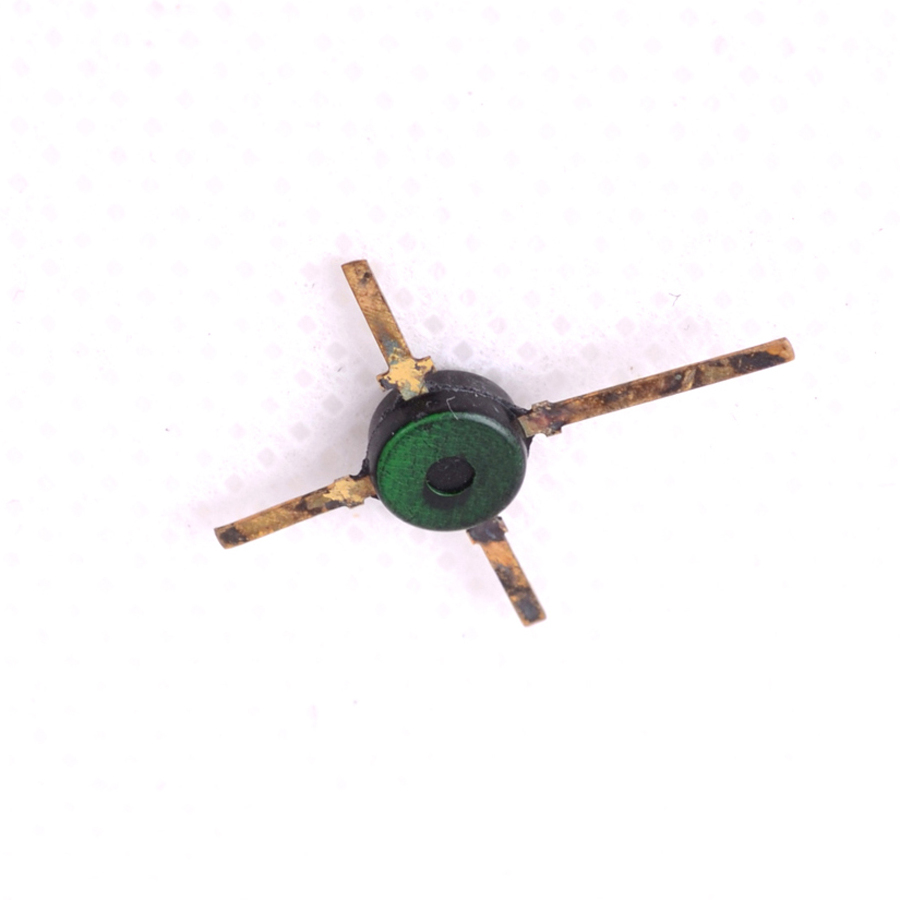

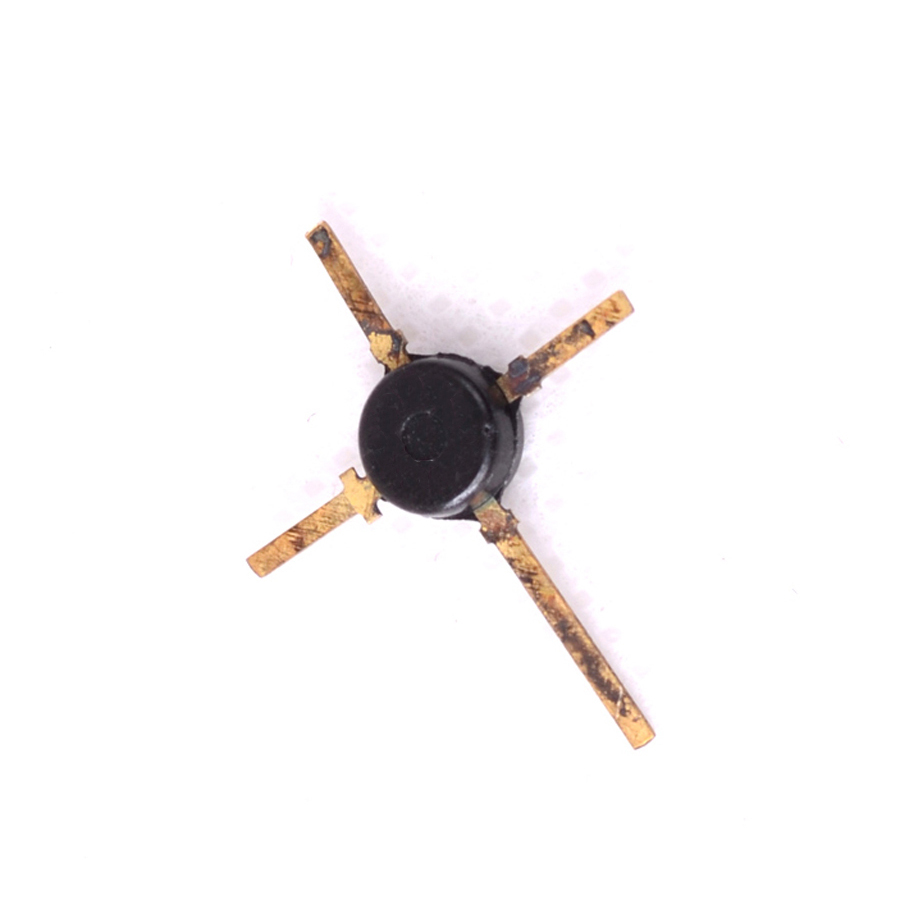

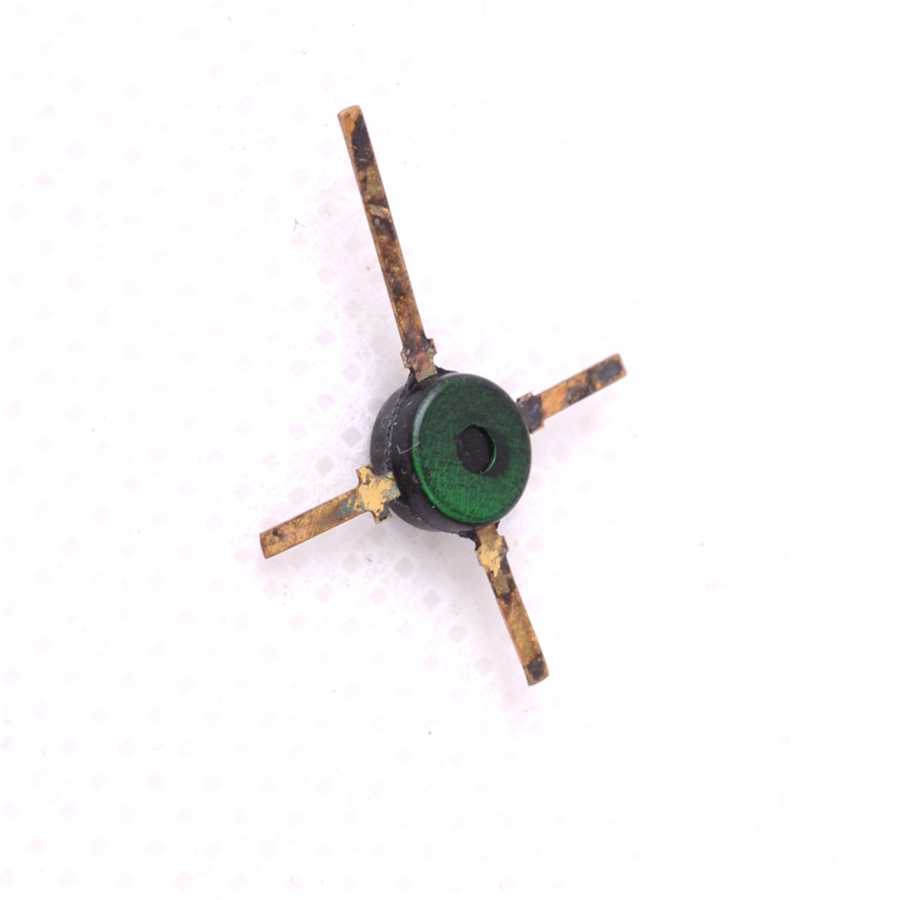

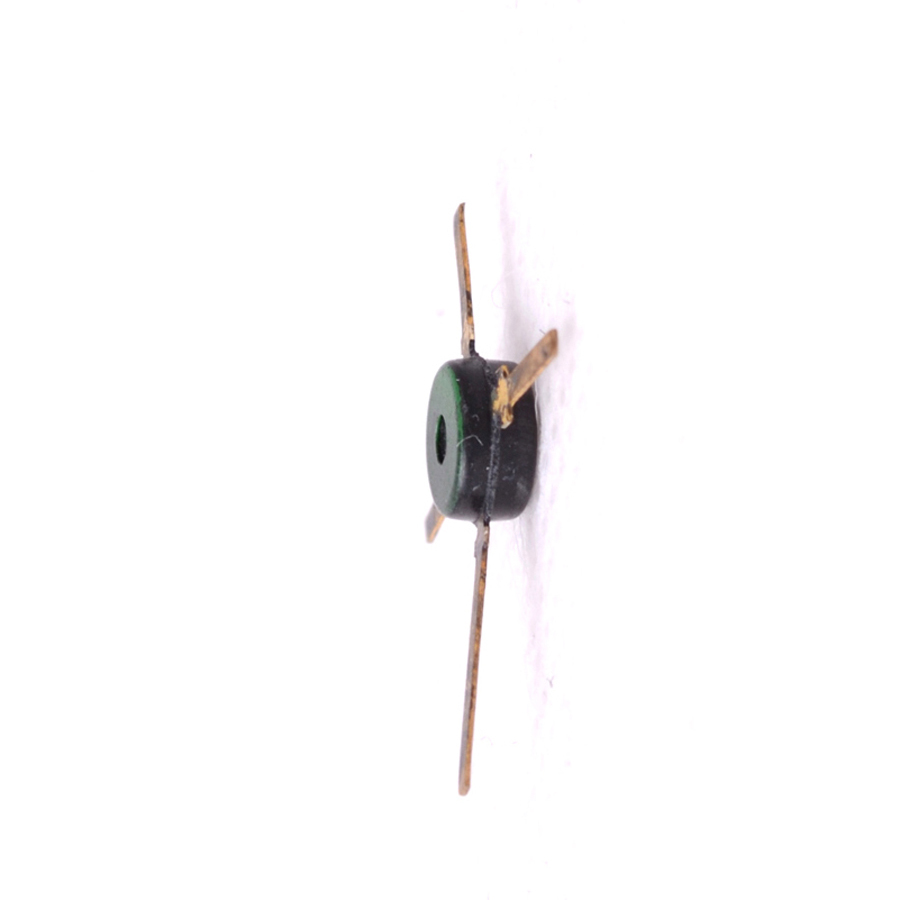

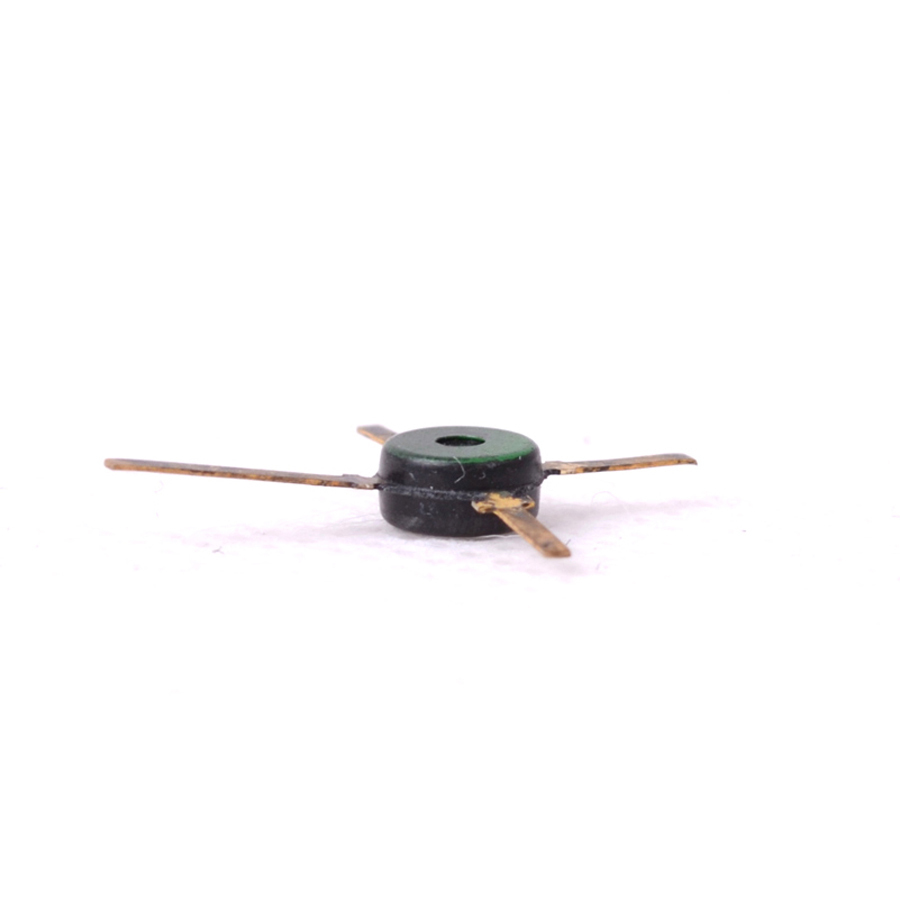

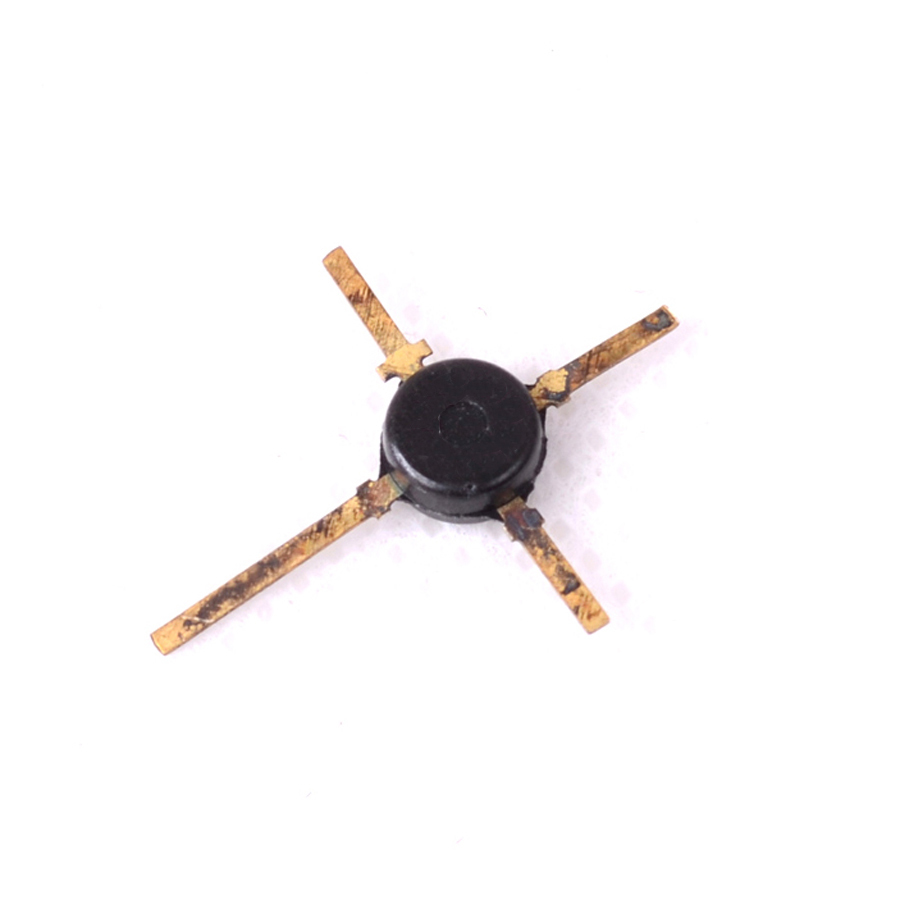

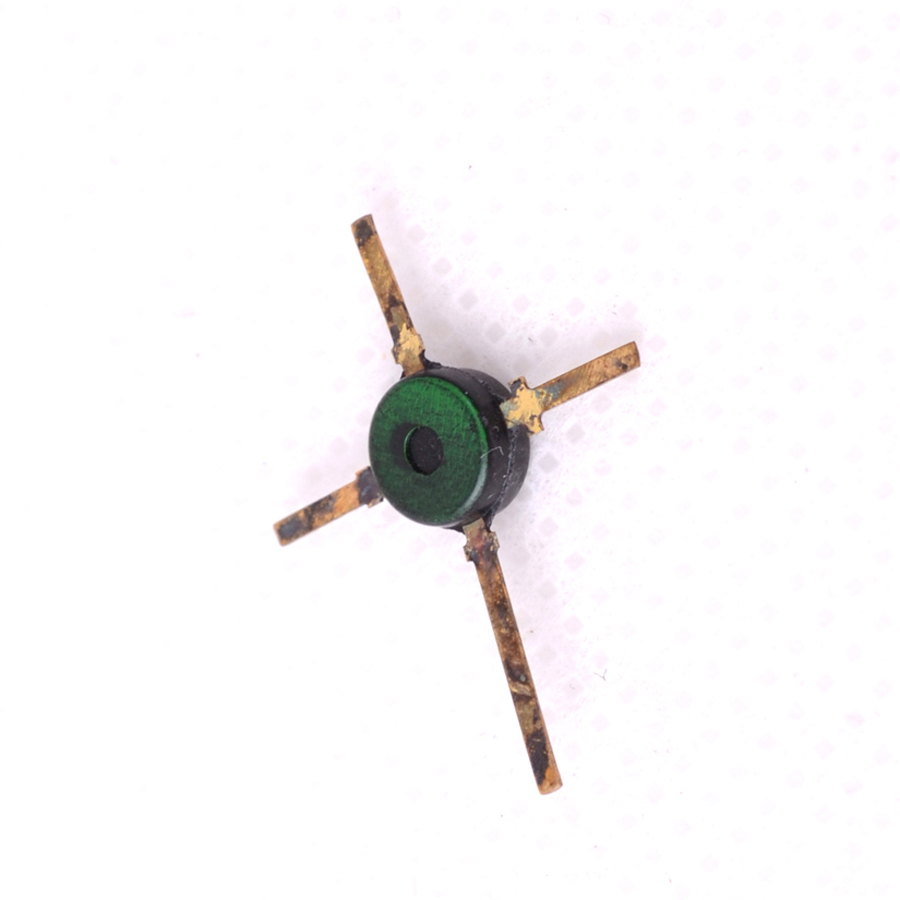

2SC2805 Transistor Silicon NPN CASE: SOT103 MAKE: Toshiba
Product specifications
Type Transistor Silicon NPN
Case SOT103
Manufacturer Toshiba
Vbr CBO 30
Mat. Silicon Logic
Oper. Gain Typ (S21) 150
f(osc) Max. (Hz) 1.1G
Polarity NPN
PD Max. (W) 200m
Coll. (or drain) Current Max. 50m
Oper. Temp (°C) Max. 125
Pinout Equivalence Number 3-15
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.025 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 1.3 pF
Transition Frequency (ft): 1100 MHz
Forward Current Transfer Ratio (hFE), MIN 60
SKU 585215
