2SC2876
View detailed images (13)

2SC2876

SKU: 2SC2876

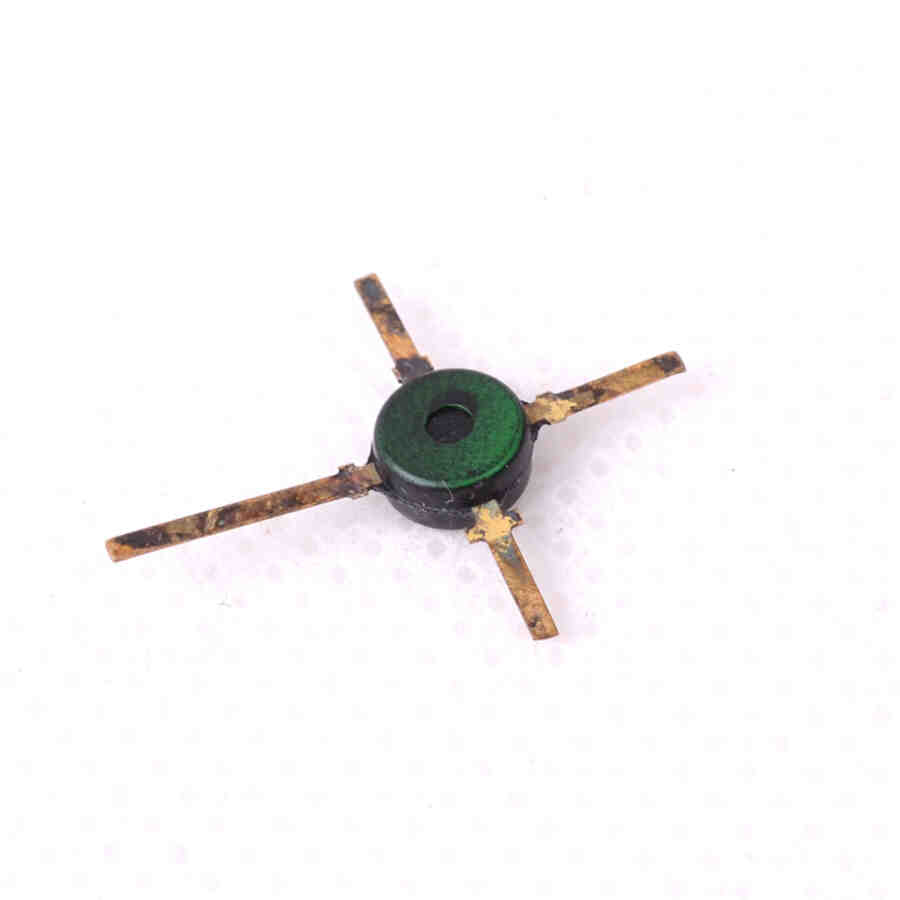

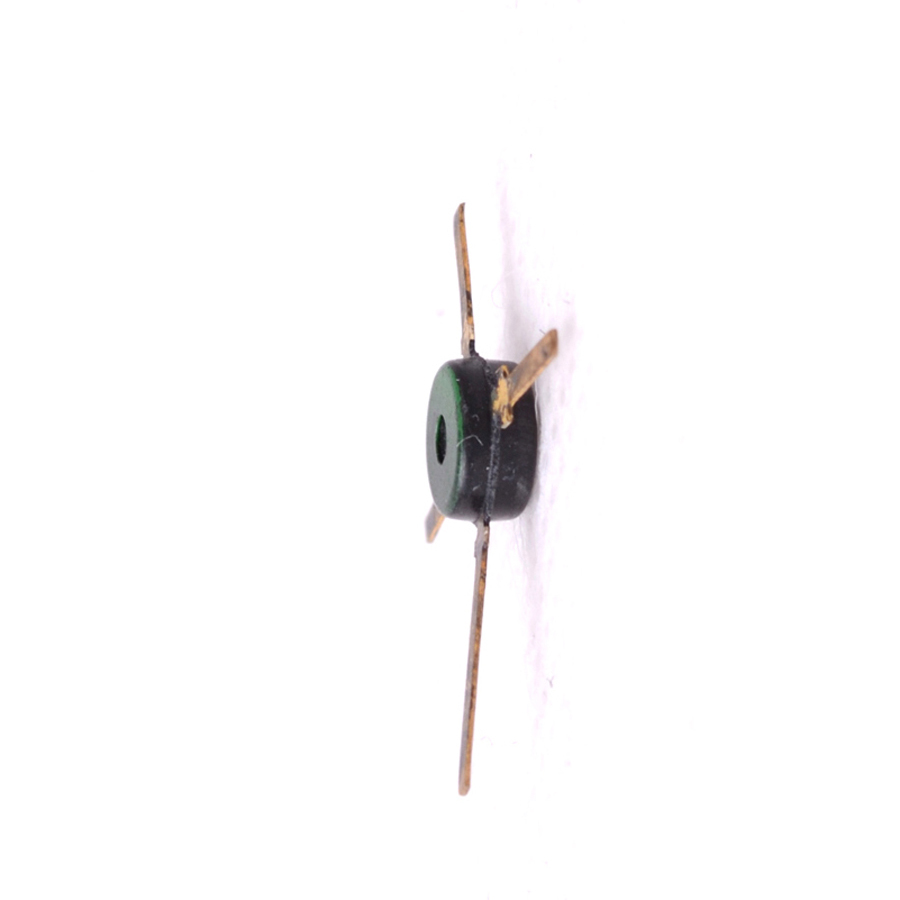

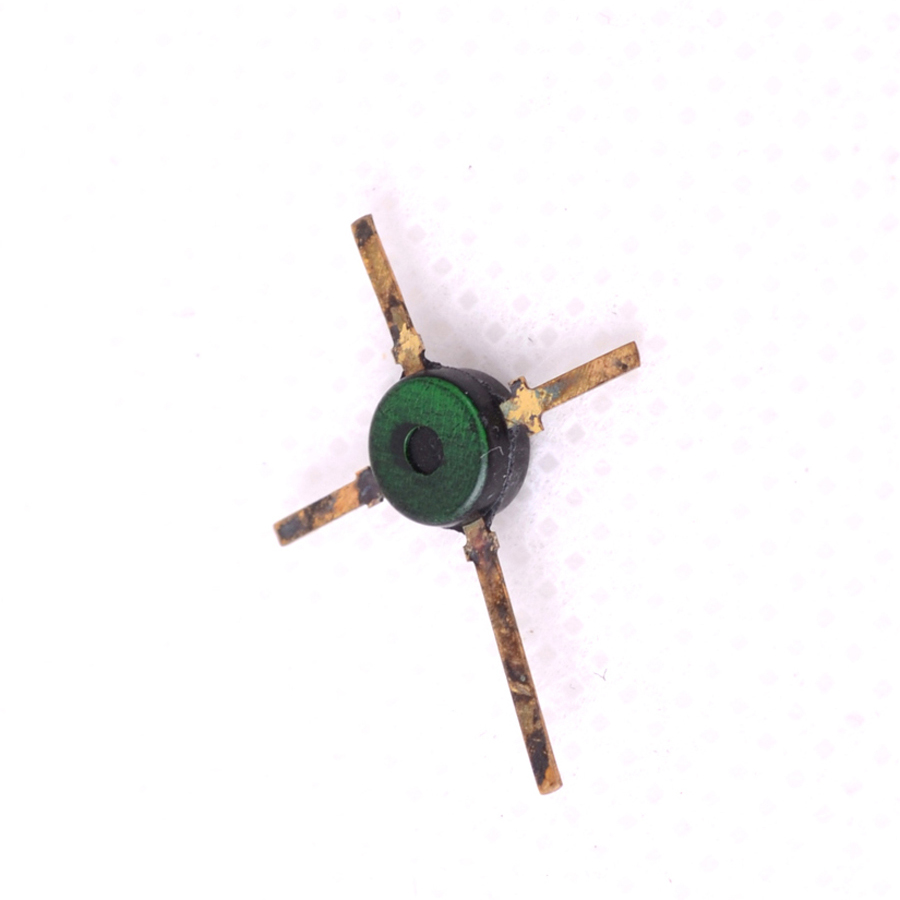

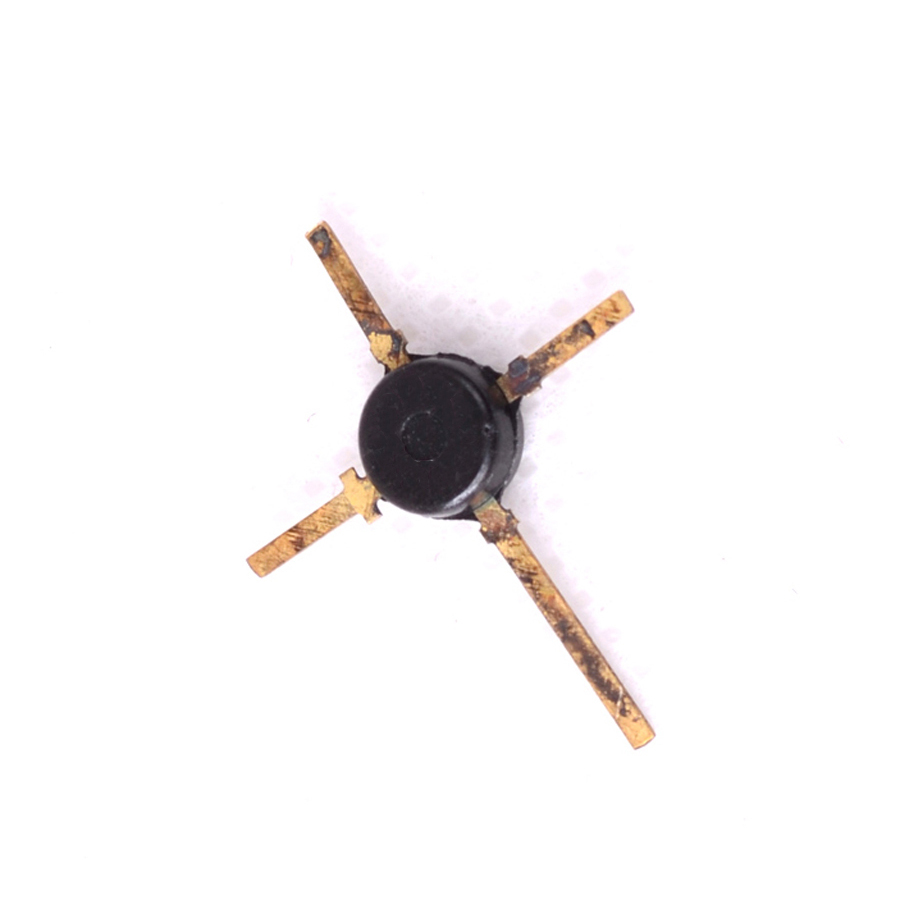

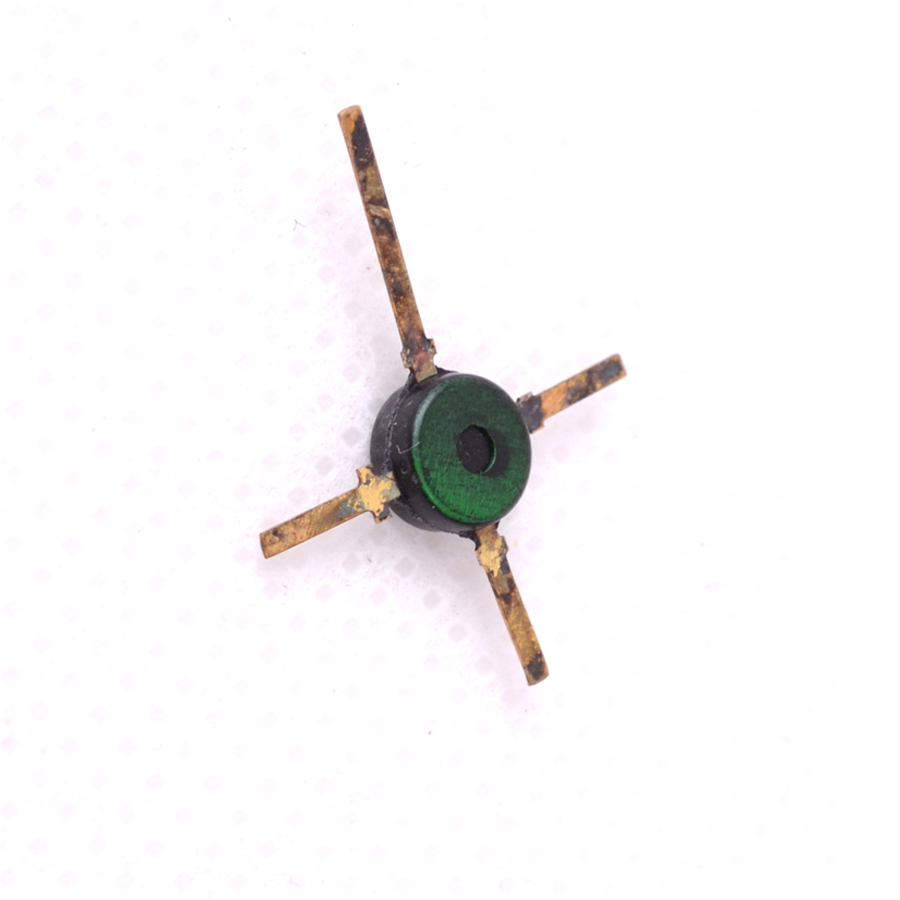

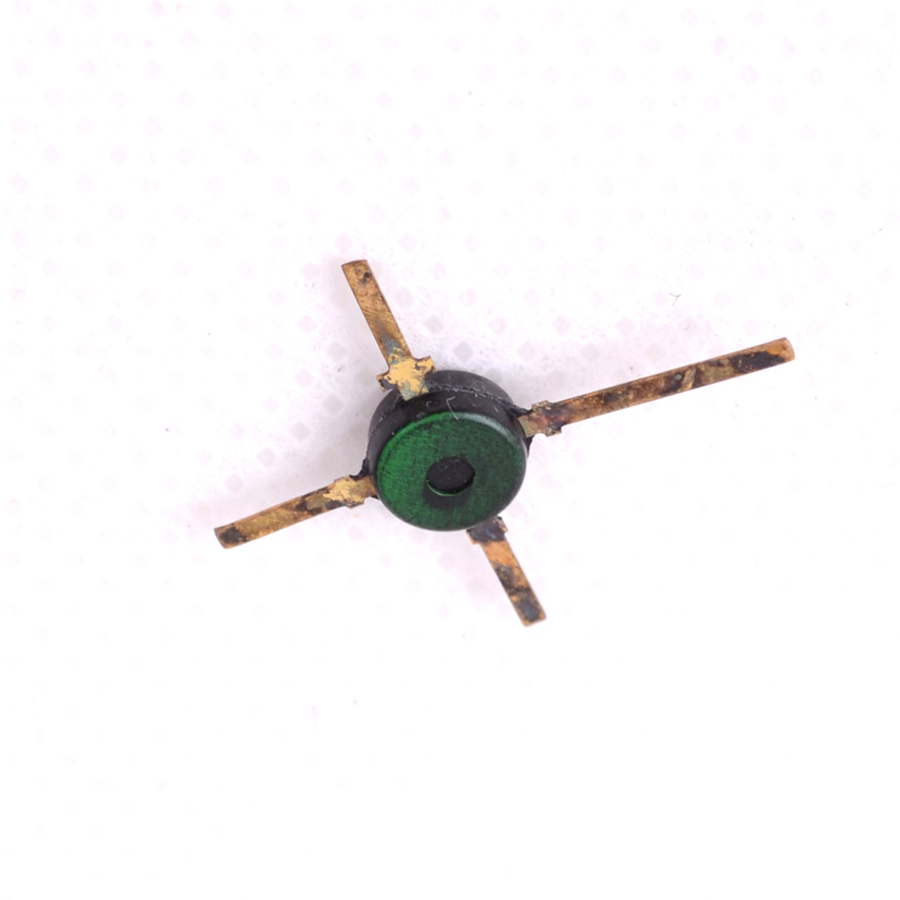

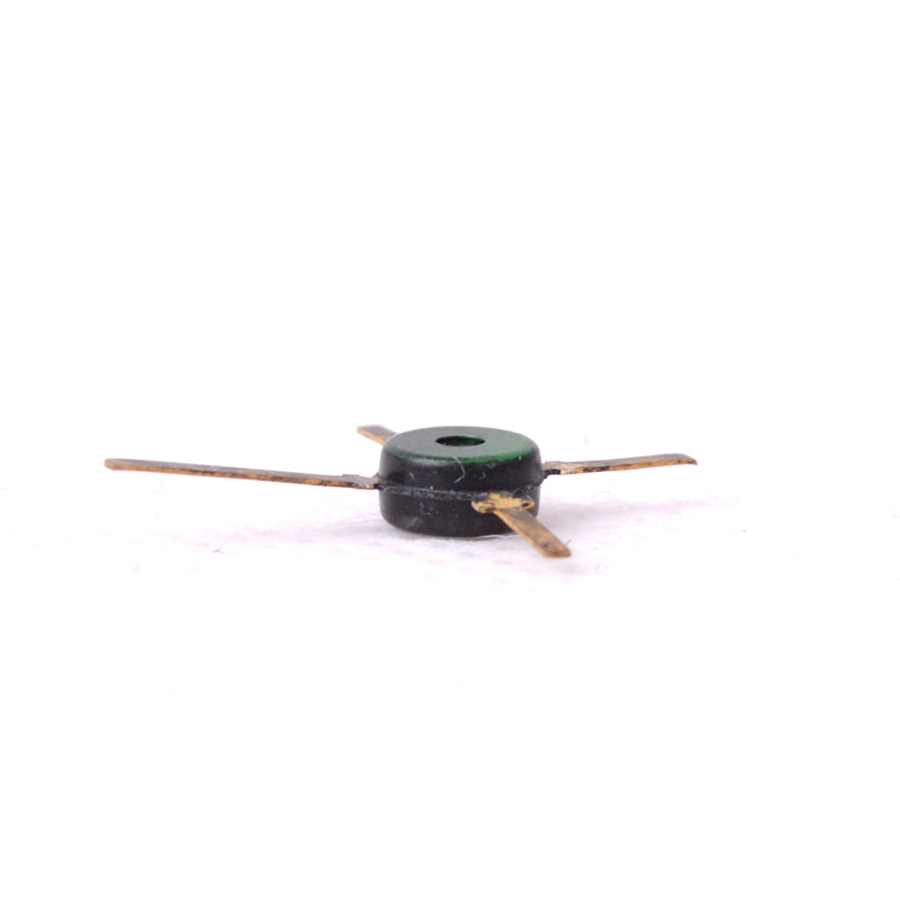

2SC2876 Transistor Silicon NPN CASE: SOT103 MAKE: Toshiba
Product specifications
Type Transistor Silicon NPN
Case SOT103
Manufacturer Toshiba
Vbr CBO 15
Vbr CEO 7.5
Max. PD (W) 200m
C(ob) (F) .86p
Derate (Amb) (W/°C) 2.0m
hfe 30
Ic Max. (A) 80m
Icbo Max. @Vcb Max. (A) 100n
Polarity NPN
Trans. Freq (Hz) Min. 7.0G
@VCE (test) (V) 3.0
Oper. Temp (°C) Max. 125
@Ic (A) 50m
Pinout Equivalence Number 4-34
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 15 V
Maximum Collector-Emitter Voltage |Vce| 7 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.08 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 1.6 pF
Transition Frequency (ft): 7000 MHz
Forward Current Transfer Ratio (hFE), MIN 30
SKU 395199
