2SC288A
View detailed images (8)

2SC288A

SKU: 2SC288A

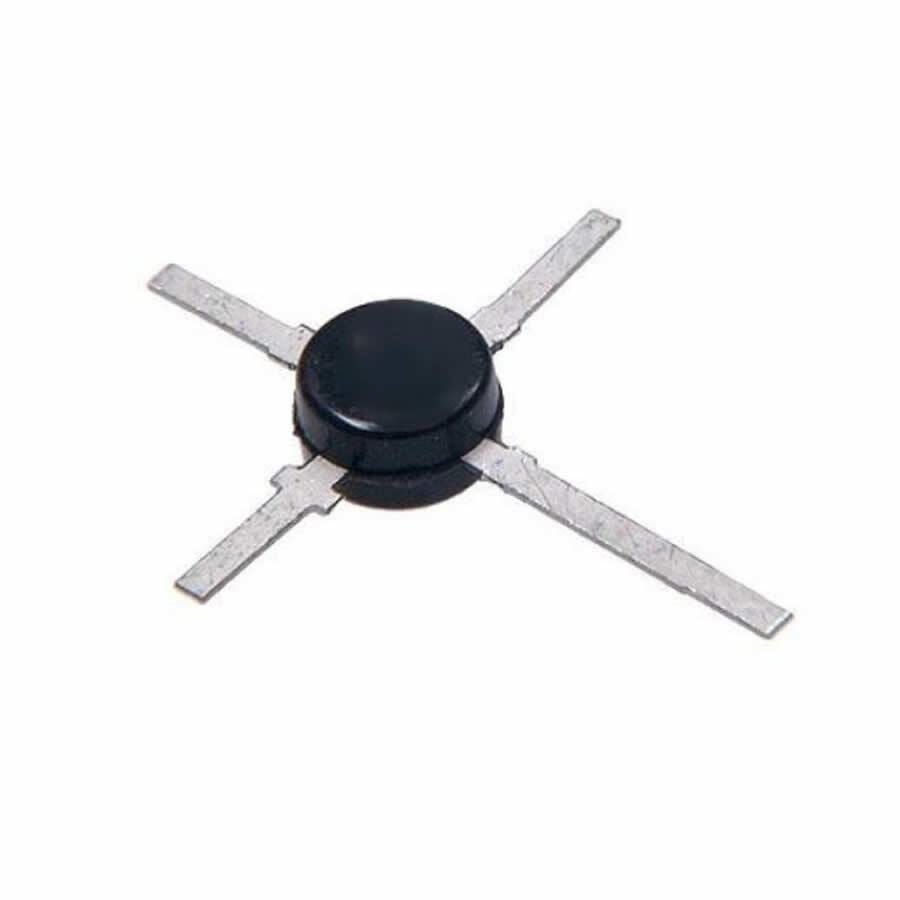

2SC288A Transistor Silicon NPN CASE: TO50 MAKE: NEC
Price:
£23.99 Inc. VAT (£19.99 Ex. VAT)
£23.99 Inc. VAT (£19.99 Ex. VAT)
Qty
  • 9 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SC288A Datasheet
Product specifications
Equivalent 2SC288
Type Transistor Silicon NPN
Case TO50
Manufacturer NEC
Vbr CBO 35
Vbr CEO 12
Max. PD (W) 100m
C(ob) (F) 1p
@Freq. (test) 300M
hfe 70
Ic Max. (A) 10m
@Ic (A) 5.0m
Icbo Max. @Vcb Max. (A) 1.0u
Mat. Silicon Logic
f(osc) Max. (Hz) 1.1G
Polarity NPN
PD Max. (W) 150m
S11 Deg. (Typ) -35
S11 Mag Typ. 25
S22 Deg. Typ. 1.8
S22 Mag Typ. .15
@VDS (VCE) (test) (V) 10
Trans. Freq (Hz) Min. 850M
@VCE (test) (V) 6.0
Coll. (or drain) Current Max. 20m
Oper. Temp (°C) Max. 150
@Ic (A) 2.0m
Pinout Equivalence Number 3-16
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.15 W
Maximum Collector-Base Voltage |Vcb| 35 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 0.02 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 550 MHz
Forward Current Transfer Ratio (hFE), MIN 80
SKU 343974
