2SC2955
View detailed images (4)

2SC2955

SKU: 2SC2955

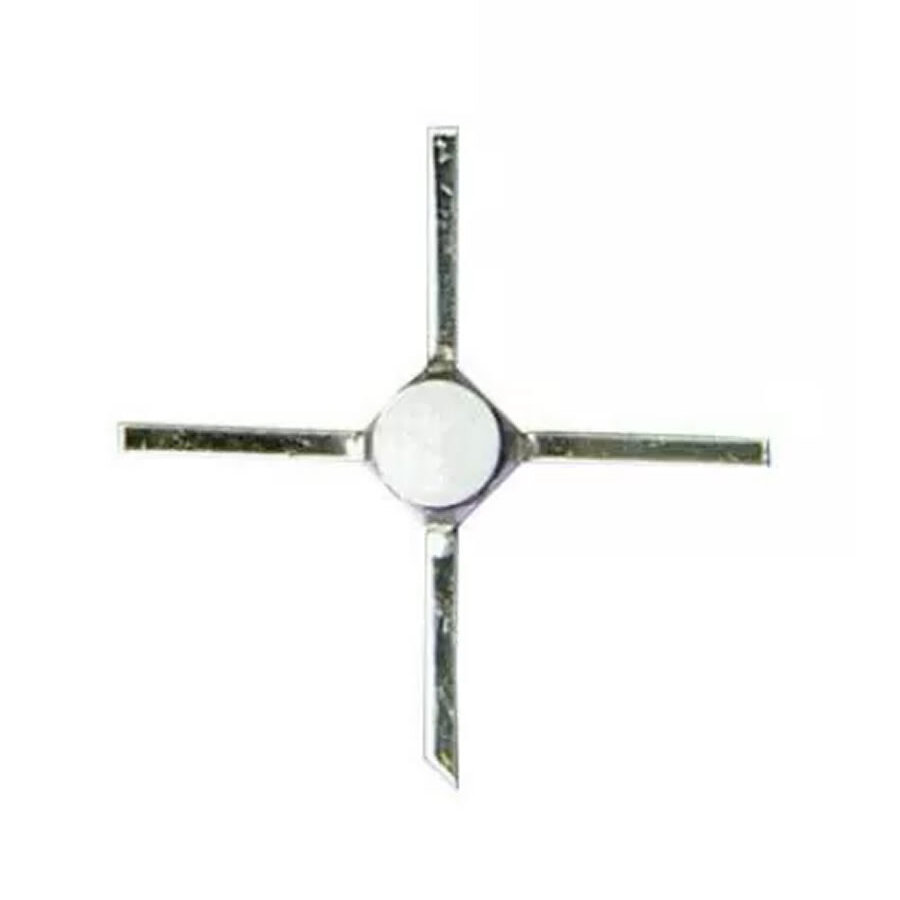

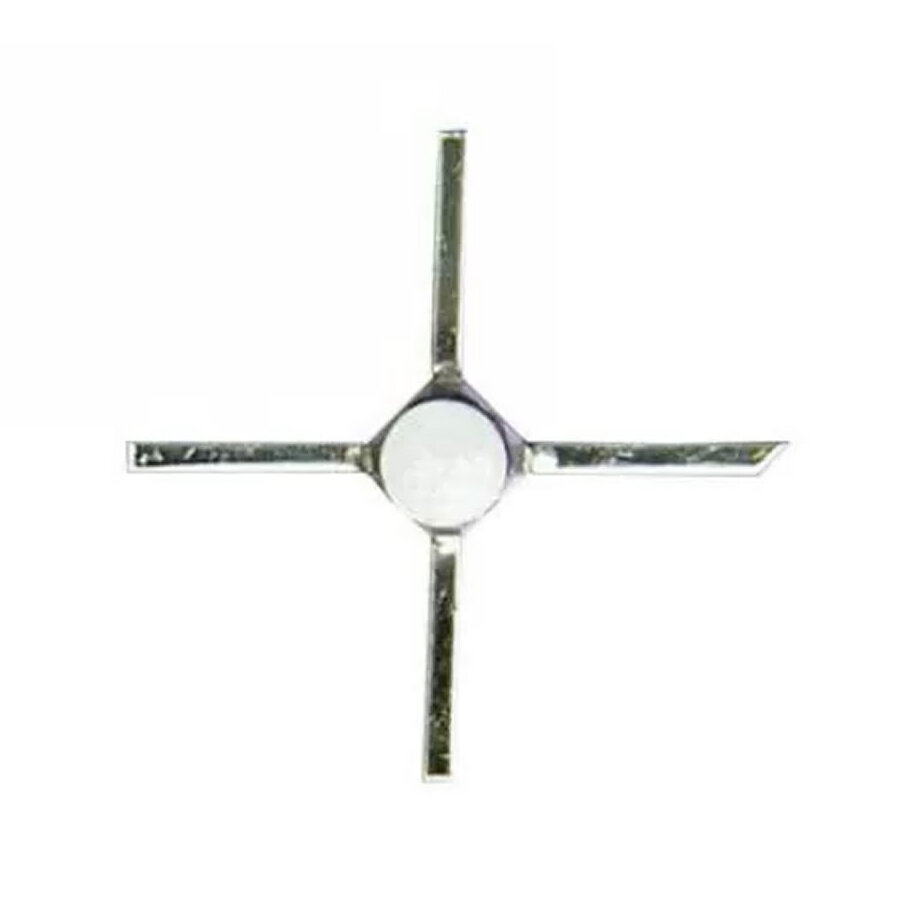

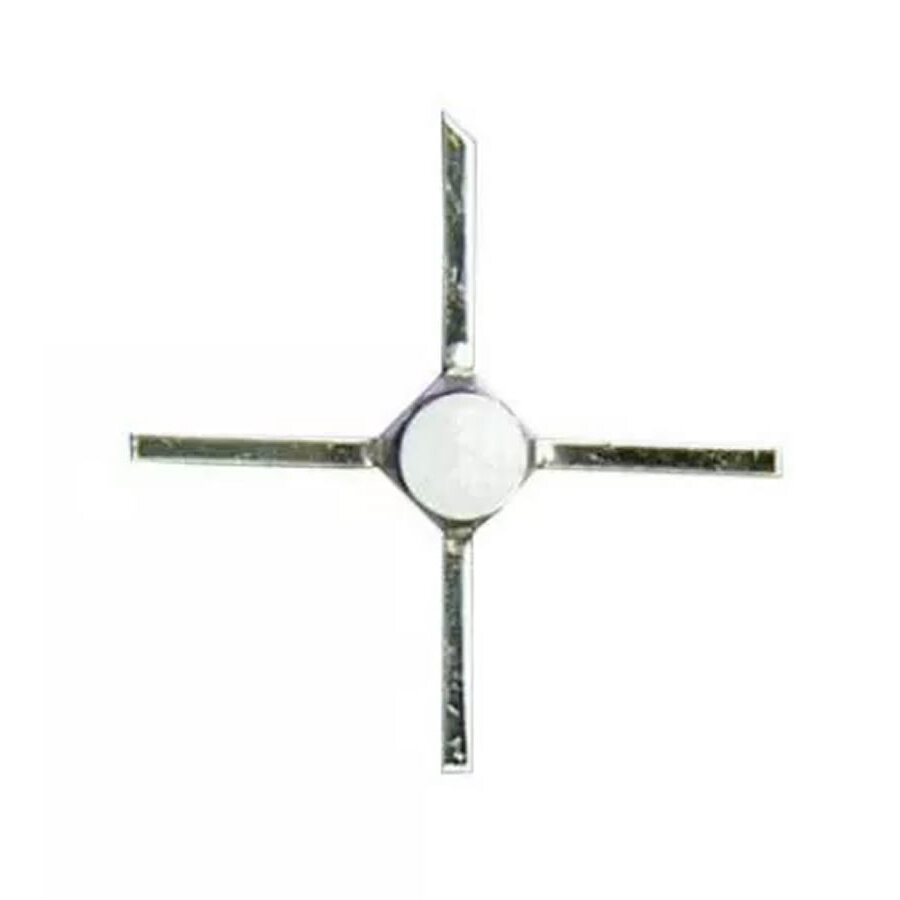

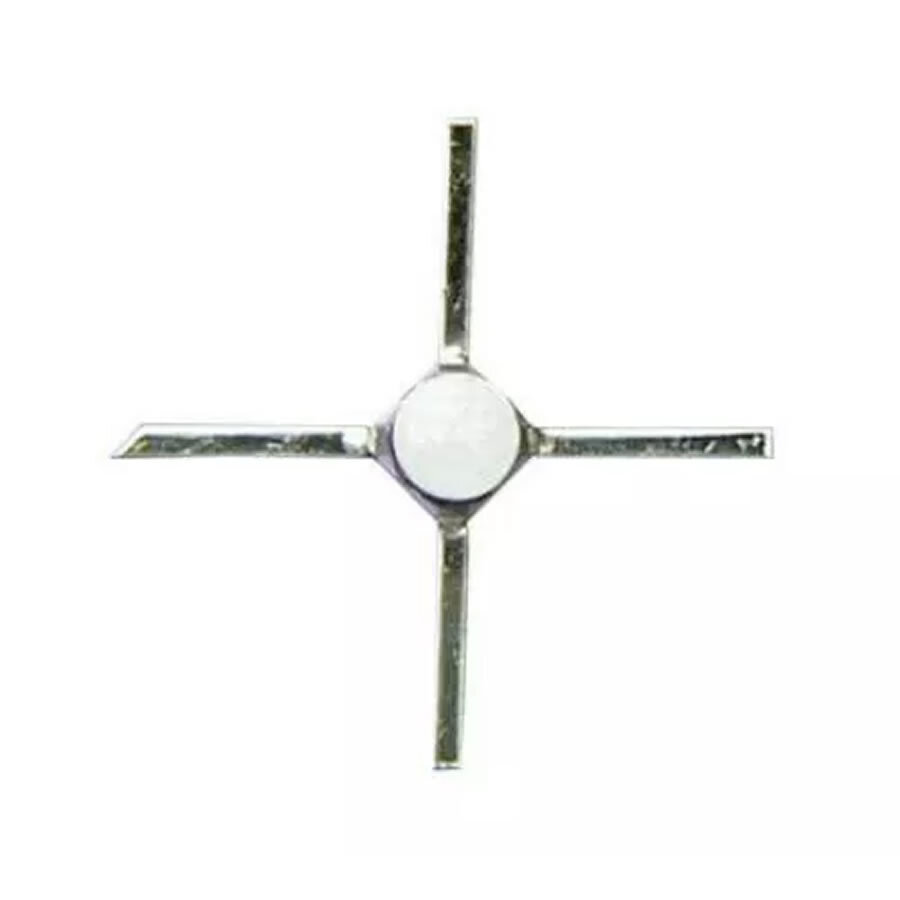

2SC2955 Transistor Silicon NPN CASE: SOT173 MAKE: NEC
Product specifications
Type Transistor Silicon NPN
Case SOT173
Manufacturer NEC
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.05 W
Maximum Collector-Base Voltage |Vcb| 15 V
Maximum Collector Current |Ic max| 0.005 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 2000 MHz
Forward Current Transfer Ratio (hFE), MIN 20
SKU 557048
