2SC2970
View detailed images (12)

2SC2970

SKU: 2SC2970

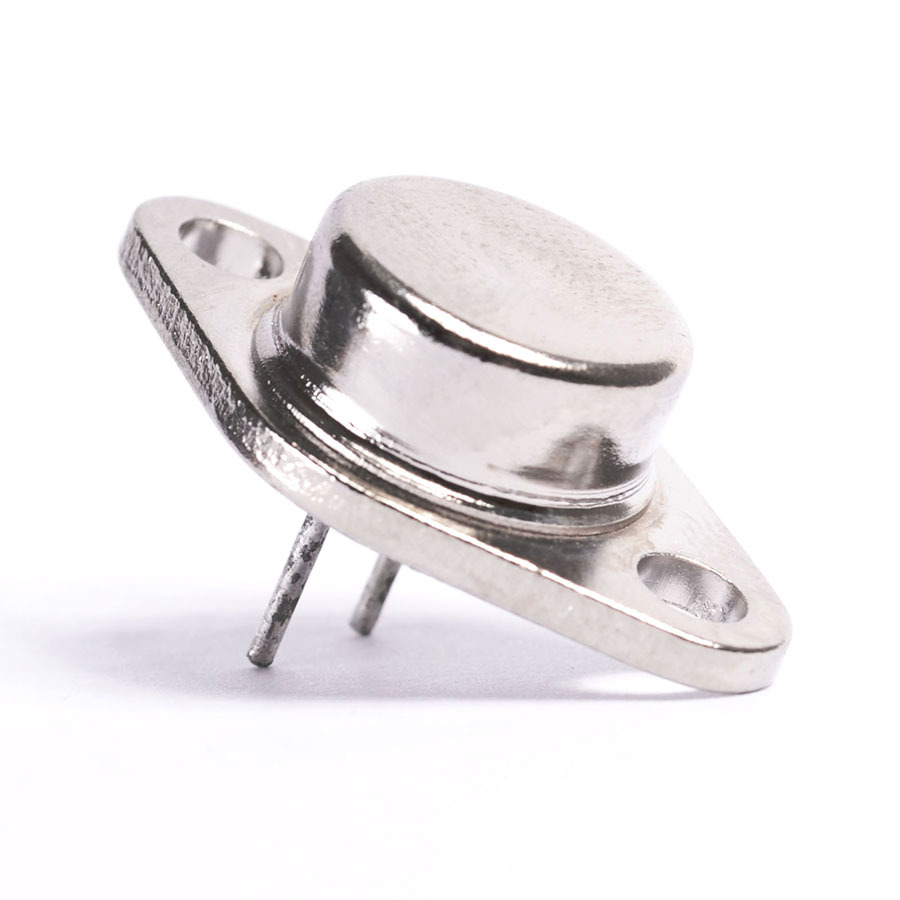

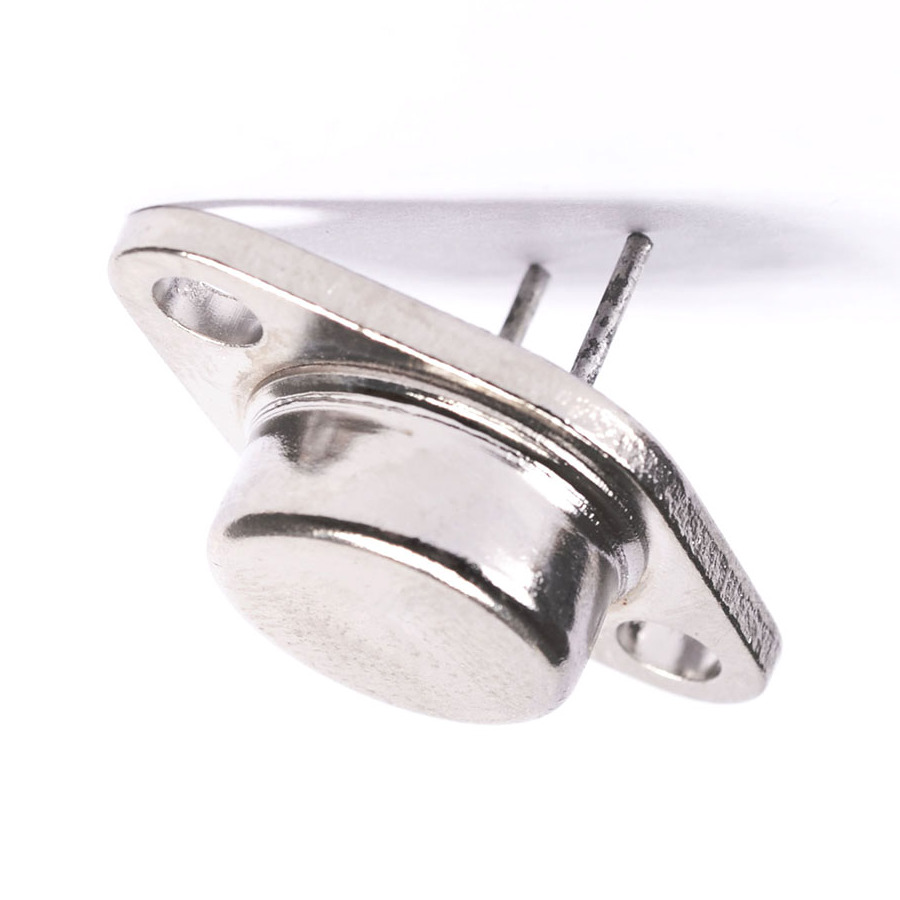

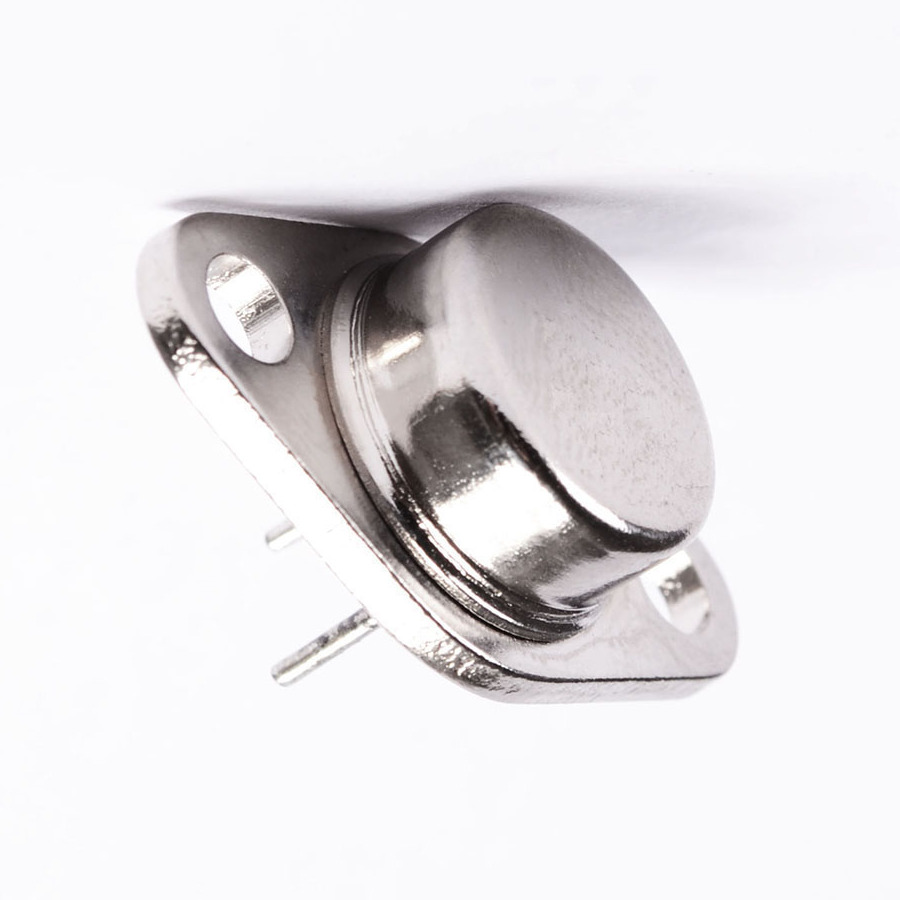

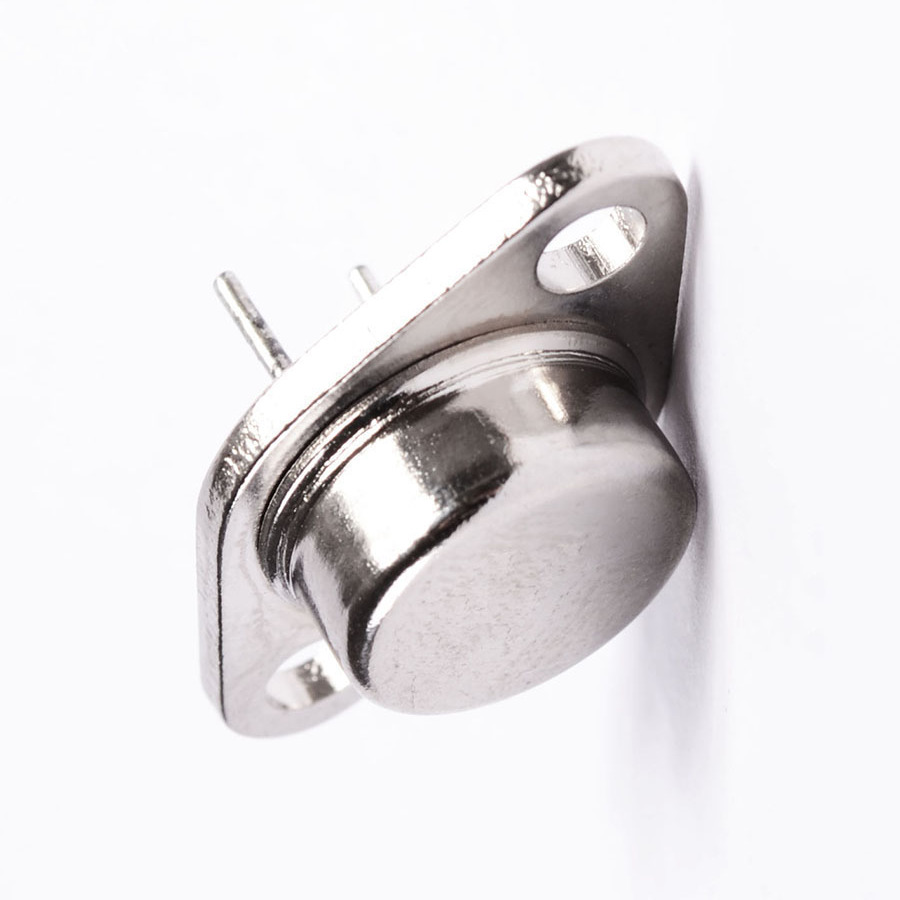

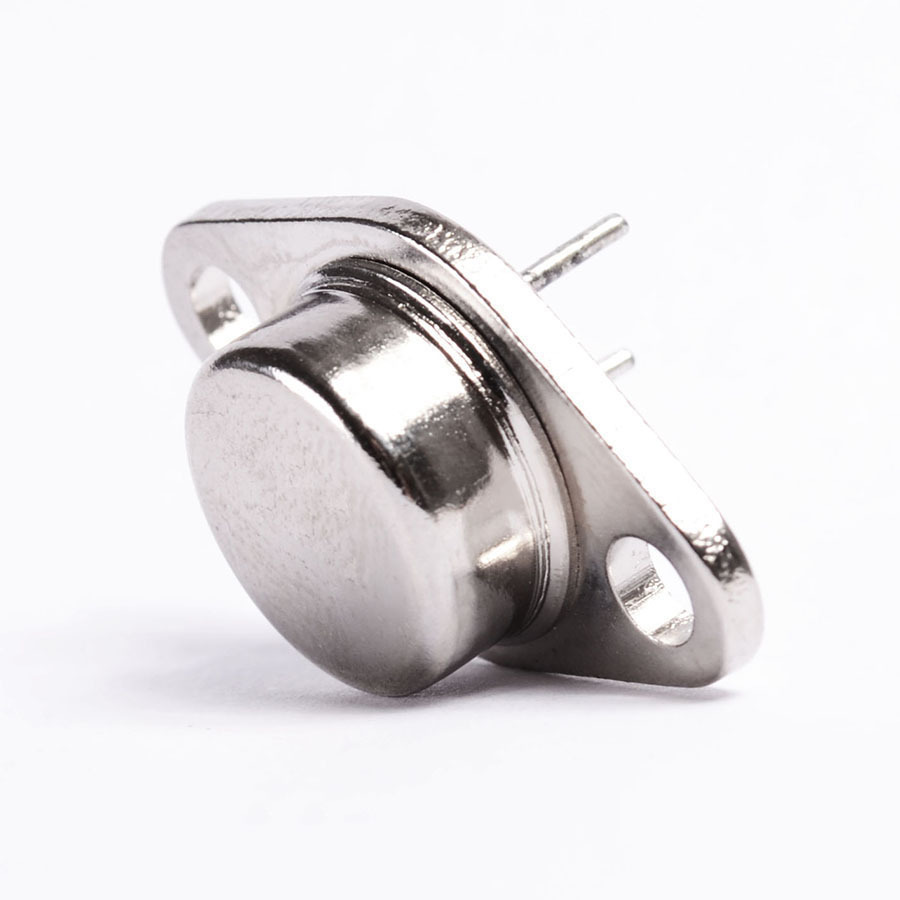

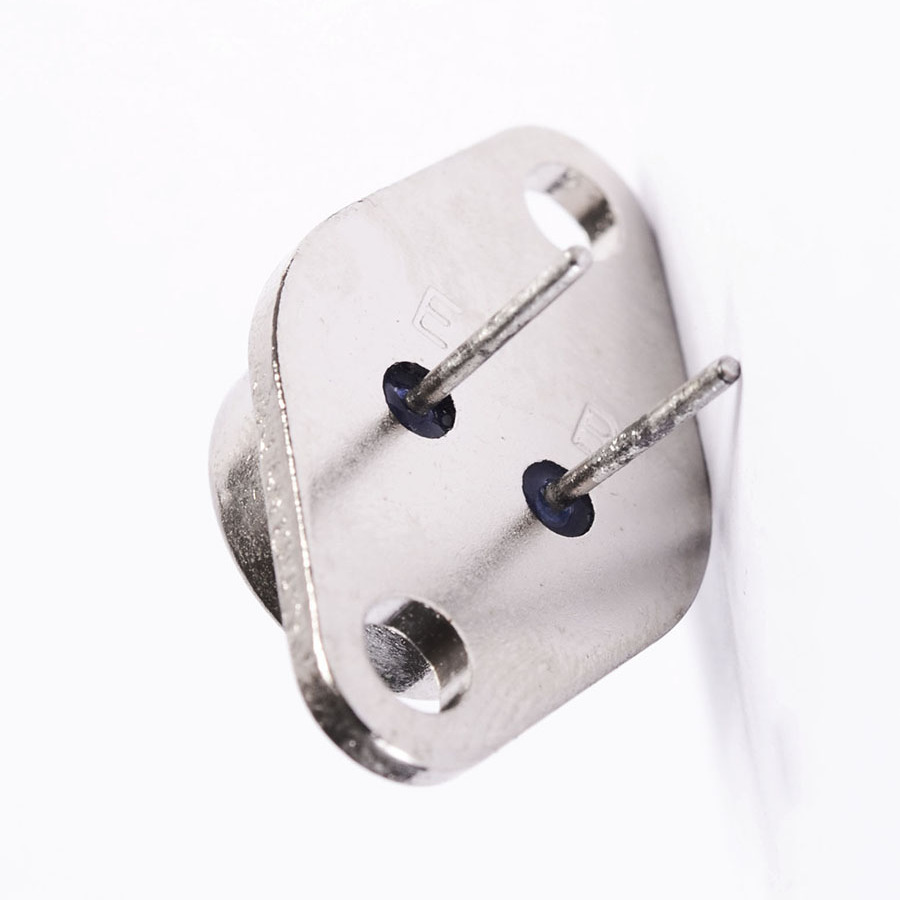

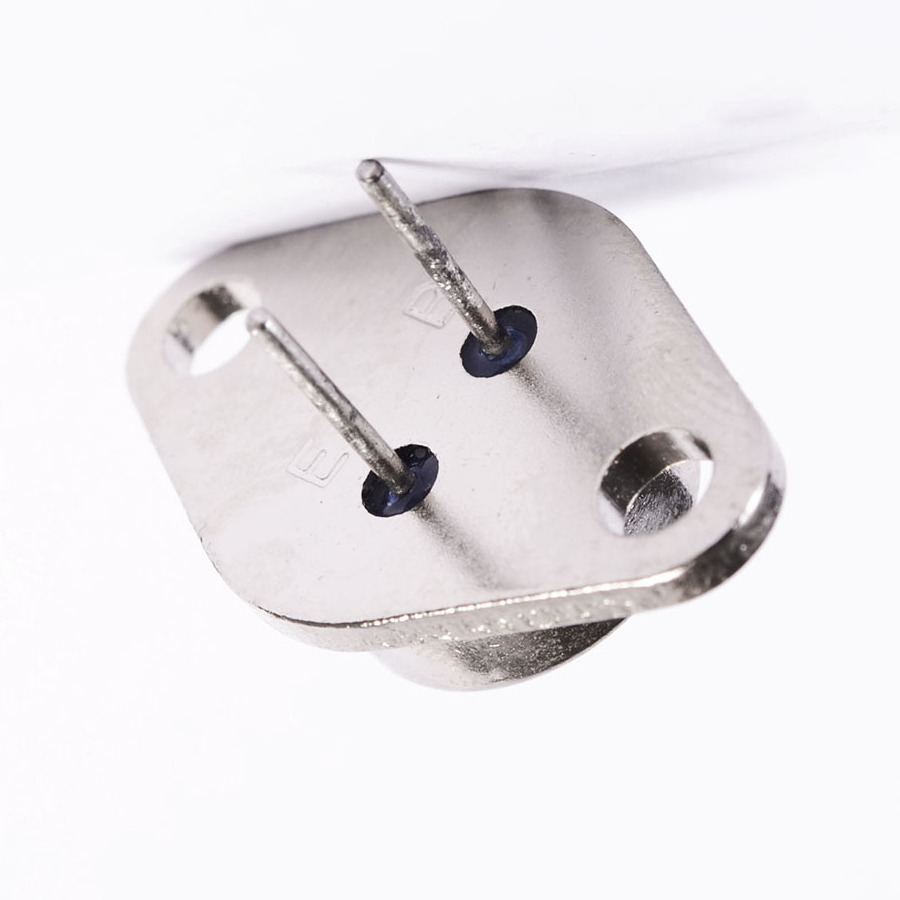

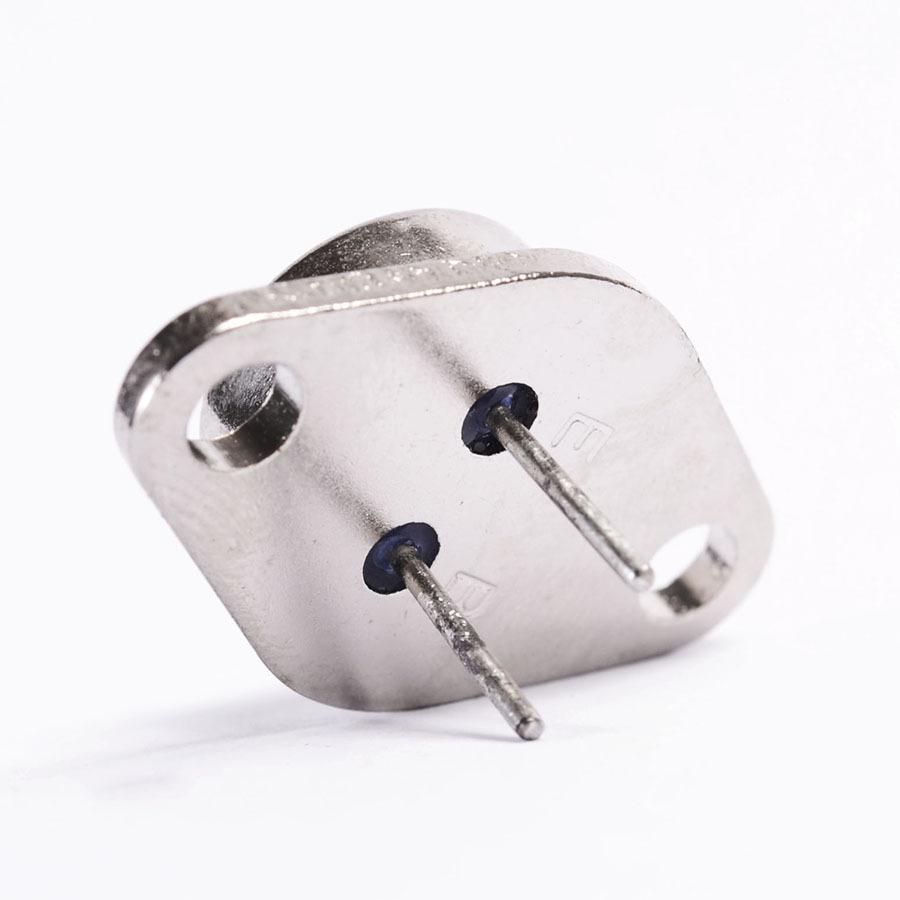

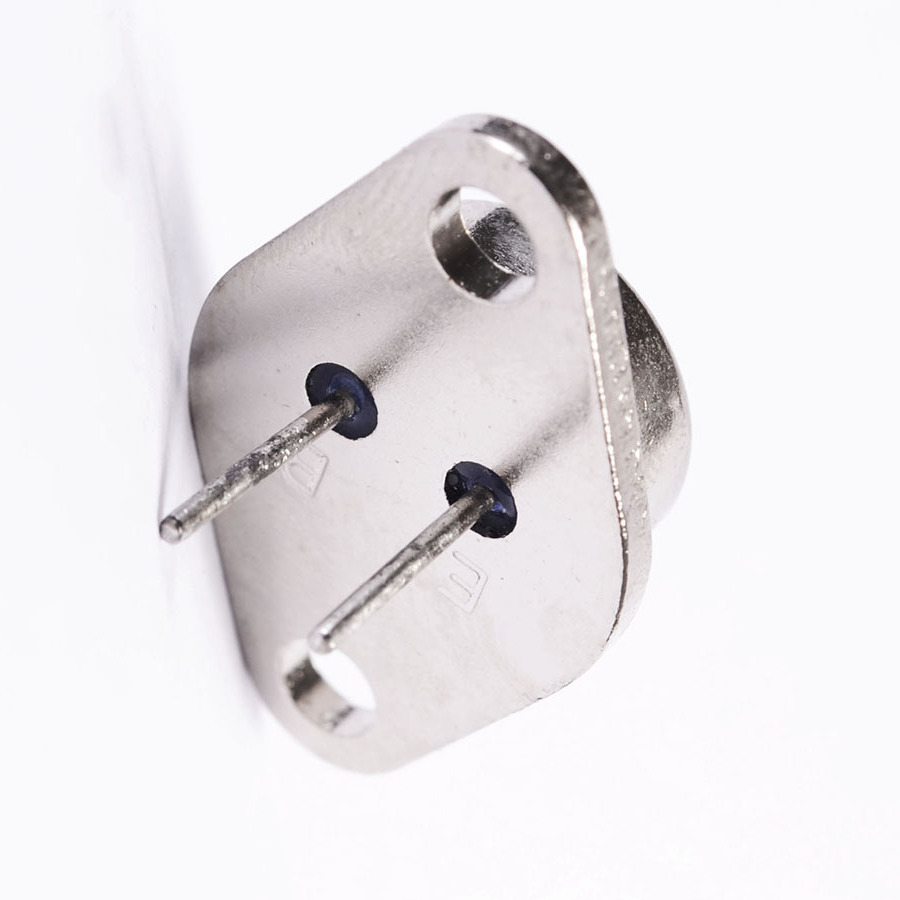

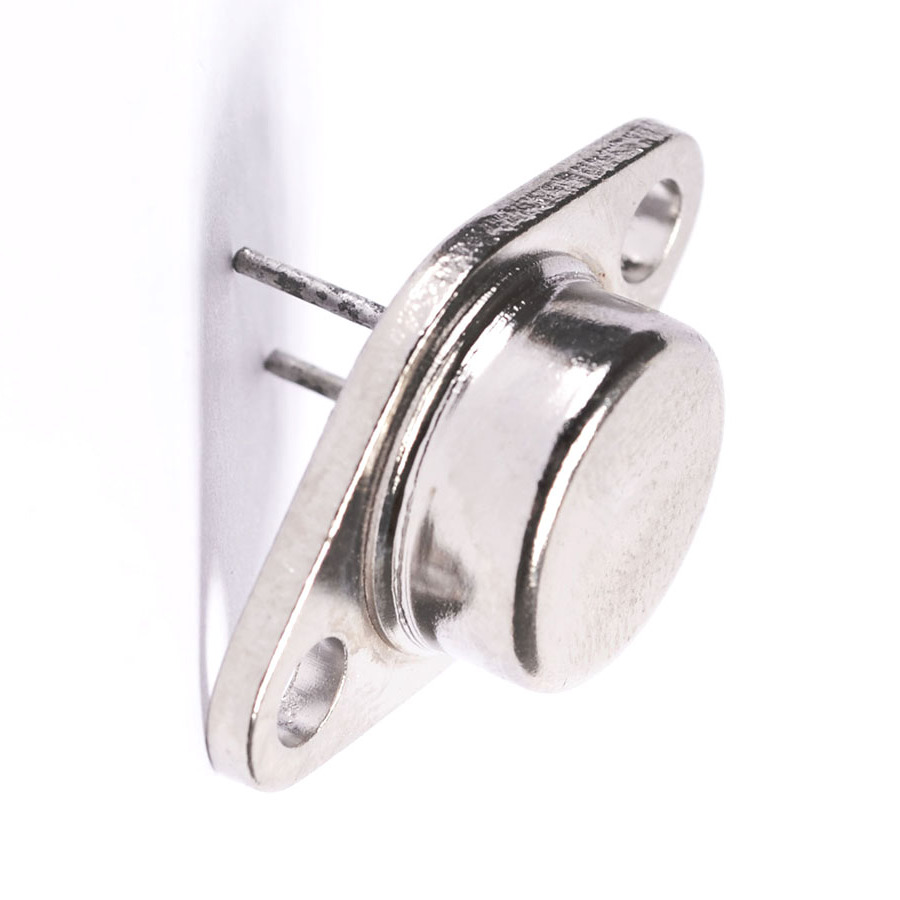

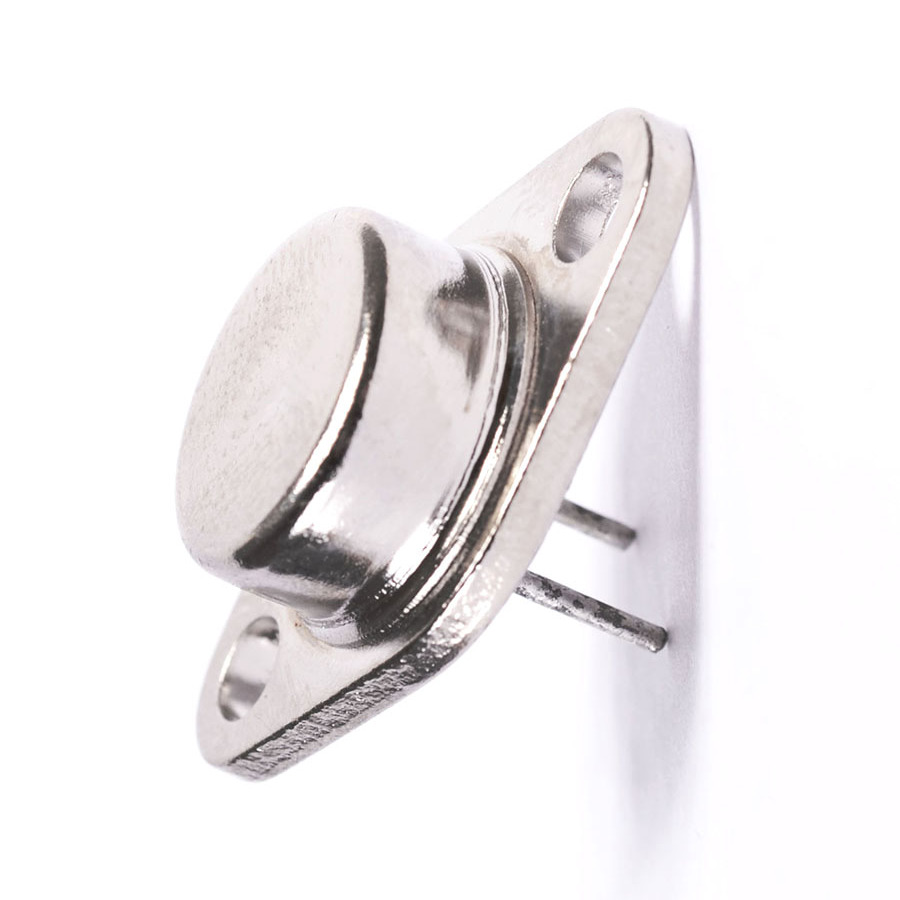

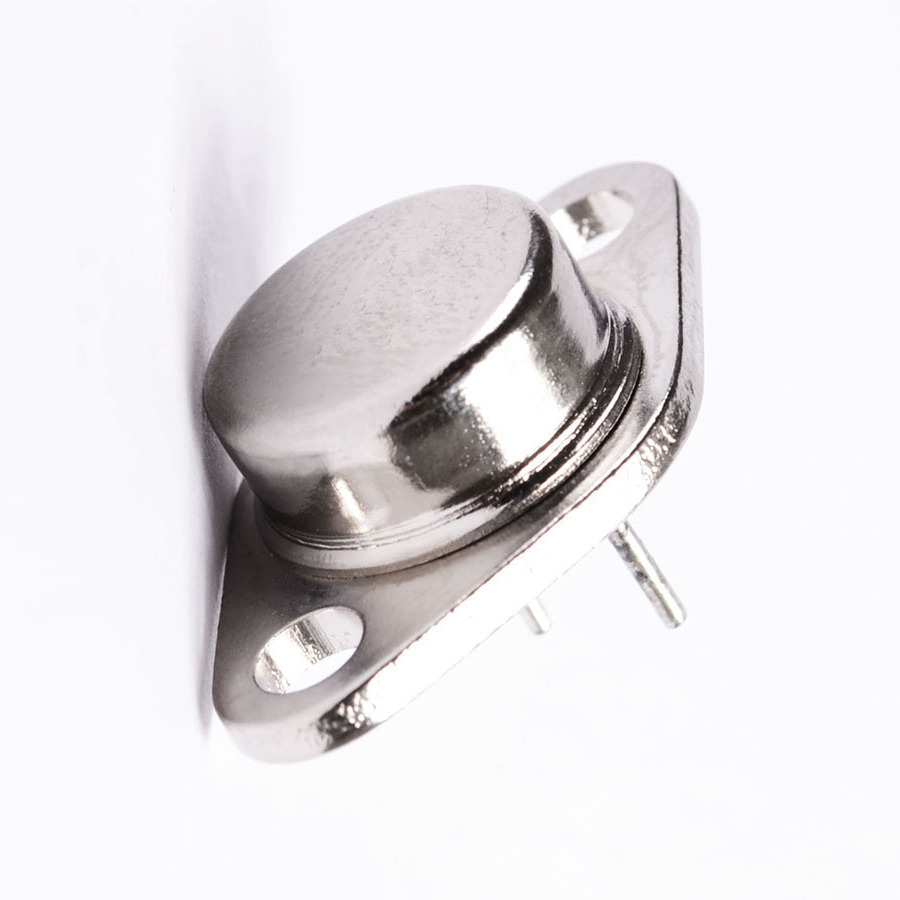

2SC2970 Transistor Silicon NPN CASE: SOT9 MAKE: Origin Electric
Product specifications
Type Transistor Silicon NPN
Case SOT9
Manufacturer Origin Electric
Vbr CBO 300
Vbr CEO 200
Max. PD (W) 40
t(f) Max. (S) 4.5u
Max. hFE 35
Min hFE 10
Ic Max. (A) 5.0
@Ic (test) (A) 20
Icbo Max. @Vcb Max. (A) 30u
Polarity NPN
R(sat) (Û) 500m
Derate Above 25°C 3
@VCE (V) 5
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 40 W
Maximum Collector-Base Voltage |Vcb| 300 V
Maximum Collector Current |Ic max| 5 A
Max. Operating Junction Temperature (Tj) 175 °C
Forward Current Transfer Ratio (hFE), MIN 30
SKU 560484
