2SC3019
View detailed images (13)

2SC3019

SKU: 2SC3019

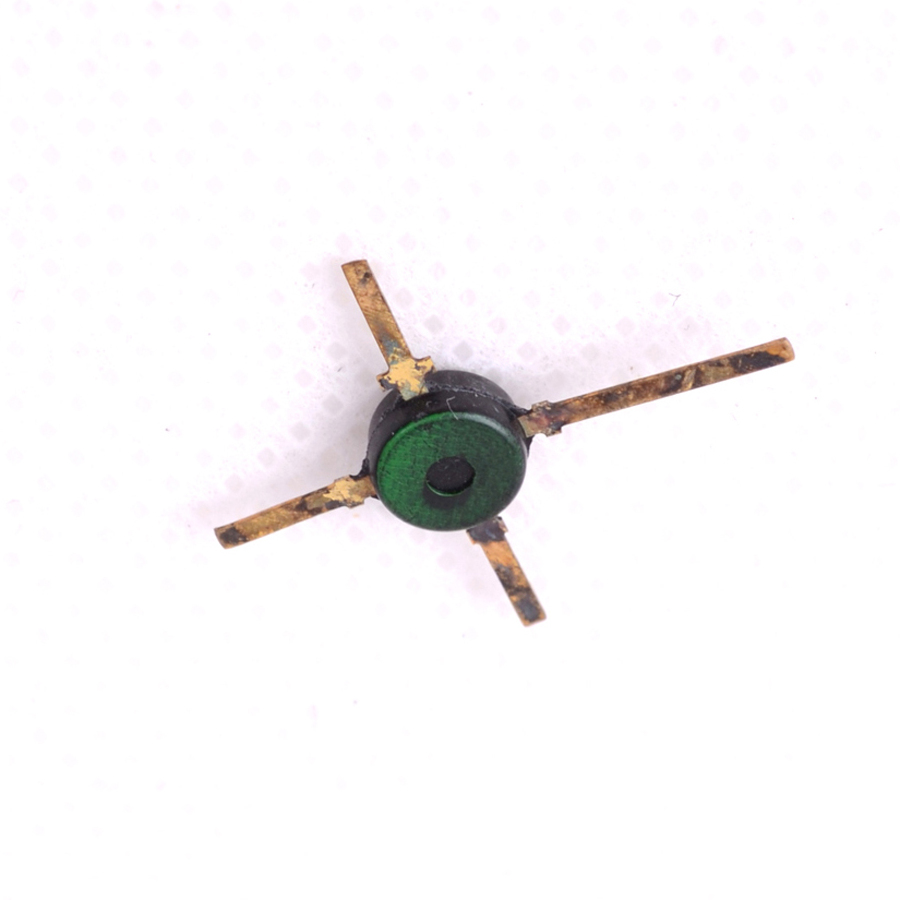

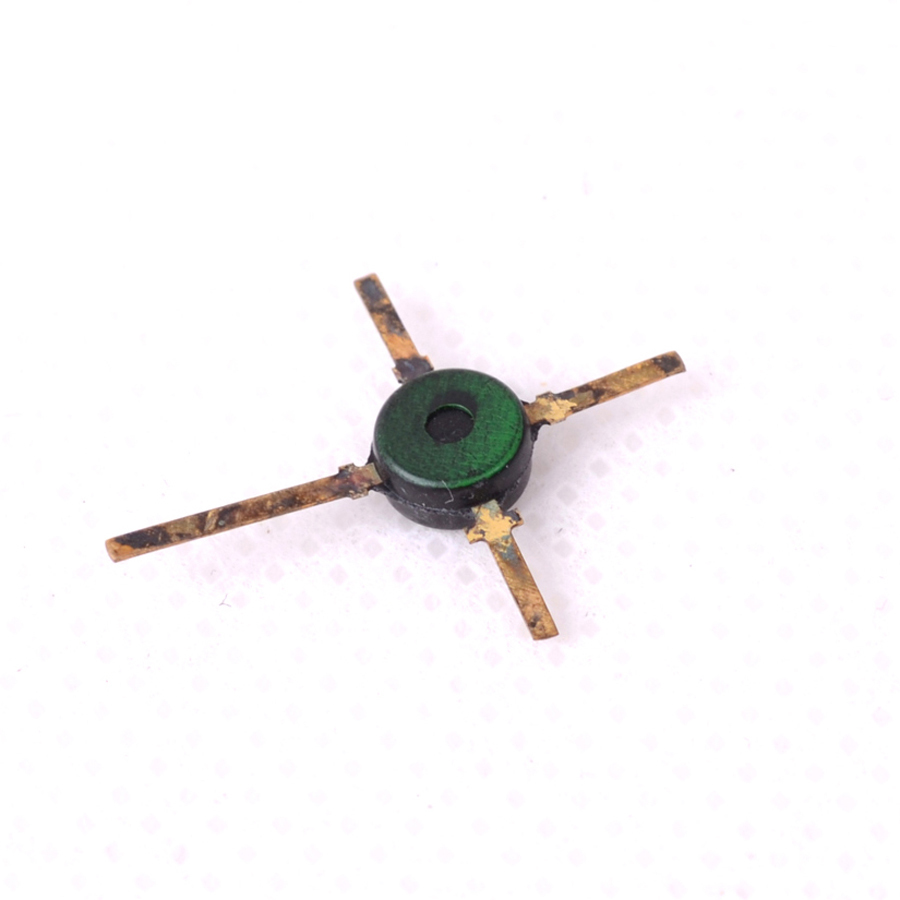

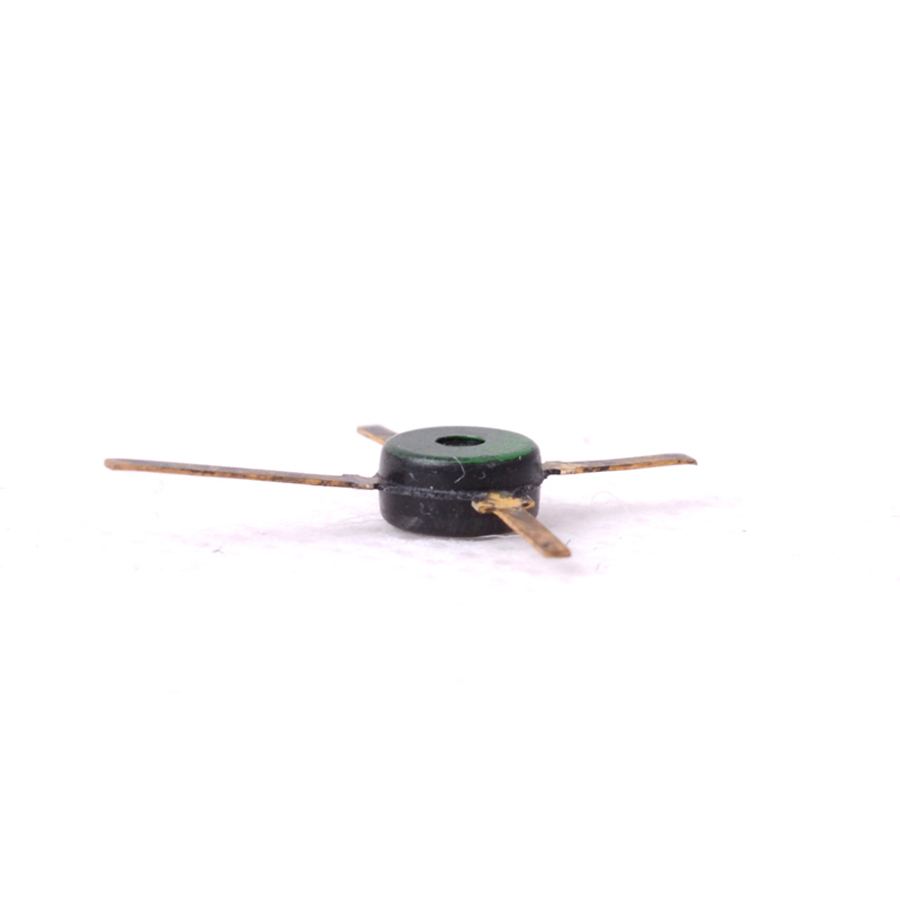

2SC3019 Transistor Silicon NPN - CASE: SOT103 MAKE: Mitsubishi
Price: £11.99
+ VAT 20% for UK purchases
£11.99
Qty
+ VAT 20% for UK purchases
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case SOT103
Manufacturer Mitsubishi
Vbr CBO 35
Vbr CEO 17
Max. PD (W) 0.6
Max. hFE 180
Min hFE 20
Ic Max. (A) 0.4
@Ic (test) (A) 50n
Icbo Max. @Vcb Max. (A) 500u
Polarity NPN
Derate Above 25°C 7.0m
Trans. Freq (Hz) Min. 2G
Oper. Temp (°C) Max. 135
@VCE (V) 10i
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.6 W
Maximum Collector-Base Voltage |Vcb| 35 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 0.4 A
Max. Operating Junction Temperature (Tj) 125 °C
Transition Frequency (ft): 520 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SKU 83133
