2SC3020

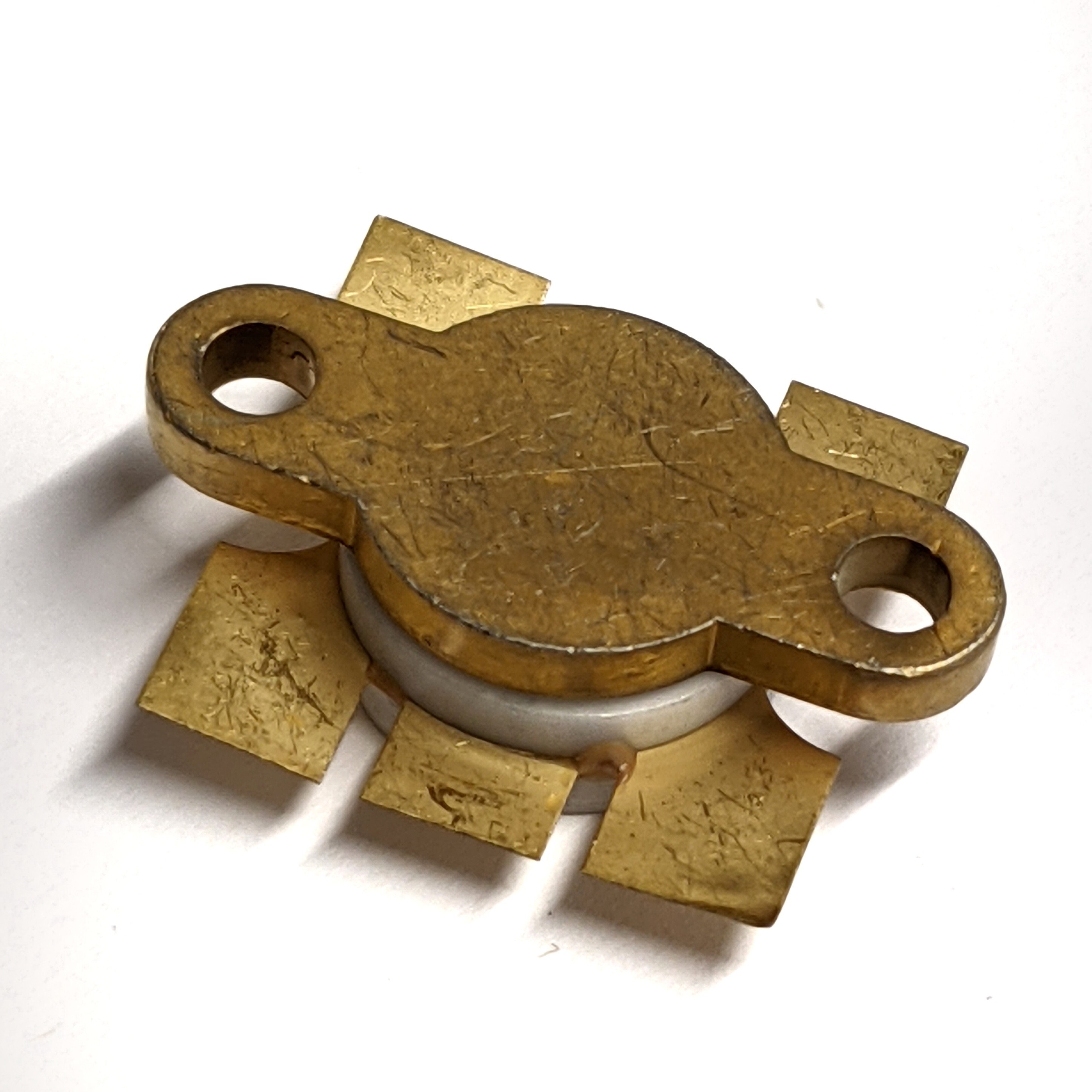

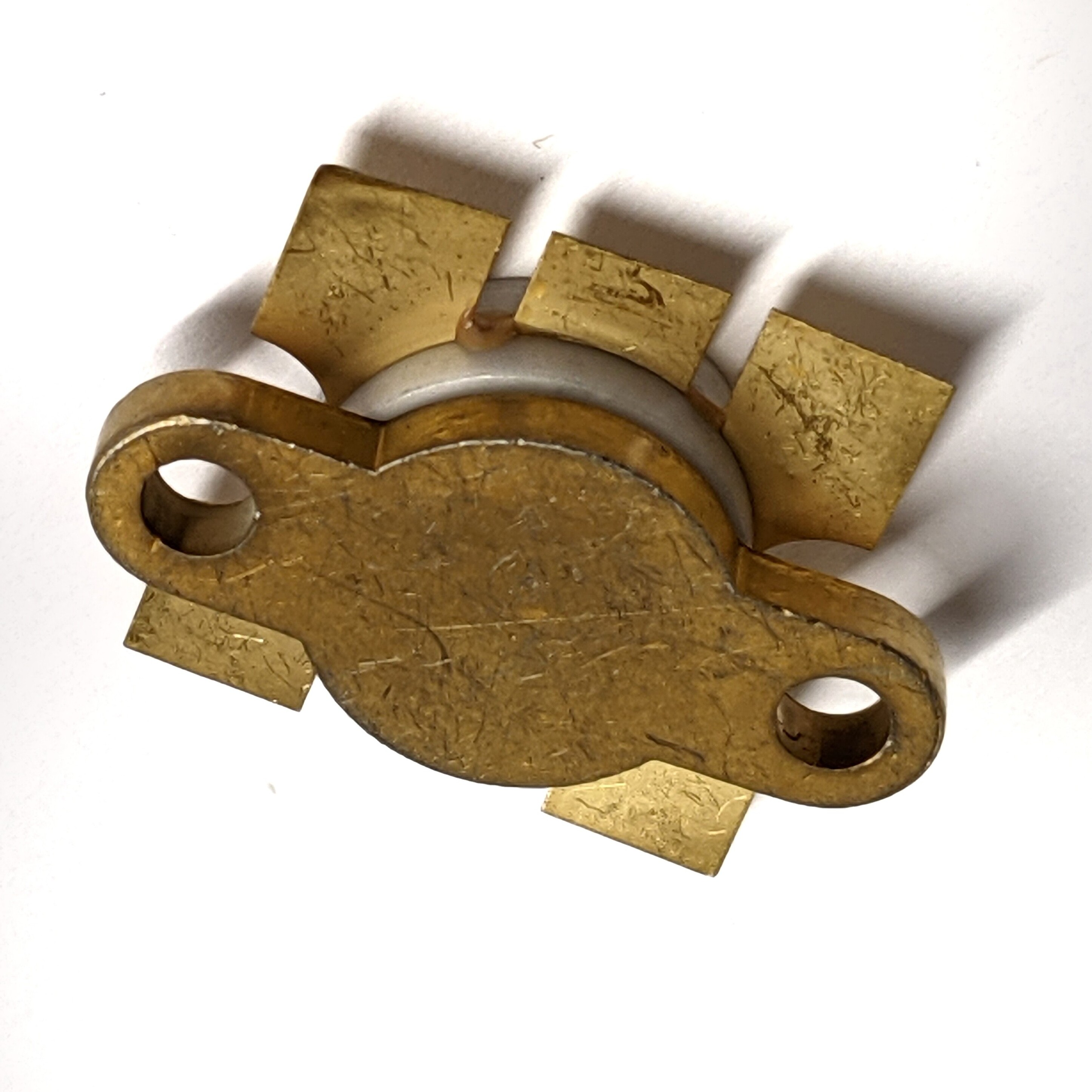

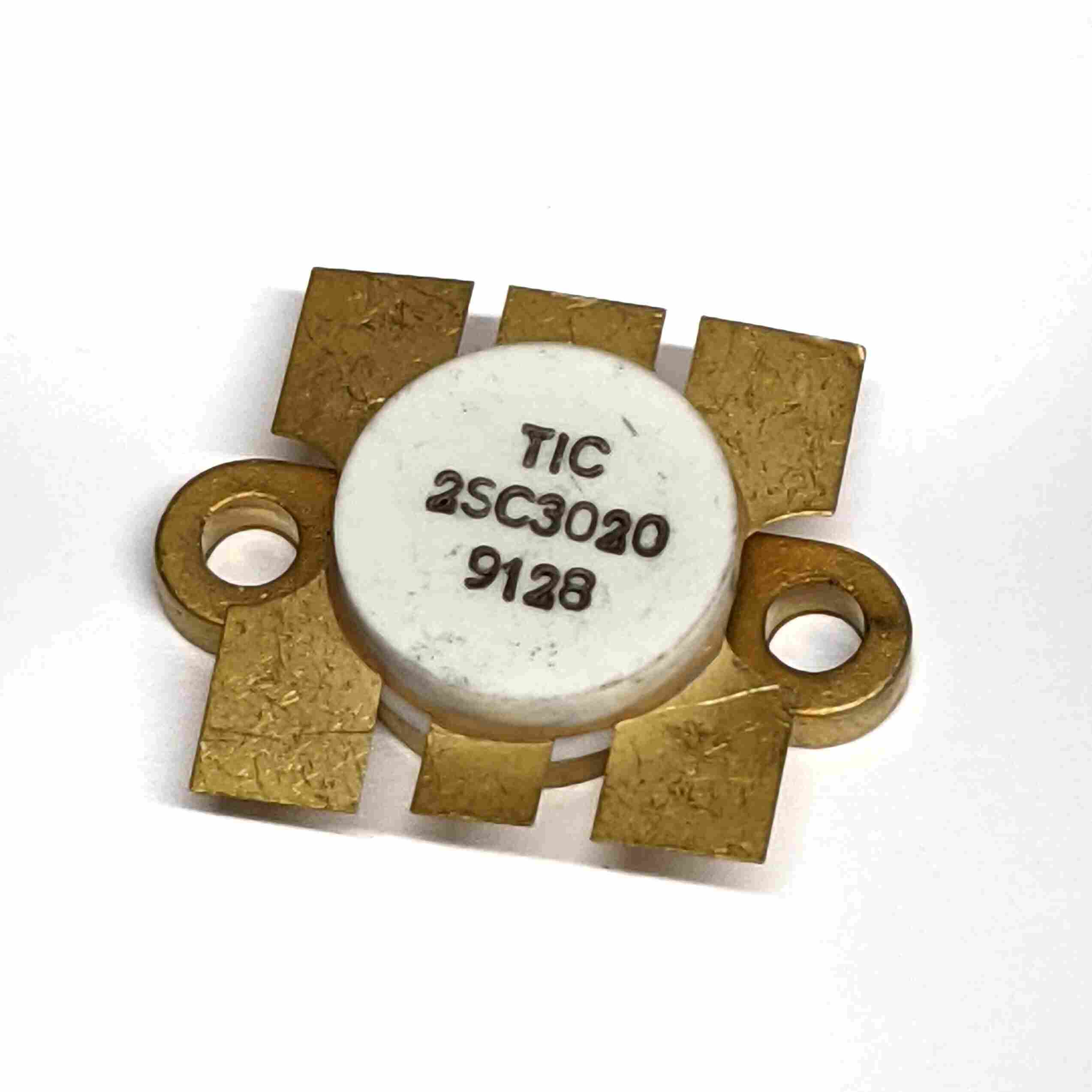

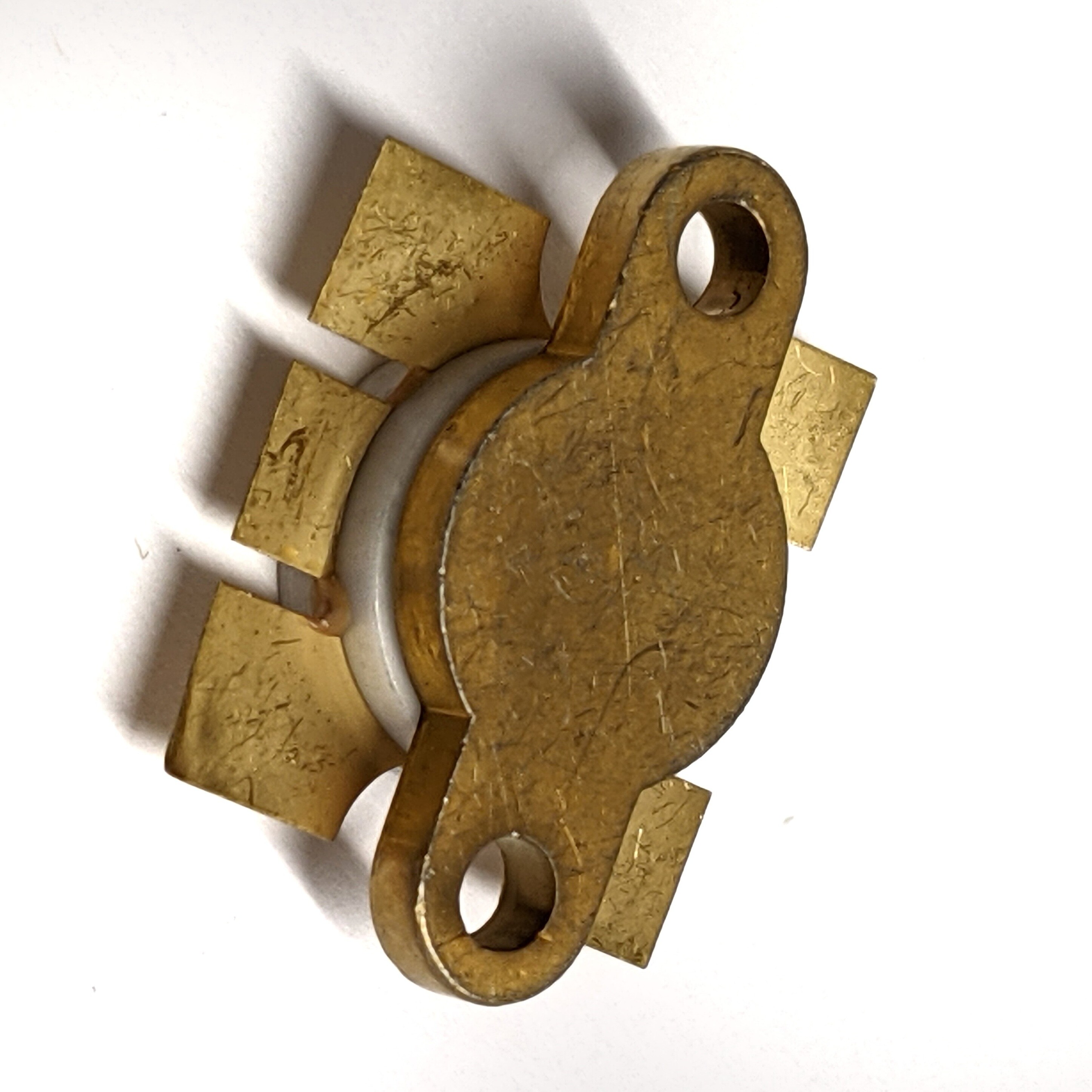

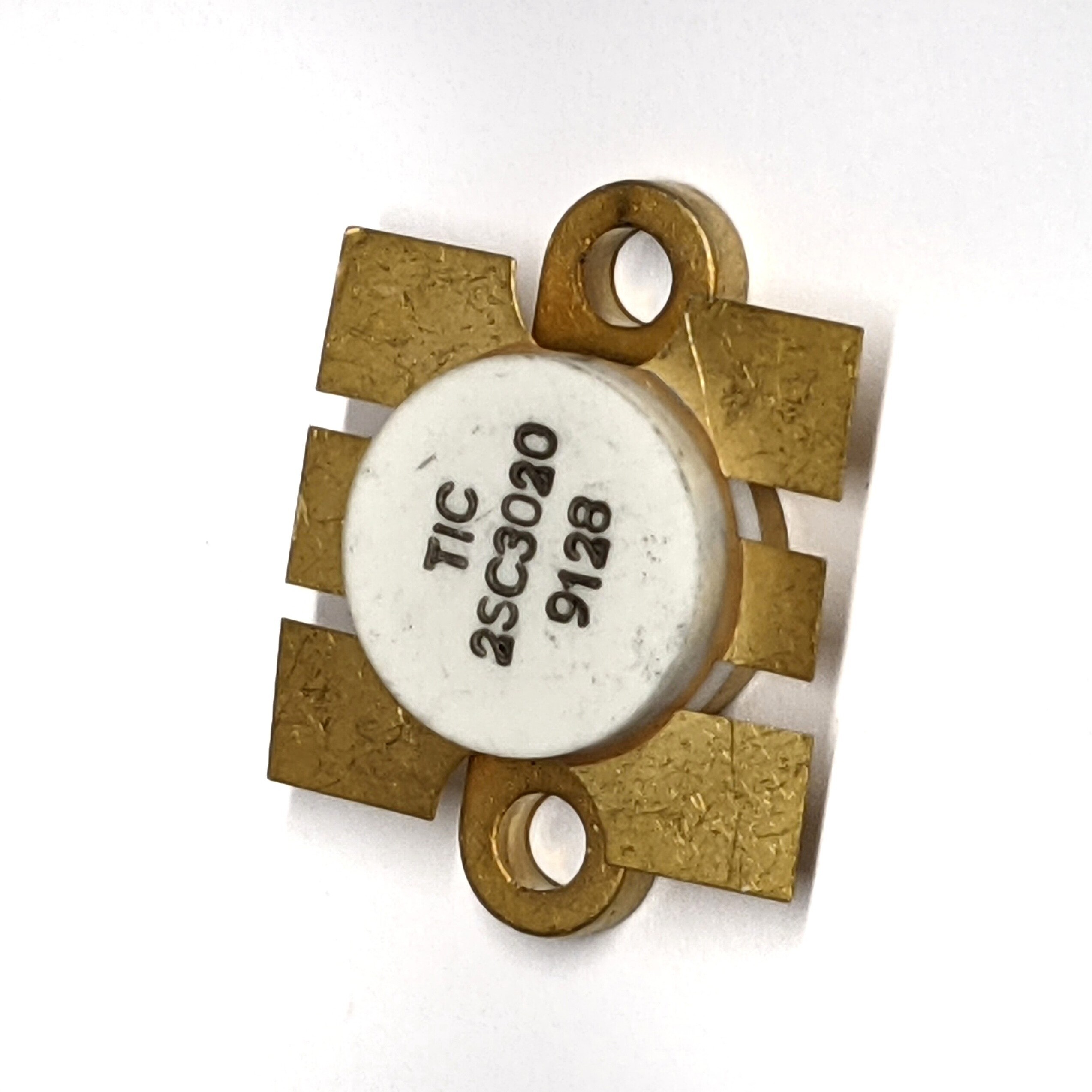

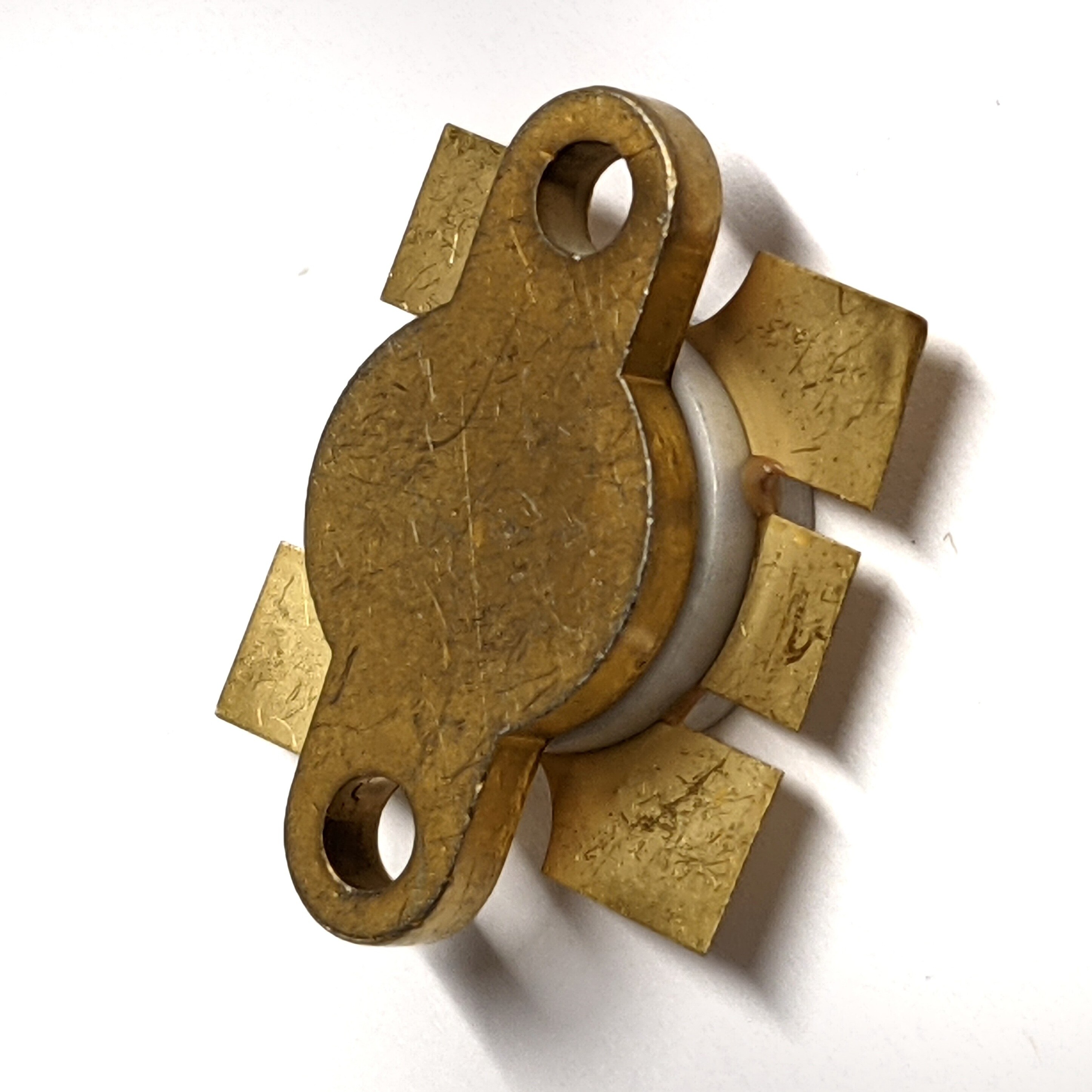

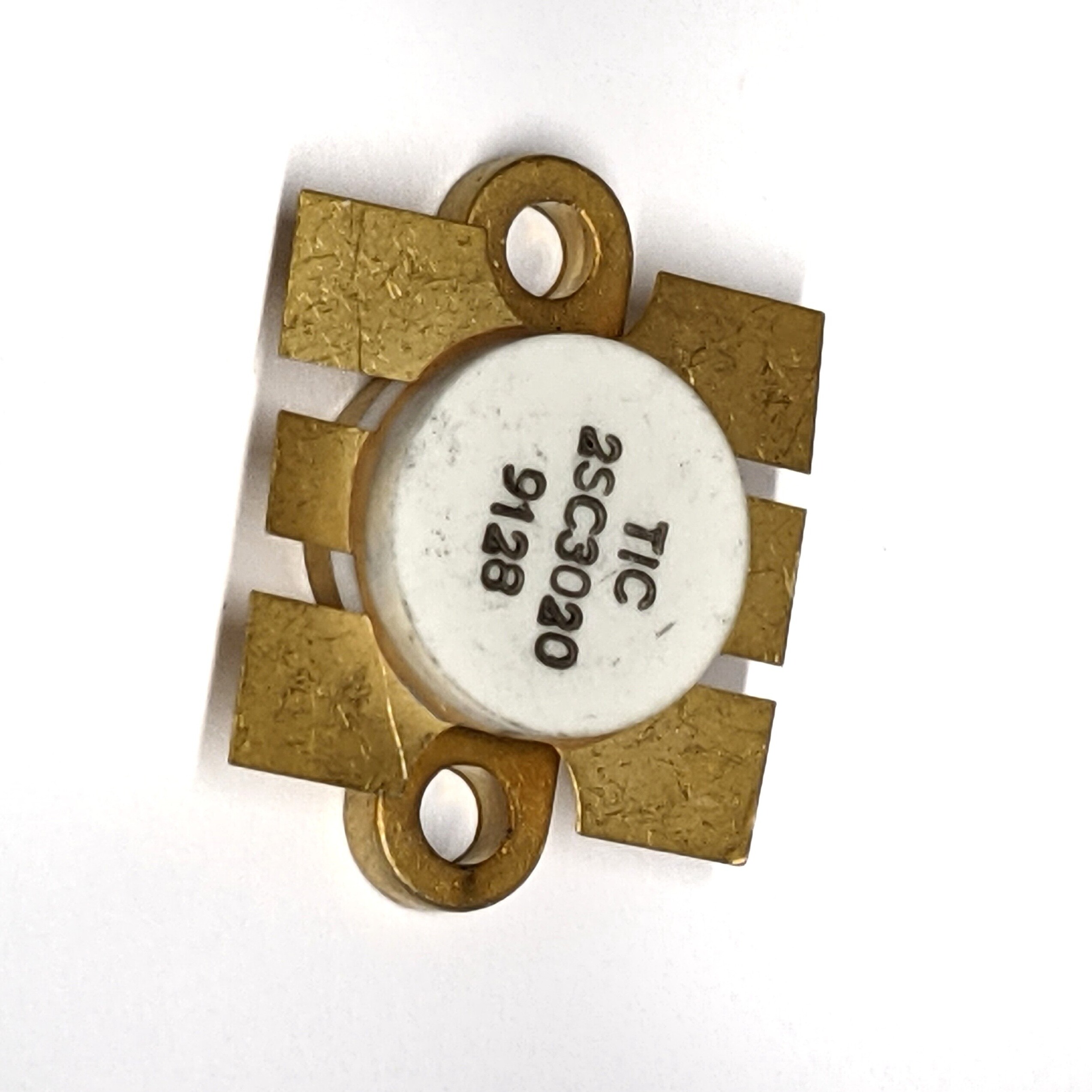

View detailed images (9)

2SC3020

SKU: 2SC3020
2SC3020 Transistor - Case: XM5 Make: Mitsubishi
Price: £23.99
+ VAT 20% for UK purchases
£23.99
Qty
+ VAT 20% for UK purchases
  • 1 pieces in 1-2 Days
  • More pieces shipped in 14 days
Product specifications
Type Transistor Silicon NPN
Manufacturer Mitsubishi
Case XM5
Vbr CBO 35
Vbr CEO 17
Max. PD (W) 10
Max. hFE 180
Min hFE 10
Ic Max. (A) 1.0
@Ic (test) (A) 0.1
Icbo Max. @Vcb Max. (A) 300u
Polarity NPN
Derate Above 25°C 66m
Oper. Temp (°C) Max. 175
@VCE (V) 10i
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 10 W
Maximum Collector-Base Voltage |Vcb| 35 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 175 °C
Transition Frequency (ft): 520 MHz
Forward Current Transfer Ratio (hFE), MIN 30
SKU 366373
