2SC3102
View detailed images (4)

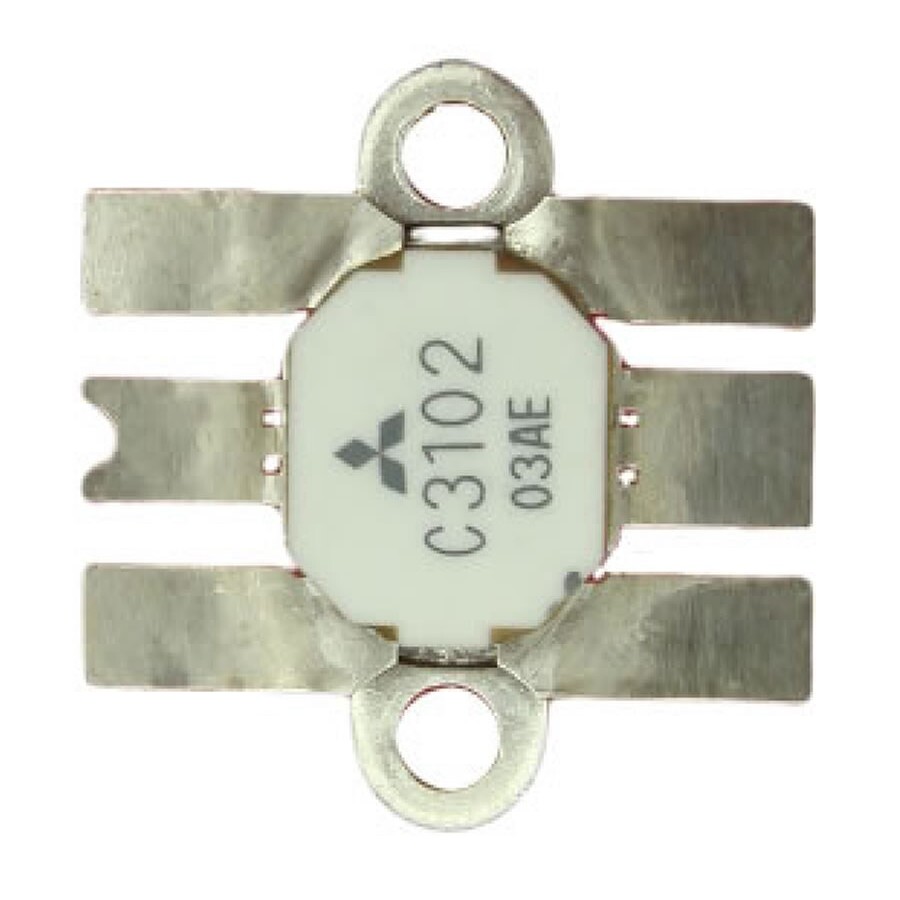

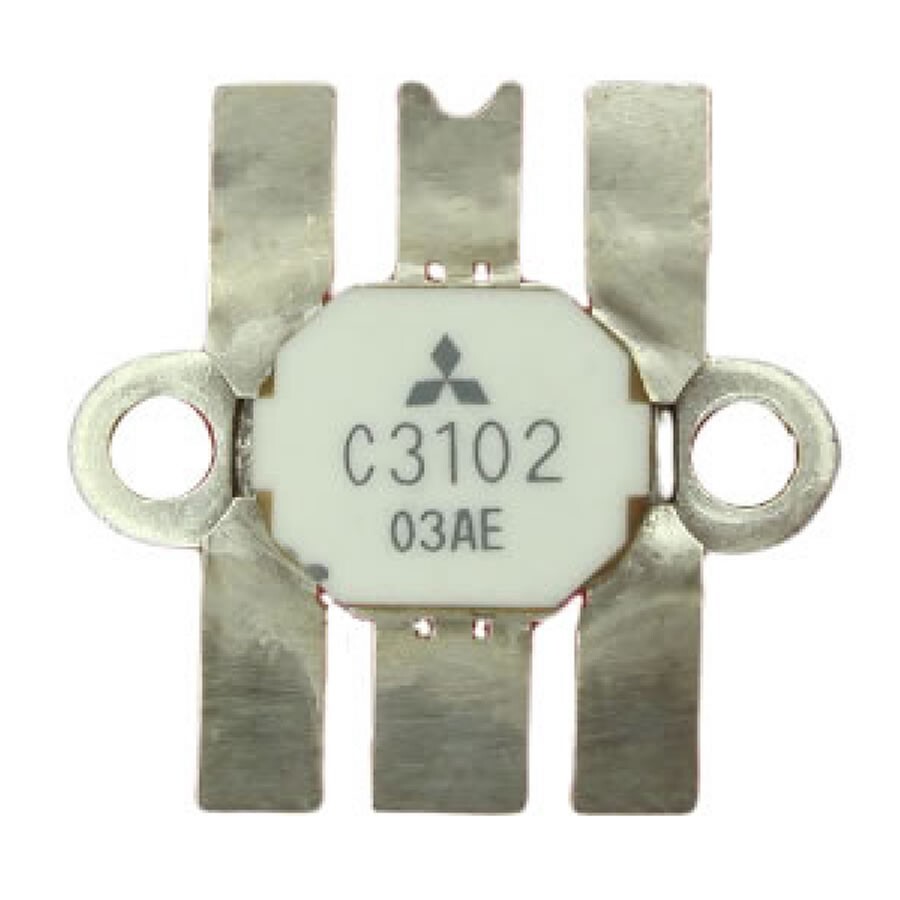

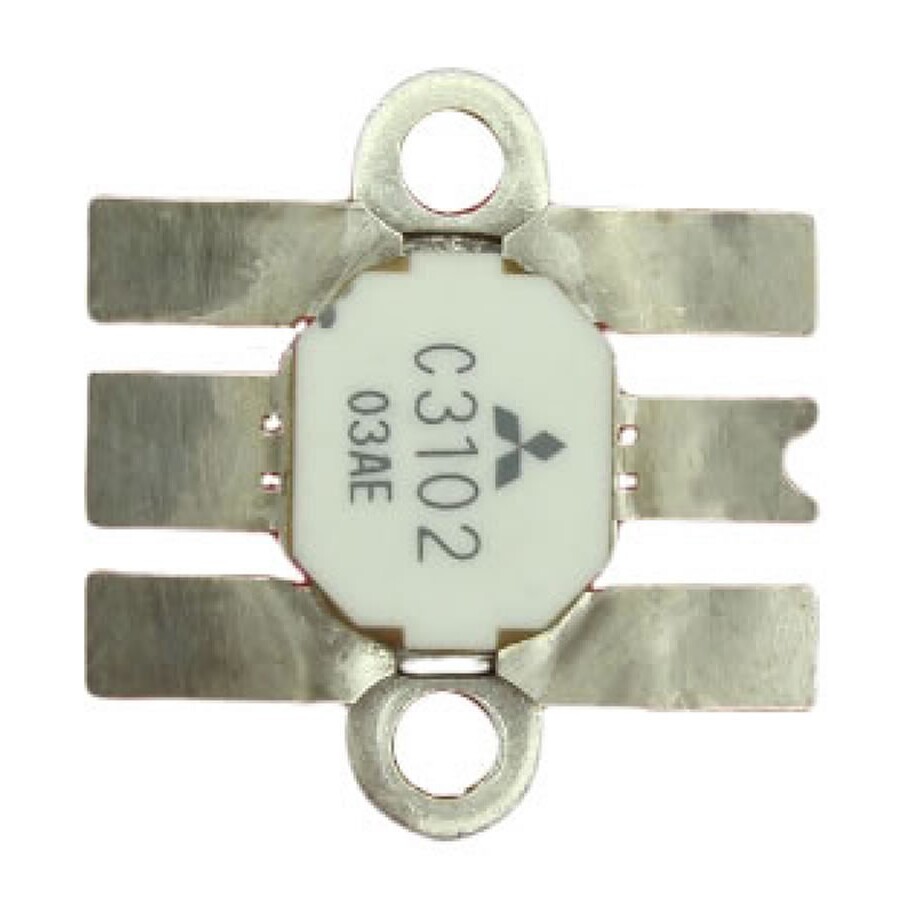

2SC3102

SKU: 2SC3102
2SC3102 Transistor CASE: VHFPOWER MAKE: Mitsubishi
Price:
£76.79 Inc. VAT (£63.99 Ex. VAT)
£76.79 Inc. VAT (£63.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
2SC3102 Datasheet
Product specifications
Type Transistor
Case VHFPOWER
Manufacturer Mitsubishi
Vbr CBO 35
@Freq. (test) 520M
@Ic (A) 20
@Ic (A) 60
Mat. Silicon Logic
Oper. Gain Typ (S21) 50
Oper. Pwr Out Typ. 65
f(osc) Max. (Hz) 520M
Polarity NPN
PD Max. (W) 170
S11 Deg. (Typ) 1.0
S11 Mag Typ. 1.0
S22 Deg. Typ. 0.8
S22 Mag Typ. 1.25
@VDS (VCE) (test) (V) 12
Coll. (or drain) Current Max. 18
@Freq. (test) 520M
@VCE (test) 12
Oper. Temp (°C) Max. 175
Pinout Equivalence Number 6-39
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 170 W
Maximum Collector-Base Voltage |Vcb| 35 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 18 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 520 MHz
Forward Current Transfer Ratio (hFE), MIN 15
