2SC3137
View detailed images (13)

2SC3137

SKU: 2SC3137

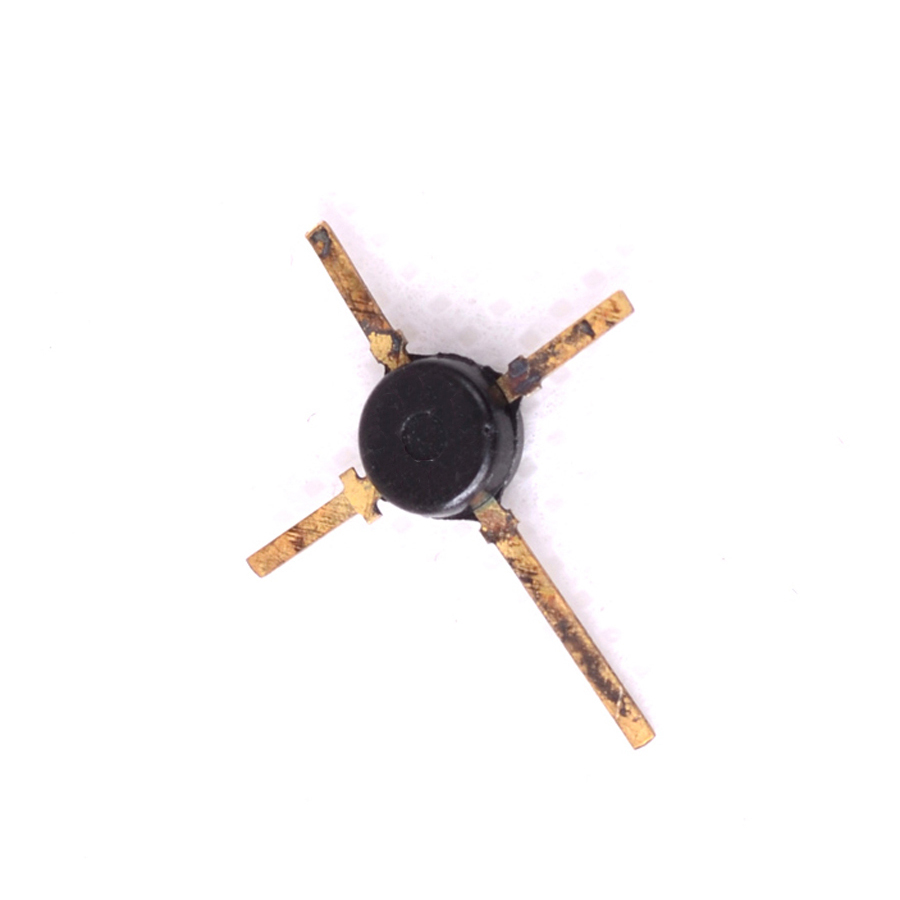

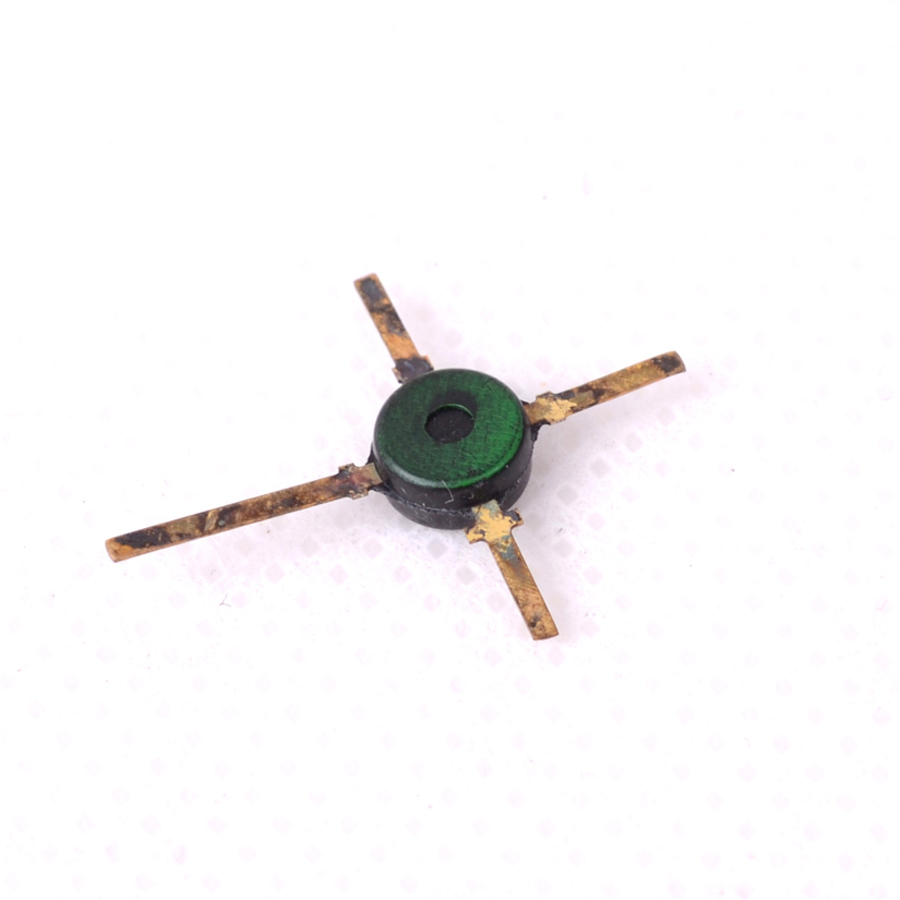

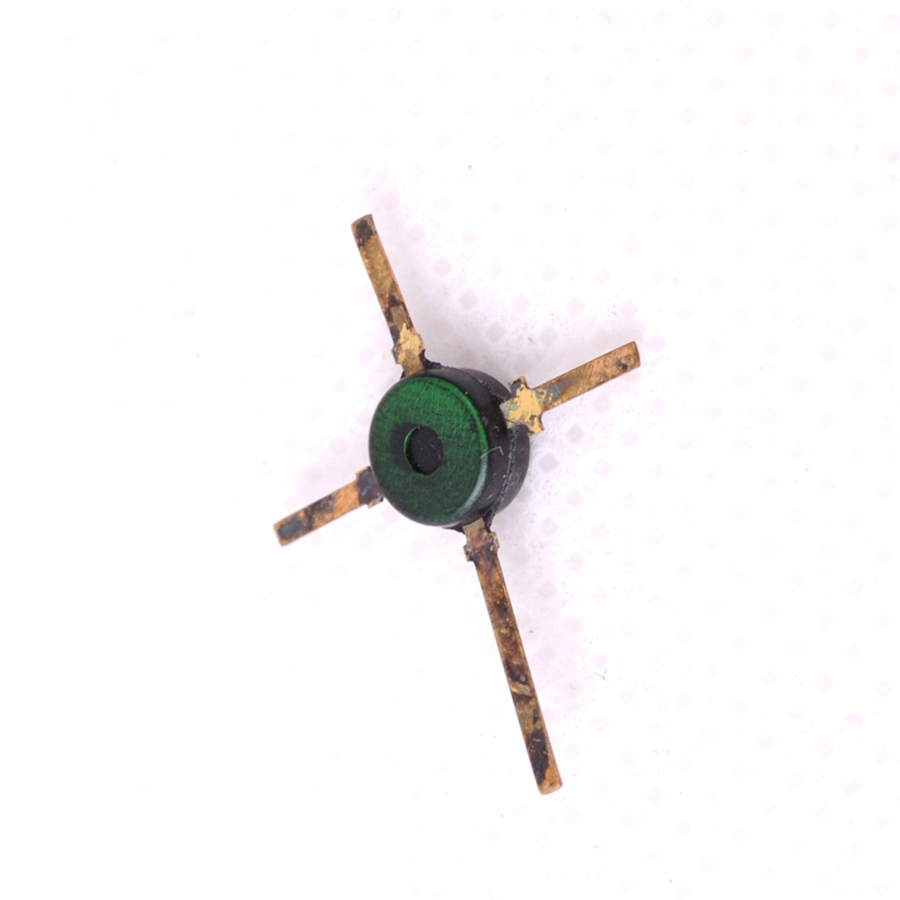

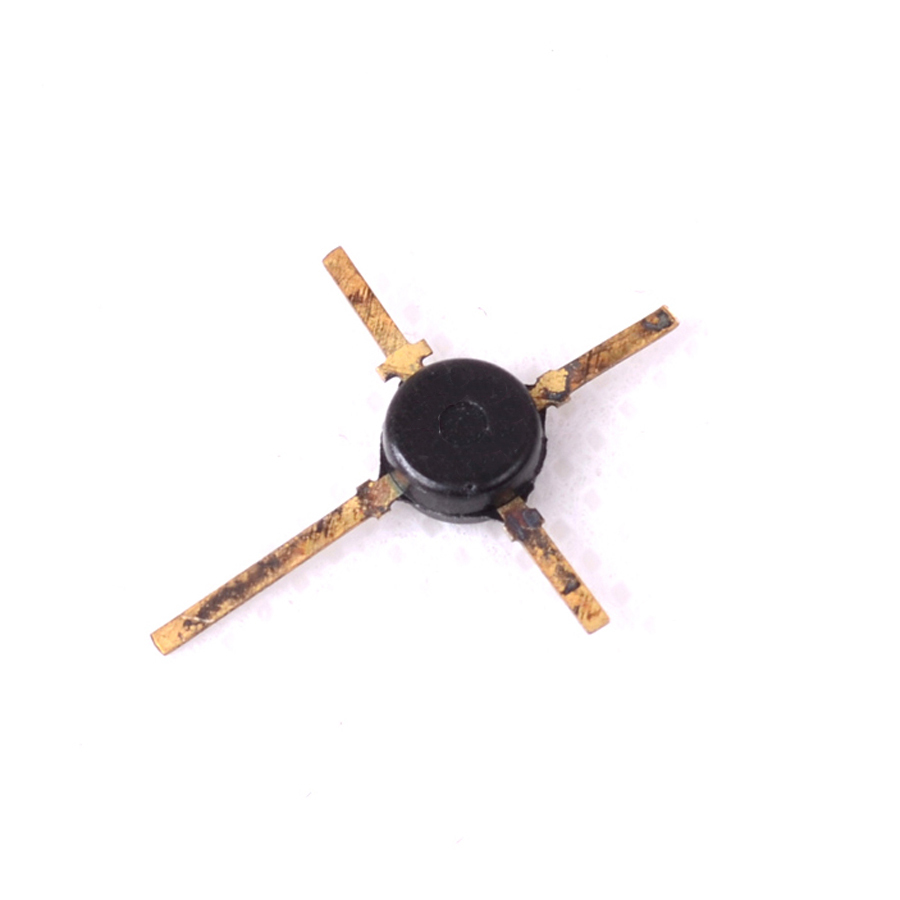

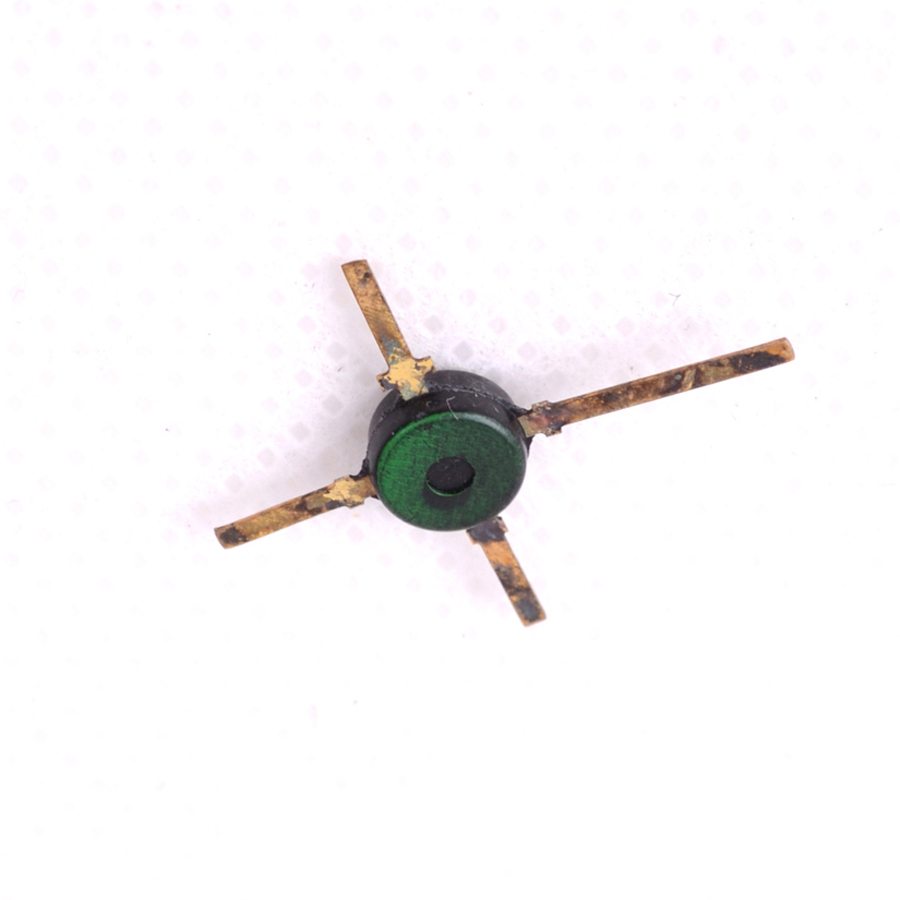

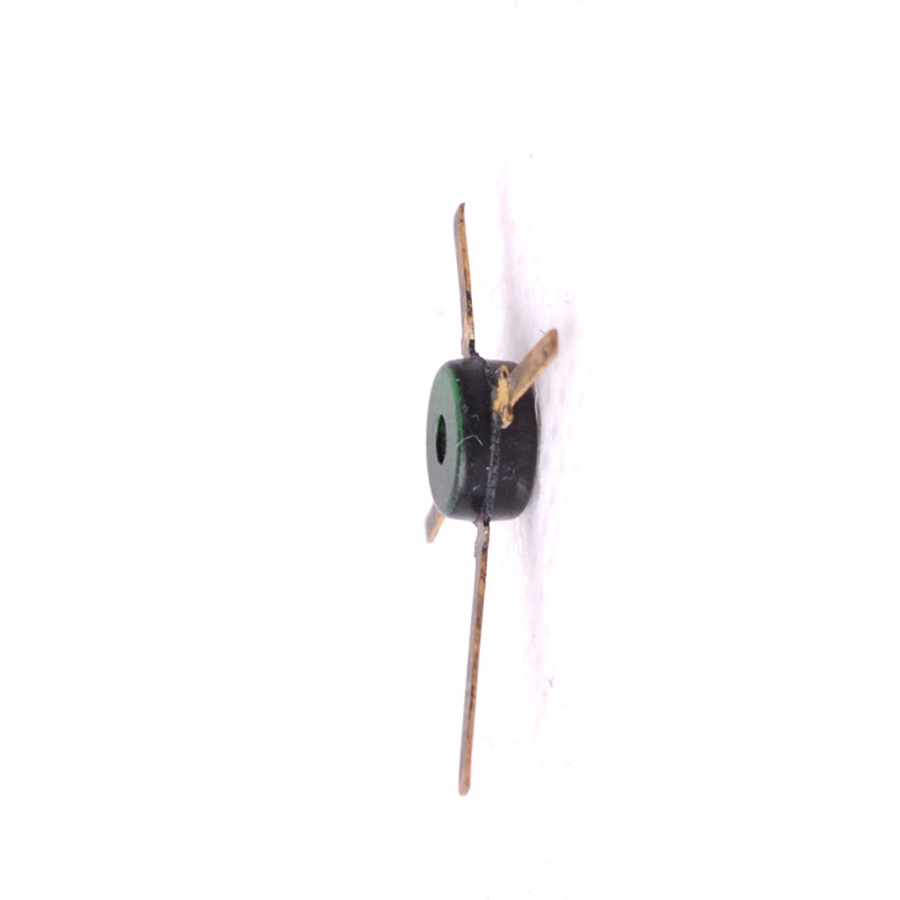

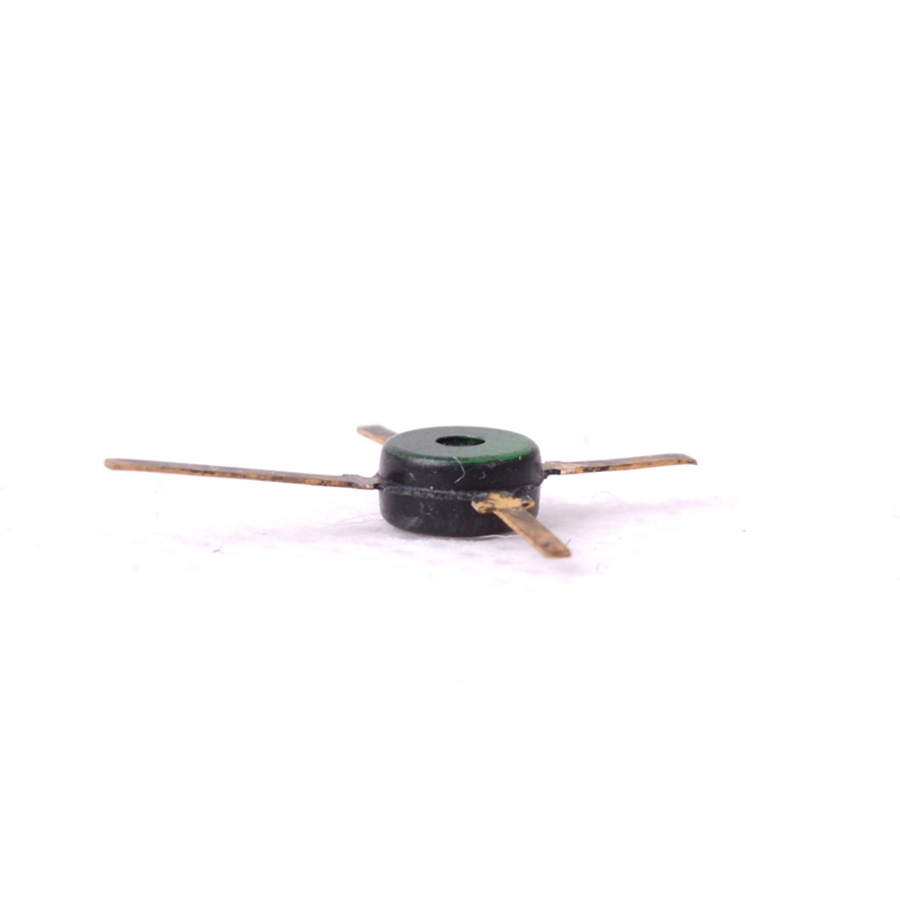

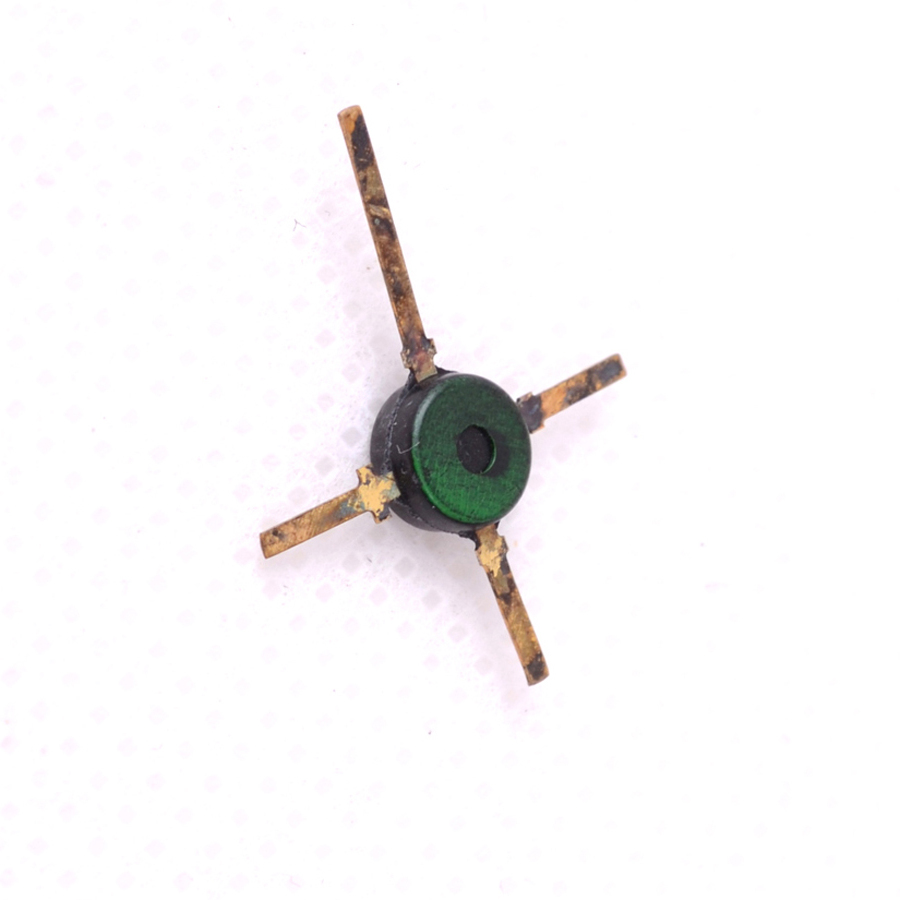

2SC3137 Transistor Silicon NPN CASE: SOT103 MAKE: Sanyo Semiconductor
Product specifications
Type Transistor Silicon NPN
Case SOT103
Manufacturer Sanyo Semiconductor
Vbr CBO 30
@Ic (A) 2.0m
Mat. Silicon Logic
Noise Fig. 8.0
Oper. Gain Typ (S21) 100
f(osc) Max. (Hz) 1.5G
Polarity NPN
PD Max. (W) 200m
Coll. (or drain) Current Max. 50m
@Freq. (test) 800M
@VCE (test) 10
Oper. Temp (°C) Max. 125
Pinout Equivalence Number 4-38
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 0.9 pF
Transition Frequency (ft): 1500 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SKU 571670
