2SC3280R
View detailed images (4)

2SC3280R

SKU: 2SC3280R

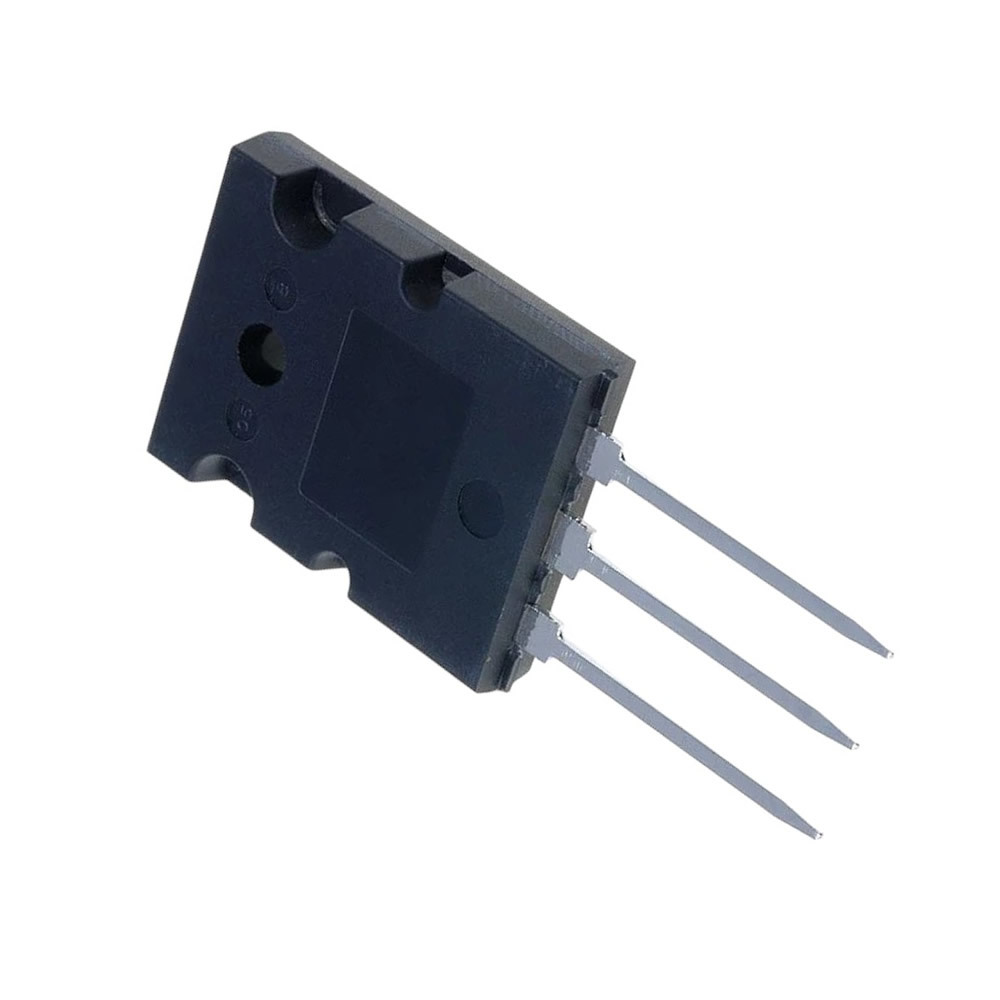

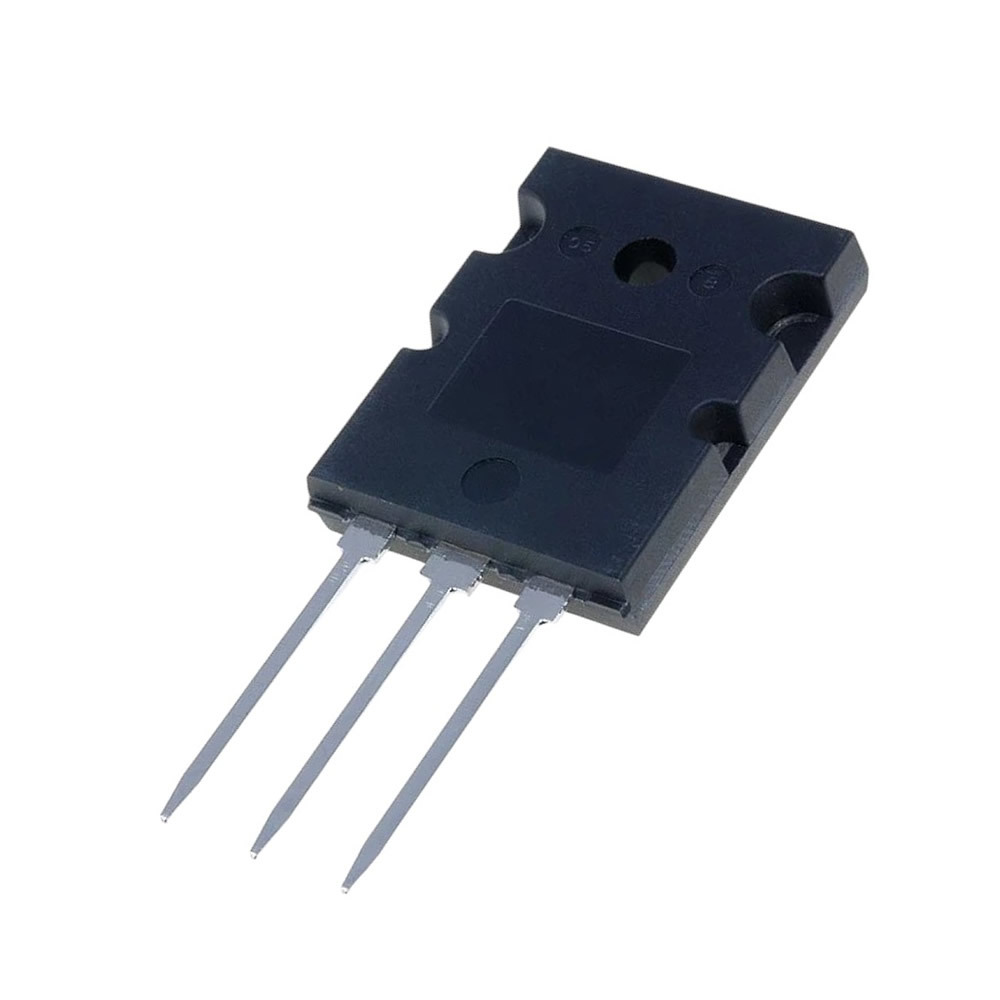

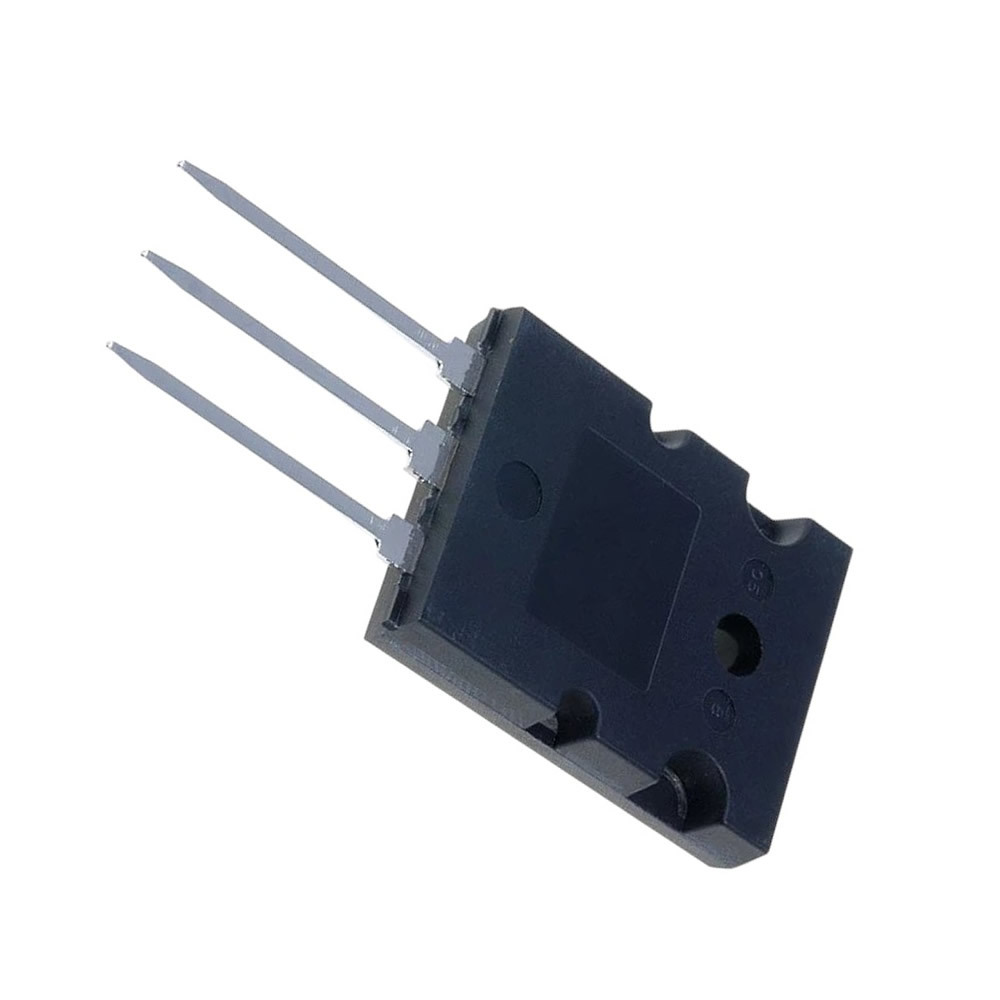

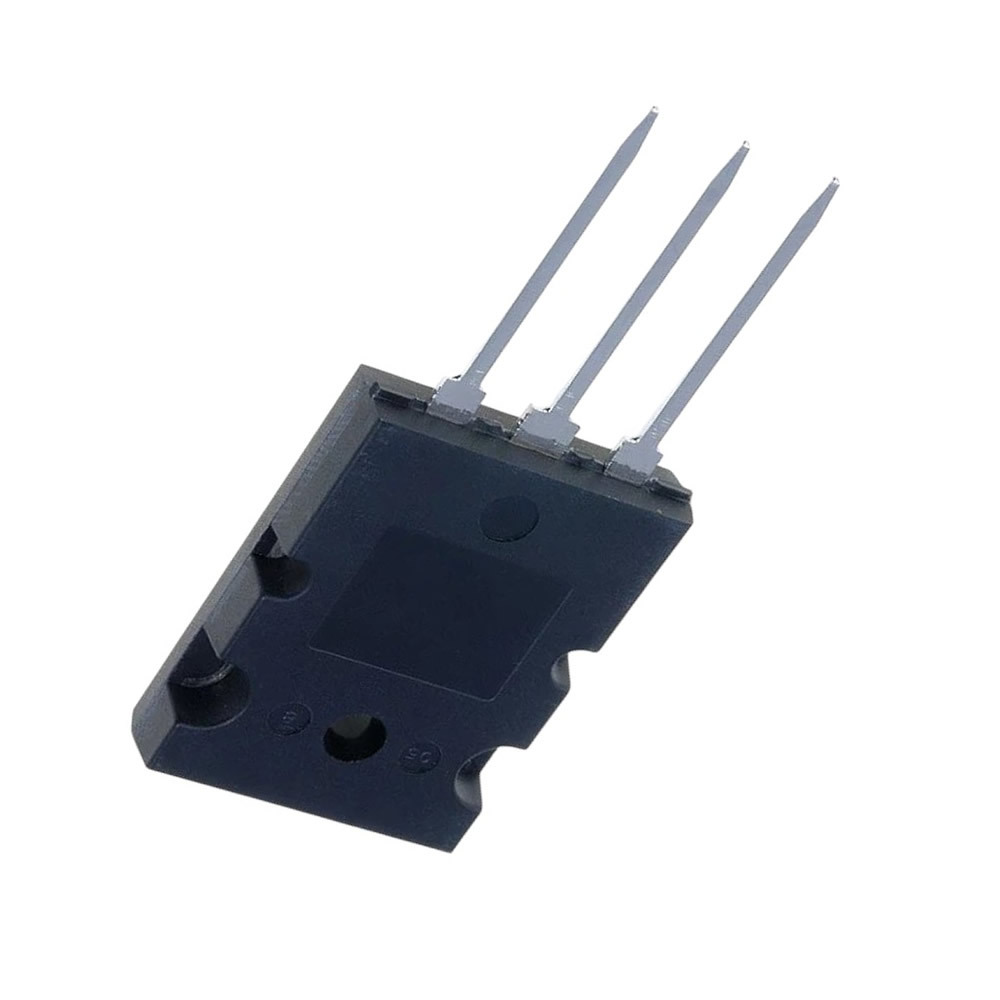

2SC3280R Transistor Silicon NPN CASE: TO264 MAKE: Panasonic
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case TO264
Manufacturer Panasonic
Polarity NPN
Maximum Collector Power Dissipation (Pc) 120 W
Maximum Collector-Base Voltage |Vcb| 160 V
Maximum Collector-Emitter Voltage |Vce| 160 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 12 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 220 pF
Transition Frequency (ft): 30 MHz
Forward Current Transfer Ratio (hFE), MIN 80
SKU 395260
