2SC3298Y
View detailed images (4)

2SC3298Y

SKU: 2SC3298Y

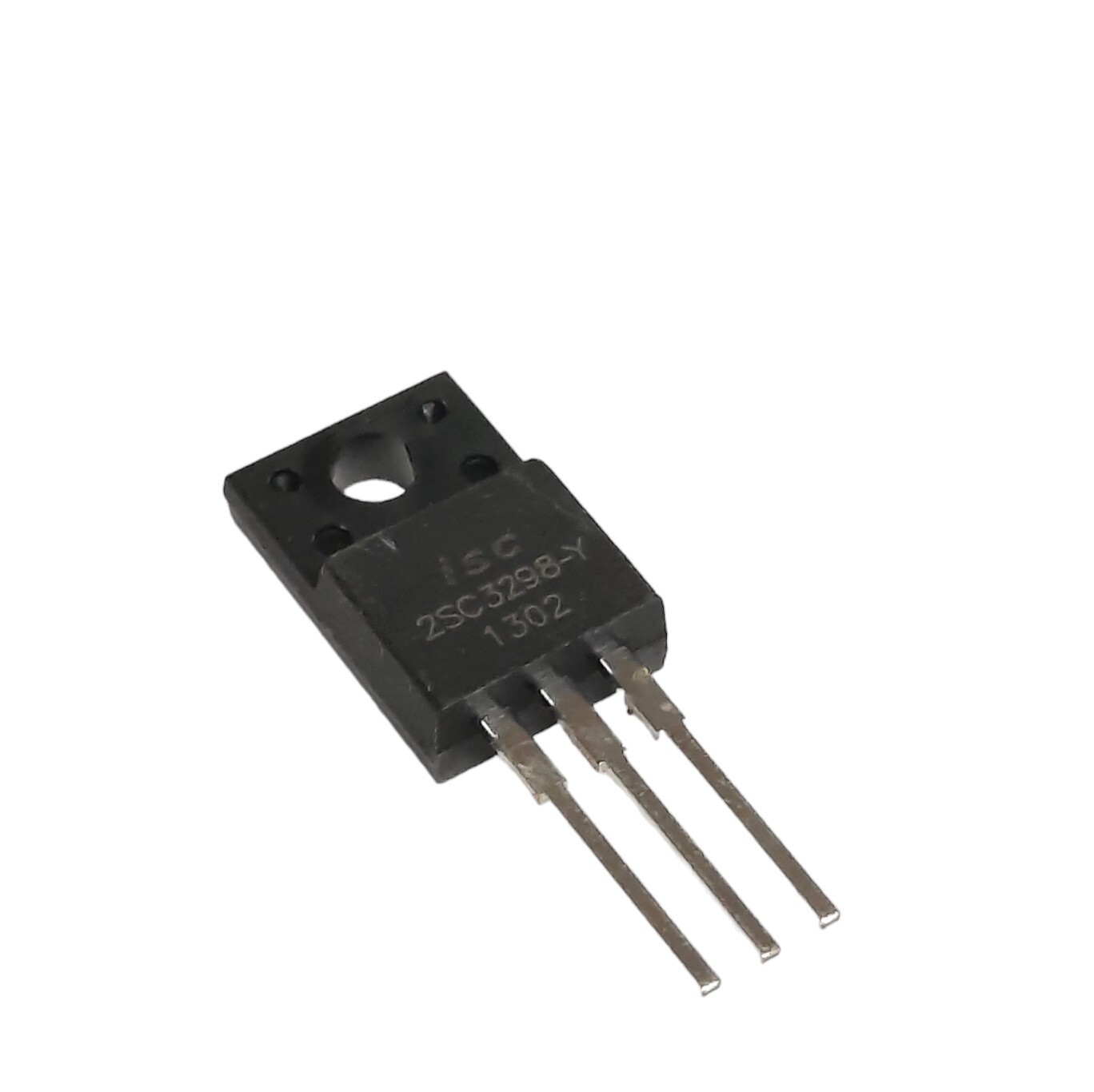

2SC3298Y Transistor Silicon NPN CASE: TO220F MAKE: Inchange Semiconductor - ISC
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
Product specifications
Equivalent 2SC3298
Type Transistor Silicon NPN
Case TO220F
Manufacturer Inchange Semiconductor - ISC
Vbr CBO 160
Vbr CEO 160
Max. PD (W) 25
Max. hFE 240
Min hFE 70
Ic Max. (A) 1.5
@Ic (test) (A) 100n
Icbo Max. @Vcb Max. (A) 100n
Polarity NPN
Derate Above 25°C .20
Trans. Freq (Hz) Min. 100M
Oper. Temp (°C) Max. 150
@VCE (V) 2.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 20 W
Maximum Collector-Base Voltage |Vcb| 160 V
Maximum Collector-Emitter Voltage |Vce| 160 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 1.5 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 25 pF
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN 120
SKU 395266
