2SC3302
View detailed images (13)

2SC3302

SKU: 2SC3302

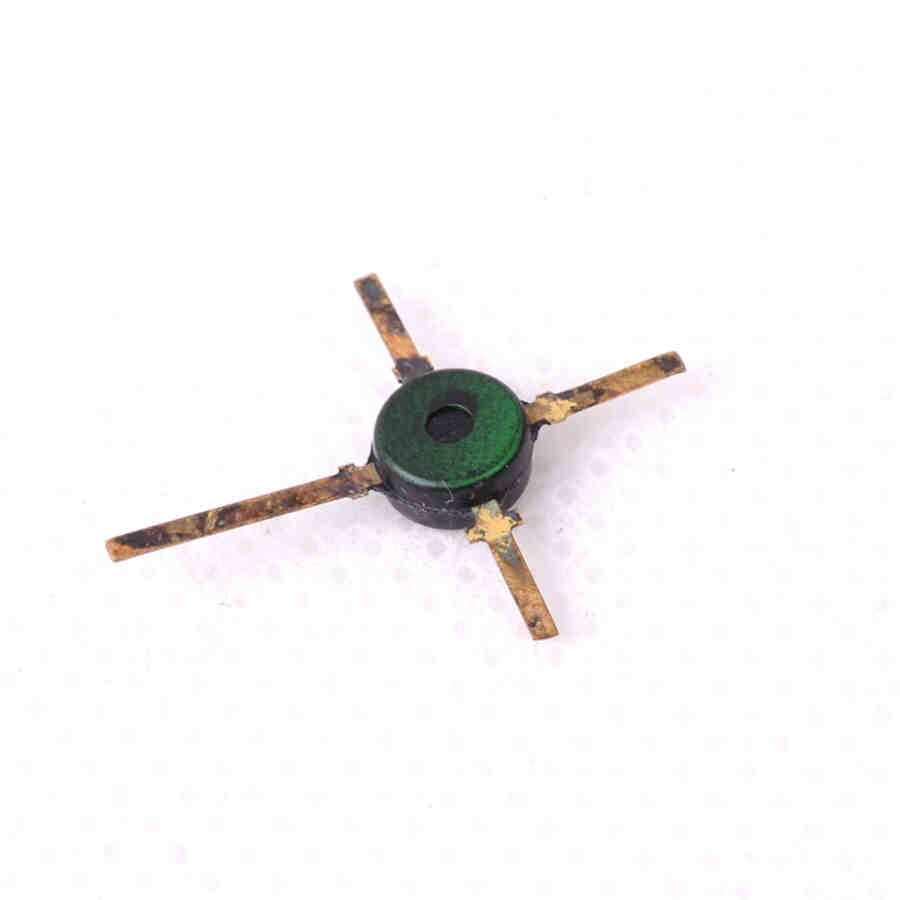

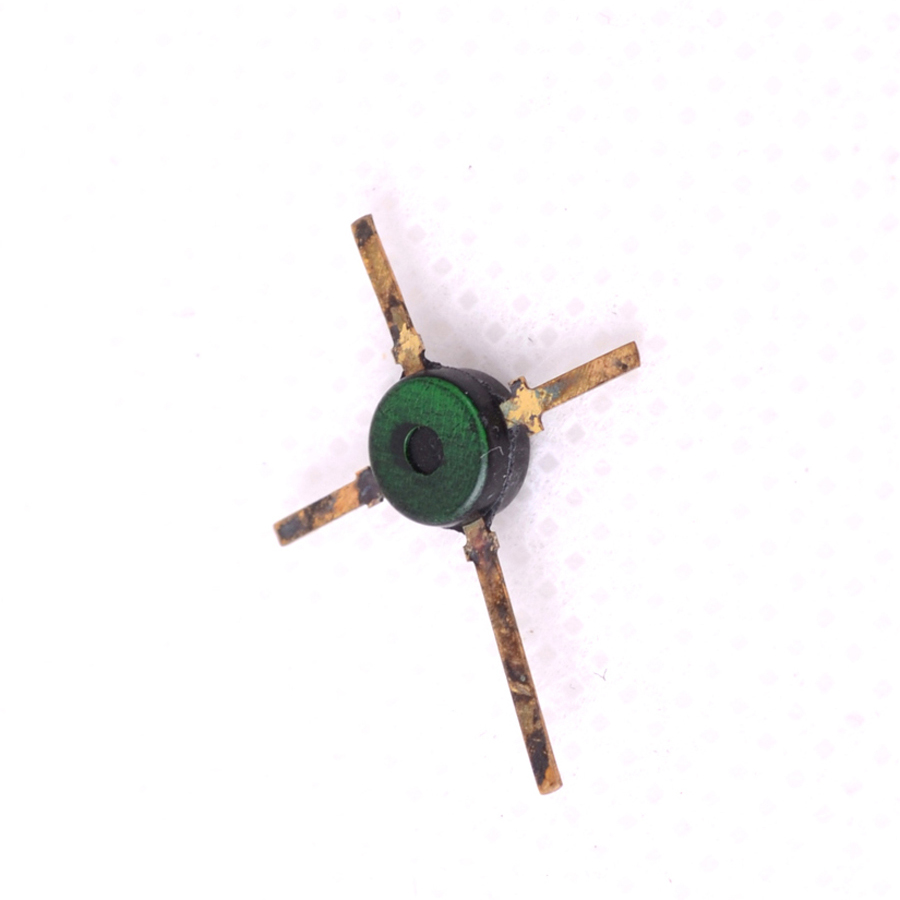

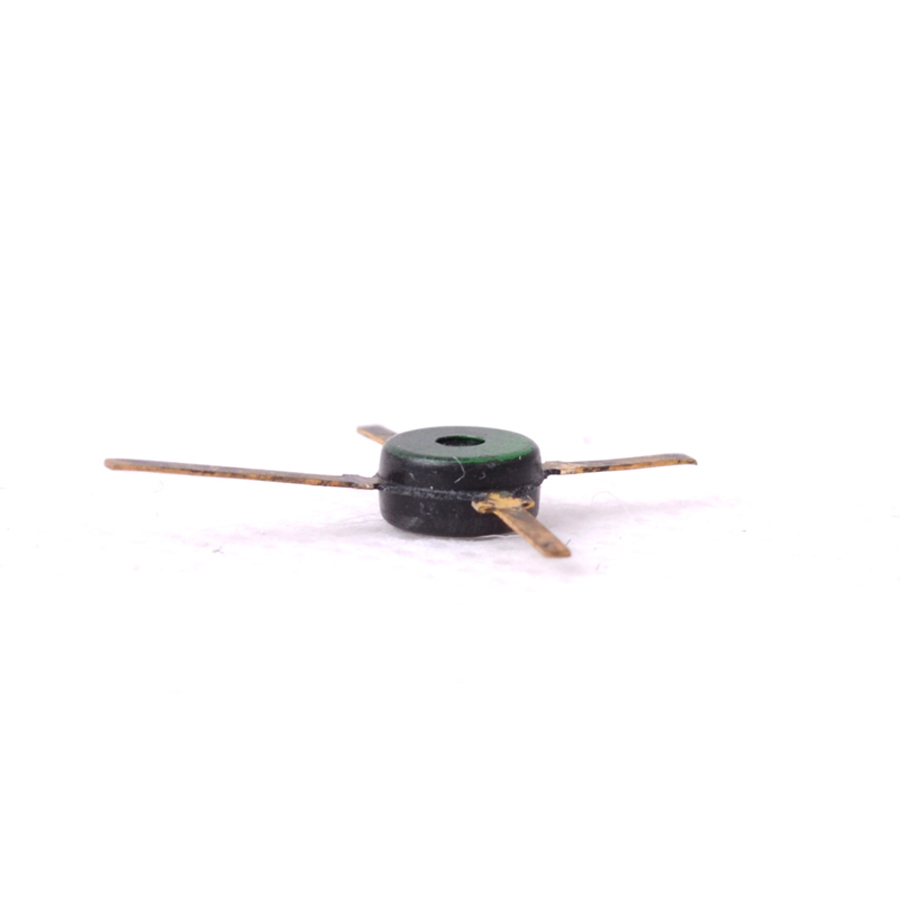

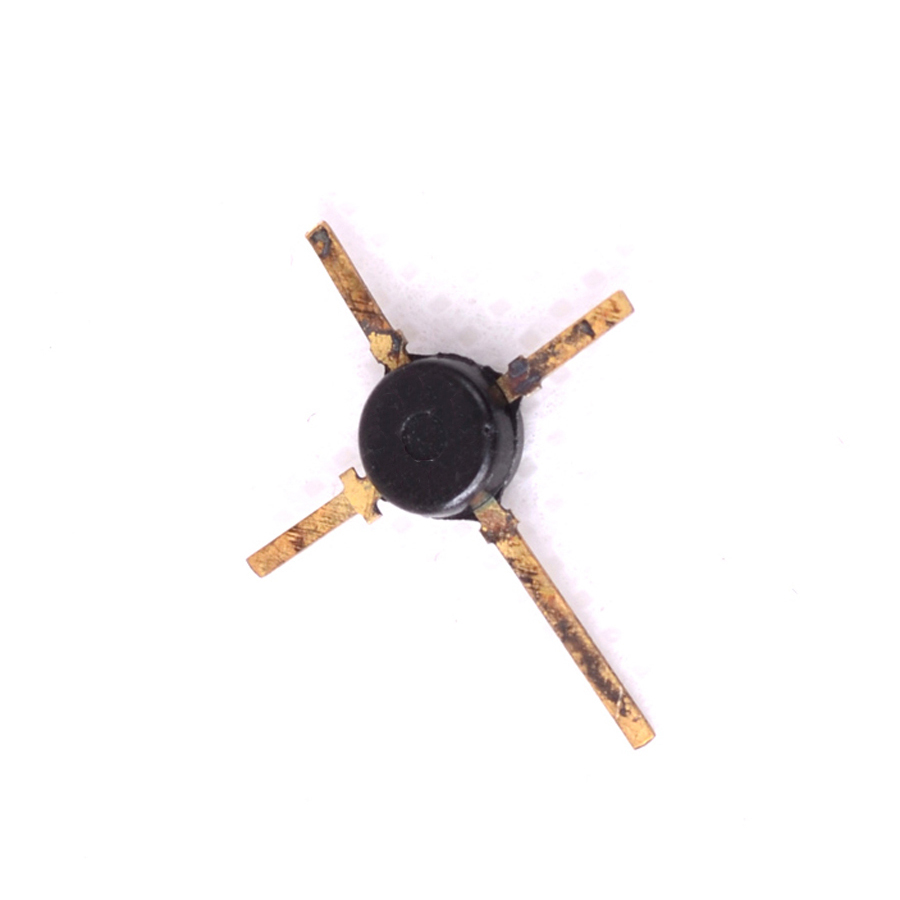

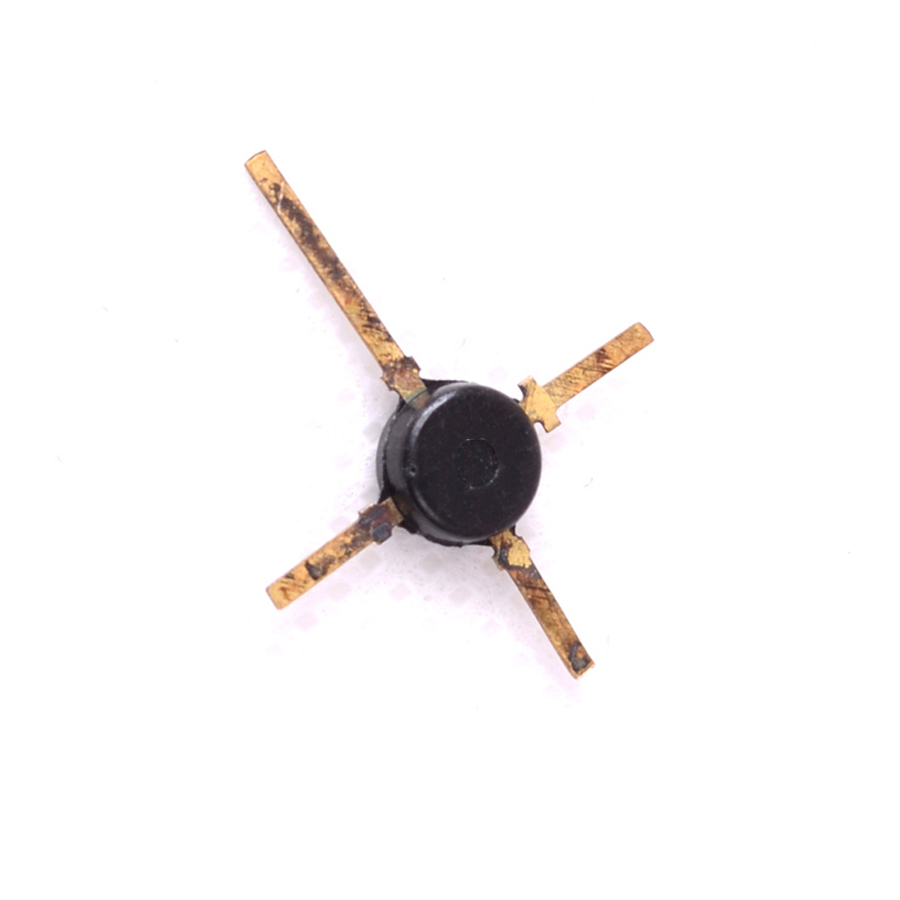

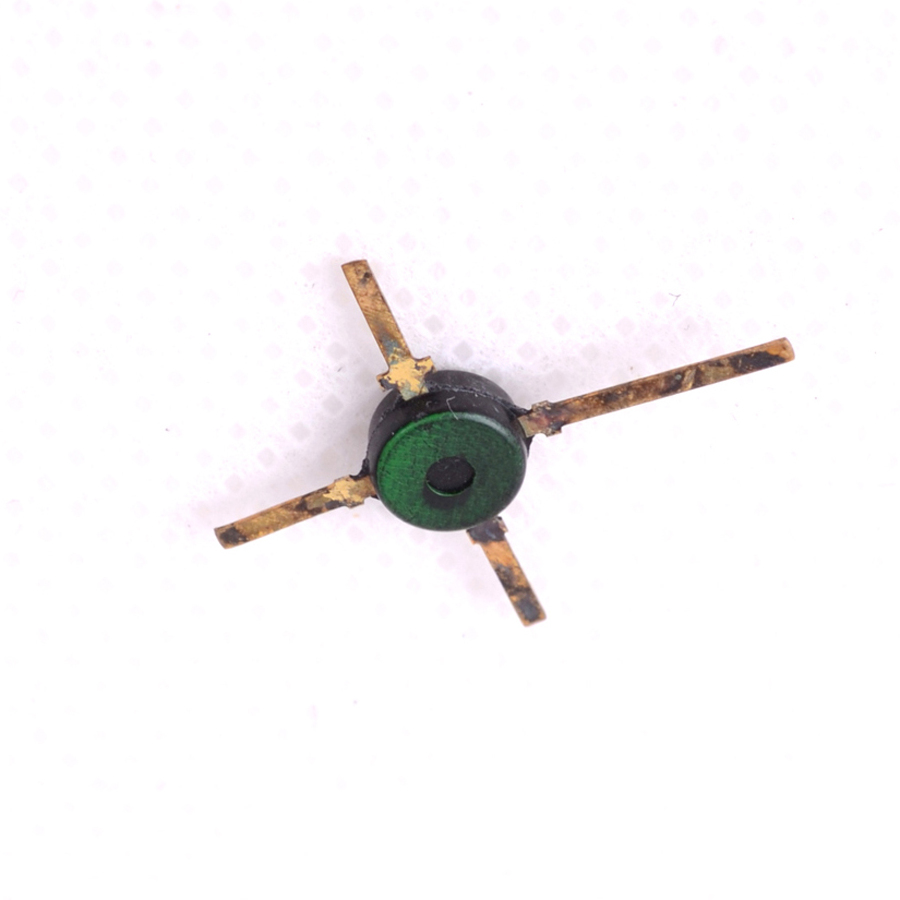

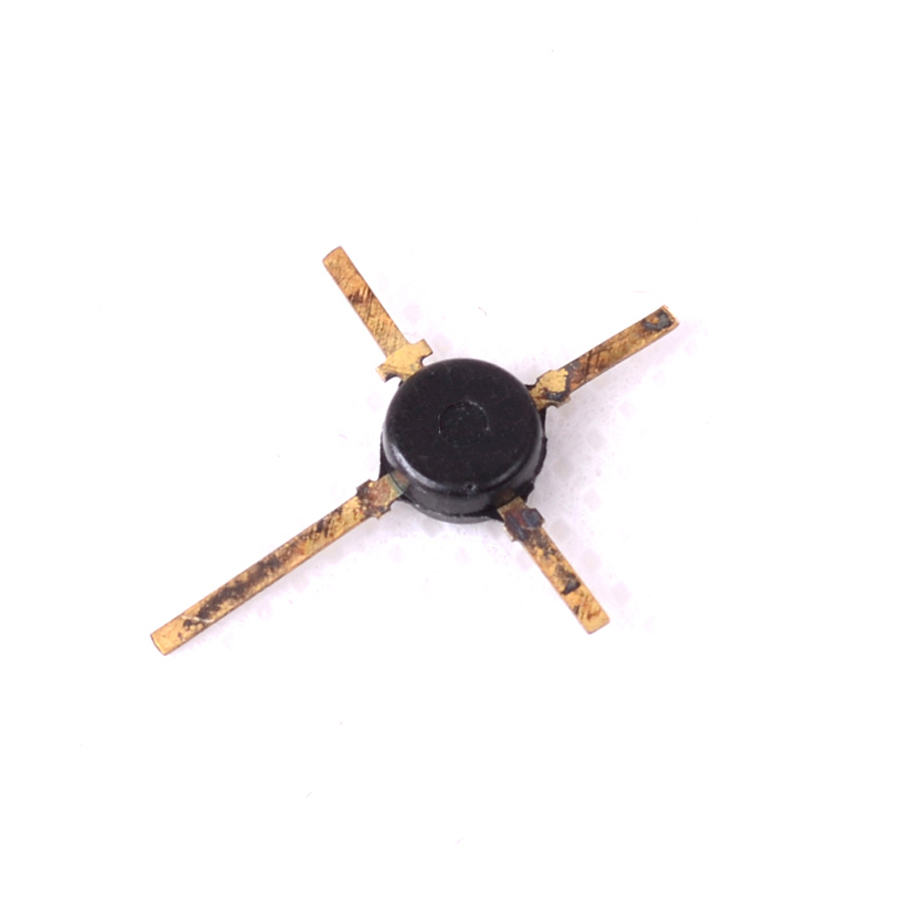

2SC3302 Transistor Silicon NPN CASE: SOT103 MAKE: Toshiba
Datasheet
2SC3302 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT103
Manufacturer Toshiba
Vbr CBO 17
Vbr CEO 12
Max. PD (W) 200m
C(ob) (F) .45p
Derate (Amb) (W/°C) 2.0m
hfe 25
Ic Max. (A) 70m
Icbo Max. @Vcb Max. (A) 1.0u
Polarity NPN
Trans. Freq (Hz) Min. 5.0G
@VCE (test) (V) 10
Oper. Temp (°C) Max. 125
@Ic (A) 20m
Pinout Equivalence Number 4-34
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 17 V
Maximum Collector-Emitter Voltage |Vce| 12 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.07 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 0.8 pF
Transition Frequency (ft): 5000 MHz
Forward Current Transfer Ratio (hFE), MIN 25
SKU 585224
